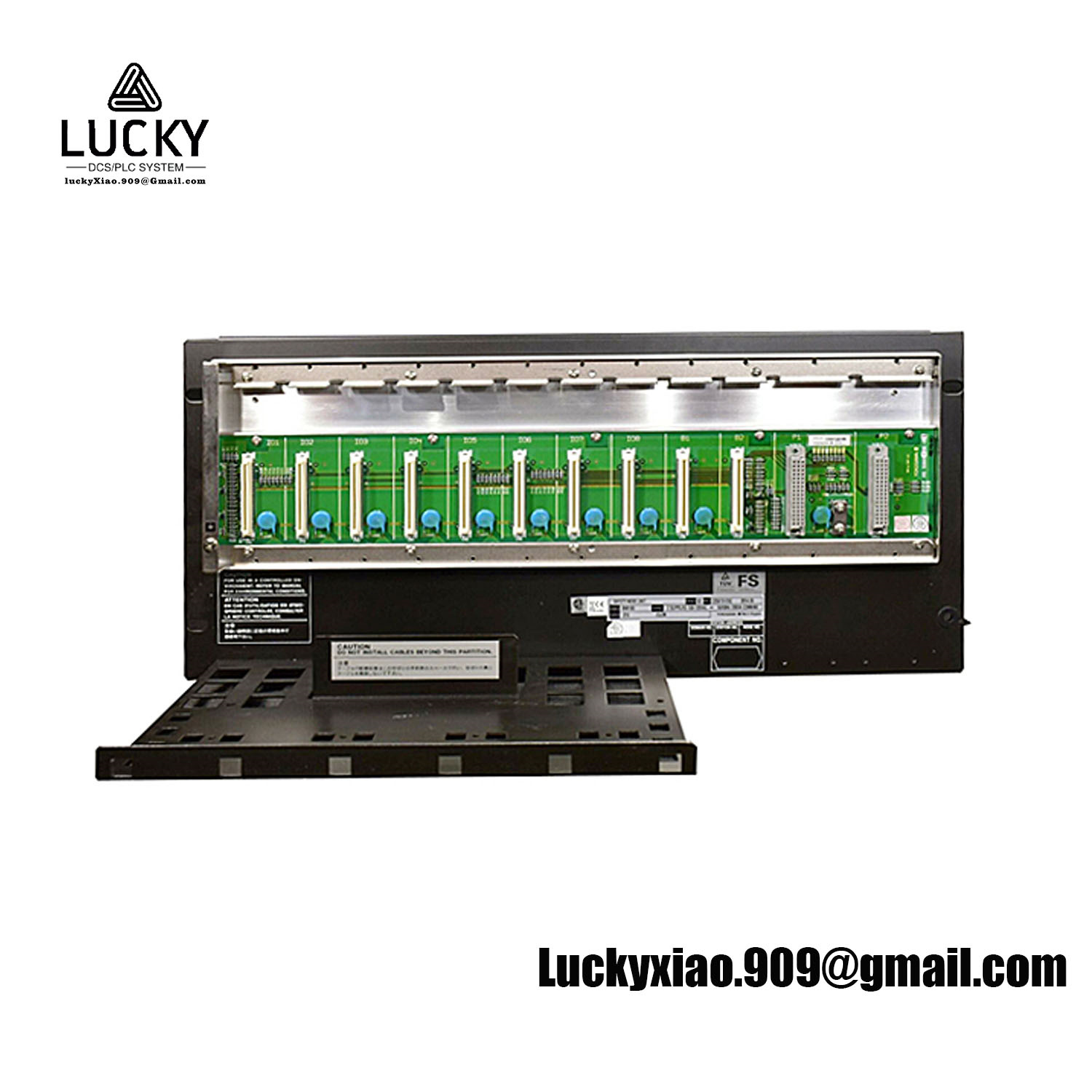

YOKOGAWA SNB10D-225/CU2N is a bus node unit produced by Yokogawa Electric Corporation in Japan. The following is a detailed introduction to the product:
1、 Product Overview
Brand: YOKOGAWA (Yokogawa)
model: SNB10D-225/CU2N
Type: Bus Node Unit
Function: ESB bus optical transmission
2、 Product Features
Dual redundancy configuration: SNB10D-225/CU2N supports dual redundancy configuration, which improves the reliability and stability of the system.
ESB bus connection: Through the built-in ESB bus connector unit (option code “/CU2N”), it can be easily connected to the ESB bus to achieve data transmission and communication.
Optical transmission function: Supports ESB bus optical transmission, which can extend the transmission distance of the bus and improve communication efficiency.
Multiple power options: Provides multiple power options, including 100 to 120V AC power, 220 to 240V AC power, and 24V DC power, to meet the needs of different application scenarios.
Wide application scope: Suitable for various industrial automation control systems, such as data acquisition, processing, and control in the fields of petroleum, chemical, and power.
3、 Technical specifications
Voltage: 24V (DC or AC, depending on the selected power source)
Current: Supports a current range of 100-400A (specific current may vary depending on different application scenarios)
Weight: Approximately 2KG
Packaging: intact
Input method: current input
Product certification: CE, etc. (there may be other certifications, please refer to the actual product for details)
ESB bus transmission distance: up to 5 kilometers through connecting ANT401 fiber optic cable
4、 Application Fields
SNB10D-225/CU2N is widely used in the field of industrial automation, especially in situations that require high reliability and long-distance communication. It can serve as a key component in the control system to achieve precise control and monitoring of the production process. Meanwhile, due to its support for dual redundancy configuration and optical transmission function, this product has broad application prospects in industries such as petroleum, chemical, and power.
5、 Precautions
Installation and maintenance: When installing SNB10D-225/CU2N, follow the operation manual and guidelines provided by Yokogawa Electric to ensure correct installation and connection. During maintenance, regular checks should be conducted on the operational status and performance of the equipment to promptly identify and address potential faults.
Compatibility check: Before integrating SNB10D-225/CU2N into the automation system, please make sure to check its compatibility with other components in the system to ensure stable operation.
