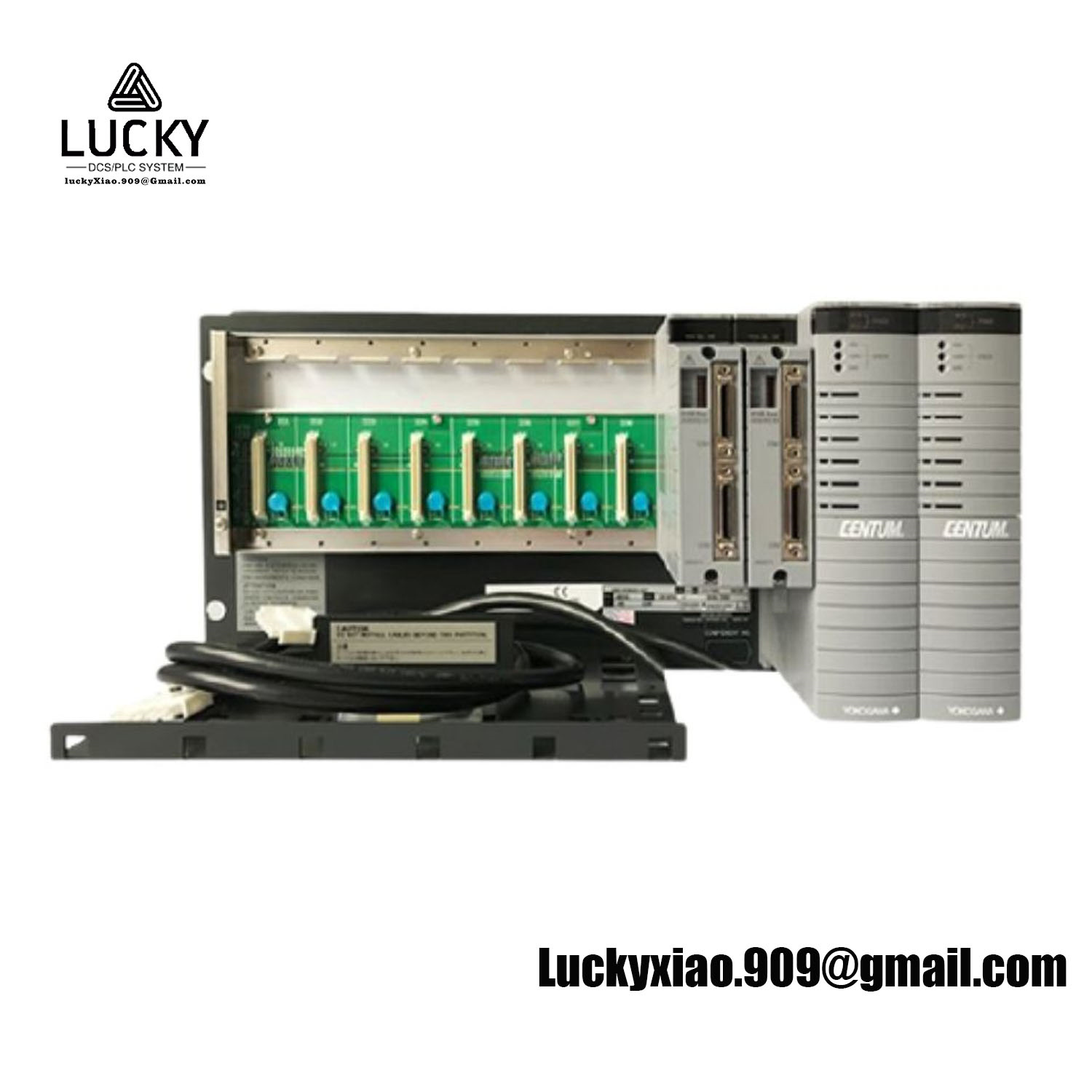

YOKOGAWA ANB10D-420/CU2N/NDEL is a DCS (Distributed Control System) card produced by Yokogawa Electric Corporation in Japan. The following is a detailed introduction to the product:
1、 Product Overview
Brand: YOKOGAWA (Yokogawa)
model: ANB10D-420/CU2N/NDEL
Type: DCS system card
Function: Data collection, processing, communication, control
2、 Product Features
The dual redundant bus ESB: ANB10D-420/CU2N/NDEL card has a dual redundant bus ESB (19 “rack mounted), which means it adopts a redundant design and can automatically switch to the backup line when the main line fails, ensuring the stability and reliability of the system.
CU2N module: This card is equipped with a CU2N module, which may indicate its role in the ESB bus connector unit.
Node extension software license: The NDEL suffix may represent a node extension software license, which means that the card needs to be connected to specific software such as AFF50 or AFV10 to achieve more functionality.
Widely applicable in various fields such as environmental protection, chemical engineering, energy, electronics, and electrical engineering.
3、 Technical specifications
model: ANB10D
Suffix code: -4 (indicating dual redundant power supply)
Power requirements:
100-120V AC power supply
220-240V AC power supply
24V DC power supply (basic type)
Additional code:/ CU2N (representing the ESB bus connector unit)
4、 Functions and Applications
Data acquisition and processing: As part of the DCS system, ANB10D-420/CU2N/NDEL cards are commonly used to connect and control various sensors, actuators, and other devices. They are responsible for collecting on-site data and transmitting it to the DCS system for processing and analysis.
Communication function: This card is an important component in the DCS system, used to connect the DCS system with other devices such as PLC, SCADA system, human-machine interface, etc. They support multiple communication protocols for data exchange with other devices.
Control function: As part of the Yokogawa DCS series products, the ANB10D-420/CU2N/NDEL card can measure, monitor and control the production process of large factories such as petroleum and chemical plants.
Software compatibility: As the ANB10D-420/CU2N/NDEL card requires connection with specific software such as AFF50 or AFV10, it can be integrated with other Yokogawa software to achieve higher levels of automation control and data analysis.
5、 Precautions
Installation and maintenance: When installing and maintaining ANB10D-420/CU2N/NDEL cards, the operating manual and guidelines provided by Yokogawa Electric should be followed to ensure correct installation and avoid potential failures.
Compatibility check: Before integrating this card into the DCS system, please make sure to check its compatibility with other components in the system.
Professional support: If you encounter any issues or malfunctions regarding the ANB10D-420/CU2N/NDEL card, please contact Yokogawa Electric or the relevant system integrator for professional support.
In summary, YOKOGAWA ANB10D-420/CU2N/NDEL is a powerful and highly stable DCS system card suitable for data acquisition, communication, and control applications in multiple industrial fields. When purchasing and using, please be sure to follow the relevant manuals and guidelines, and ensure compatibility with other components in the system.
