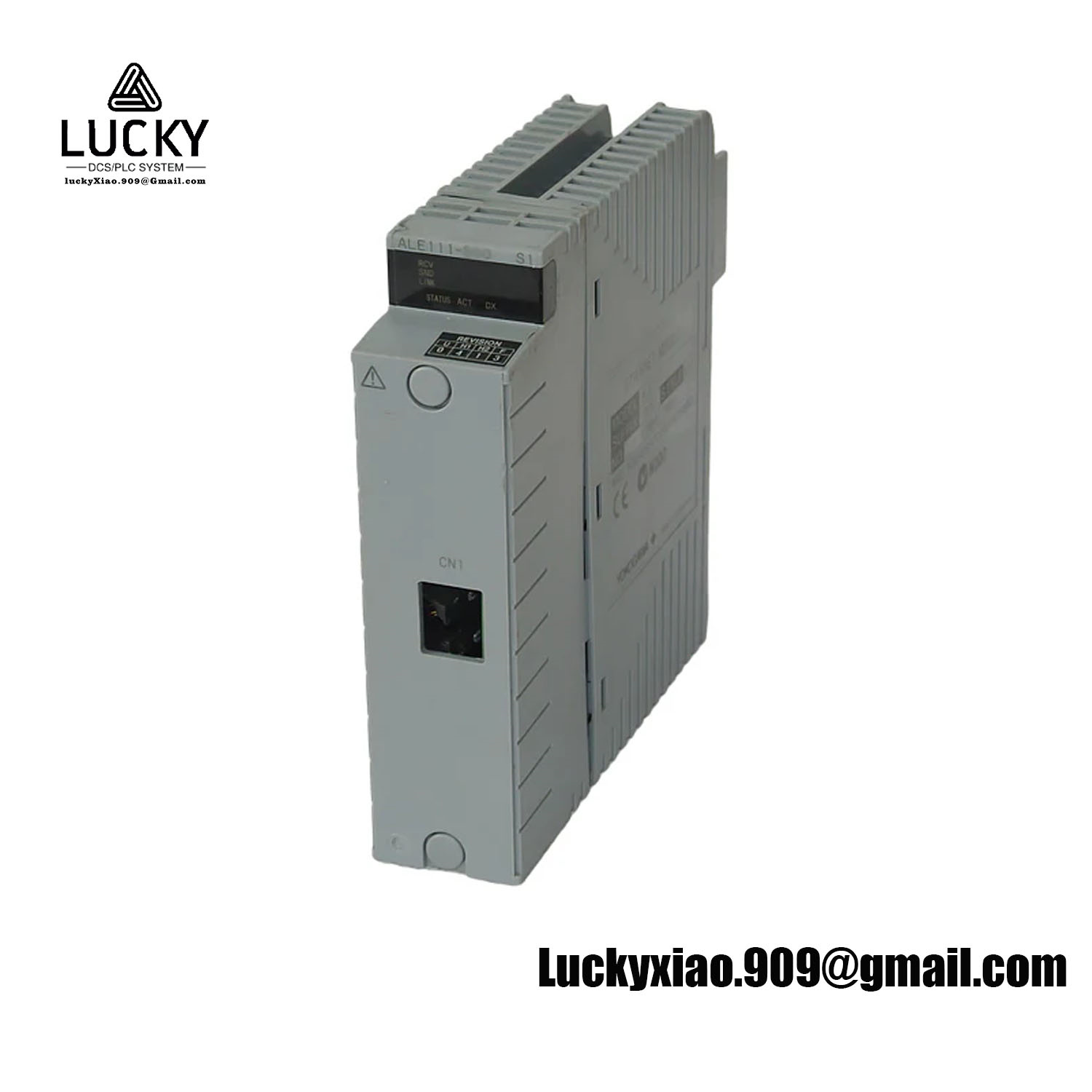

YOKOGAWA ALE111-S50 is an Ethernet communication module produced by Yokogawa Electric Corporation in Japan. The following is a detailed introduction of the module:
1、 Product Overview
ALE111-S50 is a key communication module in the Yokogawa DCS (Distributed Control System) system, mainly used to achieve communication between subsystems within the system. This module exchanges data with other devices through the FIO (Field Input/Output) interface to ensure the smooth operation of the entire DCS system.
2、 Technical specifications
Module type: Ethernet communication module
Number of channels: (As a communication module, it mainly focuses on its communication capability, rather than the specific number of channels used for data input and output)
Communication protocol: Supports industrial communication protocols such as Modbus
Power Supply Voltage: Supports multiple power supply voltages such as 24VDC, 12VDC, 220VAC, etc., making it convenient to be compatible with different power supply systems
Size: 72 x 96 x 53 millimeters, compact design makes it easy to install in various industrial environments
Weight: 200 grams, lightweight and sturdy, suitable for various industrial application scenarios
3、 Functional Features
Subsystem Communication: The ALE111-S50 module is used to achieve communication between subsystems within the Yokogawa DCS system. It exchanges data with other devices through the FIO interface to ensure accurate transmission of information.
Bus node unit communication: This module can be installed in ESB bus node units (such as ANB10S, ANB10D) and ER bus node units (such as ANR10S, ANR10D) to achieve communication between them. At the same time, it can also be installed in compact field control units (such as AFF50S, AFF50D, AFV10S, AFV10D) to achieve communication with field devices.
Compatibility and Openness: The ALE111-S50 module has an open architecture and is compatible with other communication modules of Yokogawa Electric, such as ALR121-S50. This compatibility ensures that users can flexibly build and expand their DCS systems.
4、 Application scenarios
The ALE111-S50 module is widely used in various industrial automation and process control fields, such as petroleum, chemical, power, pharmaceutical and other industries. In these applications, modules can ensure smooth communication between various subsystems within the DCS system, thereby achieving precise process control and monitoring.
5、 Precautions and Maintenance
Installation requirements: When installing the ALE111-S50 module, ensure that the corresponding conditions are met. For example, when installing the module on the ER bus node unit, it is necessary to ensure that the firmware version of EB401 is R3 or higher and the software version is R3.05 or higher.
Regular inspection: Regularly checking the operation status and performance of the module is the key to ensuring its long-term stable operation. Users should regularly inspect and maintain ALE111-S50 to promptly identify and address potential issues.
Fault handling: If there is a module malfunction or abnormal phenomenon, users should promptly contact Yokogawa Electric’s after-sales service department or professional maintenance personnel for handling. Avoid disassembling or repairing the equipment on your own, which may cause further damage or safety hazards.
In summary, YOKOGAWA ALE111-S50 is a powerful and stable Ethernet communication module suitable for various complex industrial automation and process control requirements. Its high compatibility, openness, and flexibility make it widely applicable in the field of industrial automation.
