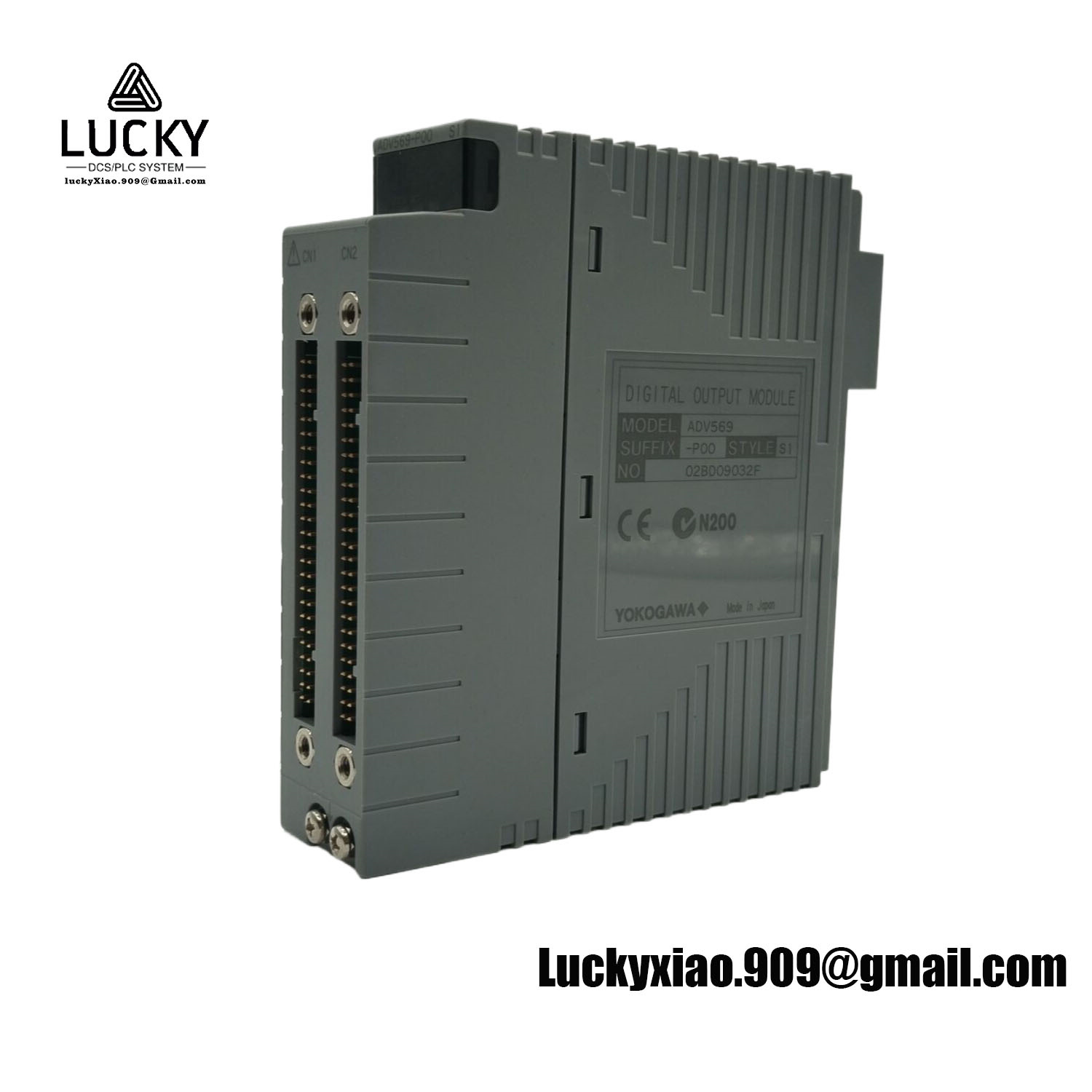

YOKOGAWA ADV569-P00 is a digital output module produced by Yokogawa Electric Corporation in Japan. The following is a detailed introduction of the module:
1、 Product Overview
ADV569-P00 is a high-performance industrial automation equipment from YOKOGAWA, mainly used for output control of digital signals. Its design complies with the standards of industrial automation systems and aims to provide stable and reliable digital output functionality.
2、 Technical specifications and functions
Number of channels: ADV569-P00 has 64 channels of digital output, with a shared negative terminal for every 16 channels. This feature makes it very suitable for industrial applications that require simultaneous control of multiple devices.
Signal isolation: This module provides channel isolation function to ensure that the signals between each output channel do not interfere with each other, thereby improving the stability and reliability of the system.
Pulse width function: ADV569-P00 supports pulse width modulation (PWM) and time proportional output functions. This function enables the module to accurately control the operating status of equipment such as motors and valves, meeting the precise control requirements in industrial automation control.
High precision and low drift: This module has high precision and low drift characteristics, ensuring the stability and accuracy of the output signal. This enables ADV569-P00 to maintain stable performance in various industrial environments.
Working temperature range: ADV569-P00 can operate normally within the temperature range of -10 ℃ to+55 ℃, suitable for various harsh industrial environments.
3、 Application Fields
Industrial automation control: ADV569-P00 can be widely used in various industrial automation control scenarios, such as production lines, robots, packaging machinery, etc. In these applications, modules can achieve precise control of various devices, improving production efficiency and quality.
Process control: In industries such as chemical, petroleum, and power, ADV569-P00 can be used for measuring and controlling parameters such as temperature, pressure, and liquid level. The high precision and low drift characteristics of the module enable it to accurately measure and control these parameters, thereby ensuring the stability and safety of the production process.
Environmental monitoring: This module can also be used in environmental monitoring systems, such as air quality monitoring, water quality monitoring, etc. By precisely controlling the operating status of monitoring equipment, ADV569-P00 can achieve real-time monitoring and control of environmental parameters, providing strong support for environmental protection.
4、 Precautions and Maintenance
Installation and wiring: When installing ADV569-P00, ensure that the power wiring is correct to avoid equipment damage caused by reverse connection or short circuit. At the same time, attention should be paid to the installation position of the module, avoiding harsh environments such as direct sunlight and rain.
Regular inspection: Regularly checking the operation status and performance of the module is the key to ensuring its long-term stable operation. Users should regularly inspect and maintain ADV569-P00 to promptly identify and address potential issues.
Fault handling: If there is a module malfunction or abnormal phenomenon, users should promptly contact Yokogawa Electric’s after-sales service department or professional maintenance personnel for handling. Avoid disassembling or repairing the equipment on your own, which may cause further damage or safety hazards.
In summary, YOKOGAWA ADV569-P00 is a powerful and stable digital output module suitable for various complex industrial automation control needs. Its high precision, low drift, multi-channel output, and signal isolation make it widely applicable in the field of industrial automation control.
