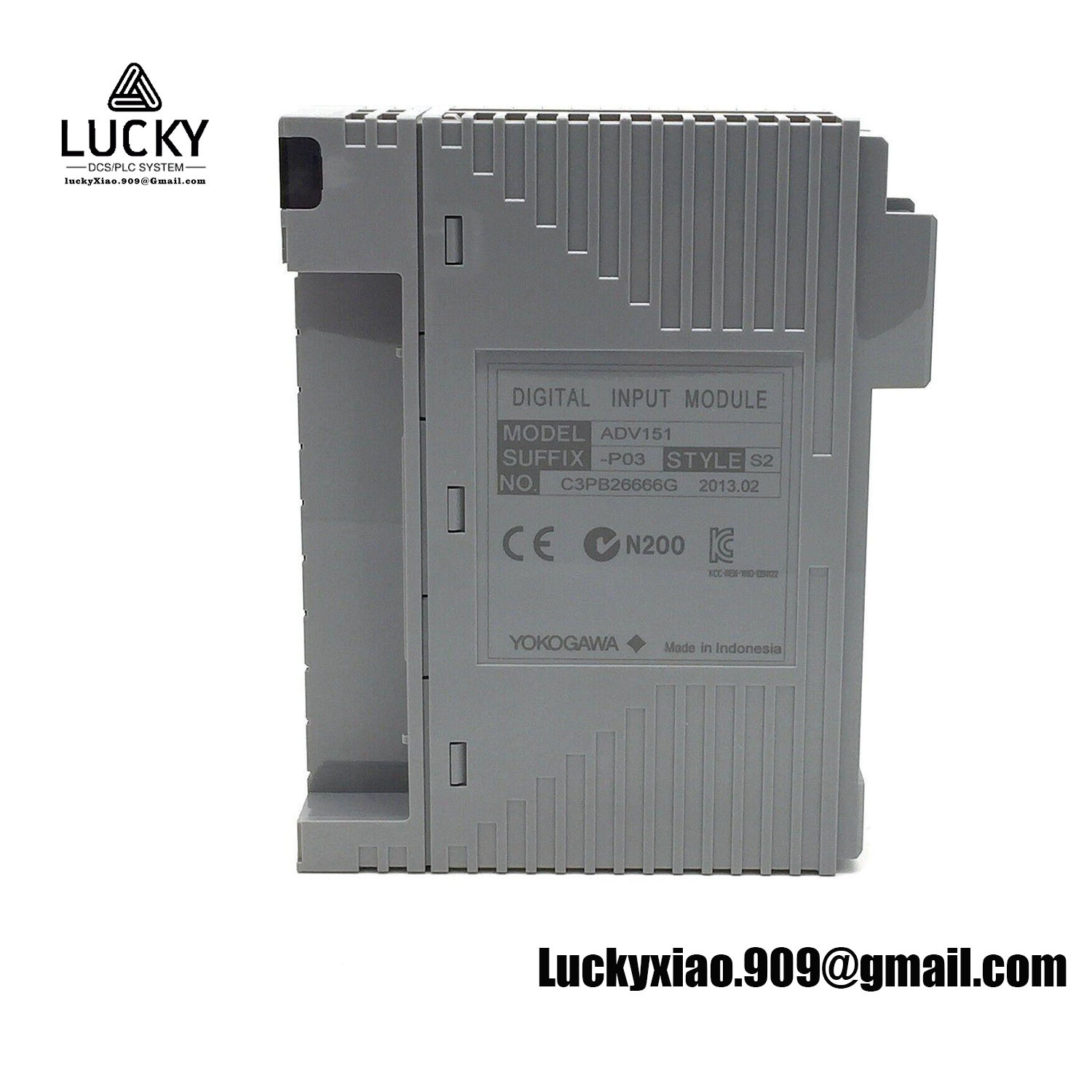

YOKOGAWA ADV151-P50/D5A00 is a digital input module produced by Yokogawa, Japan. The following is a detailed introduction to the product:
1、 Product Overview
Brand: YOKOGAWA (Yokogawa)
model: ADV151-P50/D5A00
Type: Digital Input Module
Origin: Japan
2、 Product Features
Multi channel design: ADV151-P50/D5A00 has 32 digital input channels, which can simultaneously collect multiple digital signals, improving the system’s collection efficiency and flexibility.
Isolation power supply: Designed with a 24V DC isolation power supply, it ensures the stability and safety of input signals and reduces the impact of external interference on the system.
High performance: This module has a fast input response time (usually less than 8ms), and can collect and transmit digital signals in real time, ensuring the real-time and accuracy of the system.
Multiple suffix codes to choose from: By using different suffix codes (such as/D5A0,/B5S00, etc.), different cable interface adapters and wiring methods can be selected to meet the needs of different application scenarios.
Easy to integrate: The ADV151-P50/D5A00 module adopts standardized interfaces and communication protocols, making it easy to integrate and communicate with other industrial automation equipment, reducing the difficulty of system integration.
3、 Technical specifications
Number of input channels: 32 channels
Rated input voltage: 24V DC (drain/source)
Input ON voltage: 18 to 26.4V DC
Input OFF voltage: 5.0V DC
Input current (at rated input voltage): 4.1mA ± 20%/channel
Maximum allowable input voltage: 30.0V DC
Voltage resistance: 2kV AC (1 minute) between the input signal and the system, and 500V AC (continuous for 1 minute, every 16 channels of the common terminal) between the common terminals
Input response time: 8ms or less (for status input)
4、 Application Fields
The ADV151-P50/D5A00 module is widely used in various industrial automation control systems, such as manufacturing, energy, chemical industries, etc. In the manufacturing industry, it can be used for automation control on production lines, improving production efficiency and product quality. In the energy industry, it can be used for automated control and monitoring of processes such as power generation, transmission, and distribution. In the chemical industry, it can be used for automation control and safety monitoring of chemical production processes.
5、 Purchase and maintenance suggestions
Regular inspection and maintenance: Regularly inspect and maintain the ADV151-P50/D5A00 module, including checking whether the connecting cables, wiring terminals, etc. are loose or damaged, as well as cleaning the dust and dirt on the surface of the module.
In summary, YOKOGAWA ADV151-P50/D5A00 is a high-performance, multi-channel, and easy to integrate digital input module that can meet the needs of various industrial automation control systems
