UFC760BE1041 3BHE004573R1041 – ABB – Universal Field Controller

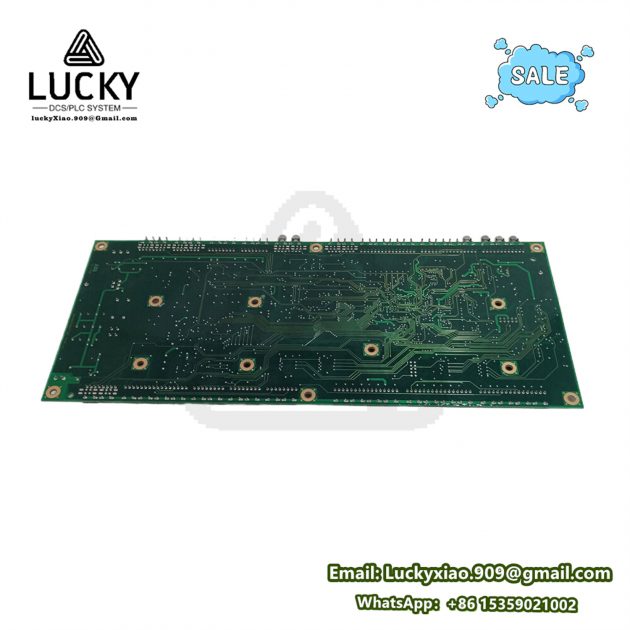

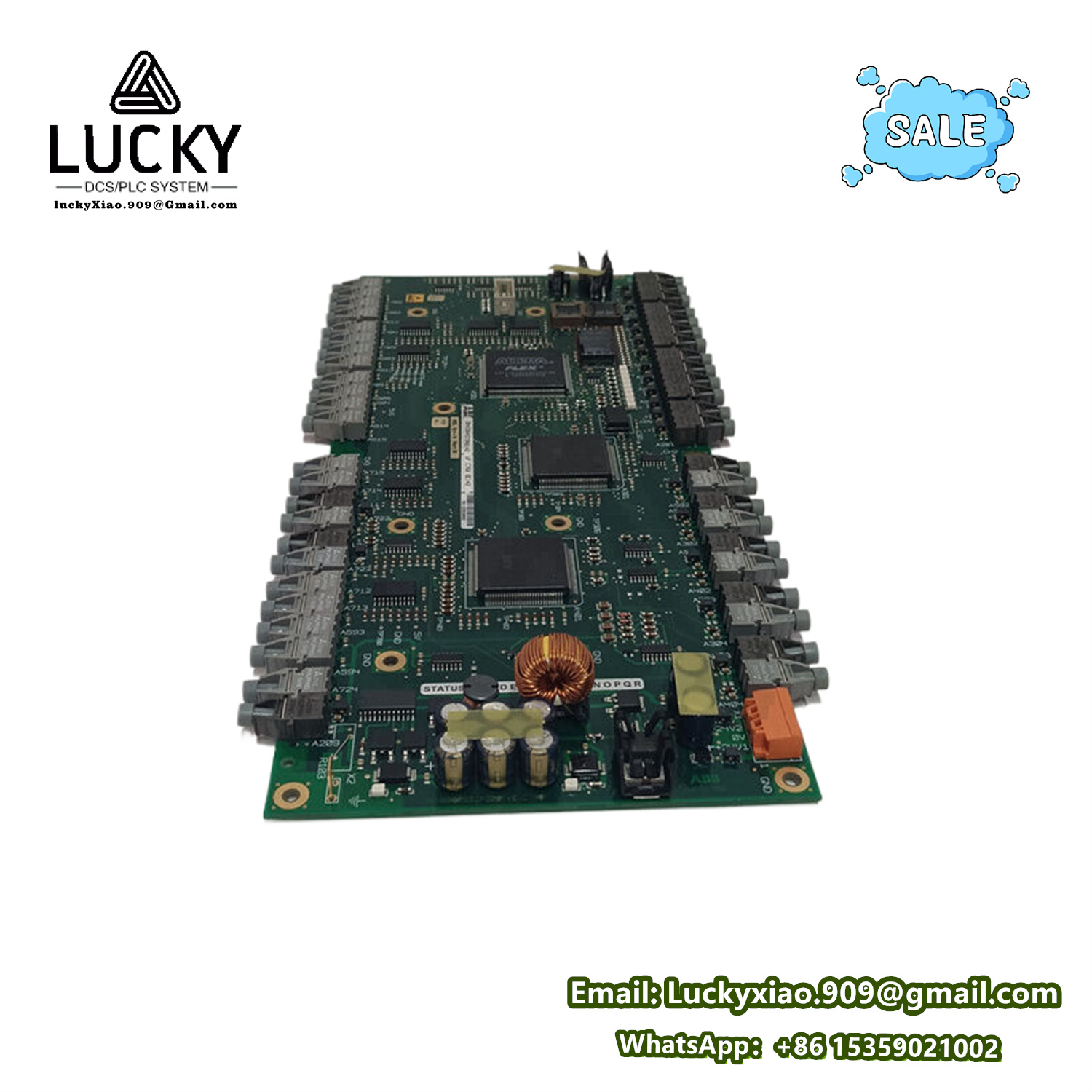

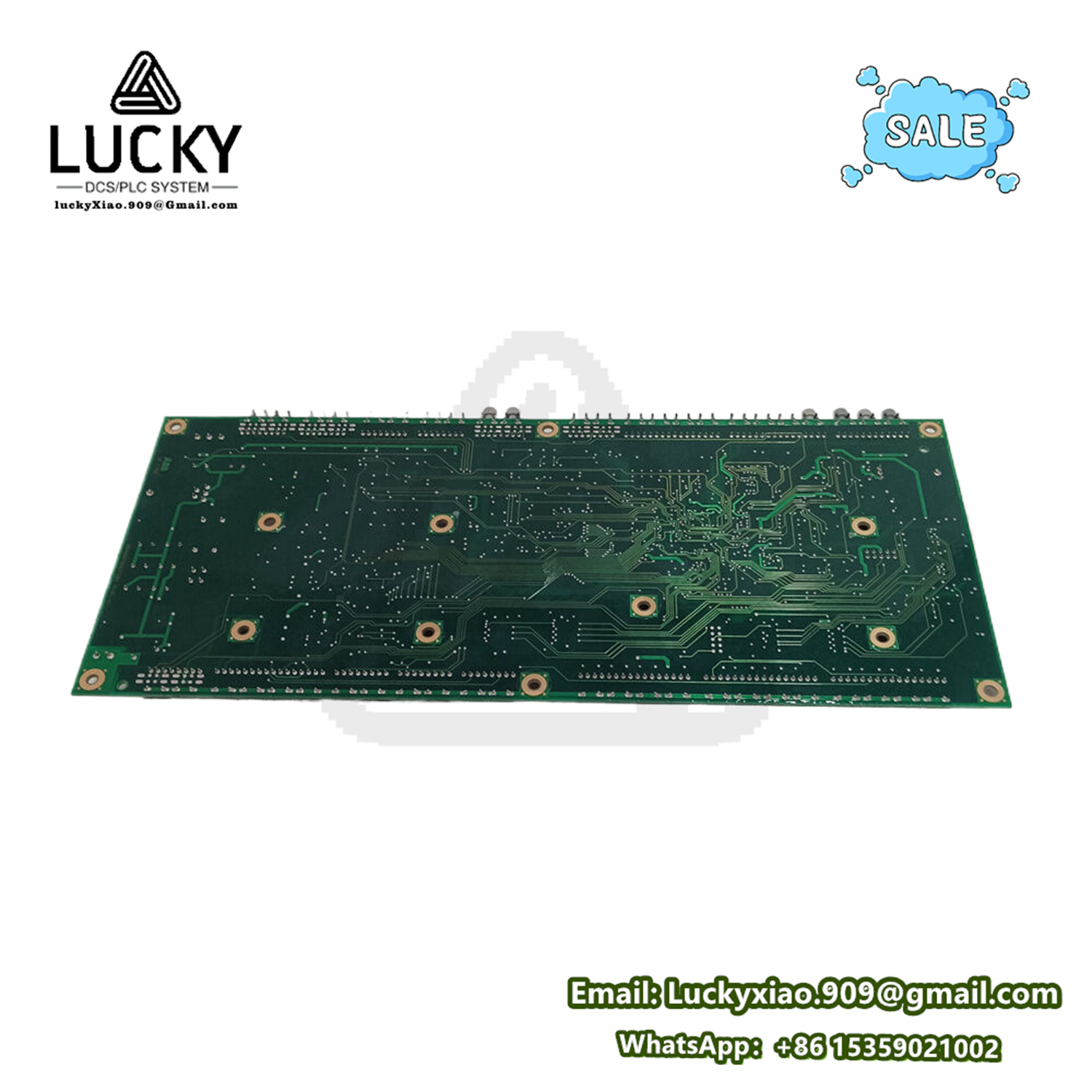

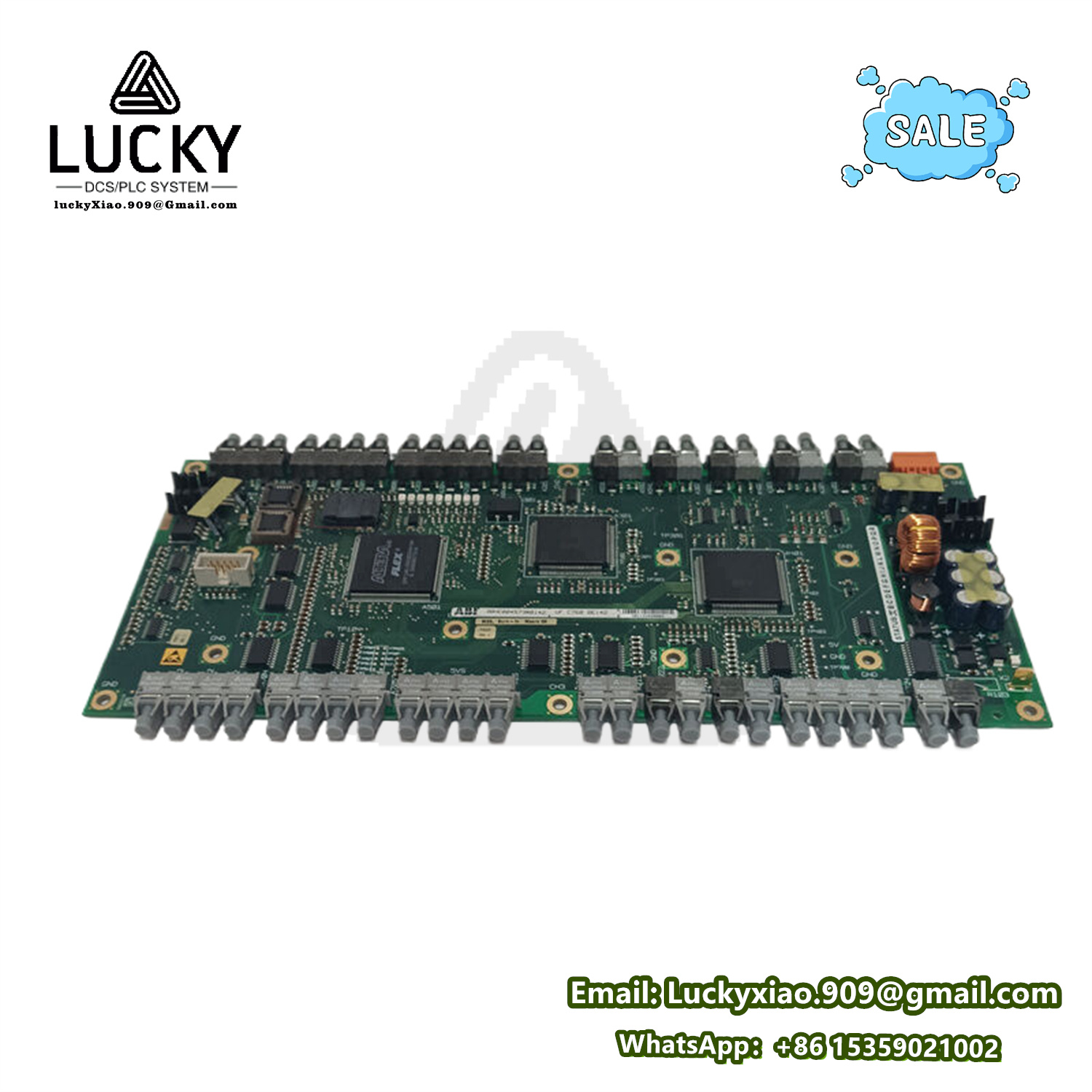

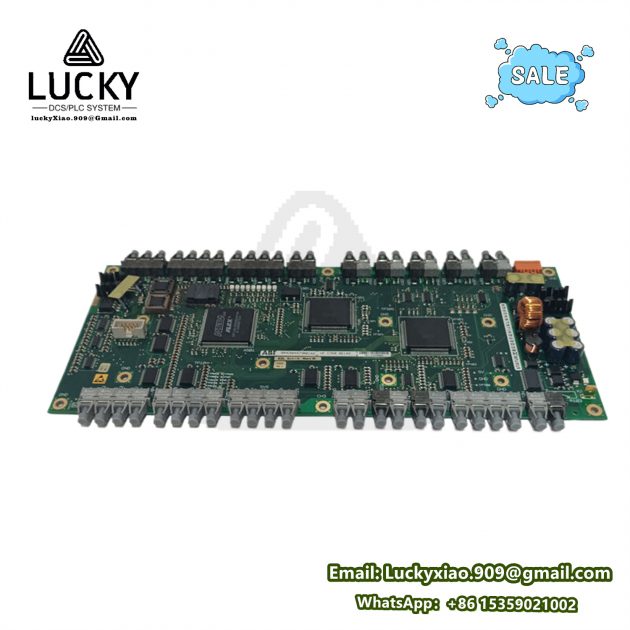

ABB UFC760BE1041 3BHE004573R1041 Universal Field Controller

The ABB UFC760BE1041 3BHE004573R1041 is a robust, modular field controller designed for industrial automation and process control applications. It acts as a critical interface between field devices (sensors, actuators) and higher-level control systems like ABB’s System 800xA or third-party Distributed Control Systems (DCS). This controller excels in real-time data acquisition, logic execution, and communication protocol integration, making it ideal for industries requiring precision, scalability, and reliability in harsh operational environments such as oil and gas, chemical plants, and power generation. Its advanced diagnostics and flexible I/O configuration ensure seamless integration into both new installations and legacy automation networks.

Technical Specifications

1. Hardware:
   • Processor: 32-bit RISC CPU with real-time operating system (RTOS).
   • Memory: 16 MB Flash (firmware/program storage), 8 MB RAM (runtime data).
   • Power Supply: 24 VDC (±20%), 10–30 W typical consumption.
   • Operating Temperature: -25°C to +70°C (-13°F to +158°F).
   • Protection Class: IP20 (standard) with optional ruggedized housing for extreme conditions.
   • Certifications: CE, UL, RoHS, and optional ATEX/IECEx for hazardous areas.
2. Communication Interfaces:
   • Fieldbus Protocols: PROFIBUS DP, Modbus RTU/TCP, Ethernet/IP.
   • Ethernet Ports: Dual 10/100 Mbps ports with TCP/IP support for redundancy and network integration.
   • Serial Ports: Configurable RS-232/RS-485 for legacy device connectivity.
3. I/O Capabilities:
   • Analog Inputs/Outputs: 16-bit resolution, ±0.1% accuracy.
   • Digital I/O: 24 VDC isolated channels (sink/source configurable).
   • Specialized I/O: Pulse inputs (up to 10 kHz), thermocouple/RTD support.

Key Functional Features

1. Real-Time Process Control:
   • Executes PID loops, logic sequences, and safety interlocks with sub-10 ms cycle times.
   • Supports IEC 61131-3 programming standards (FBD, LD, ST) for custom logic development.
2. Multi-Protocol Integration:
   • Seamlessly interfaces with ABB’s AC 800M controllers, System 800xA, and third-party SCADA/PLCs via PROFIBUS, Modbus, or OPC UA.
   • Enables cloud connectivity for remote monitoring and predictive maintenance analytics.
3. Advanced Diagnostics:
   • Monitors hardware health, communication errors, and process deviations in real time.
   • Stores 5,000+ timestamped event logs for troubleshooting and compliance reporting.
4. Scalability and Redundancy:
   • Expandable with remote I/O modules (e.g., ABB S800 series) via PROFIBUS or Ethernet.
   • Supports hot-swappable components and redundant communication paths for mission-critical operations.
5. Cybersecurity:
   • Implements role-based access control, encrypted communication (VPN/IPsec), and firewall protection.

Applications

• Oil & Gas: Wellhead control, pipeline pressure monitoring, and emergency shutdown systems.
• Chemical Processing: Reactor temperature control, batch sequencing, and safety interlocks.
• Power Generation: Turbine governor control, grid synchronization, and substation automation.
• Water Treatment: Pump control, flow regulation, and pH monitoring.

Installation and Configuration

1. Mounting:
   • Install on DIN rail or panel with proper grounding to minimize electrical noise.
2. Wiring:
   • Connect 24 VDC power supply and shielded communication cables (PROFIBUS/Modbus).
   • Wire analog/digital I/O to field devices using terminal blocks.
3. Software Setup:
   • Use ABB Control Builder M for programming logic, configuring I/O channels, and setting communication parameters.
   • Integrate with System 800xA for centralized HMI visualization and data historization.

Maintenance and Support

• Firmware Updates: Deploy via SD card or Control Builder M software.
• Calibration: Annually recalibrate analog I/O using certified signal generators.
• Technical Support: ABB’s global service network offers 24/7 assistance and lifecycle management.
