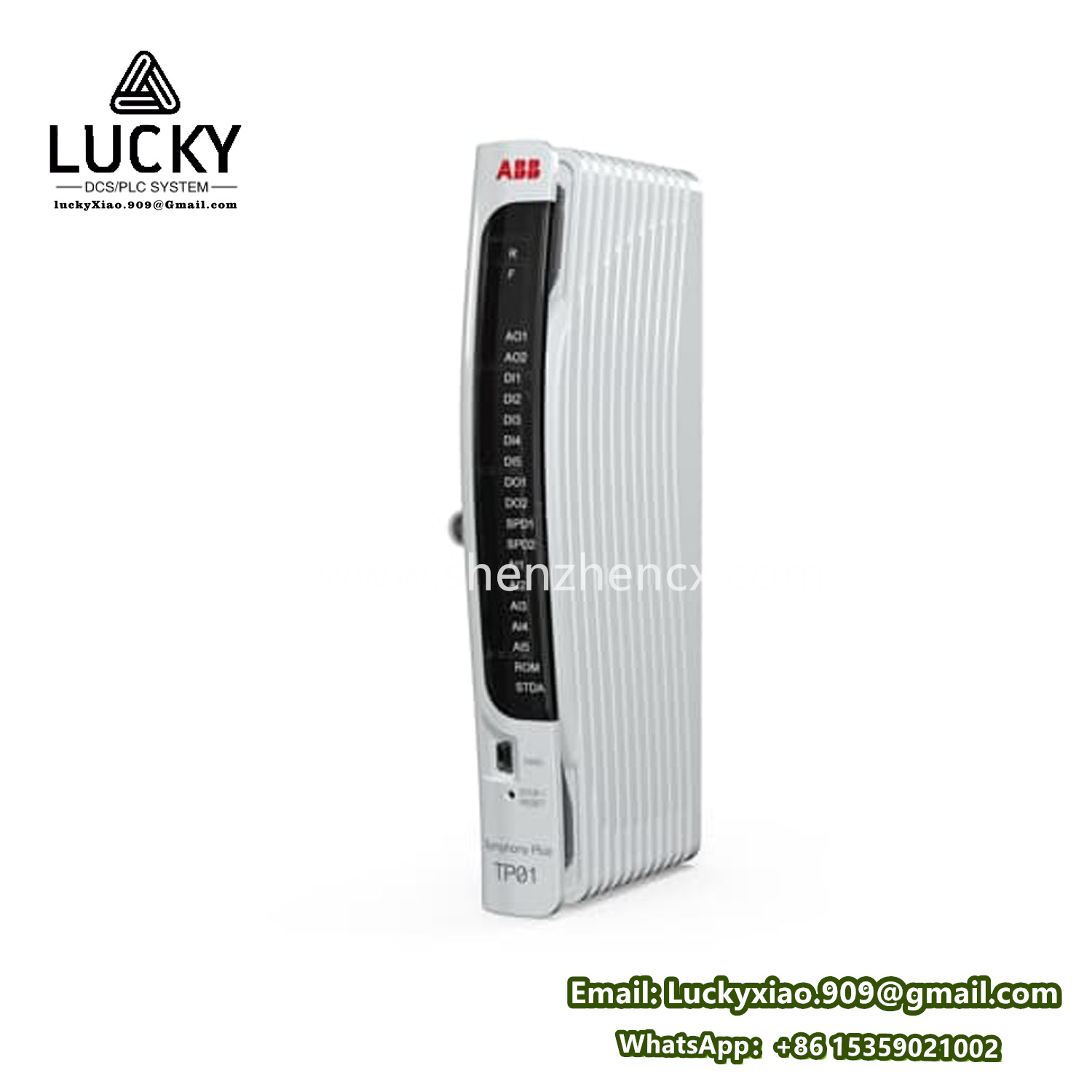

TP01 ABB – Compact Temperature Sensor with Relay Output
Product Overview
The TP01 ABB is a versatile and reliable temperature sensor designed for precise monitoring and control in industrial and commercial applications. Part of ABB’s sensor portfolio, this device combines robust construction with intuitive functionality, making it ideal for HVAC systems, motor protection, and process automation. Its integrated relay output enables automated responses to temperature changes, ensuring equipment safety and energy efficiency.
Key Features
- Dual-Function Monitoring
- Measures temperature ranges from -30°C to +120°C with ±1% accuracy.
- Configurable as a thermostat (heating/cooling mode) or over-temperature alarm.
- Adjustable Relay Output
- SPDT relay (5 A @ 250 V AC) for controlling fans, heaters, or alarms based on setpoints.
- Hysteresis adjustment to prevent rapid cycling of connected devices.
- Easy Installation
- Compact DIN rail mounting (35 mm) for seamless integration into control panels.
- Clear LED indicators for power status and relay activation.
- Durable Design
- IP40-rated enclosure protects against dust and accidental contact.
- Operates reliably in harsh environments (-30°C to +70°C ambient temperature).
- User-Friendly Configuration
- Rotary dials for simple setpoint and hysteresis adjustment.
- No external power required for basic operation (self-powered via sensor input).
- Compatibility
- Works with PT100, PT1000, or NTC temperature probes (sensor sold separately).
- Compatible with ABB’s CMS700 building management systems for centralized control.
Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Input Type
|
PT100/PT1000/NTC (2- or 3-wire connection)
|
|
Temperature Range
|
-30°C to +120°C
|
|
Accuracy
|
±1% of full scale
|
|
Relay Output
|
SPDT, 5 A @ 250 V AC / 30 V DC
|
|
Power Supply
|
Self-powered via sensor loop or 24 V AC/DC (optional)
|
|
Operating Temperature
|
-30°C to +70°C (ambient)
|
|
Protection Rating
|
IP40
|
|
Certifications
|
CE, RoHS, EN 60715 (DIN rail compliant)
|
|
Dimensions
|
72 x 45 x 65 mm (W x H x D)
|
|
Weight
|
0.15 kg
|
Applications
- HVAC Systems: Control of air handlers, chillers, and boilers.
- Motor Protection: Over-temperature shutdown for pumps, compressors, and fans.
- Industrial Processes: Monitoring reactors, drying ovens, and storage tanks.
- Energy Management: Integration into building automation for efficiency optimization.
Why Choose TP01 ABB?
- Cost-Effective: Eliminates complex wiring with self-powered operation.
- Flexibility: Supports multiple sensor types and setpoint configurations.
- Proven Durability: Built to withstand industrial vibrations and temperature extremes.
- ABB Quality: Backed by ABB’s global technical support and warranty services.
