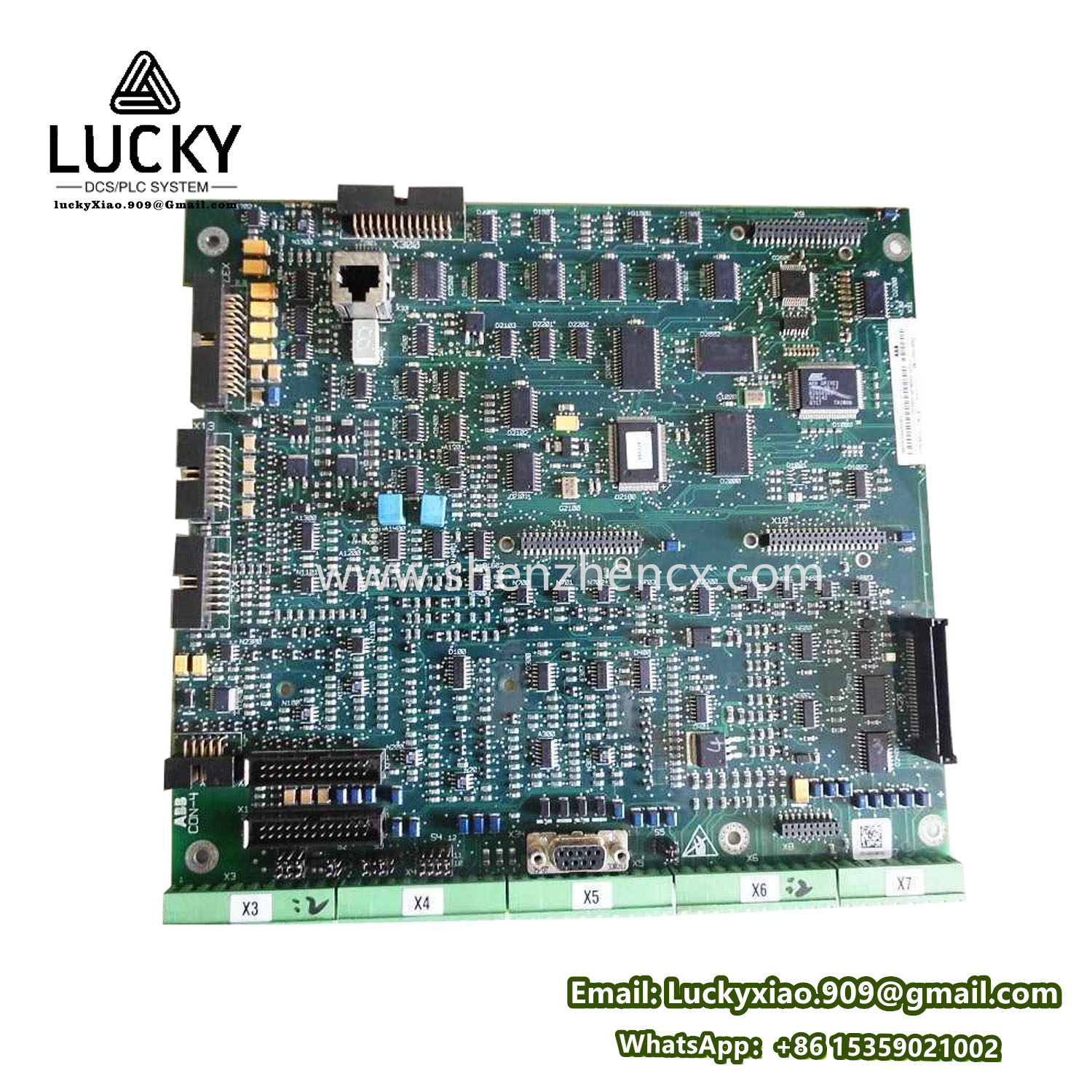

SDCS-CON-4-COAT 3ADT313900R1001 ABB control interface module

ABB SDCS-CON-4-COAT (3ADT313900R1001): General Description

The ABB SDCS-CON-4-COAT (3ADT313900R1001) is a specialized communication or control interface module designed for integration with ABB‘s industrial drive systems, particularly the ACS880 series of variable frequency drives (VFDs). This component facilitates advanced control, monitoring, and communication between drives and external automation systems, ensuring seamless operation in complex industrial applications.

Key Features and Specifications

1. Product Type:
   • Communication/Control Module: Part of ABB‘s Drive Control System (SDCS) family, used to expand drive functionalities.
   • Part Number: 3ADT313900R1001 (ABB‘s internal identifier for ordering and documentation).
2. Functionality:
   • Multi-Protocol Communication: Supports industrial protocols like PROFIBUS DP, Modbus RTU/TCP, or EtherNet/IP (varies by configuration).
   • I/O Expansion: Provides additional digital/analog inputs and outputs for enhanced control logic.
   • Coating Protection: The “COAT” suffix indicates a protective coating for harsh environments (e.g., moisture, dust, or chemical resistance).
3. Technical Parameters:
   • Compatibility: Designed for ABB ACS880 and ACS800 series drives.
   • Voltage Rating: Typically operates at 24 V DC (control voltage).
   • Environmental Protection: Conforms to IP20 or higher (depends on coating specifics).
   • Standards Compliance: Meets CE, UL, and IEC standards for industrial safety.
4. Design:
   • Modular, DIN-rail mountable design for easy installation.
   • LED status indicators for communication and power.
   • Robust housing with protective coating for industrial durability.

Applications

• Motor Control Systems: Integrates with VFDs to regulate motor speed and torque in HVAC, pumps, and conveyors.
• Process Automation: Enables communication between drives and PLCs/DCS in chemical, oil, and gas industries.
• Energy Management: Monitors drive performance and energy consumption for optimization.

Advantages

• Interoperability: Simplifies integration with ABB drives and third-party automation systems.
• Flexibility: Expandable I/O and multi-protocol support adapt to diverse network requirements.
• Durability: Protective coating ensures reliability in challenging conditions (e.g., high humidity or corrosive atmospheres).

Installation and Configuration

• Mounts directly onto compatible ABB drives via dedicated slots.
• Configured using ABB Drive Composer software for parameter setup and protocol selection.
• Requires adherence to ABB’s wiring guidelines and EMC standards for noise immunity.
