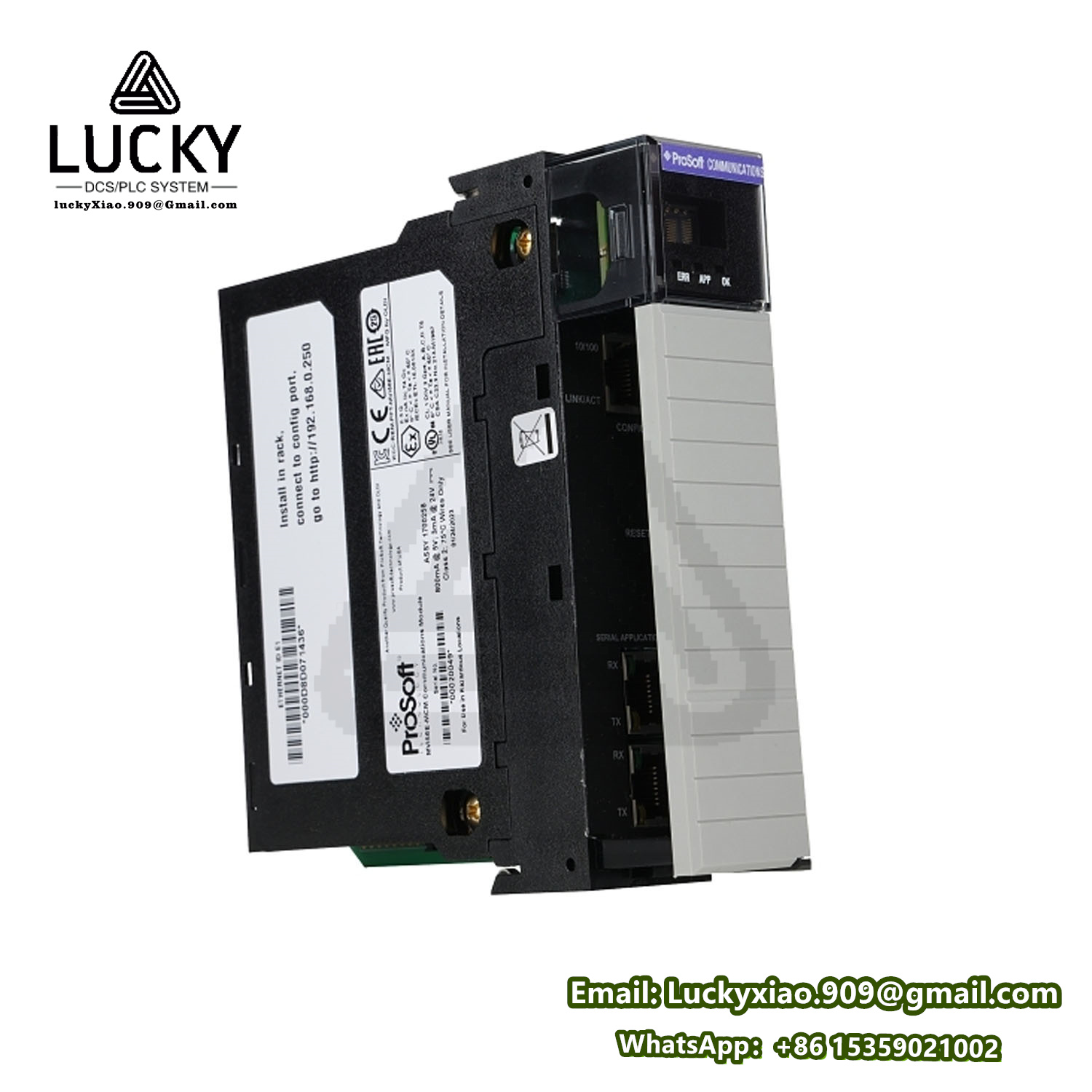

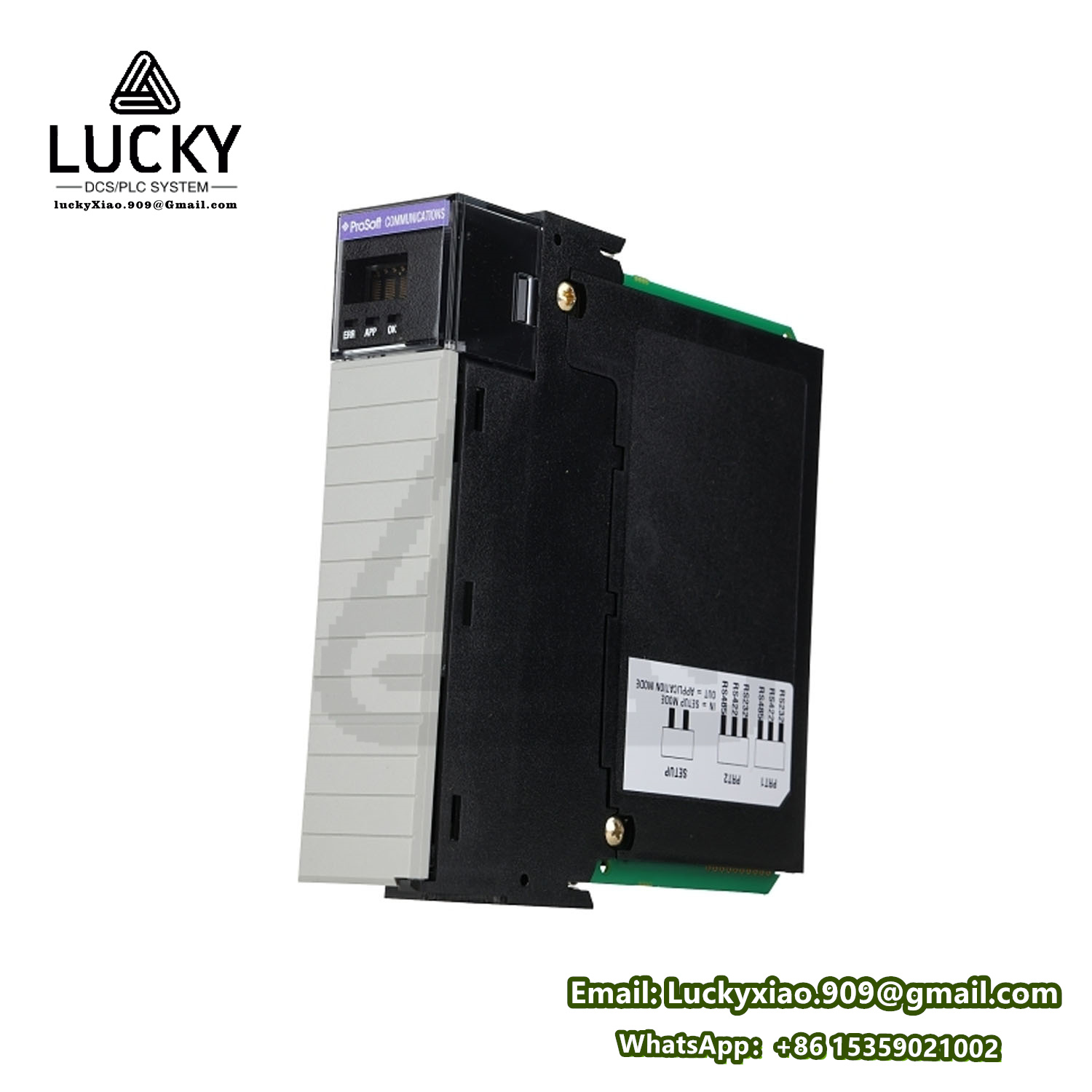

PROSOFT MVI56E-SIE Industrial Ethernet Communication Module

The PROSOFT MVI56E-SIE is an industrial Ethernet communication module specifically designed for seamless integration with Rockwell Automation’s ControlLogix Programmable Automation Controllers (PACs). This module allows ControlLogix PACs to act as Ethernet clients, connecting with up to 20 Siemens S7-200, S7-300, S7-400, S7-1200, and S7-1500 PLCs operating as Ethernet servers.

Key Features and Benefits

1. Seamless Integration:
   • The MVI56E-SIE is compatible with the single-slot 1756 ControlLogix backplane, ensuring easy integration into existing ControlLogix systems.
   • It uses the ProSoft Configuration Builder (PCB), a graphical configuration tool, to manage module configuration files, view communication, and access module diagnostic information via high-speed Ethernet ports.
2. Versatile Connectivity:
   • The module supports 10/100 Mbps Ethernet with automatic cross-detection, ensuring robust and reliable network connectivity.
   • The Ethernet interface is an RJ-45 connector with LED indicators for link and activity status.
3. Advanced Diagnostics:
   • The MVI56E-SIE features a 4-character alphanumeric LED display screen that can show status and diagnostic information.
   • LED indicator lights are also provided on the module to display battery status, application status, and module status, making it easier to troubleshoot and monitor the system.
4. Efficient Data Transfer:
   • Data transfer to the ControlLogix PAC uses scheduled I/O data, ensuring faster updates and better performance.
   • The trapezoidal logic enable/disable command allows various Siemens S7 CPUs to support multiple applications without the need to reconfigure the module.
5. Robust and Reliable:
   • The module is designed to operate within a temperature range of 32 to 140 degrees Fahrenheit and can be stored at temperatures ranging from -40 to 185 degrees Fahrenheit.
   • It has a vibration rating of 5G, ranging from 10 Hz to 150 Hz, and a work impact level of 30G, ensuring durability in harsh industrial environments.
6. User-Friendly Configuration:
   • The module includes user-definable module data memory mapping, supporting up to 5000 16-bit registers.
   • Additional features such as ControlLogix 1756-ENxT and 1756-CNB modules, as well as EtherNet/IP pass-through communication, enable CIPconnect network configuration and diagnostic monitoring.
7. Certification and Compliance:
   • The MVI56E-SIE has been certified to meet RoHS, CE, and IECEx standards, ensuring compliance with international safety and environmental regulations.

Applications

The PROSOFT MVI56E-SIE industrial Ethernet communication module is ideal for a wide range of industrial automation applications, including:

• Manufacturing Plants: Connecting PLCs and PACs in manufacturing plants to enable efficient production and process control.
• Oil and Gas Facilities: Facilitating communication between control systems and PLCs in oil and gas production and refining operations.
• Power Generation Plants: Ensuring reliable and secure communication between control systems and PLCs in power generation and distribution systems.
• Water and Wastewater Treatment Plants: Supporting monitoring and control operations in water and wastewater treatment facilities.

In summary, the PROSOFT MVI56E-SIE industrial Ethernet communication module is a versatile, robust, and reliable solution for connecting ControlLogix PACs with Siemens PLCs in industrial automation applications. Its advanced features and user-friendly configuration tools make it an ideal choice for seamless network integration, efficient data transfer, and advanced diagnostics in harsh industrial environments.
