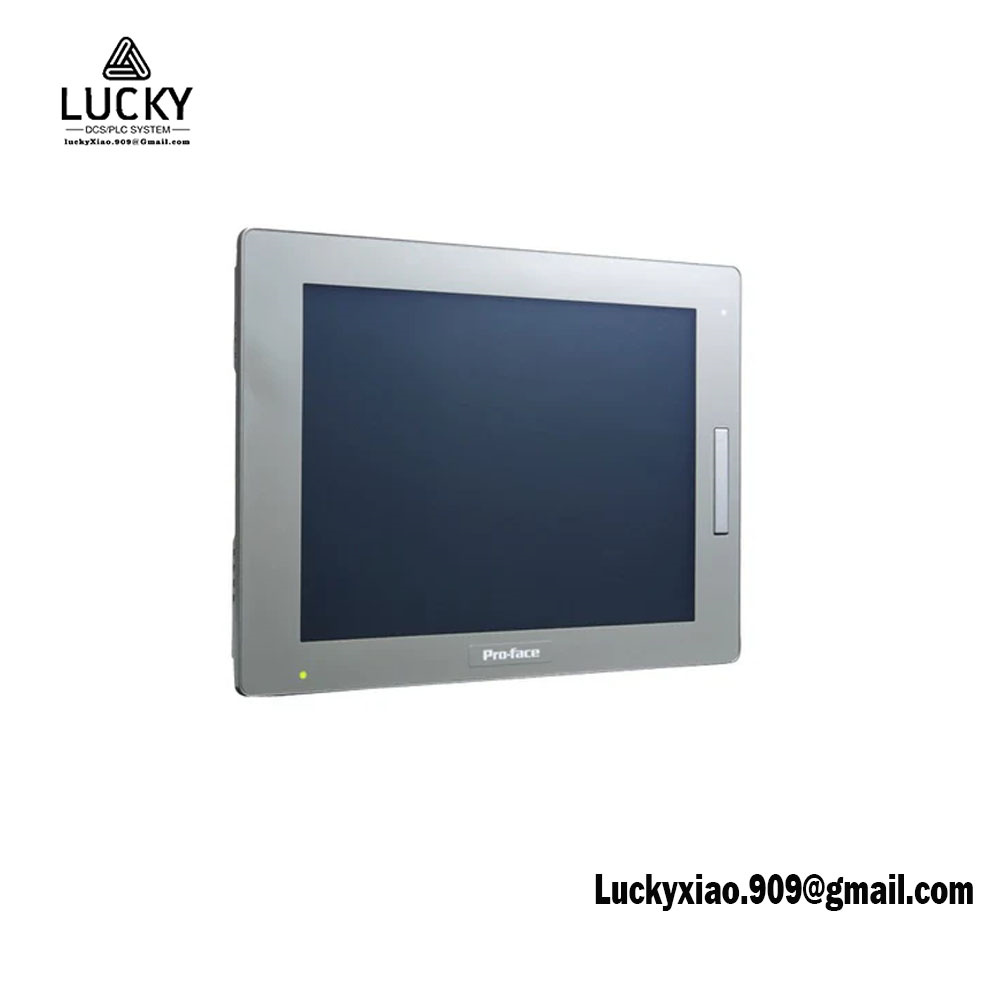

Pro Face PFXSP5600TPD Programmable Human Machine Interface

$269.00

In stock

💥Name: Module/Controller/Touchpad/Driver/Load cell

Model: PFXSP5600TPD

🚚Delivery time: goods in stock

3️⃣6️⃣5️⃣Warranty: 12 months

Shipping fee: Shipping fee: Please contact customer service.

📦Product packaging: The seller provides complete packaging

🌐Customs clearance fee: not included

☎️Telephone:15359021002

📧Email: LuckyXiao.909@Gmail.com

📲WhatsApp+86 15359021002

❤️Other websites: www.szcxgk.com

Pro Face PFXSP5600TPD is a programmable human-machine interface produced by Pro Face, belonging to the SP5000 series. The following is a detailed introduction to the product:

1、 Basic specifications

Type: Programmable Human Computer Interface.

Series: SP5000 series.

Display screen size: 12.1 inches (also known as 12 inches or 3.5 inches, 5.7 inches, 10.4 inches, depending on product version or customization requirements).

Model: PFXSP5600TPD.

Resolution: 1024×768 pixels (XGA), also known as 640×480 pixels (VGA), 320×240 pixels (QVGA), 800×600 pixels (SVGA), depending on the product configuration.

Display color: 16 million colors or 65536 colors.

2、 Display characteristics

Display screen type: TFT true color LCD.

Backlight: White LED (users cannot replace it by themselves, please contact the local Pro face branch for replacement).

Backlight lifespan: Over 50000 hours (continuous operation at 25 ℃ reduces brightness to 25% of its original level).

Brightness adjustment: 0~100 (adjustable through touch panel or software).

Light sensing: supported.

Automatic scaling: supported.

3、 Touch panel

Touch panel type: resistive (analog, single touch) or matrix.

Touch panel resolution: 1024×1024 (resistive).

Touch panel lifespan: over 1000000 cycles.

4、 Interface and Communication

USB interface: USB Type-A (2.0) x1, USB Mini-B (2.0) x1.

Ethernet interface: 1.

Serial port: RS-232C × 1, RS-422/485 × 1.

SD card slot: 1 (maximum 32GB).

CANopen interface: 1 (some versions may not have it).

Built in DIO: Input 12 points (or 20 points, depending on product configuration), output 6 points (or 10 points).

Built in AIO: Input 4 points, output 2 points (some versions may not have it).

5、 Electrical characteristics

Input voltage: 12~24VDC, rated voltage 10.8~28.8Vdc.

Power consumption: Maximum 21W (below 18W when not powered by external sources, below 11W when backlight is adjusted by 20%, and below 6W in standby mode).

Instantaneous current: below 30A.

6、 Physical characteristics

Dimensions: width 301.5mm, height 227.5mm (or width 315mm, height 241mm, thickness 67mm, depending on whether installation components are included).

Weight: below 3.2kg.

Panel thickness: 1.6~5mm, chamfer radius less than R3.

Installation: Integrated design, only a circular hole of appropriate size needs to be opened on the panel during installation.

7、 Other characteristics

Alarm analysis function block: supported.

Replaceable battery: Yes.

Dustproof and moisture-proof: It has certain dustproof and moisture-proof functions.

Anti vibration performance: Complies with IEC/EN61131-2 standard.

Impact resistance: Complies with IEC/EN61131-2 standard.

Remote data collection and management: Supports the integration of Pro Server EX software with standard PC software such as Microsoft Office and SQL to achieve remote data collection and management.

8、 Application environment

Working temperature: 0-60 ° C.

Storage temperature: -20~+60 ° C.

Working humidity: 10~90% RH (no condensation, wet bulb thermometer temperature below 39 ° C).

Storage humidity: 10~90% RH (no condensation, wet bulb thermometer temperature below 39 ° C).
