Power Supply Module ABB PFEA111-65 3BSE050090R65

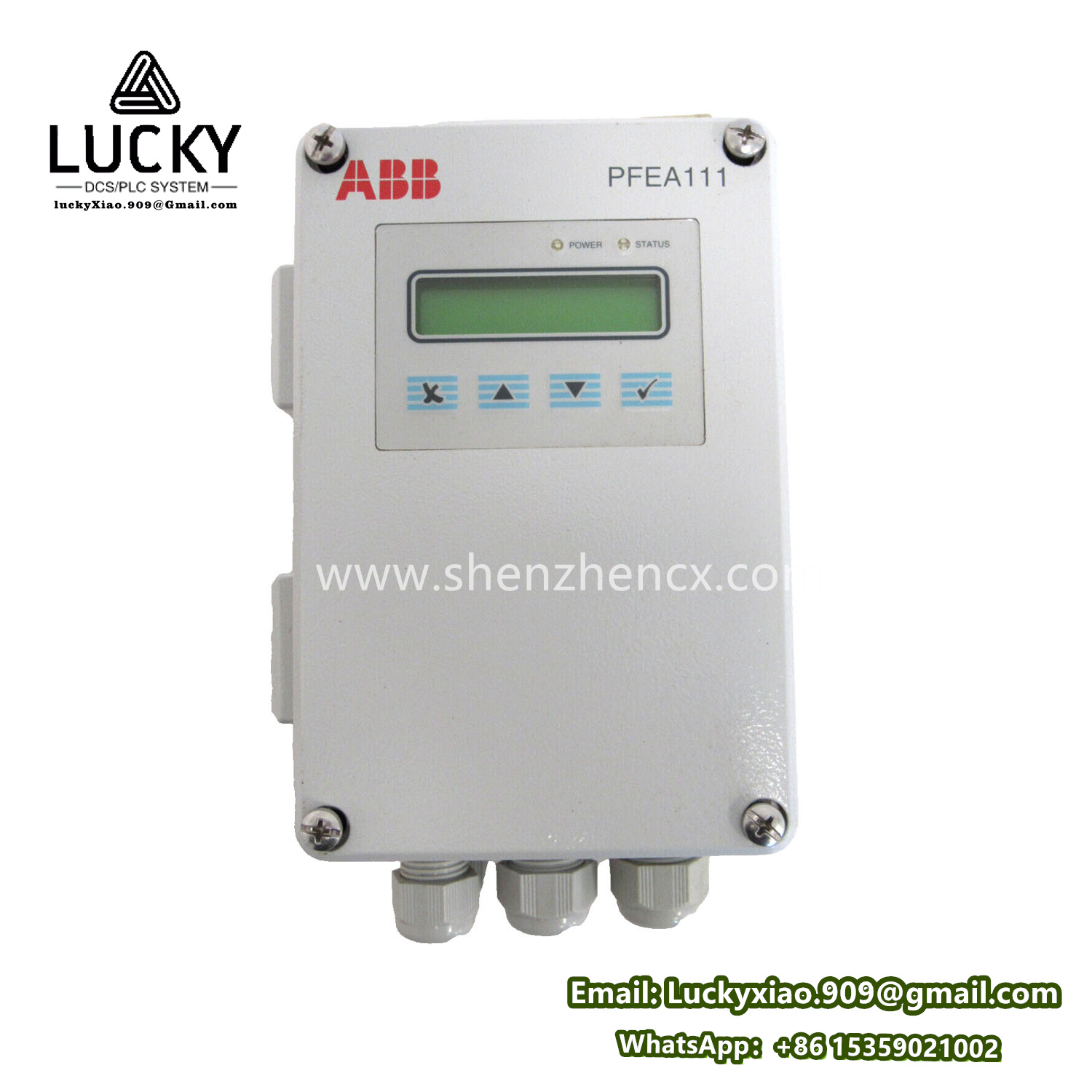

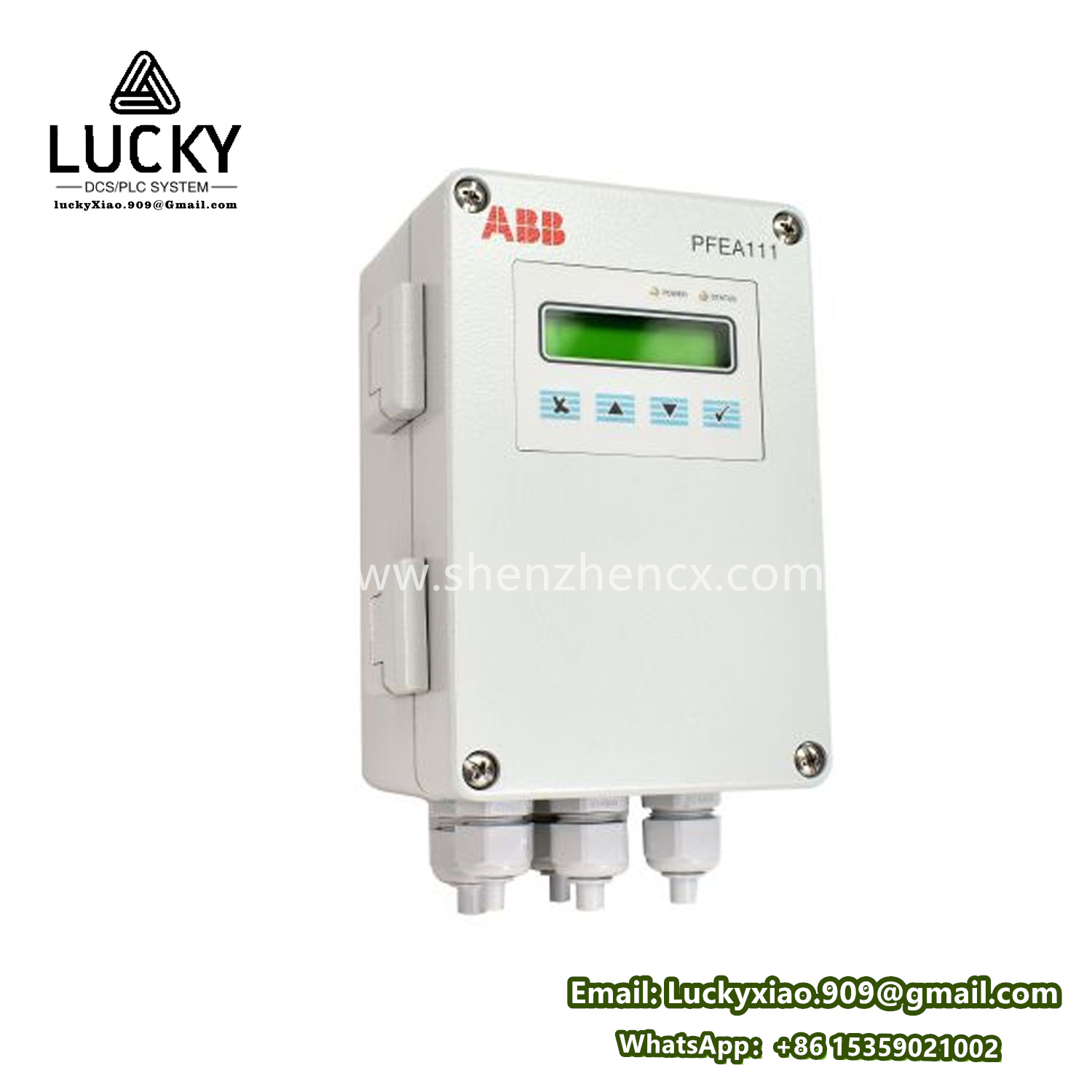

ABB PFEA111-65 3BSE050090R65 Power Supply Module

The ABB PFEA111-65 3BSE050090R65 is a high-capacity power supply module designed for ABB’s AC 800M and System 800xA control systems. It provides stable, redundant power to critical automation components such as controller modules, I/O systems, and communication interfaces, ensuring uninterrupted operation in industrial environments. This module is engineered to enhance system reliability by offering fault-tolerant power distribution, real-time diagnostics, and seamless integration within ABB’s automation architecture. It is widely used in industries like power generation, oil and gas, and chemical processing, where continuous operation and protection against power disruptions are essential.

Technical Specifications

Model: PFEA111-65 (3BSE050090R65)
Type: Redundant Power Supply Module
Input Voltage: 24 VDC (nominal), operating range 18–32 VDC.
Output Voltage: 5 VDC (isolated for downstream components).
Output Power: 65 W continuous power delivery.
Efficiency: ≥88% under full load.
Redundancy: Supports N+1 parallel redundancy for fault tolerance.
Operating Temperature: -25°C to +70°C (-13°F to +158°F).
Storage Temperature: -40°C to +85°C (-40°F to +185°F).
Protection Class: IP20 (standard enclosure).
Certifications: CE, UL, IEC 61000-6-2/4 (EMC/EMI compliance), and optional ATEX/IECEx for hazardous areas.
Dimensions: 124 mm x 22 mm x 117 mm (H x W x D).
Weight: Approximately 0.6 kg.

Key Functional Features

1. Redundant Power Architecture:
   • Enables parallel operation with other PFEA modules to ensure zero downtime during power supply failures.
   • Automatic load balancing and fault detection for seamless failover.
2. Hot-Swap Capability:
   • Modules can be replaced or added without shutting down the system, minimizing operational interruptions.
3. Diagnostics and Monitoring:
   • LED indicators for real-time status monitoring (power input, output, and fault conditions).
   • Integration with ABB’s System 800xA for remote health monitoring and alerts.
4. Overload and Short-Circuit Protection:
   • Built-in safeguards against overcurrent, overvoltage, and overtemperature conditions.
5. Compatibility:
   • Designed for use with AC 800M controllers (e.g., PM803, PM805) and S800 I/O modules.
   • Supports ABB’s Control Builder M engineering tool for configuration and diagnostics.

Applications

• Power Plants: Backup power for turbine control systems and safety-critical interlocks.
• Oil & Gas: Redundant power for offshore platform DCS and emergency shutdown systems.
• Chemical Processing: Reliable power distribution for reactor control and batch automation.
• Water Treatment: Continuous operation of pump stations and monitoring systems.

Installation and Configuration

1. Mounting:
   • Secure the module on a DIN rail or panel within a control cabinet, ensuring proper ventilation and grounding.
2. Wiring:
   • Connect input power (24 VDC) via terminal blocks using shielded cables.
   • Link redundant modules in parallel using ABB-recommended cabling for load sharing.
3. Integration:
   • Use Control Builder M to configure redundancy settings and monitor power health within System 800xA.

Maintenance and Safety

• Routine Checks: Inspect terminal connections for corrosion and ensure cooling vents are free of debris.
• Replacement: Follow ABB’s hot-swap guidelines to avoid system disruption during maintenance.
• Compliance: Adhere to local electrical safety standards and ATEX requirements in explosive atmospheres.
