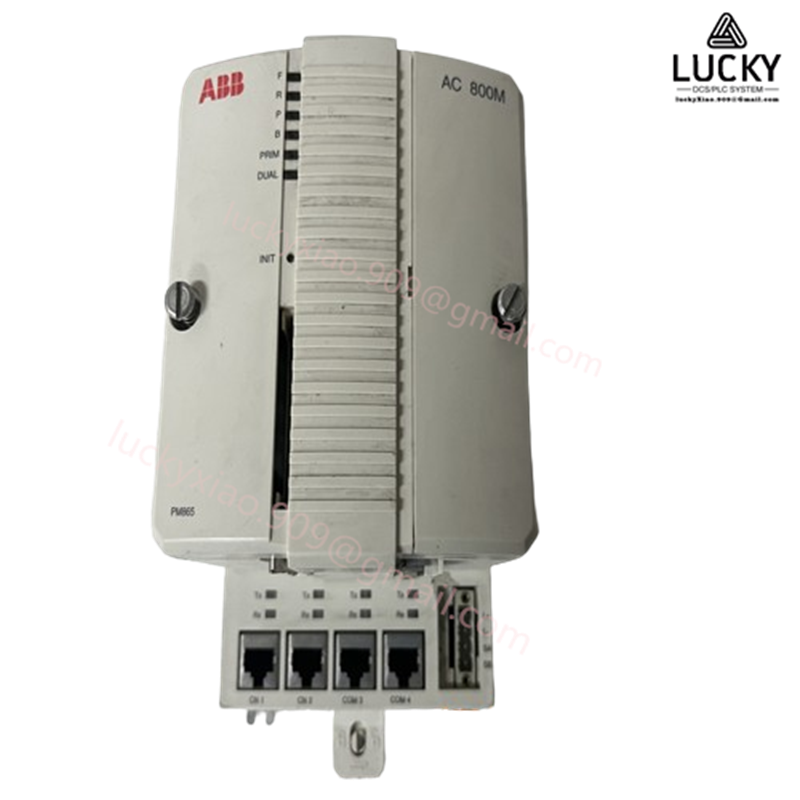

ABB PM865K01 3BSE031151R1 is a powerful Ethernet port controller that is an important component of ABB’s industrial automation solutions. The following is a detailed introduction to the product:
1、 Product Overview
PM865K01 3BSE031151R1 is an Ethernet port controller designed specifically for industrial automation, featuring high performance, programmability, and multiple communication interfaces. It is suitable for various industrial automation and control applications, providing stable and reliable data transmission and control functions for industrial automation systems.
2、 Main features
Powerful processing capability:
PM865K01 3BSE031151R1 includes a CPU board that integrates a microprocessor and RAM memory, providing powerful processing and fast data storage capabilities.
Equipped with a real-time clock, LED indicator lights, initialization button, and CompactFlash interface, it provides convenience for operation and flexibility for data storage.
Multiple communication interfaces:

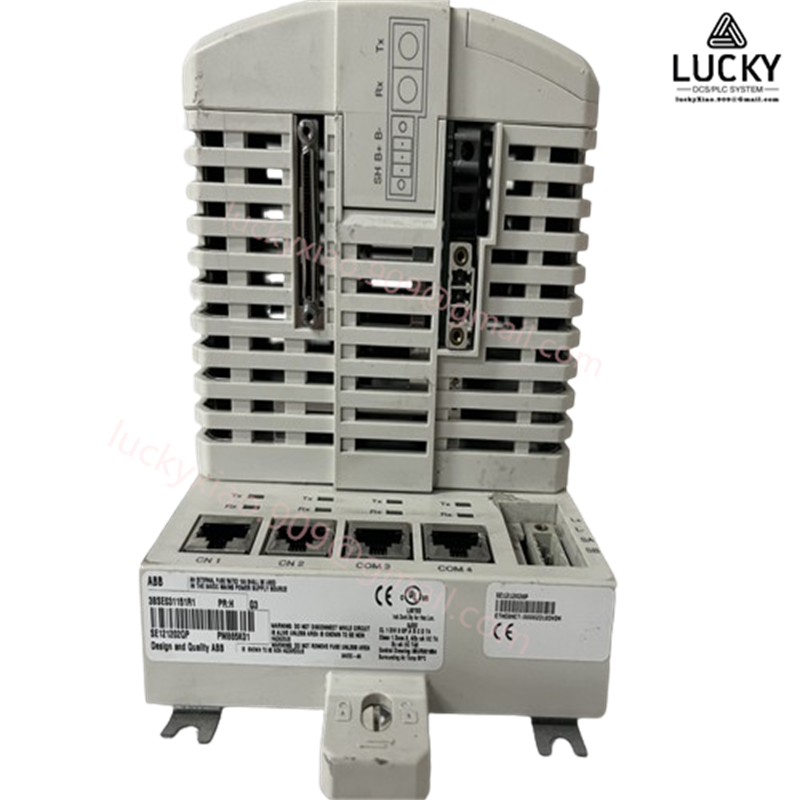

The controller has two RJ45 Ethernet ports (CN1, CN2) for connecting to the control network, supporting high-speed data transmission and remote control.
It is also equipped with two RJ45 serial ports (COM3, COM4), one of which (COM3) is an RS-232C port with modem control signals, and the other port (COM4) is isolated and mainly used for connecting configuration tools.
CPU redundancy function:
PM865K01 3BSE031151R1 supports CPU redundancy. When the main CPU fails, the backup CPU can immediately take over, ensuring high availability and continuity of the system.
High integrity function:
By adding the SM81x module and SIL certification software, the controller can achieve high integrity functionality, making it suitable for non critical control schemes, and can meet the requirements of SIL certification schemes through software upgrades.
3、 Technical specifications
Processor: Integrated microprocessor and RAM memory
Communication interface: 2 RJ45 Ethernet ports, 2 RJ45 serial ports
Clock: Real time clock
Indicator light: LED indicator light
Button: Initialization button
Storage: CompactFlash interface
Power supply: 24V DC (19.2-30V DC)
Dimensions: Width 119mm, Height 186mm, Depth 135mm
Weight: 1200 grams (including base)
4、 Application Fields
PM865K01 3BSE031151R1 is widely used in the field of industrial automation, including control systems and data transmission systems in industries such as power, petroleum, chemical, metallurgy, and machinery. It can be used for various industrial automation and control applications, such as process control, machine control, data acquisition, and monitoring.
5、 Summary
ABB PM865K01 3BSE031151R1 is a powerful and flexible Ethernet port controller with high performance, stability, and reliability. It is suitable for various industrial automation and control applications, providing stable and reliable data transmission and control functions for industrial automation systems. Meanwhile, by adding relevant modules and software, higher integrity and security requirements can also be achieved.
