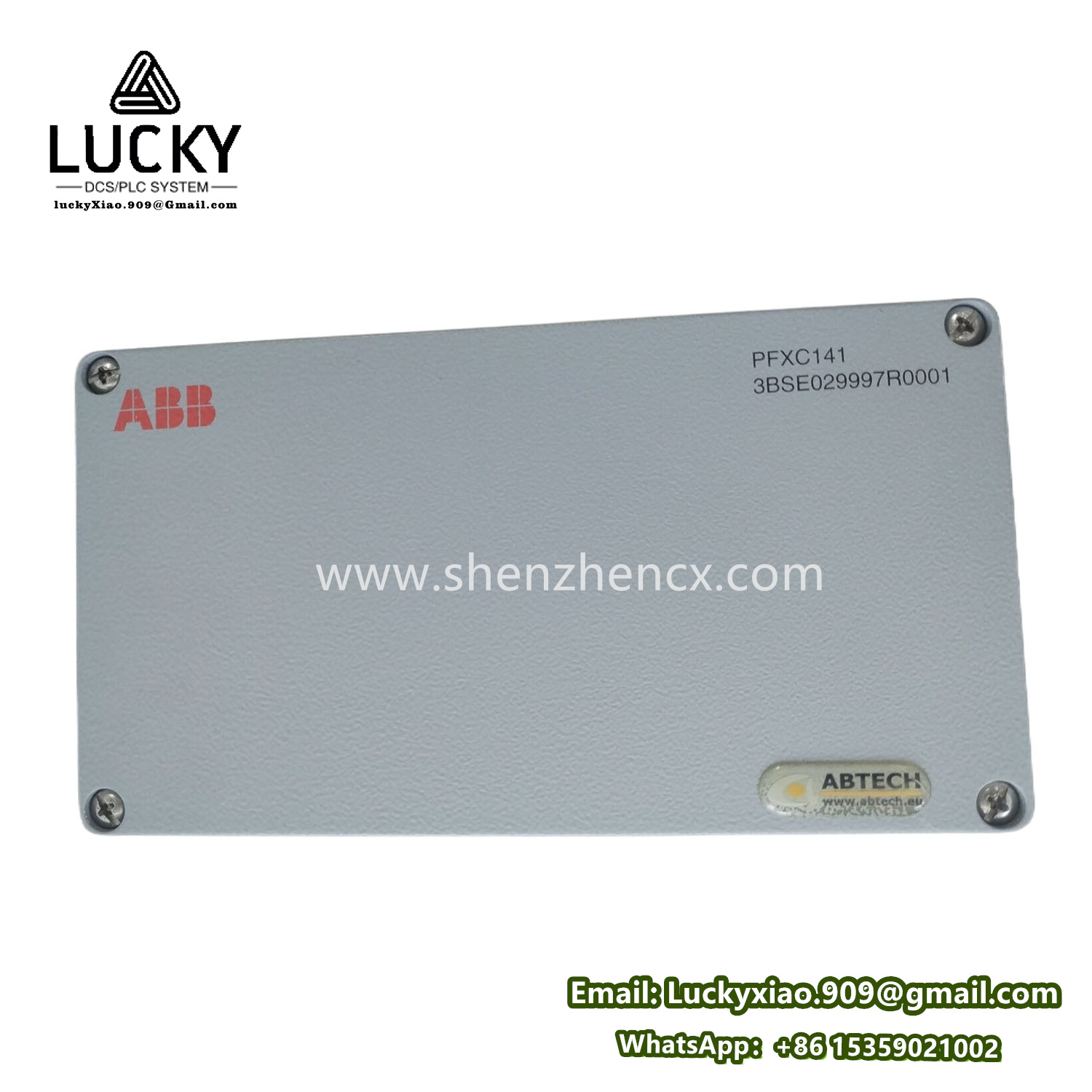

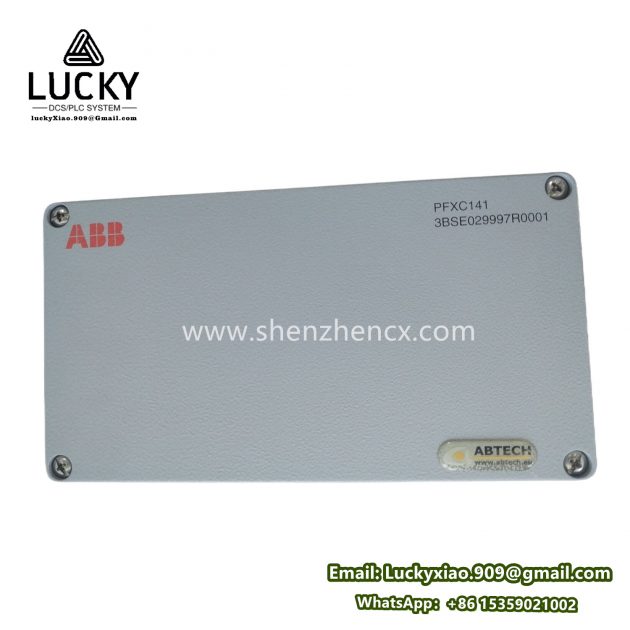

High-Efficiency Power Filter & Conditioning Module
⚡ Clean power delivery | Surge protection | Industrial resilience
🔧 Compatible with AC 800M, S800 I/O, and Advant OCS controllers
⚙️ TECHNICAL SPECIFICATIONS
Core Parameters
|
Category
|
Specifications
|
|---|---|
|
Input Voltage
|
85–264 V AC (50/60 Hz) or 110–300 V DC
|
|
Output Voltage
|
24 V DC (±1% ripple)
|
|
Rated Current
|
10 A continuous
|
|
Efficiency
|
>93% (EN 61204 standard)
|
|
Protection
|
Overvoltage, short-circuit, overtemperature
|
|
Operating Temp
|
-25°C to +70°C (-13°F to +158°F)
|
|
EMC Compliance
|
EN 61000-6-2/6-4 (immunity/emission)
|
|
Certifications
|
CE, UL 508, IEC 62368-1
|
🚀 KEY FUNCTIONAL CAPABILITIES
1. Power Conditioning
▸ Active Harmonic Filtering: Reduces THD to <5% for sensitive electronics.
▸ Surge Suppression: Up to 6 kV/3 kA transient protection (IEC 61000-4-5).
2. Intelligent Monitoring
▸ LED Status Indicators: Power OK, fault, load level (green/amber/red).
▸ Remote Diagnostics: SNMP/Modbus TCP alerts for predictive maintenance.
3. Modular Scalability
▸ Hot-swappable Design: Replace without system shutdown.
▸ Parallel Operation: Combine up to 4 units for N+1 redundancy.
4. Industrial Toughness
▸ IP20 Enclosure: Dust-resistant for panel mounting.
▸ Vibration Resistance: 5g @ 10–150 Hz (IEC 60068-2-6).
🔧 TYPICAL APPLICATIONS
|
Industry
|
Use Case
|
Critical Feature
|
|---|---|---|
|
Manufacturing
|
Robotic cell power stabilization
|
Harmonic filtering for servo drives
|
|
Energy
|
Solar/Wind inverter grid integration
|
Surge protection in harsh environments
|
|
Data Centers
|
UPS backup power conditioning
|
High efficiency & low ripple
|
|
Oil & Gas
|
Offshore PLC system power supply
|
Wide temperature operation
|
📊 PERFORMANCE BENCHMARKS
|
Metric
|
Standard PSU
|
|
|---|---|---|
|
Efficiency
|
93%
|
80–85%
|
|
Output Ripple
|
<1%
|
3–5%
|
|
Response Time
|
2 ms (load step)
|
10–20 ms
|
|
Redundancy
|
N+1 parallel support
|
Single-unit only
|
🛠️ INTEGRATION GUIDE
Step 1: Installation
- Mount on DIN rail (TS35/7.5 or 15).
- Connect input via 3-phase terminal block (torque: 0.6 Nm).
Step 2: Configuration
- Set output voltage trim (±10%) via potentiometer.
- Enable Eco Mode for light-load efficiency optimization.
Step 3: Validation
- Use ABB Ability™ Power Insights for load profiling.
- Test surge protection with 8/20 μs impulse generator.
💡 INNOVATIVE FEATURES
- Adaptive Fan Control: Speed adjusts based on temperature/load (noise <45 dB).
- Green Mode: Drops standby power to <0.5 W (ErP Lot 6 compliant).
- Cybersecurity: Tamper-proof firmware with secure boot (IEC 62443).
📌 WHY PFXC141?
|
Advantage
|
Impact
|
|---|---|
|
Ultra-Clean Power
|
Ensures stability for precision automation
|
|
Military-Grade Durability
|
Built for extreme environments
|
|
Scalable Redundancy
|
Minimizes downtime in critical systems
|
🔧 SUPPORT & RESOURCES
- ABB Customer Portal: Download wiring diagrams and firmware updates.
- 24/7 Global Service: On-site support within 8hrs for urgent faults.
