PFEA111-20 3BSE050090R20 ABB Power Supply Module

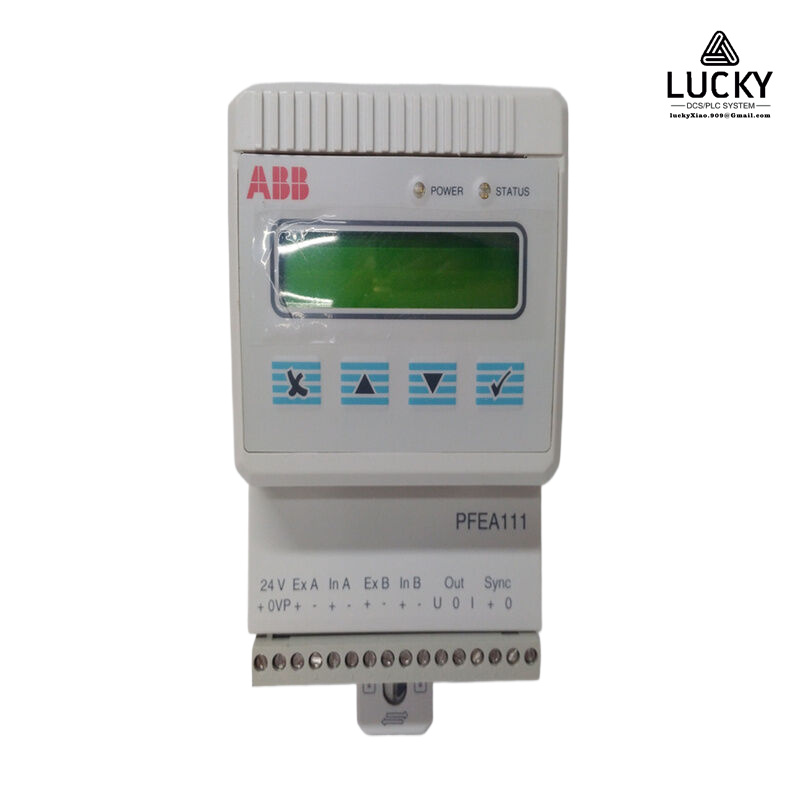

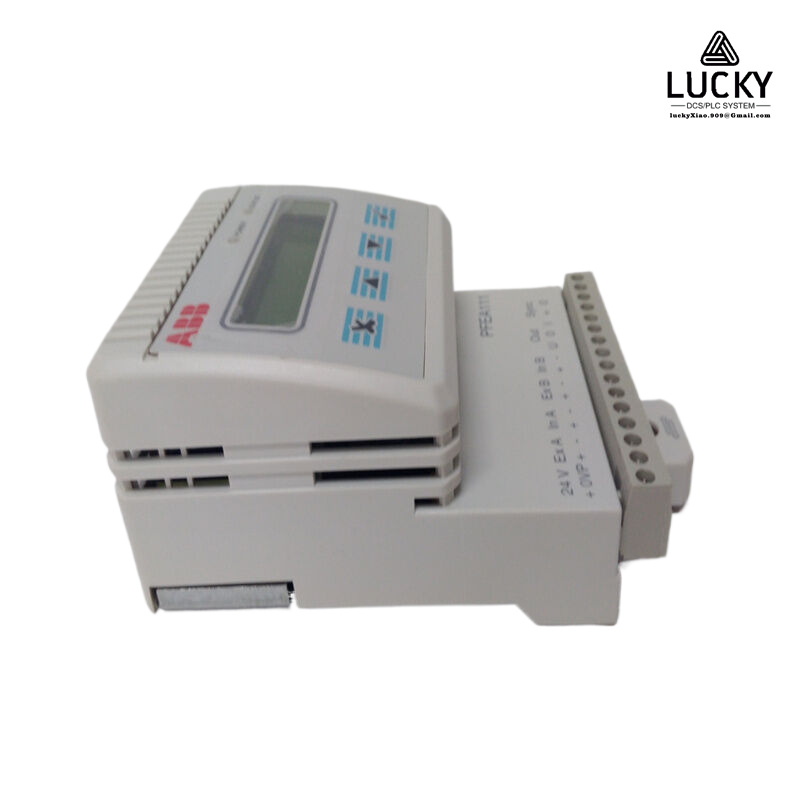

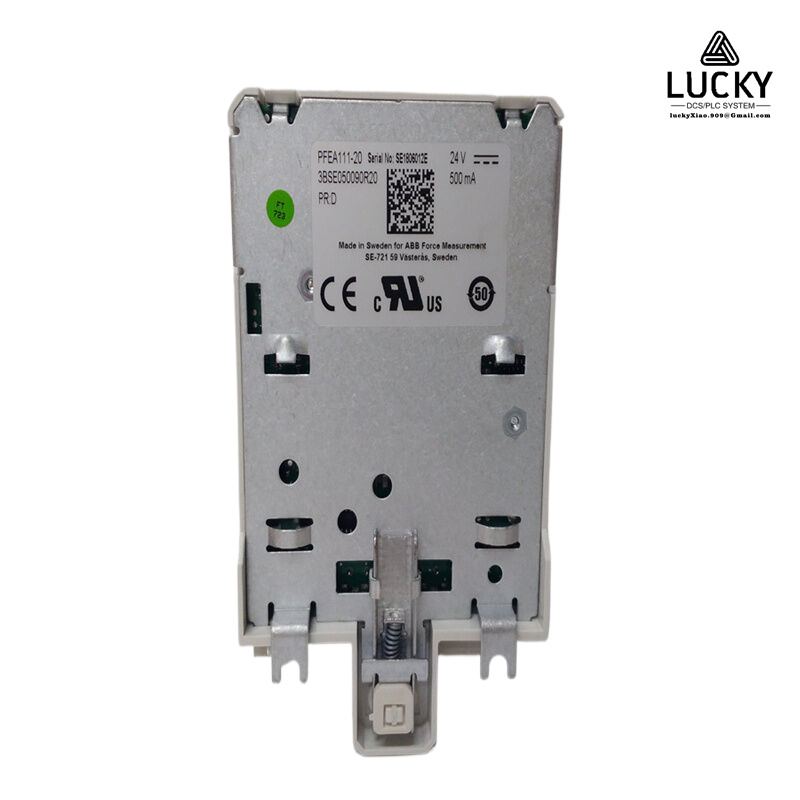

ABB PFEA111-20 3BSE050090R20 Power Supply Module

The ABB PFEA111-20 3BSE050090R20 is a power supply module designed for ABB’s AC 800M and System 800xA distributed control systems (DCS). It provides stable and redundant power to critical automation components such as controller modules, I/O systems, and communication interfaces, ensuring uninterrupted operation in industrial environments. This module is engineered to enhance system reliability by offering fault-tolerant power distribution, real-time diagnostics, and seamless integration within ABB’s automation architecture. It is widely used in power generation, oil and gas, and chemical processing plants to maintain operational continuity and safeguard against power disruptions.

Technical Specifications

1. Electrical Parameters:
   • Input Voltage: 24 VDC (nominal), with a range of 18–32 VDC.
   • Output Voltage: 5 VDC (isolated) for downstream modules.
   • Output Power: 20 W continuous power delivery.
   • Efficiency: ≥85% under full load.
   • Redundancy: Supports parallel operation for N+1 redundancy.
2. Environmental Ratings:
   • Operating Temperature: -25°C to +70°C (-13°F to +158°F).
   • Storage Temperature: -40°C to +85°C (-40°F to +185°F).
   • Humidity: 5–95% (non-condensing).
   • Protection Class: IP20 (standard enclosure).
3. Certifications:
   • Safety: CE, UL, and IEC 61000-6-2/4 compliance for EMC/EMI.
   • Hazardous Areas: Optional ATEX/IECEx certification for Zone 2 environments.
4. Mechanical Design:
   • Mounting: DIN-rail or panel mounting.
   • Dimensions: 124 mm x 22 mm x 117 mm (H x W x D).
   • Weight: Approximately 0.5 kg.

Key Functional Features

1. Redundant Power Supply:
   • Enables parallel operation with other PFEA modules to ensure uninterrupted power during failures.
   • Automatic load sharing and fault detection for seamless failover.
2. Diagnostics and Monitoring:
   • Real-time status indicators (LEDs) for power input, output, and fault conditions.
   • Integration with ABB’s System 800xA for remote health monitoring and alerts.
3. Hot-Swap Capability:
   • Modules can be replaced without shutting down the system, minimizing downtime.
4. Compatibility:
   • Designed for use with AC 800M controllers (e.g., PM802F, PM803) and S800 I/O modules.
   • Supports ABB’s Control Builder M engineering tool for configuration and diagnostics.
5. Overload Protection:
   • Built-in safeguards against short circuits, overvoltage, and overtemperature.

Applications

• Power Plants: Backup power for turbine control systems and safety interlocks.
• Oil & Gas: Redundant power for offshore platform DCS and emergency shutdown systems.
• Chemical Plants: Reliable power distribution for batch process automation.

Installation and Configuration

1. Mounting:
   • Secure the module on a DIN rail or panel within a control cabinet.
   • Ensure proper ventilation and grounding.
2. Wiring:
   • Connect input power (24 VDC) via terminal blocks.
   • Link redundant modules in parallel using ABB-recommended cabling.
3. Integration:
   • Use Control Builder M to configure redundancy settings and monitor status within System 800xA.

Maintenance and Safety

• Regular Checks: Inspect terminal connections and cooling vents for dust/debris.
• Replacement: Follow ABB’s guidelines for hot-swapping modules to avoid system disruption.
• Compliance: Adhere to local electrical safety standards during installation.
