NI  PXIE-8135 PXI Express Embedded Controller

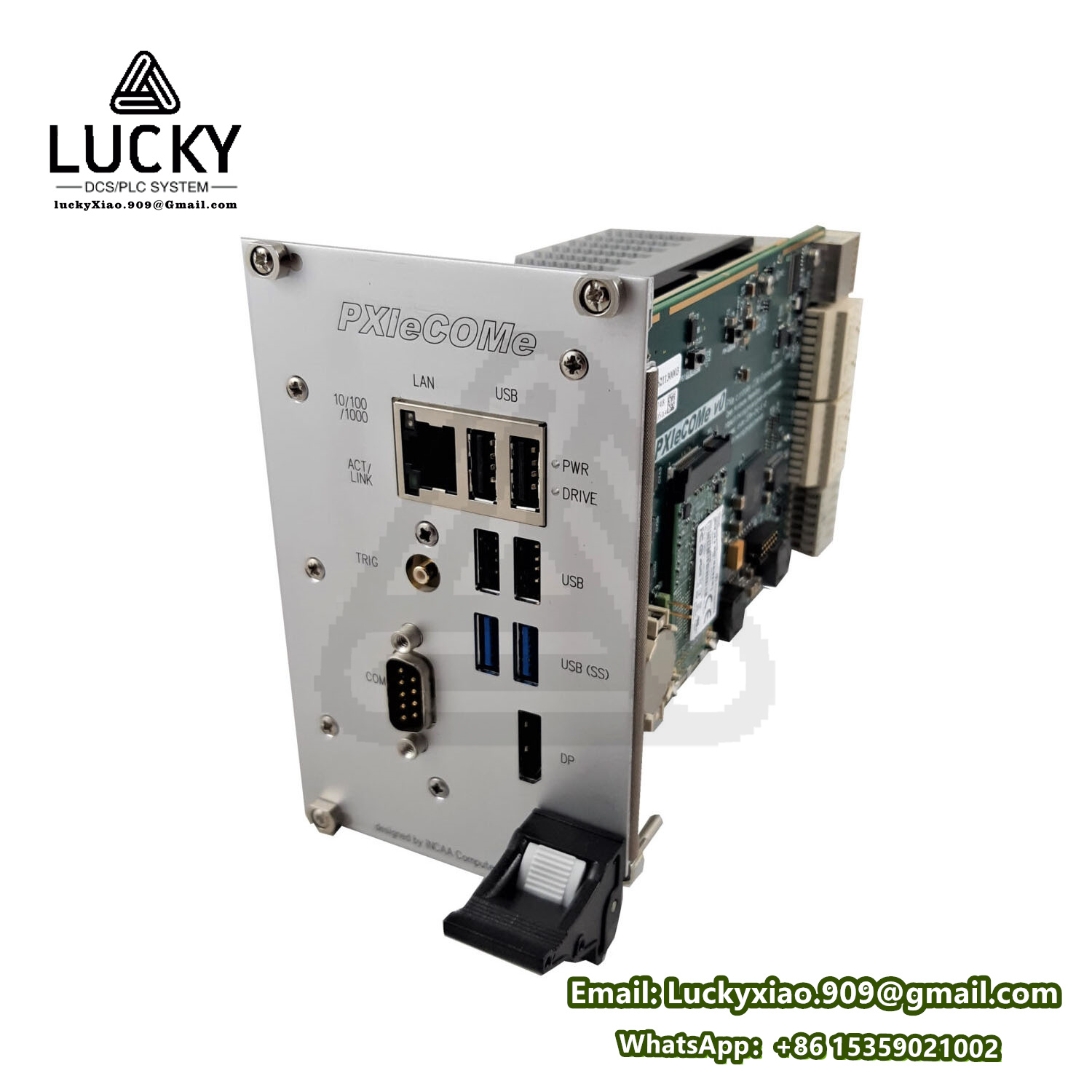

NI PXIe-8135 PXI Express Embedded Controller

Manufacturer: National Instruments (NI)

Overview:

The NI PXIe-8135 is a high-performance PXI Express embedded controller manufactured by National Instruments. It is specifically designed for use in PXI (PCIeXtensions for Instrumentation) systems, which are modular measurement and control systems widely used in automated test and measurement applications.

Key Features and Specifications:

1. Processor:
   • The PXIe-8135 is powered by an Intel Core i7-3610QE processor, a powerful quad-core processor with a base frequency of 2.3 GHz and a Turbo Boost frequency of up to 3.3 GHz (per core). This makes it well-suited for processor-intensive modular instruments and data acquisition applications.
2. Memory:
   • The controller comes with a standard configuration of 4 GB (1 x 4 GB DIMM) of single-channel 1600 MHz DDR3 RAM, which can be upgraded to a maximum of 8 GB.
3. Storage:
   • The PXIe-8135 offers non-volatile storage via a hard drive and flash memory, allowing the system to retain user and system information even if power is suddenly lost. The controller also supports removable storage options, such as a hard drive carrier on the front panel, which enables users to move the storage medium to a secure environment.
4. I/O Connectivity:
   • The controller features a rich set of I/O connectivity options, including two SuperSpeed USB ports, four high-speed USB ports, two Gigabit Ethernet ports, a GPIB port, a serial port, and other peripherals.
5. Controller Bandwidth:
   • The PXIe-8135 offers high-bandwidth PXI Express capabilities, with up to 8 GB/s of system bandwidth and 2 GB/s of slot bandwidth in each direction.
6. Operating System and Software Compatibility:
   • The controller supports multiple operating system configurations, including Windows 7 64-bit, Windows 32-bit, and LabVIEW Real-Time. It is compatible with a wide range of software development environments, such as LabVIEW, Measurement Studio, Microsoft Visual Basic and Visual C++, LabWindows/CVI, and Visual Studio .NET.
7. Security and Reliability:
   • The PXIe-8135 is designed with security and reliability in mind. It supports encrypted communication and secure boot features, and is built to meet rigorous industry standards for quality and reliability.

Applications:

• Automated Test and Measurement Systems
• Processor-Intensive Modular Instruments
• Data Acquisition and Analysis Applications
• Industrial Automation and Control Systems

Conclusion:

The NI PXIe-8135 is a high-performance PXI Express embedded controller that offers robust processing power, extensive I/O connectivity, and high-bandwidth capabilities. Its compact design and modular architecture make it easy to integrate into existing PXI systems, while its support for multiple operating systems and software development environments ensure compatibility with a wide range of applications. Whether you’re developing automated test systems, processing complex data acquisition tasks, or building industrial automation solutions, the NI PXIe-8135 is an excellent choice for your needs.
