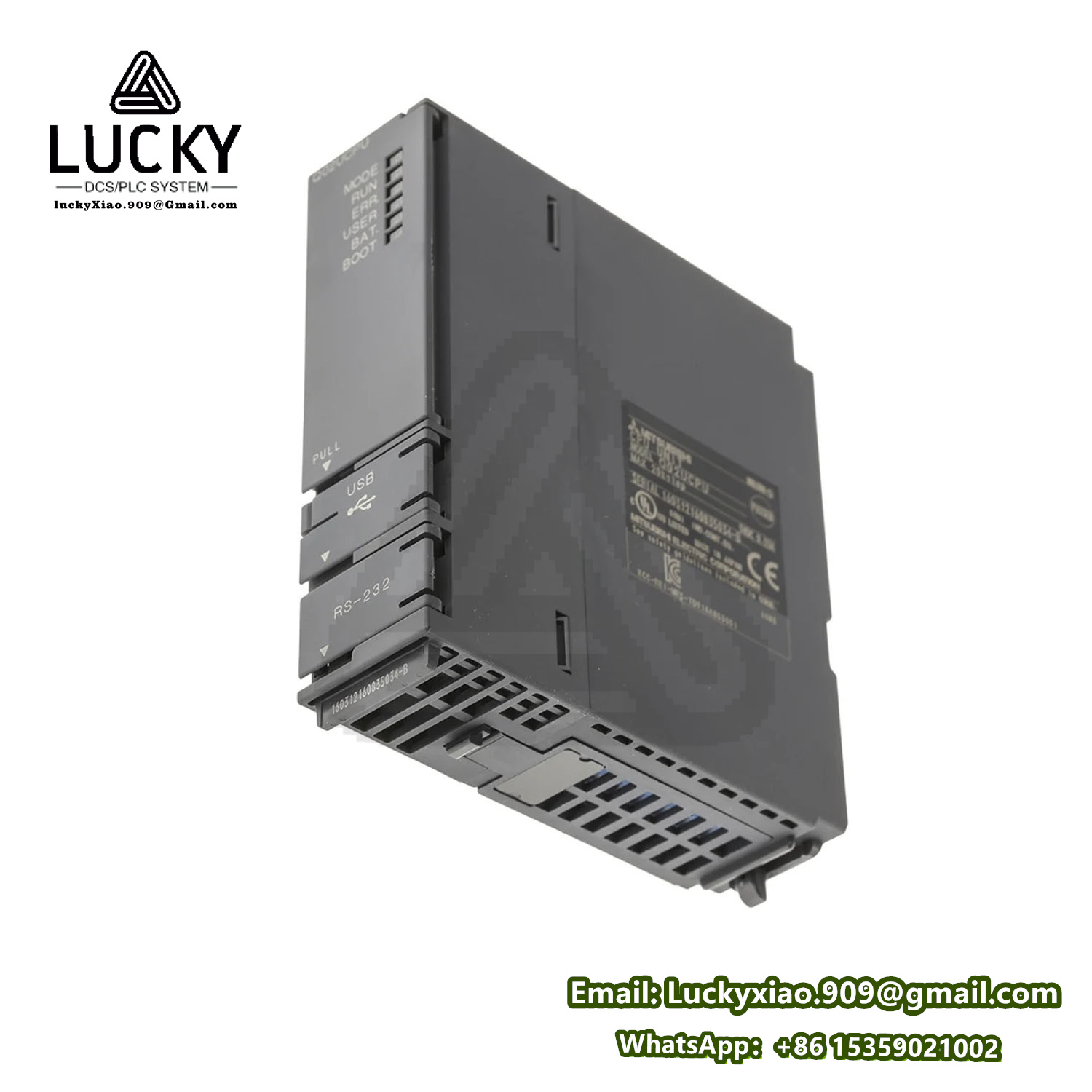

MITSUBISHI   Q06HCPU cpu module

MITSUBISHI Q06HCPU

Manufacturer: Mitsubishi Electric Corporation

Category: High-Performance PLC CPU Module

Series: MELSEC-Q Series

Overview:

The MITSUBISHI Q06HCPU is a high-performance CPU module designed for use in the MELSEC-Q Series Programmable Logic Controllers (PLCs). As the core component of the PLC system, the Q06HCPU is responsible for executing programs and processing data to control and monitor industrial processes.

Key Features:

1. High Processing Power:
   • The Q06HCPU offers high-speed processing capabilities, with a basic command processing speed (for LD X0) of 34 nanoseconds (ns).
   • It supports a large program capacity of up to 60,000 steps (or more depending on specific models), allowing for complex control logic to be implemented.
2. Extensive I/O Capability:
   • The module supports up to 4096 input and output (I/O) points, providing flexibility for connecting various sensors, actuators, and other devices to the PLC system.
   • The total number of I/O devices that can be connected is 8192 points.
3. Advanced Communication and Connectivity:
   • The Q06HCPU includes communication interfaces such as USB and RS-232 for connecting to programming devices, external storage, and other peripherals.
   • It supports various communication protocols, enabling seamless integration with other industrial systems and devices.
4. Memory Expansion Options:
   • The module has built-in RAM and ROM for storing programs and data.
   • Memory can be expanded by adding additional memory cards, providing additional storage capacity for larger programs and data sets.
5. Programming Flexibility:
   • The Q06HCPU supports multiple programming languages, including ladder diagrams, statement lists, structured text (ST), sequential function charts (SFC), and function blocks (FB).
   • It allows for structured programming, making it easier to manage and maintain complex control systems.
6. Compact and Reliable:
   • The Q06HCPU has a compact size, making it suitable for installation in space-limited environments.
   • It is designed for high reliability and durability, with built-in self-diagnostic functions for monitoring the status of the CPU, memory, I/O, and other system components.
7. Remote Monitoring and Control:
   • The module supports remote I/O networks, such as MELSECNET/H, enabling remote monitoring and control of industrial processes.
   • It also supports multi-CPU systems, allowing for distributed control architectures.

Applications:

The MITSUBISHI Q06HCPU is suitable for a wide range of industrial automation applications, including manufacturing, process control, and machine control. Its high performance and flexibility make it an ideal choice for systems requiring complex control logic and real-time data processing.

In summary, the MITSUBISHI Q06HCPU is a powerful and versatile PLC CPU module that offers high processing power, extensive I/O capability, advanced communication options, memory expansion capabilities, programming flexibility, compact size, and high reliability. It is well-suited for a variety of industrial automation applications.
