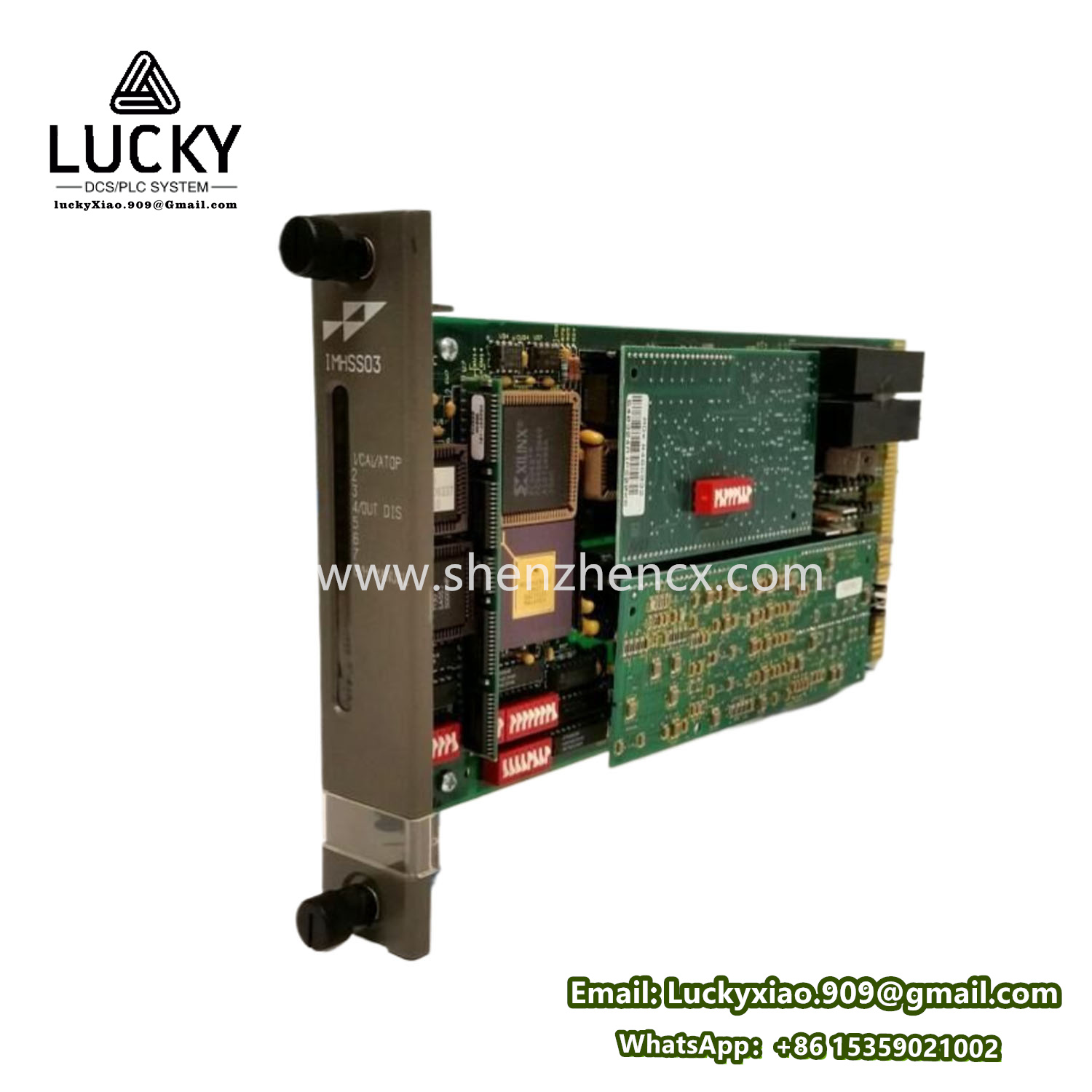

ABB IMHSS03
Industrial Motion & Sensing Hub
Precision meets power for advanced automation.
⚙️ TECHNICAL PARAMETERS
|
Category
|
Specifications
|
|---|---|
|
Input Voltage
|
24–48 V DC (±10%)
|
|
Power Consumption
|
≤15 W (peak)
|
|
I/O Channels
|
16 Digital Inputs / 12 Digital Outputs
|
|
Analog Interfaces
|
2x 0–10 V ADC, 12-bit resolution
|
|
Communication
|
PROFINET, EtherNet/IP, Modbus TCP
|
|
Operating Temp
|
-25°C to +70°C (-13°F to +158°F)
|
|
Protection Rating
|
IP65 (dust/water-resistant)
|
|
Certifications
|
CE, UL, IEC 61000 (EMC compliance)
|
🚀 FUNCTIONAL HIGHLIGHTS
1. Multi-Protocol Flexibility
▸ PROFINET & EtherNet/IP – Seamless PLC/robot integration.
▸ Modbus TCP – Legacy system compatibility.
2. Dynamic Motion Control
▸ Real-time feedback via analog inputs (e.g., torque, speed).
▸ PWM outputs for precision motor/servo control.
3. Advanced Diagnostics
▸ Embedded LED status matrix (per-channel health monitoring).
▸ Fault logging with timestamping for predictive maintenance.
4. Modular Expansion
▸ Daisy-chain up to 8 modules via high-speed backplane.
▸ Supports ABB X-series add-ons (e.g., safety I/O, RFID).
5. Edge Computing
▸ Onboard ARM Cortex-M7 processor for localized logic execution.
▸ Reduces latency in high-speed pick-and-place applications.
🔧 TYPICAL USE CASES
|
Industry
|
Application
|
Key Benefit
|
|---|---|---|
|
Automotive
|
Robotic welding arms, conveyor synchronization
|
Low-latency signal processing
|
|
Pharma
|
Fill-level sensing, vial sorting systems
|
IP65 hygiene compliance
|
|
Packaging
|
Servo-driven cartoners, label applicators
|
PWM-driven motor precision
|
|
Energy
|
Solar panel alignment, turbine monitoring
|
Wide-temperature operation
|
💡 INNOVATIVE FEATURES
- Smart Plug-and-Play: Auto-configuration via ABB’s RobotStudio Suite.
- Cybersecurity: TLS 1.3 encryption for industrial network safety.
- Energy-Saving Mode: Drops power to 3 W in standby (AI-driven load detection).
📊 COMPARATIVE EDGE
|
Feature
|
Competitor X
|
|
|---|---|---|
|
I/O Density
|
28 channels
|
20 channels
|
|
Processor Speed
|
300 MHz
|
200 MHz
|
|
Protection
|
IP65
|
IP54
|
|
Protocols
|
3+ (PROFINET, EtherNet/IP)
|
2 (PROFINET only)
|
🛠️ INTEGRATION TIPS
- Pair with ABB IRB 6700 robots for synchronized assembly lines.
- Use ABB Ability™ cloud for remote diagnostics and firmware updates.
- Leverage analog inputs for predictive maintenance (e.g., vibration analysis).
📌 WHY CHOOSE IMHSS03?
► Future-proof design with over-the-air (OTA) updatability.
► 75% faster commissioning vs. legacy modules.
► 3-year warranty with ABB’s global technical support.
