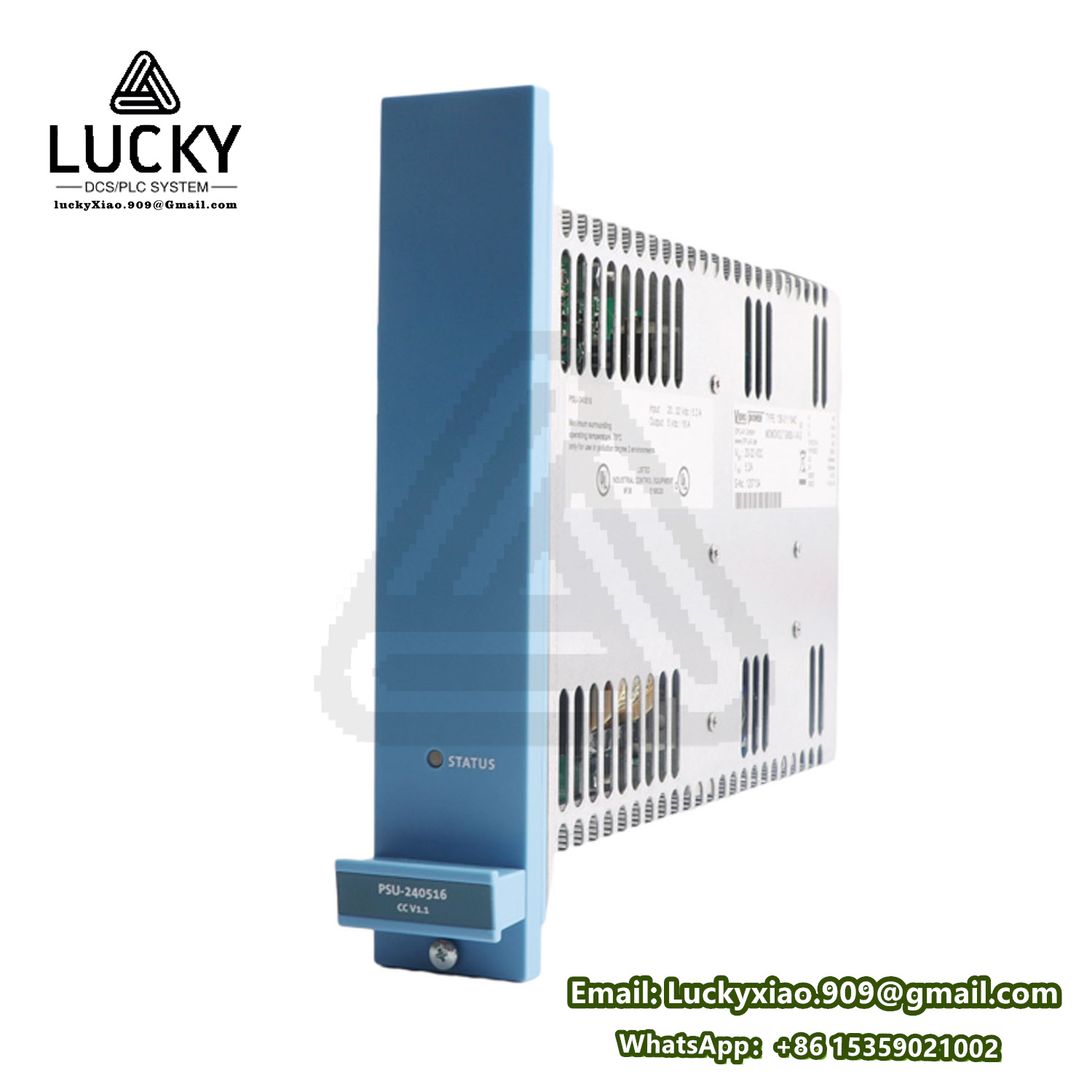

Honeywell  PSU-240516 High performance power supply unit

The Honeywell PSU-240516 (or FC-PSU-240516, as it is also known) is a high-performance power supply unit specifically designed for industrial automation and control systems. Below is an English introduction to its key features and specifications:

Overview

The PSU-240516 is a compact and easy-to-install power module that offers a range of excellent features and functionalities. It is designed to provide reliable power to industrial devices in various environments, ensuring the stable operation of the entire system.

Key Features

1. Output Specifications:
   • The PSU-240516 provides an output voltage of 24V DC.
   • It supports a maximum output current of up to 5A (although some sources mention a maximum load of 3.6A, this may vary depending on specific configurations and operating conditions).
2. Input Voltage Range:
   • The module accepts a wide range of input voltages, from 90 to 264VAC. This makes it highly adaptable to various power supply environments.
3. Efficiency and Stability:
   • The PSU-240516 boasts an efficiency greater than 85%.
   • The output ripple and noise are less than 1%, ensuring a stable and efficient power supply to the connected devices.
4. Operating Environment:
   • The module has a broad operating temperature range of -20 to 60°C.
   • It can operate within a humidity range of 0 to 95% (non-condensing), making it suitable for harsh industrial environments.
5. Protection Features:
   • The PSU-240516 includes protection features such as lightning protection (4000V at the electrical interface), overcurrent protection (1.5A), and surge protection (600W).
   • These features help to protect the module and connected devices from electrical hazards such as lightning, overcurrent, and surges.
6. Communication and Monitoring:
   • The module supports standard communication rates as specified in relevant standards.
   • It can be manually set to all standard rates or achieve rate adaptation via dip switches (with all electrical interface rates being consistent).
   • Additionally, it is equipped with 6 bicolor LED status indicators and a power failure relay output alarm function, allowing users to monitor the power module’s operating status in real-time.
7. Design and Certification:
   • The PSU-240516 adopts an industrial-grade design and has undergone EMC testing and certification, ensuring its stability and reliability.
   • It has an IP30 protection rating and a wavy aluminum reinforced enclosure, further enhancing its durability and reliability.

Applications

The PSU-240516 is suitable for a wide range of industrial automation and control systems, including those in the chemical, petroleum, electronics, aerospace, and electrical industries. Its compact design, easy installation, and rich functionality make it an ideal choice for providing reliable power to critical industrial devices.

Conclusion

The Honeywell PSU-240516 power module is a high-performance, feature-rich, and reliable power supply solution designed specifically for industrial automation and control systems. Its excellent output specifications, broad operating environment, protection features, communication and monitoring capabilities, as well as its industrial-grade design and certification, make it a trusted choice for various industrial applications.
