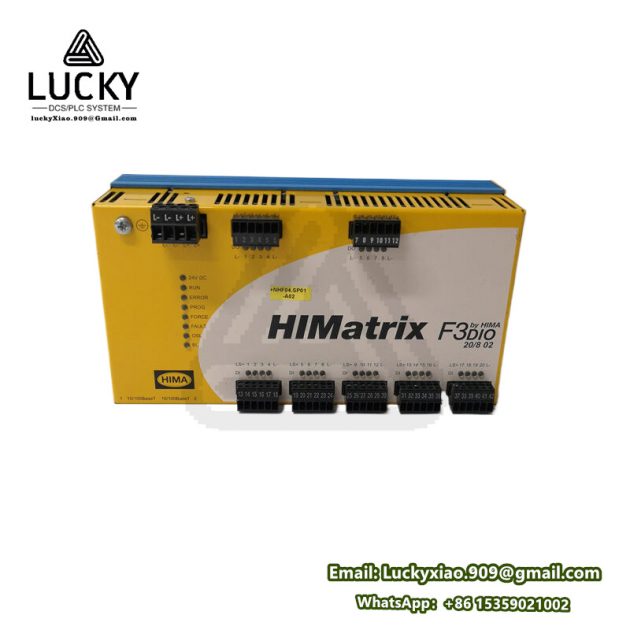

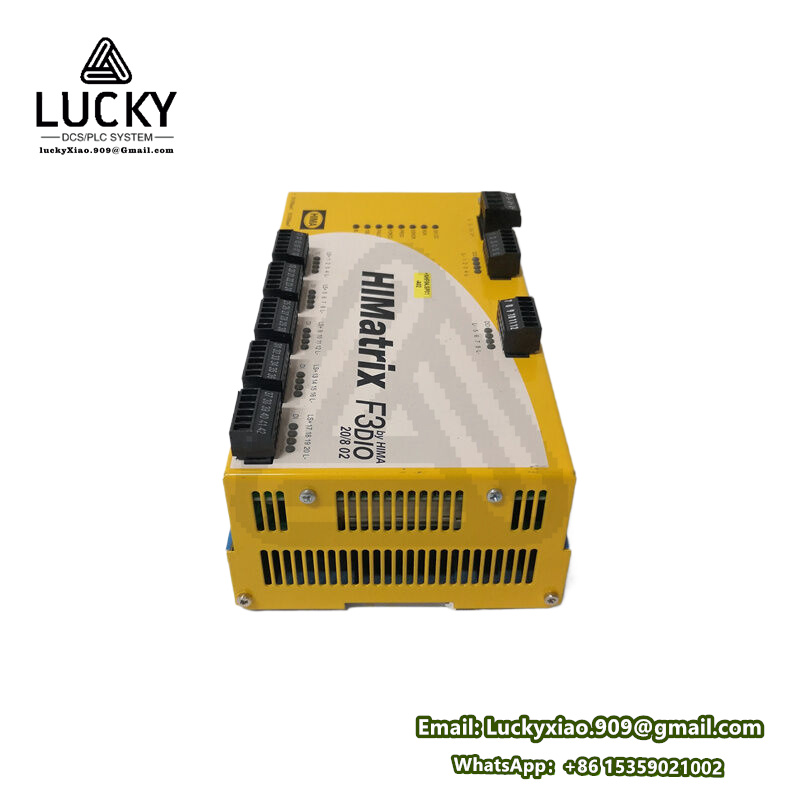

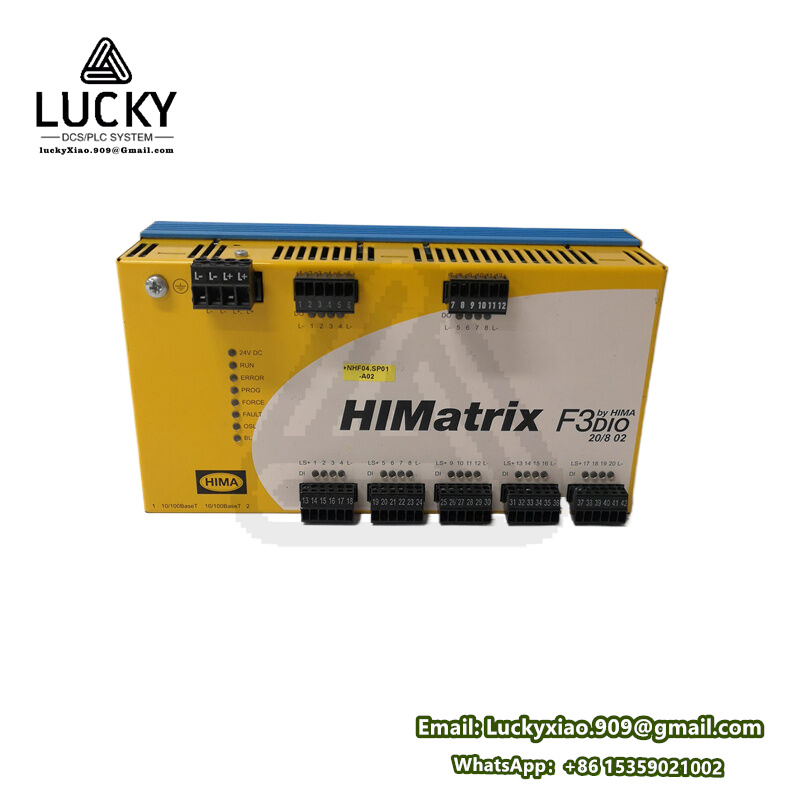

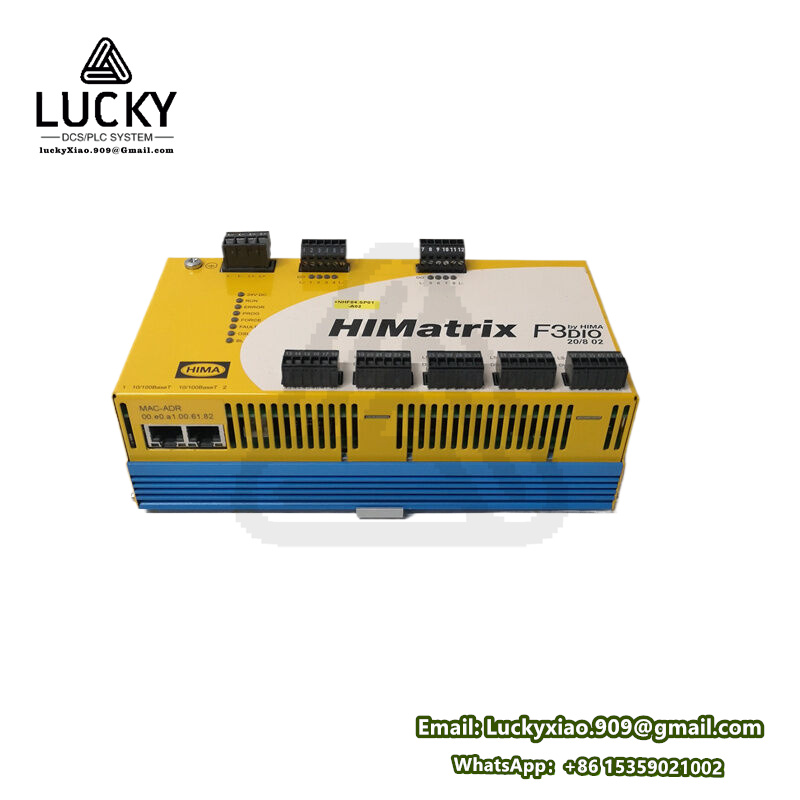

HIMA F3DIO20/802 982200442 is a digital input/output (I/O) module designed specifically for safety applications. The following is a detailed introduction to the module:
1、 Product Overview
HIMA F3DIO20/802 982200442 is a critical component of the HIMA Safety Instrumented System (SIS), providing 20 digital channels that can be used to connect various field devices such as sensors, actuators, and switches. This module adopts a redundant design, which ensures the continuous operation of the system even if a single channel fails, improving the reliability and safety of the system.
2、 Main features
Redundancy design: This module adopts redundancy design to enhance the system’s fault tolerance, ensuring the normal operation of the system even in the event of a single channel failure.
High channel density: Provides 20 digital channels to meet the needs of complex control systems, improving system flexibility and response speed.
Built in diagnostic function: With built-in diagnostic function, it can continuously monitor the operation status of the module and detect potential faults, which helps to detect and handle problems in a timely manner.
Hot backup function: allows for online replacement of faulty modules without interrupting system operation, reducing maintenance costs and downtime.
High precision control: With high-precision control characteristics, it can ensure the stability and accuracy of the system.
Overload protection: With overload protection function, it can automatically limit overload current and protect the system from damage caused by overload current.
Remote I/O expansion capability: Connecting to a separate HIMax or HIMatrix controller via safeEthernet makes remote I/O expansion simple and reliable.
3、 Technical specifications
Input type: Digital dry contact point.
Input voltage range: 24VDC.
Output type: Digital dry contact.
Output voltage range: 24VDC.
Current: 2A.
Contact resistance: less than 1 Ω.
Working temperature range:- 40 ° C to+70 ° C.
Humidity range: 5% to 95% RH (non condensing).
Vibration: 0.05g RMS (random).
Impact: 15g (half sine).
4、 Application Fields
HIMA F3DIO20/802 982200442 is widely used in the field of industrial automation, such as production line control, process monitoring, and safety protection. Its multi-channel input and output, high-precision control, overload protection, remote I/O expansion, and high cost-effectiveness make it an ideal choice in the field of industrial automation.
