SPECIFICATIONS
Part Number: IS215ACLEH1AB
Manufacturer: General Electric
Series: EX2100
Product Type: Application Control Layer Module
Number of channels: 12
Processor: 486 100MHz
Ethernet Interface: 10BaseT
Outputs: 24 V dc
Size: 15.9 cm high x 10.2 cm wide
Operating Temperature: 0 to 45
Operating System: QNX
Repair: 3-7 Days
Country of Origin: USA
Availability: In Stock
Manual: GEI-100584
FUNCTIONAL DESCRIPTION
IS215ACLEH1AB is an Application Control Layer Module manufactured and designed by General Electric as part of the EX2100 Series used in excitation control systems. The IS215ACLE Application Control Layer (ACLE) module is a master controller powered by a microprocessor that handles numerous tasks across Ethernet and other communication networks. It takes up two complete slots and attaches to all EX2100 Excitation Control racks that are standard. The IS215ACLAH1A (ACLA) module that was originally employed in EX2100 applications is completely replaced by the ACLE. In excitation applications like the Innovation Series, it does not take the position of ACLA. The ACLE is compatible with the following control racks and related backplanes in the EX2100:
Rack for simplex thyristor controls with an IS200ESBP backplane.
IS200EBKP Warm Backup Thyristor Control Rack.
A rack for simplex regulator controls that features an IS200ERBP backplane.
A redundant regulator control rack with a backplane made of IS200ERRB.

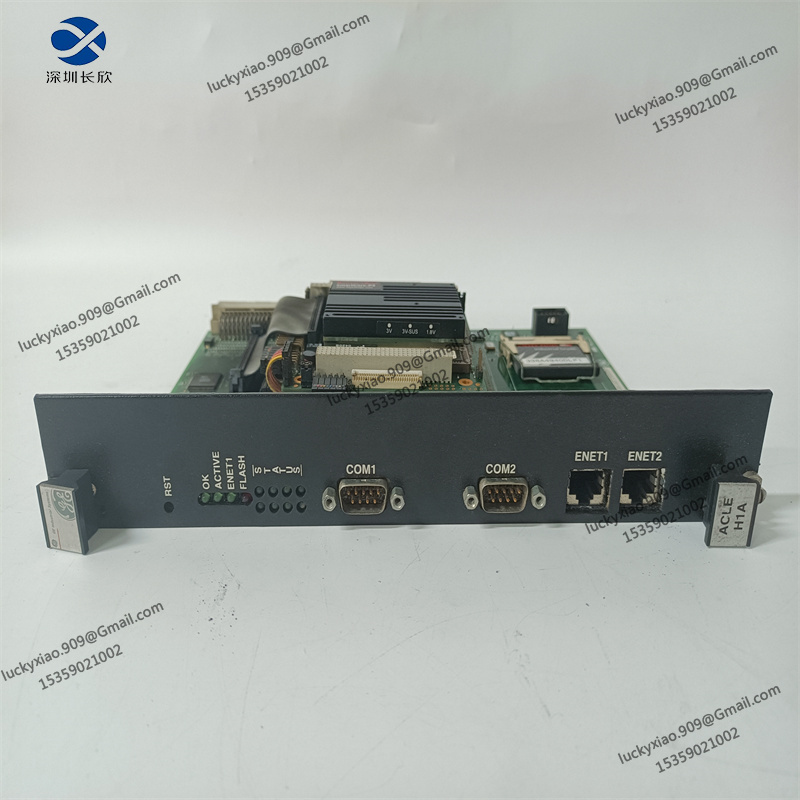

There is only one I/O configuration available for the ACLE: two 10BaseT Ethernet ports and two serial communication interfaces (COM1 and COM2). There are accessible optional hardware accessories. These products, which must be ordered separately from the ACL, include a serial cable (336A3582P1) that links a computer’s COM port to an ACLE COM port.
FEATURES OF ACLE:
The language and library of control block ware.
The loading of online application setup.
Internal Boolean forcing and I/O points.
Examination of malfunctioning run/starts permissive.
Alerts at the application level.
Compact flash memory that isn’t volatile.
Toolbox support and interface through Ethernet.
ACLE HARDWARE FEATURES:

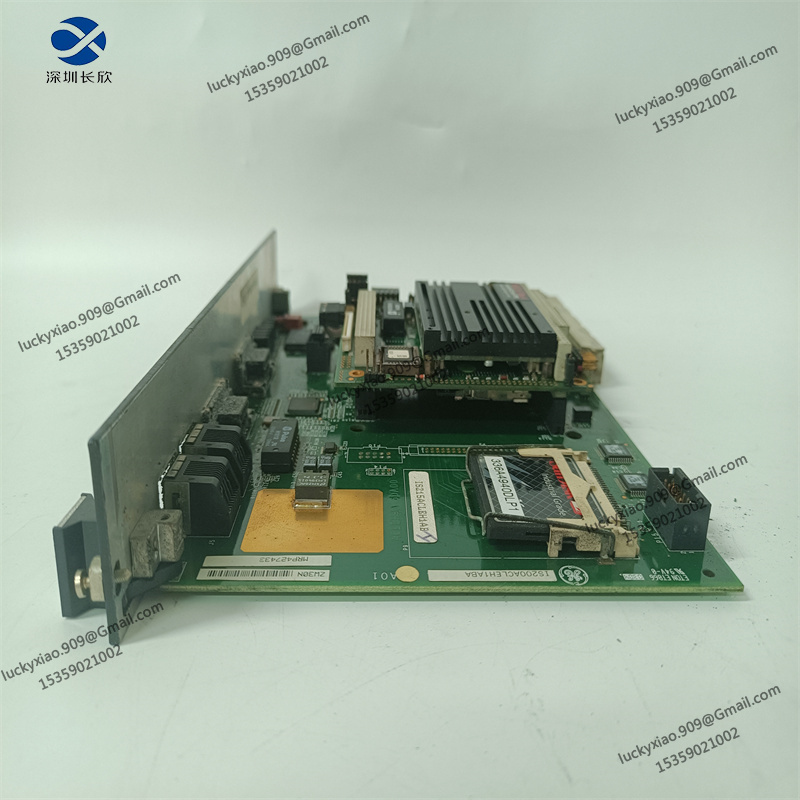

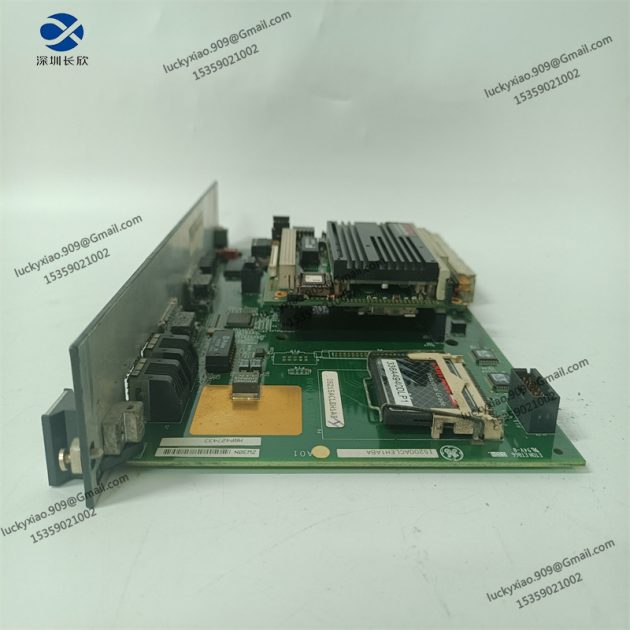

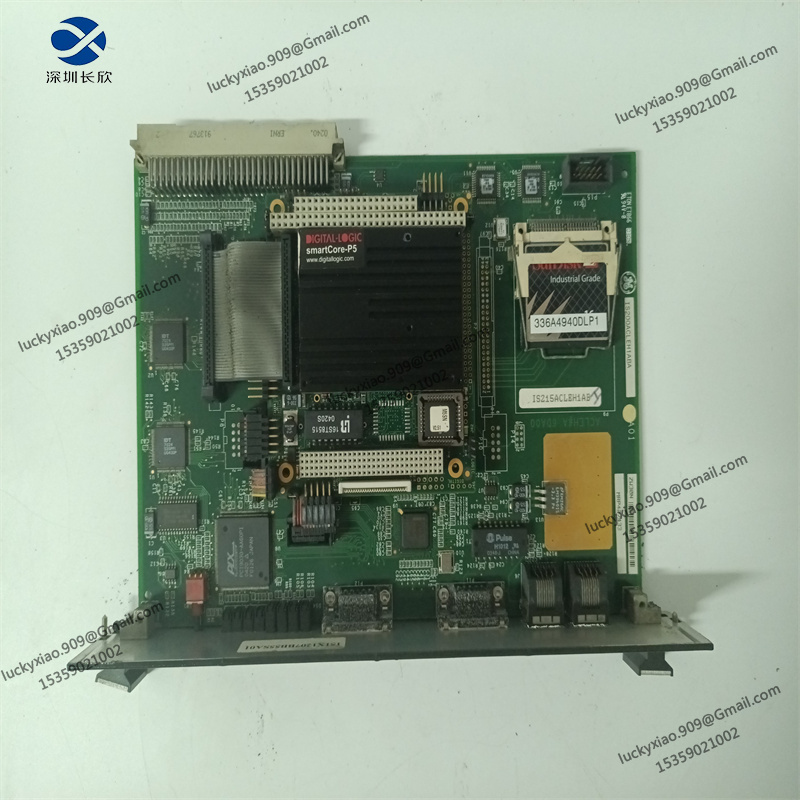

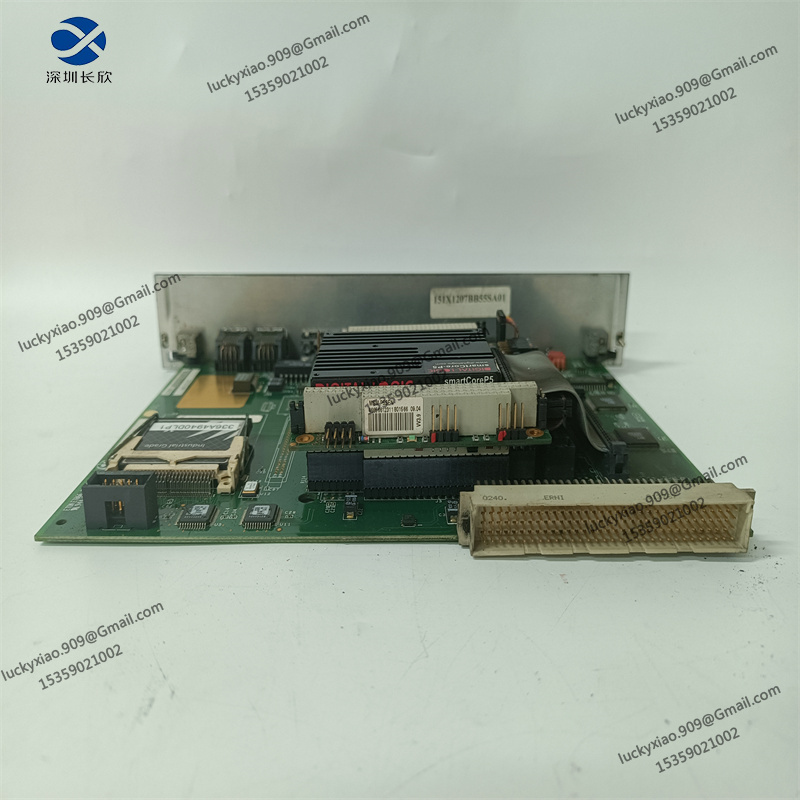

The IS200ACLE carrier board and a PC/104-PlusTM microprocessor board are the two printed circuit boards that make up the ACLE module. This module is provided as an assembled whole. This module is not meant to be disassembled by the user in order to gain access to the PC/104TM board, carrier board, or dynamic random access memory separately (DRAM). The PC/104-Plus board’s integrated circuits offer the following features:
Tualatin Celeron 400 MHz or Pentium P5 266 MHz central processor unit
(CPU).
Level 2 cache of 256 KB.
The DRAM of 128 MB (expandable).
FLASH ROM system for basic I/O (BIOS).
A second Ethernet port capable of 10/100 Mbps.
COM1 and COM2 are RS-232 serial ports.
Compact flash disks use the IDE interface.
Bus interface for PCI.
ISA bus interface for PC/104.
