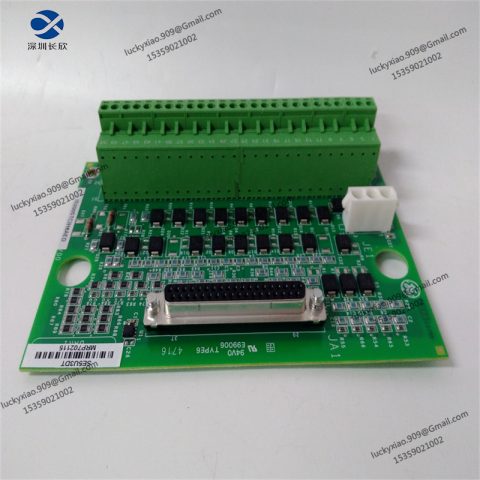

IS200WNPSH1ABA is a Simplex Analog Input Terminal Board manufactured and designed by General Electric as part of the Mark VIe Series used in distributed control systems. The Simplex Analog Input (STAI) terminal board is a small analog input terminal board that attaches to the pack and supports 10 analog inputs and 2 analog outputs. Two-wire, three-wire, four-wire, or transmitters with external power can all be connected to the 10 analog inputs. Two 0-20 mA 0-20 mA jumper-configurable analog outputs are available, with one supporting 0-200 mA current. The board is only offered in simplex form. The terminal blocks are of the high-density Euro-block type. The board is identified to the pack for system diagnostics by an onboard ID chip.
STAI INSTALLATION:
A sheet metal carrier that is mounted on a DIN rail carries the STAI together with a plastic insulator. The STAI plus insulator can alternatively mount to a sheet metal assembly before being fastened directly to a cabinet. There are two different varieties of Euro-block terminal blocks available:
- A permanently mounted terminal block with 48 terminals is present on STAI 1.
- A right-angle header on STAI 2 accepts a variety of pluggable terminal blocks that are readily accessible and have a total of 48 terminals.
- Typically, shielded twisted pair (#18 AWG) wires are utilized. There is an I/O cable shield terminal available next to the terminal blocks.
It is possible to accept the following analog input and output types:
- Two-wire transmitter with analog input.
- Three-wire transmitter with analog input.
- Four-wire transmitter with analog input.
- An externally powered transmitter with an analog input.
- Analog input, 5 and 10 volts direct current.
- 0-20 mA current analog output.
- Analog output, current of 0-200 mA.
