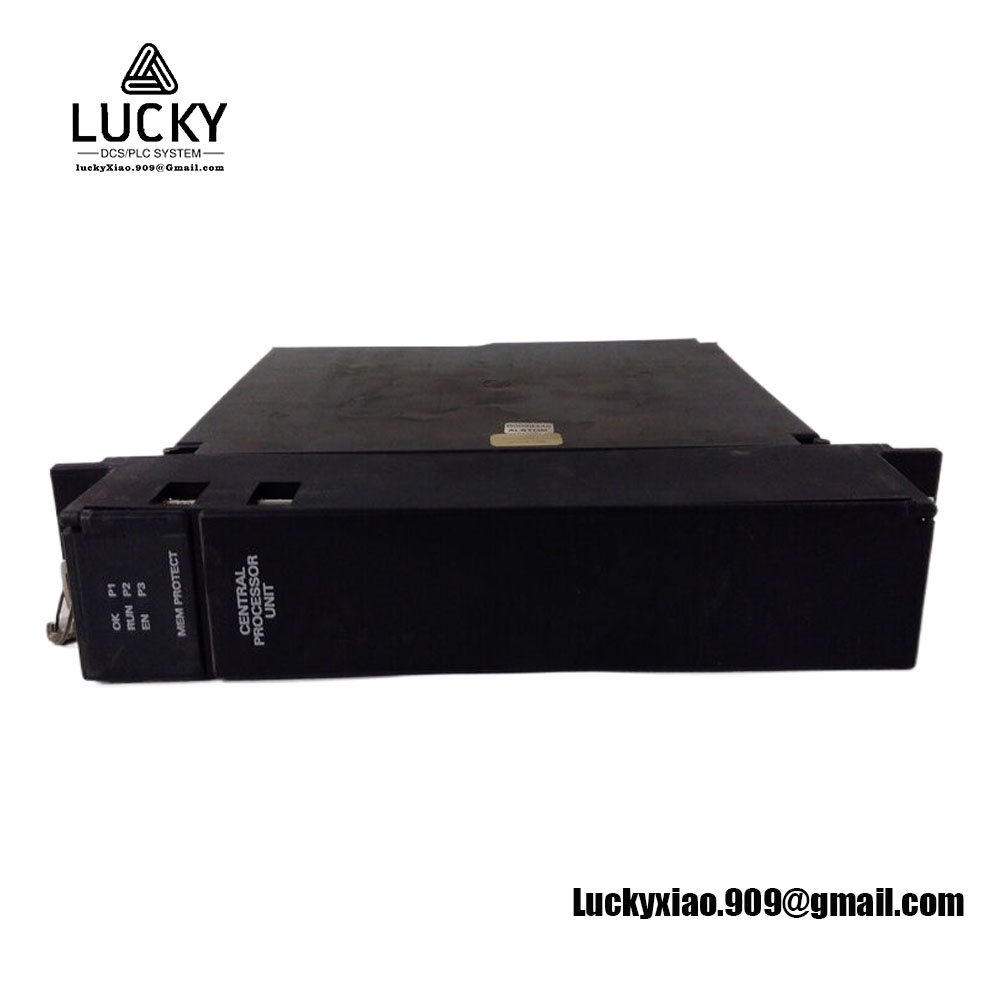

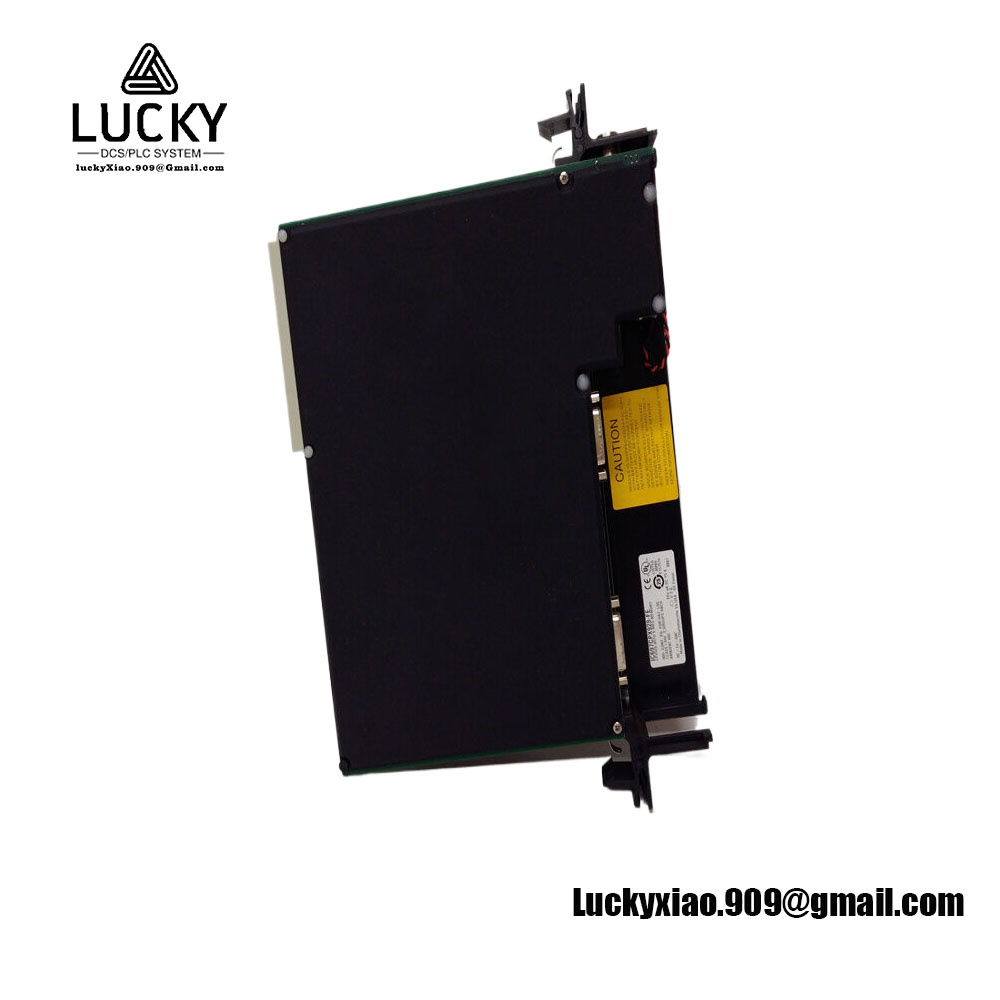

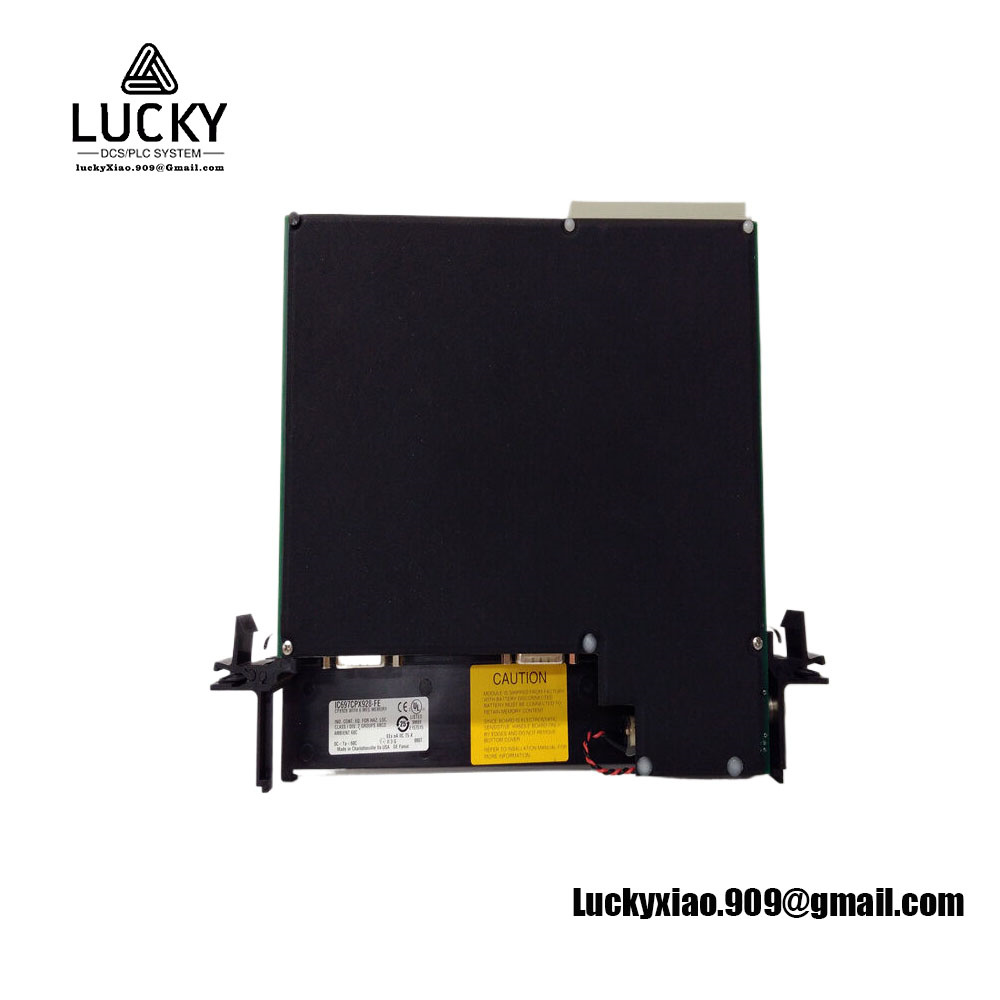

GE IC697CPX928 is a powerful central processing unit (CPU) module belonging to GE’s PACSystems RX series. The following is a detailed introduction about GE IC697CPX928:
1、 Basic characteristics
Design: Adopting a single slot design, it is easy to install and integrate into various industrial automation systems.
Processor: Equipped with 80486DX4 microprocessor, the processor has a speed of up to 96MHz, ensuring fast data processing and computing capabilities.
Boolean function execution speed: The execution time of each Boolean function is only 0.4 microseconds, reflecting its efficient computational performance.
2、 Storage and Memory
Battery supported memory: Provides 6MB of battery supported memory for storing user programs and data, ensuring that data is not lost in the event of system power failure.
Non volatile user flash: Contains 256K non-volatile user flash, which can be used to store CPU firmware and other important information.
3、 Input/output capability
Analog I/O: Supports up to 8K analog inputs and outputs to meet various complex industrial automation application requirements.
Digital I/O: With up to 12K input and output mixing capabilities, it can handle any combination of input and output signals.
4、 Communication interface and scalability
Communication Interface: Supports multiple communication interfaces, including RS-232, RS-485, and Ethernet, facilitating data exchange and communication with other devices and systems.
Scalability: It can be compatible with various optional modules, such as LAN Interface modules, programmable coprocessors, etc., to expand and enhance their functionality.
5、 Programming and Configuration
Programming software: Supports programming and configuration of software products based on MS-DOS or Windows, improving the flexibility and convenience of programming.
Configuration method: Programming and configuration can be done through Ethernet TCP/IP or SNP ports, making it convenient for users to perform remote operations and management.
6、 Safety and Protection
Security features: It has multiple protection and security functions, such as password controlled access, remote programming key switches, memory protection, etc., to ensure the security and stability of the system.
7、 Application environment
Working temperature: It can operate at an ambient temperature of 32 to 140 degrees Fahrenheit (approximately 0 to 60 degrees Celsius) and has high environmental adaptability.
Input voltage: The required input voltage is 5V DC, making it compatible with various power systems.
8、 Application Fields
The GE IC697CPX928 CPU module is commonly used in industrial automation systems to control and monitor equipment and machines in manufacturing processes.
In industries such as chemical, petroleum, and natural gas, this CPU module can be used in process control systems to ensure the stability and consistency of the production process.
In the fields of electricity, power distribution, and energy production, it can be used to monitor and control equipment and processes in the power system.
In manufacturing, it can be used to control machines, sensors, and other equipment on the production line to improve production efficiency.
It can also be used to control and monitor signals, sensors, and automation devices in transportation systems, such as traffic light control systems, as well as building automation systems, to control lighting, HVAC, and other building equipment.
