GE 04220FL11232A is a powerful field interface module. The following is a detailed introduction to it:
1、 Product Overview

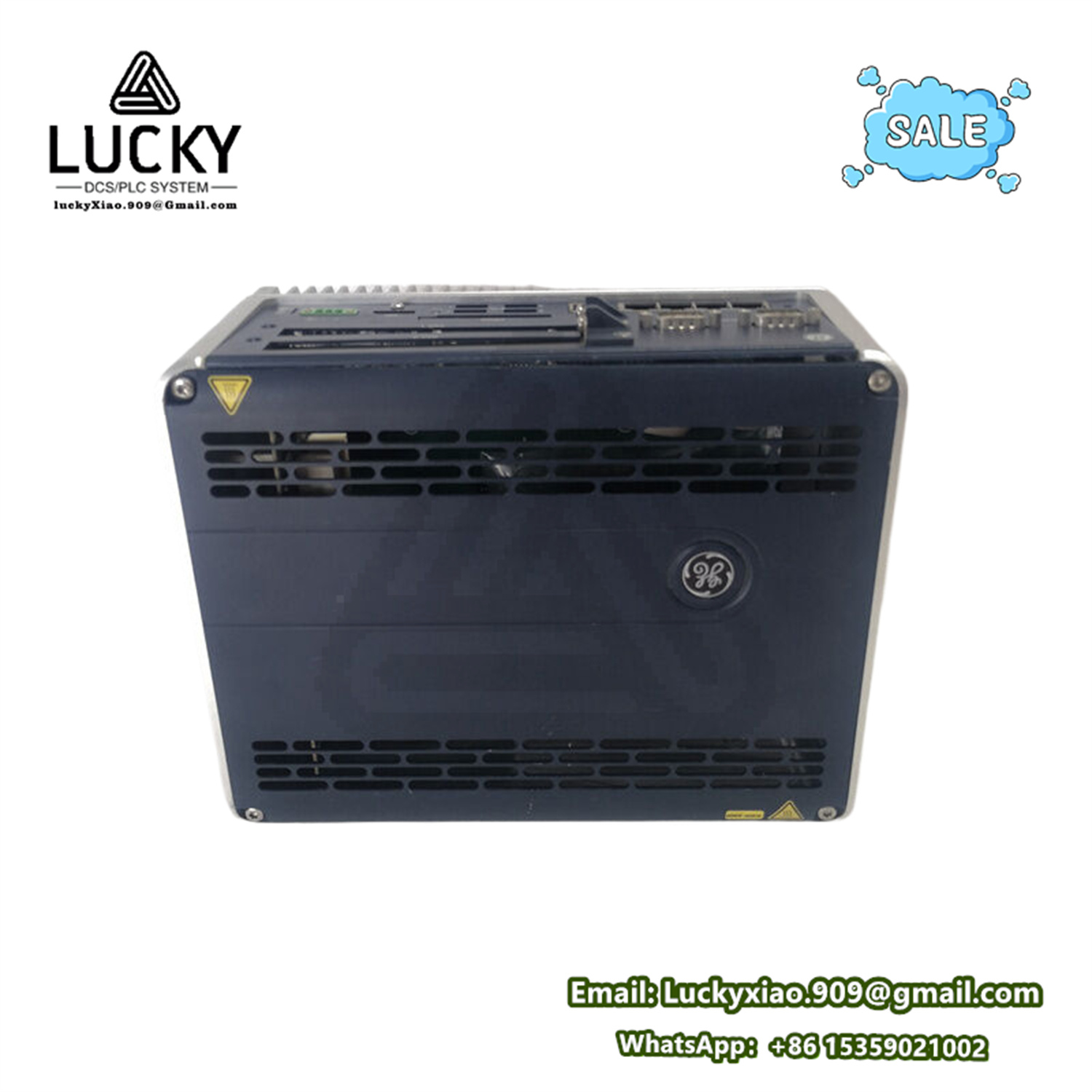

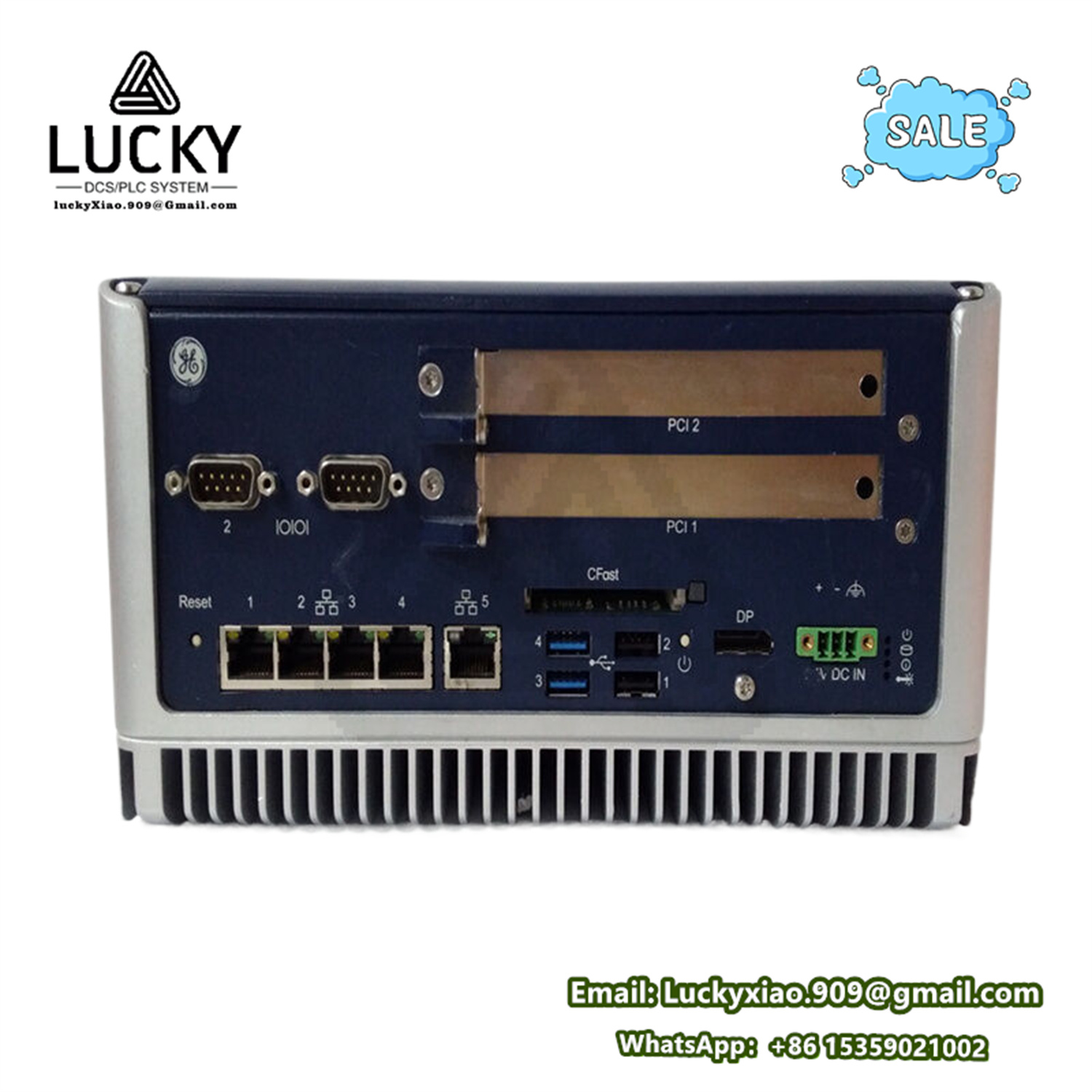

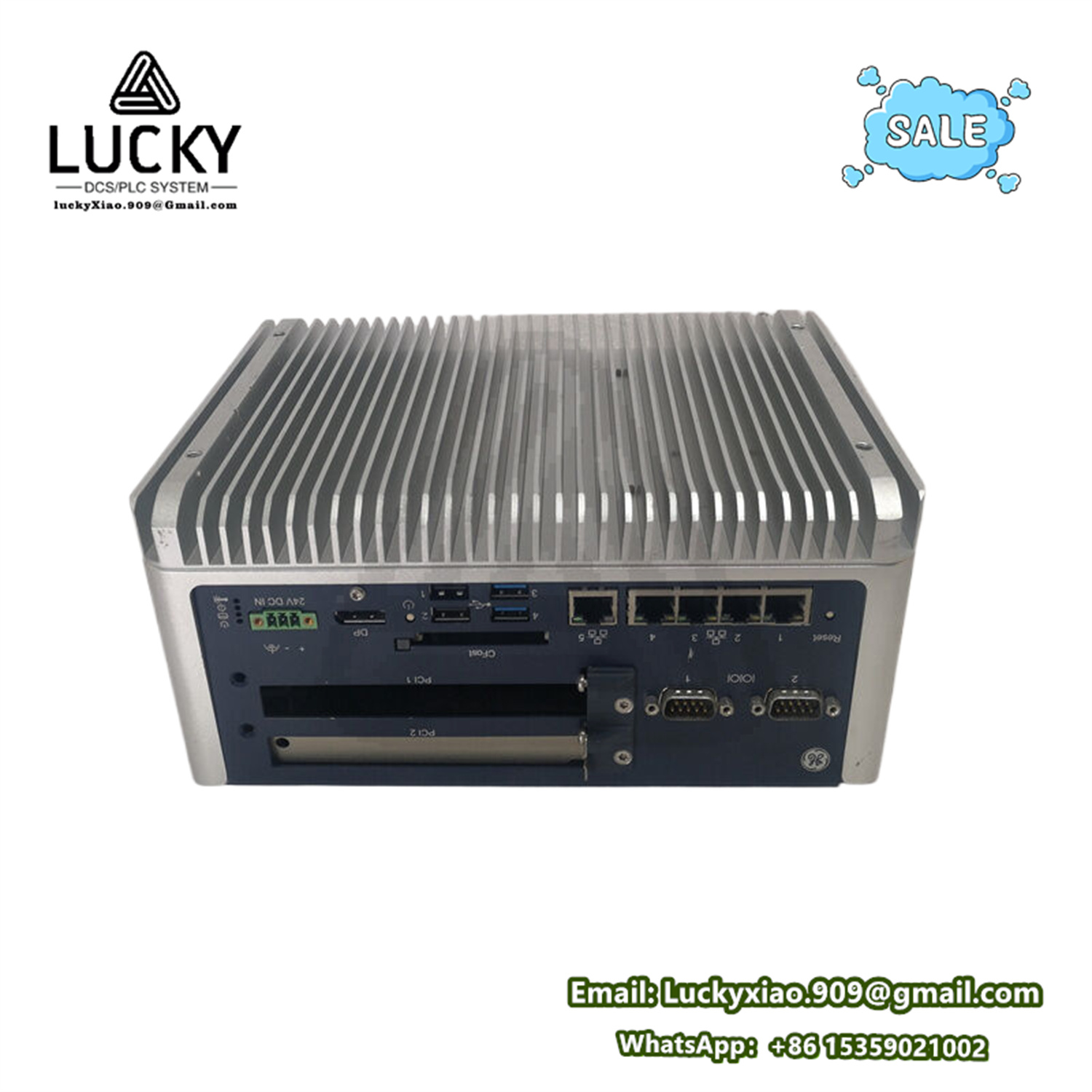

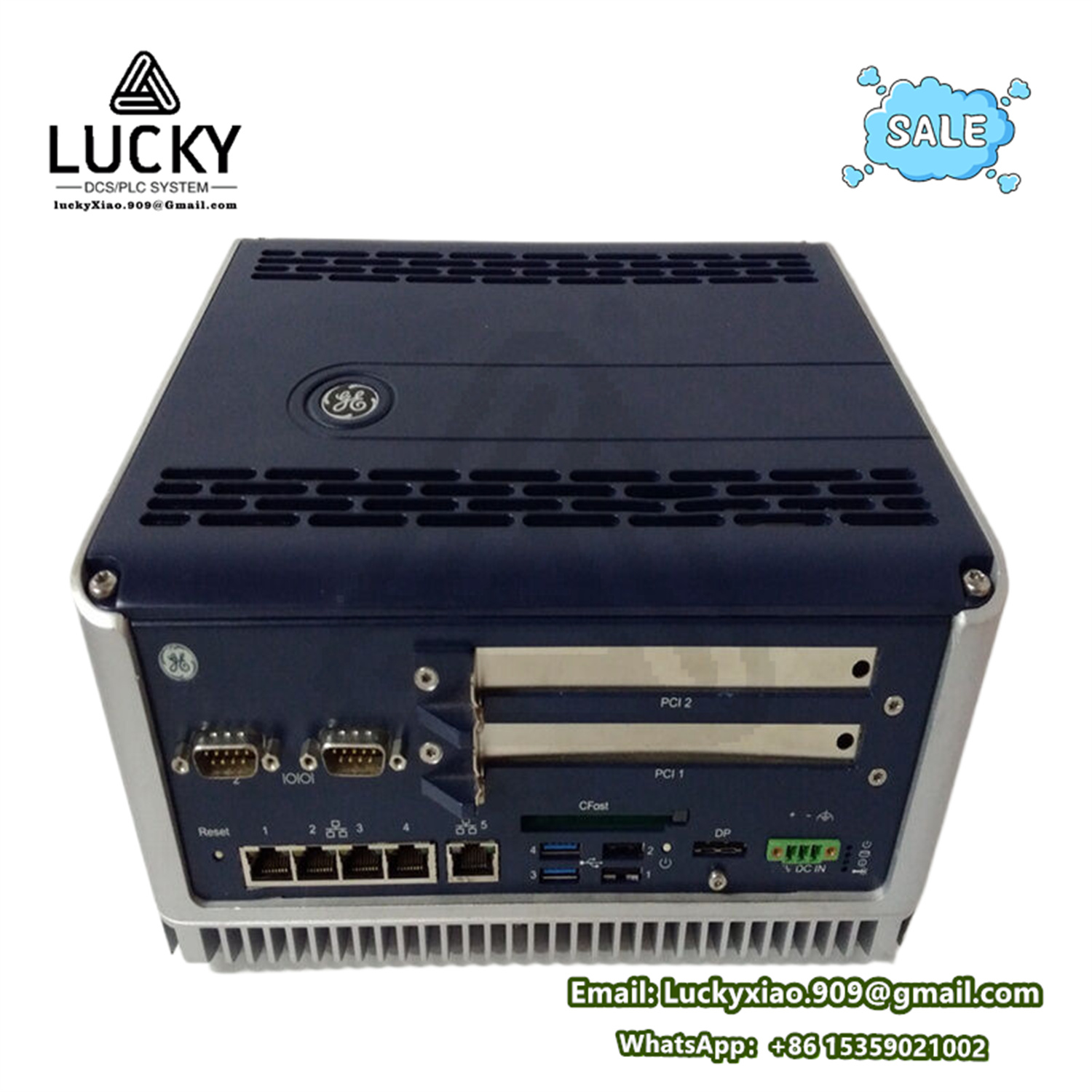

GE 04220FL11232A is a field interface module manufactured by General Electric (GE), specifically designed for industrial automation and control systems. This module has multiple interface types and can connect and manage different types of sensors, actuators, and other external devices to achieve data transmission and control.
2、 Main features
Multiple interface types:
Digital input interface: used to read digital signals, such as switch status.
Digital output interface: used to control digital devices such as relays, indicator lights, etc.
Analog input interface: used to read analog signals, such as temperature, pressure, and other sensor output signals.
Analog output interface: used to control analog devices such as regulating valves, frequency converters, etc.
Communication interface: Supports multiple industrial communication protocols such as Modbus, Ethernet/IP, Profibus, etc., facilitating communication with other devices or control systems.
High performance:
This module adopts advanced processing technology, with high-speed data transmission and powerful processing capabilities.
Support multiple communication protocols and tasks to ensure real-time and reliable data transmission.
High reliability:
Adopting industrial grade components and advanced power protection concepts to ensure stable operation in harsh environments.
Support hot swapping and redundant configuration to improve system reliability and availability.
Easy to configure and program:
Users can configure and program modules through software tools to meet specific application requirements.
Provide rich configuration options and parameter settings to facilitate customized configuration for users.
Compact structure:
The module adopts a compact structural design, which facilitates installation and integration into existing automation systems.
Provide multiple installation methods and interface options to meet different installation needs.
3、 Application Fields
The GE 04220FL11232A field interface module is widely used in the field of industrial automation, including manufacturing, power, chemical, water treatment, oil and gas, traffic control, building automation, etc. It is used to connect and integrate various sensors, actuators, and control devices, achieve data collection, transmission, and control, and improve production efficiency and system reliability.
4、 Technical specifications
Power supply: 24V direct current (VDC), 3.4 amperes (AMP).
Processor: High performance dual core CPU ensures efficient system operation.
Memory: The RXi Box IPC has 4G RAM memory and supports high-performance design.
Storage system: 32GB industrial grade solid-state drive is standard, and 250GB hard drive is optional to ensure data storage security.
Network interface: Supports Gigabit PROFINET (with built-in MRP redundancy) and Ethernet ports, providing high-speed data transmission capability.
Serial communication: RS-232 port (RJ-45), supporting serial I/O, Modbus master/slave, and other communication protocols.
Other interfaces: Provides VGA port, audio interface, USB interface, etc. to meet different connection requirements.
