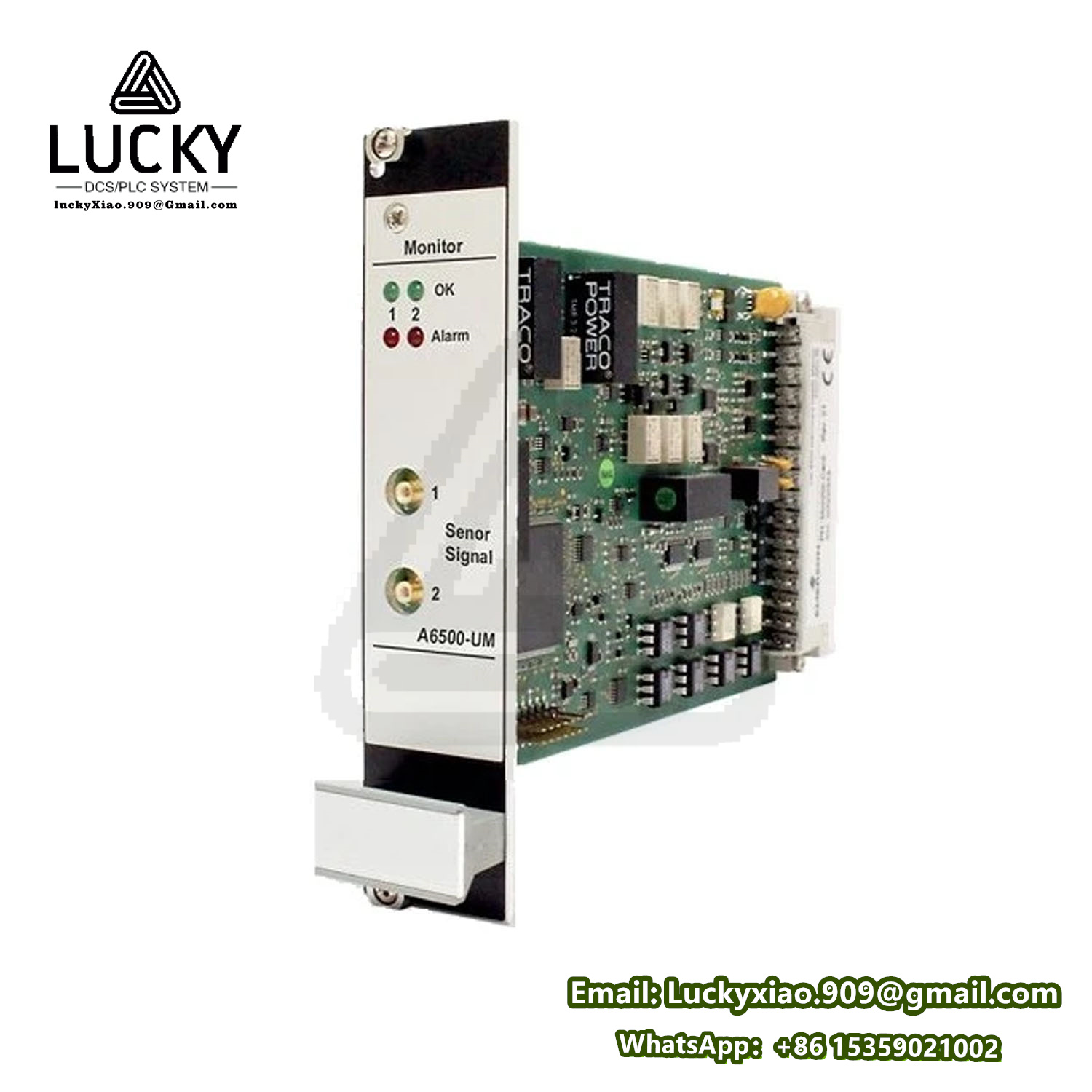

EMERSON A6500-UM  highly specialized and versatile measurement card

The EMERSON A6500-UM is a highly specialized and versatile measurement card within the EMERSON A6500 series. Below is a detailed introduction to its key features, functionalities, and applications:

Product Overview

• Model: A6500-UM
• Series: Emerson A6500
• Application: Universal measurement card for mechanical protection systems

Key Features and Functionalities

1. Dual Sensor Input Channels:
   • The A6500-UM is equipped with two sensor input channels that can operate independently or in combination, depending on the selected measurement mode.
   • These channels are compatible with a wide range of sensors, including eddy-current, piezoelectric (accelerometer or velometer), seismic (electro-dynamic), LF (low-frequency bearing vibration), Hall-effect, and LVDT (in combination with A6500-LC) sensors.
2. Digital Inputs and Outputs:
   • In addition to the sensor input channels, the A6500-UM features five digital inputs and six digital outputs, providing versatile connectivity options for various industrial automation needs.
3. Communication and Protocol Conversion:
   • Measurement signals from the sensor input channels are transmitted through an internal RS 485 bus to the A6500-CC communication card.
   • The communication card converts these signals into Modbus RTU and Modbus TCP/IP protocols for further transmission to the host computer or analysis system.
4. USB Connectivity for Configuration and Monitoring:
   • The A6500-CC communication card also includes a USB socket for connecting a PC or laptop, allowing users to configure the A6500-UM card and visualize measurement results.
5. Analog Output for Measurement Results:
   • Measurement results can also be output through an analog 0/4-20 mA signal. These outputs are commonly grounded and electrically isolated from the system power supply, ensuring safe and accurate signal transmission.
6. Compact and Space-Saving Design:
   • With a 3U size and 1-slot plugin module design, the A6500-UM significantly reduces cabinet space requirements compared to traditional four-channel 6U cards.
7. Compliance and Certifications:
   • The A6500-UM complies with API 670 standards, ensuring reliability and performance in critical industrial applications.
8. Hot-Pluggable and Remote Configuration:
   • The card is designed to be hot-pluggable, allowing for easy installation and replacement without powering down the entire system.
   • It also supports remote configuration, enabling users to adjust settings and monitor system performance remotely.

Applications

The EMERSON A6500-UM universal measurement card is widely used in various industrial applications, including but not limited to:

• Machinery protection and monitoring in industrial environments.
• Monitoring of critical rotating equipment in factories to improve reliability and prevent failures.
• Integration with other CSI A6500 ATG monitoring modules to form a complete API 670 mechanical protection monitoring system.
• Applications involving turbines, compressors, and other heavy-duty industrial machinery.

In summary, the EMERSON A6500-UM universal measurement card is a versatile and reliable tool for industrial automation and machinery protection. Its dual sensor input channels, digital inputs and outputs, communication capabilities, and compact design make it an ideal choice for various industrial monitoring and control applications.
