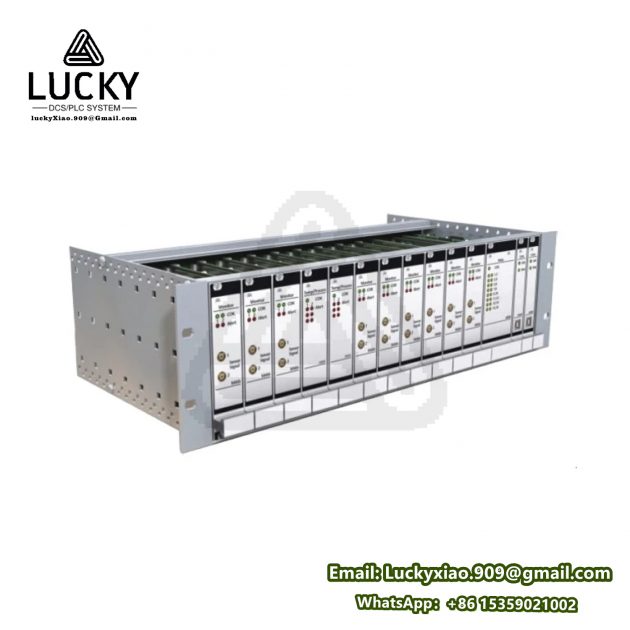

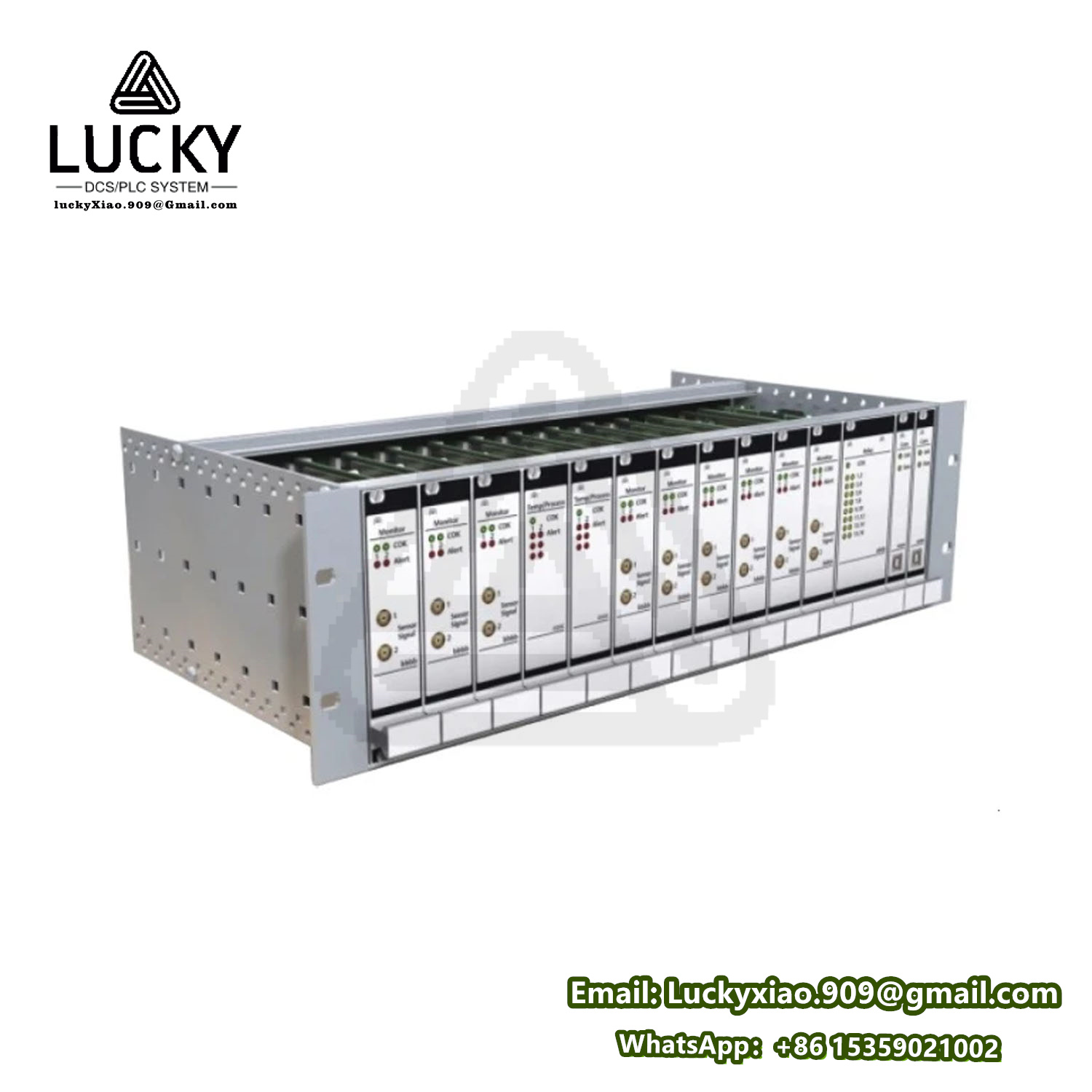

EMERSON A6500-SR A6500 ATG Mechanical Protection System

The EMERSON A6500-SR is a highly specialized and advanced system framework within the EMERSON A6500 series. Below is a detailed introduction to its key features and functionalities:

Product Overview

• Model: A6500-SR
• Series: Emerson A6500
• Application: Part of the AMS 6500 ATG mechanical protection system

Key Features and Functionalities

1. System Integration:
   • The A6500-SR system framework is an integral part of the AMS 6500 ATG mechanical protection system, providing a robust platform for protecting and controlling industrial machinery and processes.
2. Modular Design:
   • Designed with a modular approach, allowing for easy expansion and customization based on specific application needs.
3. Card Slots and Connectivity:
   • The system framework supports the installation of up to 11 protection cards (which can be either two-channel A6500-UM universal measurement cards or four-channel A6500-TP temperature process cards).
   • Additionally, it includes slots for one A6500-RC relay card and up to two A6500-CC communication cards (for redundant communication).
   • The rear of the system framework is equipped with push-in spring cage connectors for connecting input and output signals, and D-Sub connectors for providing sensor original signals.
4. Redundancy and Reliability:
   • Redundant power supplies and communication cards ensure high availability and reliability of the system.
   • The system framework supports redundant communication, ensuring seamless data transmission and system operation even in the event of a failure.
5. Flexibility and Expandability:
   • Users can expand the system by adding additional system frameworks, utilizing the communication cards on the first framework for both systems.
   • This allows for scalability and adaptability to growing industrial automation needs.
6. Compact Design:
   • With a width of 84HP and a height of 3RU, the A6500-SR system framework is designed to be compact and space-saving, making it suitable for installation in various industrial environments.
7. Environmental Adaptability:
   • The system framework is designed to operate within a wide temperature range (-20°C to +70°C), ensuring reliability in harsh industrial conditions.
   • It also features an IP20 protection rating (when installed correctly), providing a degree of protection against ingress of solid objects and water.

Applications

The EMERSON A6500-SR system framework is ideal for a wide range of industrial applications, including but not limited to:

• Machinery protection and control in manufacturing processes.
• Monitoring and control of temperature, pressure, and other process parameters.
• Redundant communication systems in critical industrial environments.
• Industrial automation and control systems requiring high reliability and expandability.

In summary, the EMERSON A6500-SR system framework is a highly versatile and reliable platform for protecting and controlling industrial machinery and processes. Its modular design, redundant power supplies, and communication cards, combined with its compact size and wide operating temperature range, make it an ideal choice for various industrial automation needs.
