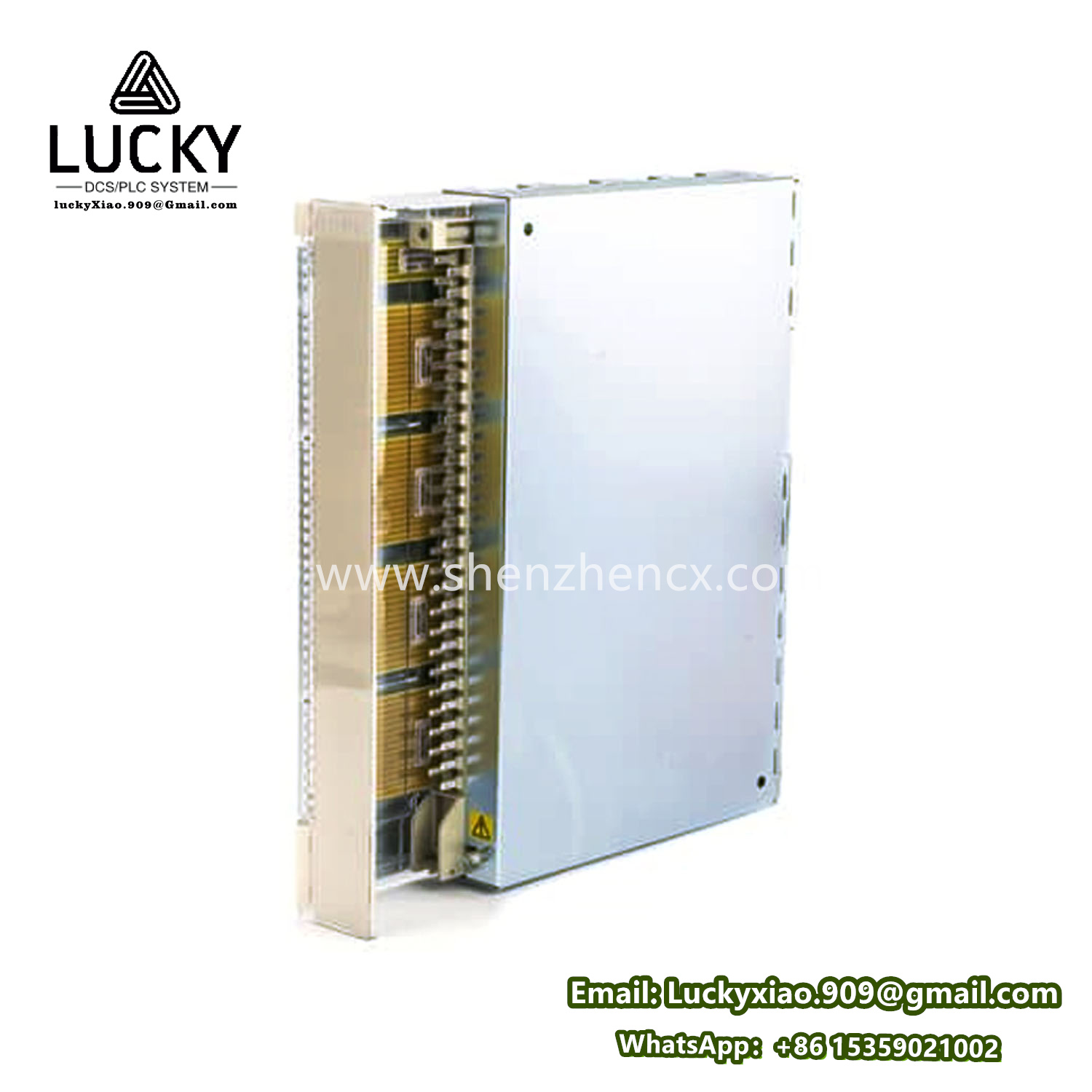

DI651 ABB Digital Input Module

ABB DI651: General Description

The ABB DI651 is a digital input module belonging to ABB’s S800 I/O family, designed for integration into industrial automation and process control systems. It is part of ABB’s Advant® OCS (Open Control System) and AC 800M controller ecosystems, providing reliable signal acquisition for monitoring binary (on/off) field devices in harsh industrial environments.

Key Features and Specifications

1. Product Type:
   • Digital Input Module: 16-channel (typical) 24 V DC input module for reading signals from switches, sensors, or relays.
   • S800 I/O Series: Modular design for flexible integration into ABB’s control architectures.
2. Functionality:
   • Signal Isolation: Galvanic isolation between field inputs and system electronics for noise immunity and safety.
   • Diagnostics: Channel-level status indication (LEDs) for fault detection and maintenance.
   • Hot Swappable: Supports module replacement without shutting down the entire system (depending on configuration).
3. Technical Parameters:
   • Input Voltage: 24 V DC (nominal), compatible with sinking/sourcing configurations.
   • Input Current: Typically 3–5 mA per channel.
   • Response Time: ≤ 1 ms (fast response for critical applications).
   • Isolation: 500 V AC between channels and system.
   • Standards Compliance: IEC 61131-2, UL, CE, and ATEX (for hazardous areas, if certified).
4. Design:
   • Compact, DIN-rail mountable module.
   • Robust housing for industrial environments (operating temperature: -25°C to +70°C).
   • Terminal blocks for easy wiring.

Applications

• Process Automation: Monitoring valves, pumps, or alarms in oil and gas, chemical, or power plants.
• Manufacturing: Integration into PLC/DCS systems for machine control and safety interlocks.
• Infrastructure: Building management systems (BMS) for fire alarms or access control.

Advantages

• High Density: 16 channels in a single module optimize cabinet space.
• Reliability: ABB’s quality standards ensure long-term stability in demanding conditions.
• Interoperability: Compatible with ABB’s AC 800M controllers and third-party systems via fieldbus (e.g., PROFIBUS DP, Foundation Fieldbus).

Installation and Configuration

• Mounts on standard DIN rails within control cabinets.
• Configured via ABB’s Control Builder or Engineering Tool software.
• Wiring follows ABB’s guidelines for EMC compliance and signal integrity.
