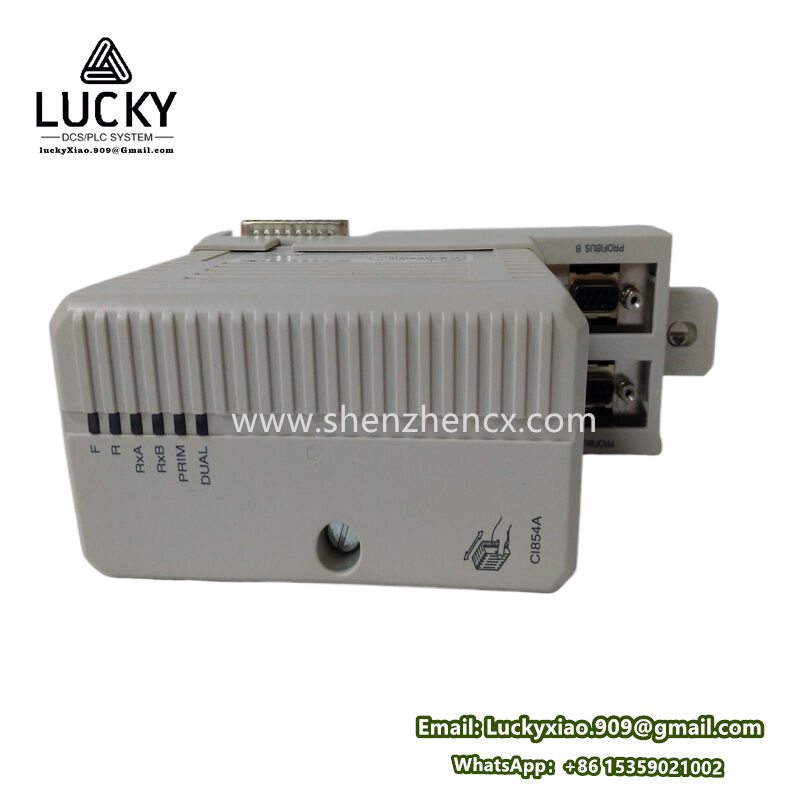

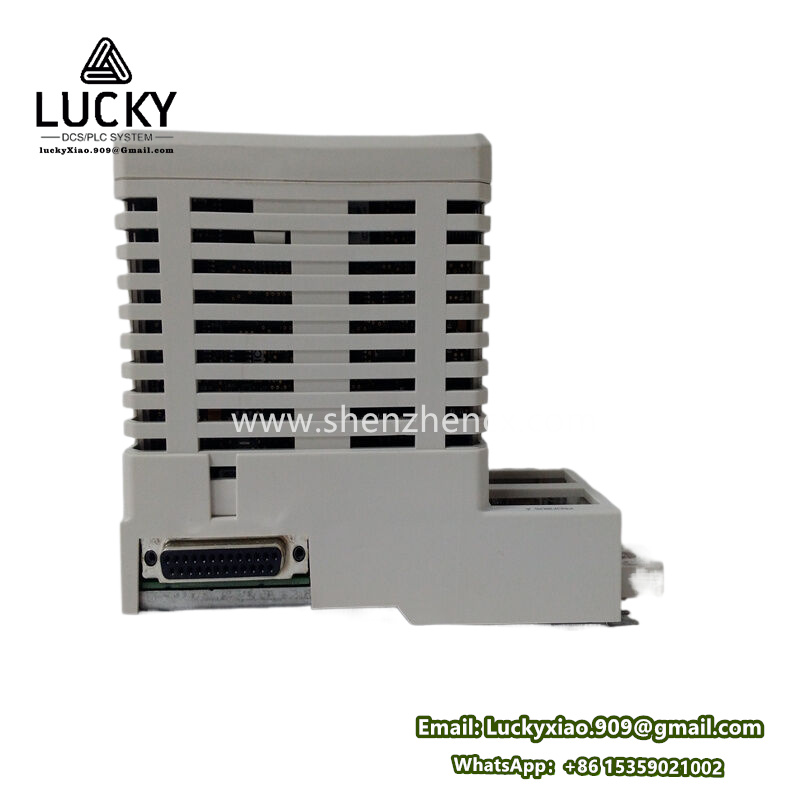

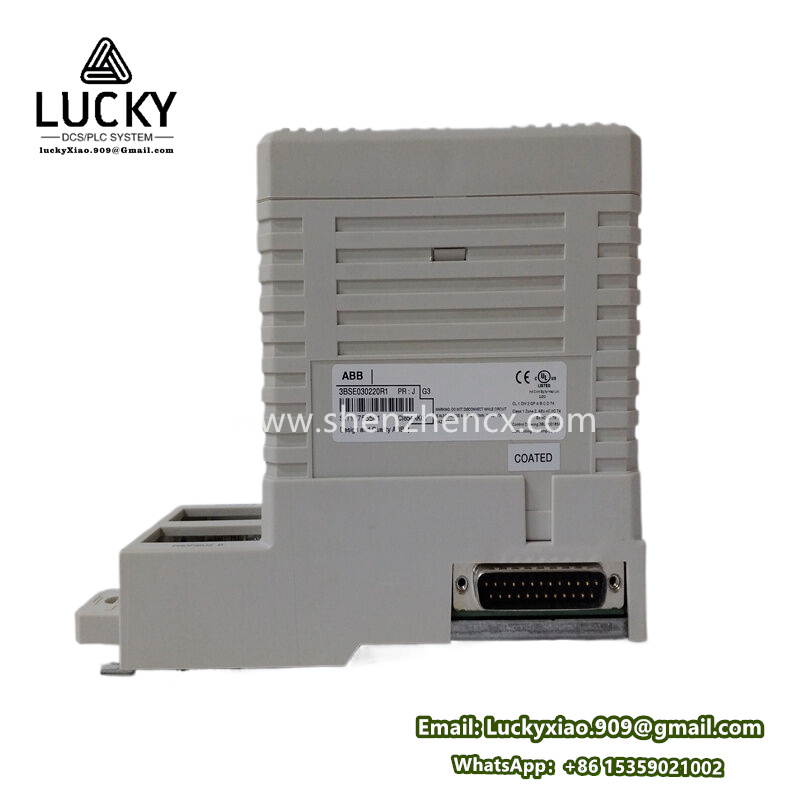

ABB CI854AK01 3BSE030220R1
High-Performance Communication Interface
Bridging automation systems with seamless connectivity.
🌐 Multi-protocol support | Rugged reliability | Scalable integration
🔧 TECHNICAL SPECIFICATIONS
Core Architecture
|
Parameter
|
Specification
|
|---|---|
|
Communication Ports
|
2x RS-485/RS-422 serial ports
|
|
Protocol Support
|
Modbus RTU, SPA, IEC 60870-5-103, DNP3.0
|
|
Processor
|
32-bit RISC CPU @ 200 MHz
|
|
Memory
|
16 MB Flash
|
|
Power Supply
|
24 V DC (±20%)
|
|
Operating Temp
|
-25°C to +70°C (-13°F to +158°F)
|
|
Isolation
|
1500 V AC (port-to-port and port-to-ground)
|
|
Certifications
|
CE, UL, IEC 61850-3 (for substations)
|
🚀 KEY FUNCTIONAL CAPABILITIES
1. Multi-Protocol Mastery
▸ Dual-port flexibility: Independently configure each port for different protocols.
▸ Legacy-to-modern bridging: Connect RTU devices to modern SCADA/PLC systems.
2. Industrial Resilience
▸ Surge/EFT protection: Withstands 4 kV electrical surges (IEC 61000-4-5).
▸ Galvanic isolation: Prevents ground loops in noisy environments.
3. Seamless Integration
▸ ABB AC 800M Compatibility: Plug-and-play with ABB’s flagship controllers.
▸ CBM (Control Builder M) Configuration: Pre-built protocol templates for rapid deployment.
4. Advanced Diagnostics
▸ LED status matrix: Real-time port activity, error codes, and power status.
▸ SNMP monitoring: Integrates with network management systems for predictive maintenance.
🏭 INDUSTRIAL APPLICATIONS
|
Industry
|
Use Case
|
Protocol Used
|
|---|---|---|
|
Power Distribution
|
Substation automation (IEC 60870-5-103)
|
IEC 60870-5-103
|
|
Water Management
|
Pump station telemetry (Modbus RTU)
|
Modbus RTU
|
|
Oil & Gas
|
Pipeline monitoring (DNP3.0 over RS-485)
|
DNP3.0
|
|
Manufacturing
|
Legacy PLC integration (SPA bus)
|
SPA
|
📊 PERFORMANCE BENCHMARKS
|
Metric
|
Industry Average
|
|
|---|---|---|
|
Baud Rate
|
Up to 115.2 kbps
|
19.2–56 kbps
|
|
Isolation Voltage
|
1500 V AC
|
500–1000 V AC
|
|
Concurrent Protocols
|
2 independent protocols
|
Single-protocol devices
|
🛠️ DEPLOYMENT GUIDE
Step 1: Hardware Setup
- Mount on DIN rail (EN 60715 standard).
- Connect shielded twisted-pair cables to ports.
Step 2: Software Configuration
- Load protocol drivers via Control Builder M.
- Assign IP addresses (if SNMP-enabled).
Step 3: Validation
- Use ABB Asset Vision for health checks.
- Simulate data traffic with protocol testers.
💡 INNOVATIVE FEATURES
- Dual-Stack Redundancy: Failover to backup port during faults.
- Time Synchronization: IEEE 1588 PTP support for grid-critical timing.
- Firmware Field Updates: Deploy patches without downtime via USB/CBM.
📌 WHY CHOOSE CI854AK01?
|
Advantage
|
Impact
|
|---|---|
|
Multi-Protocol
|
Replace multiple gateways with one module.
|
|
Extreme Reliability
|
Operates in harsh electrical environments.
|
|
Future-Ready
|
Supports IIoT edge-to-cloud architectures.
|
🔧 SUPPORT & RESOURCES
- ABB Ability™ Support Portal: 24/7 firmware and documentation access.
- Global Service Network: <4hr response time for critical infrastructure.
