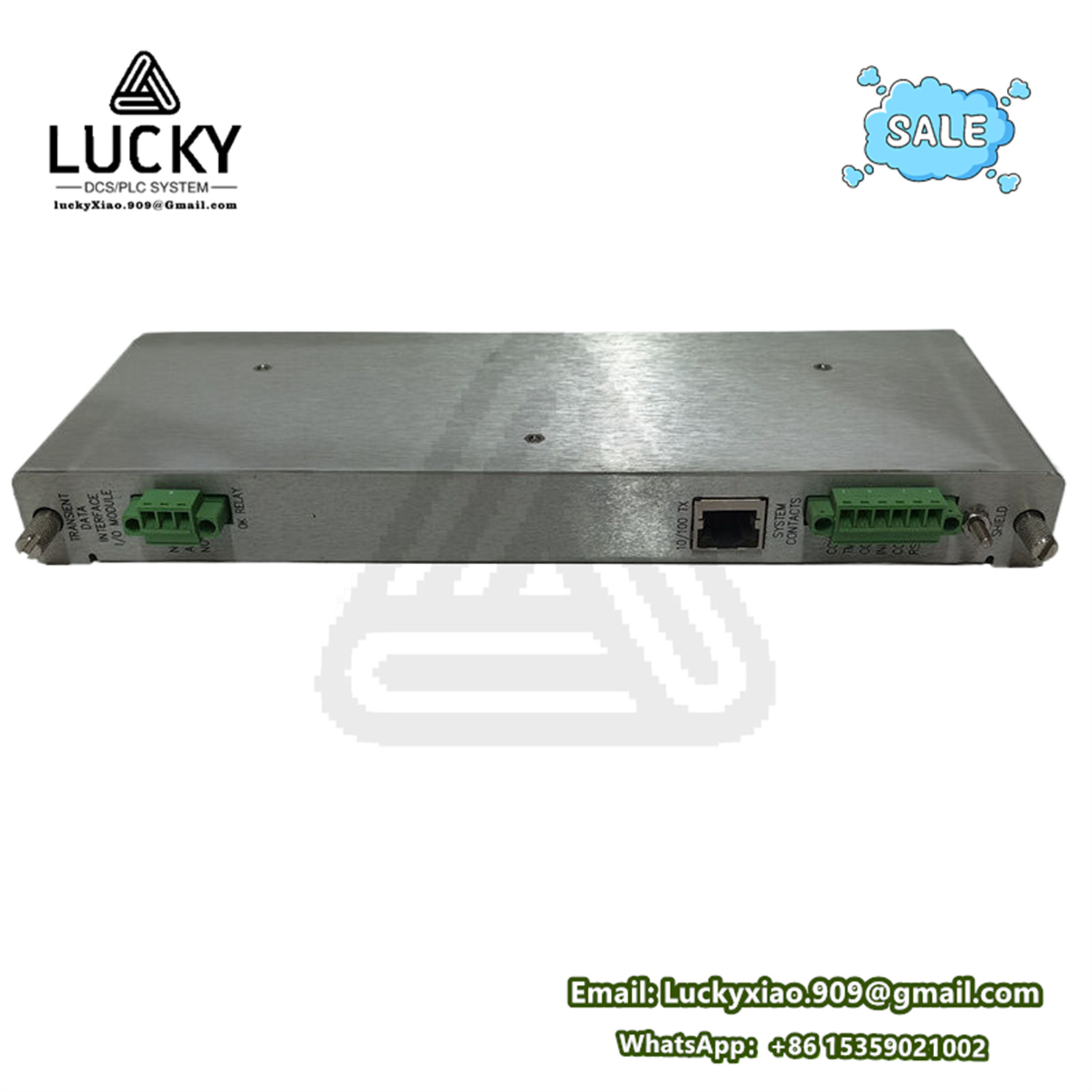

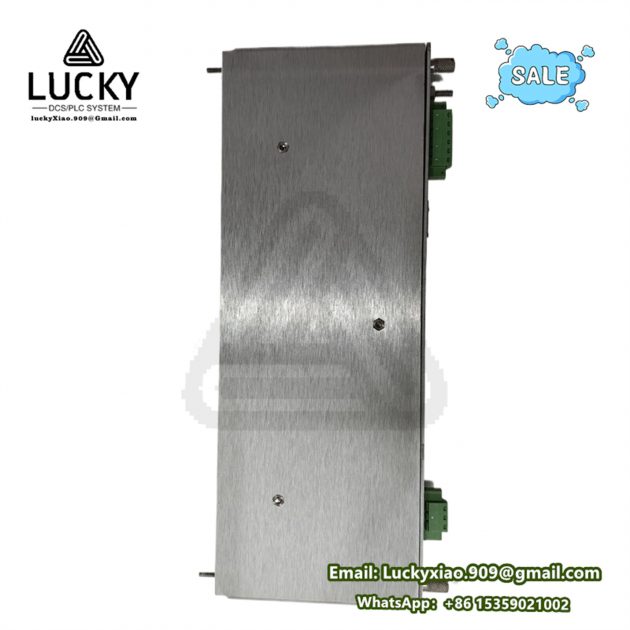

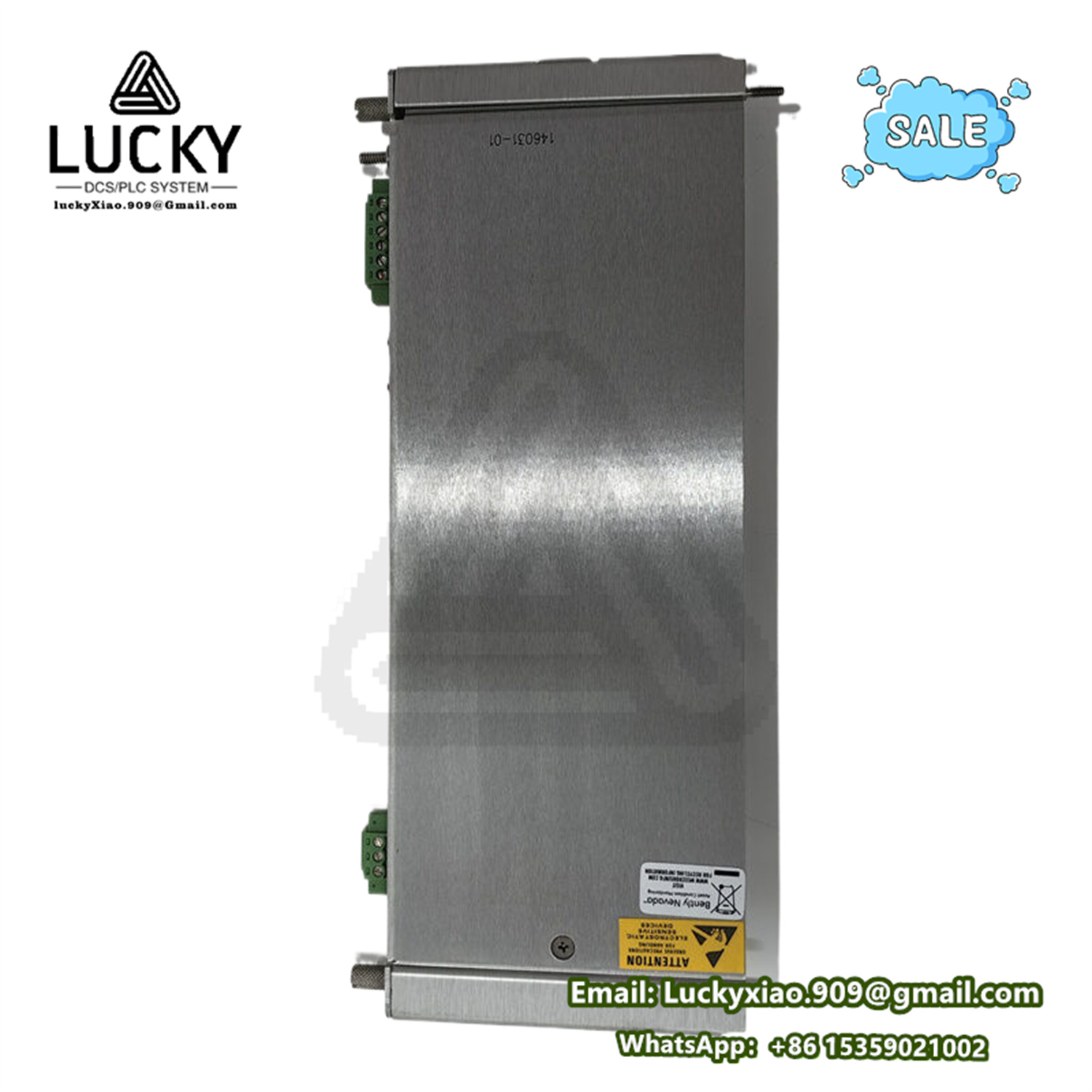

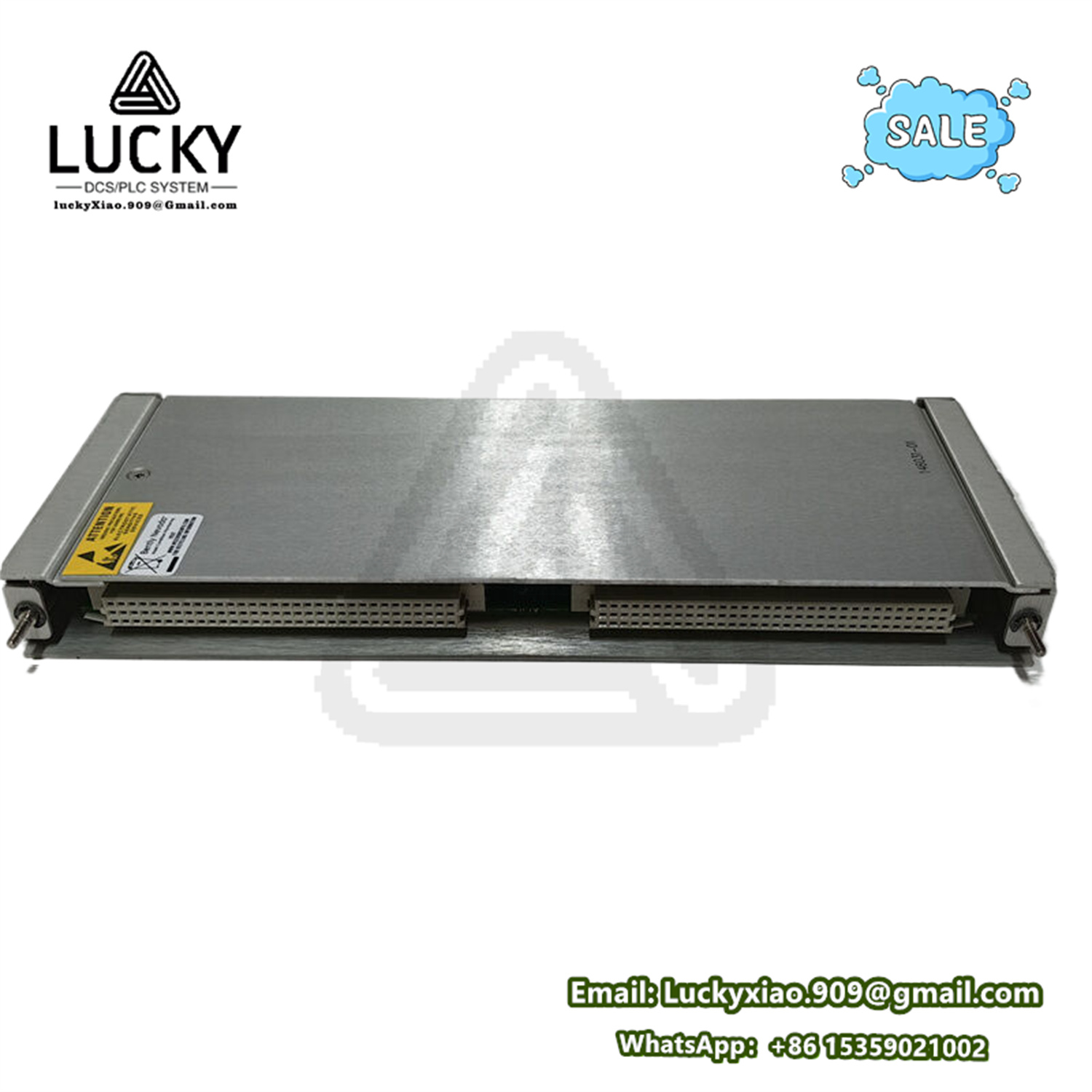

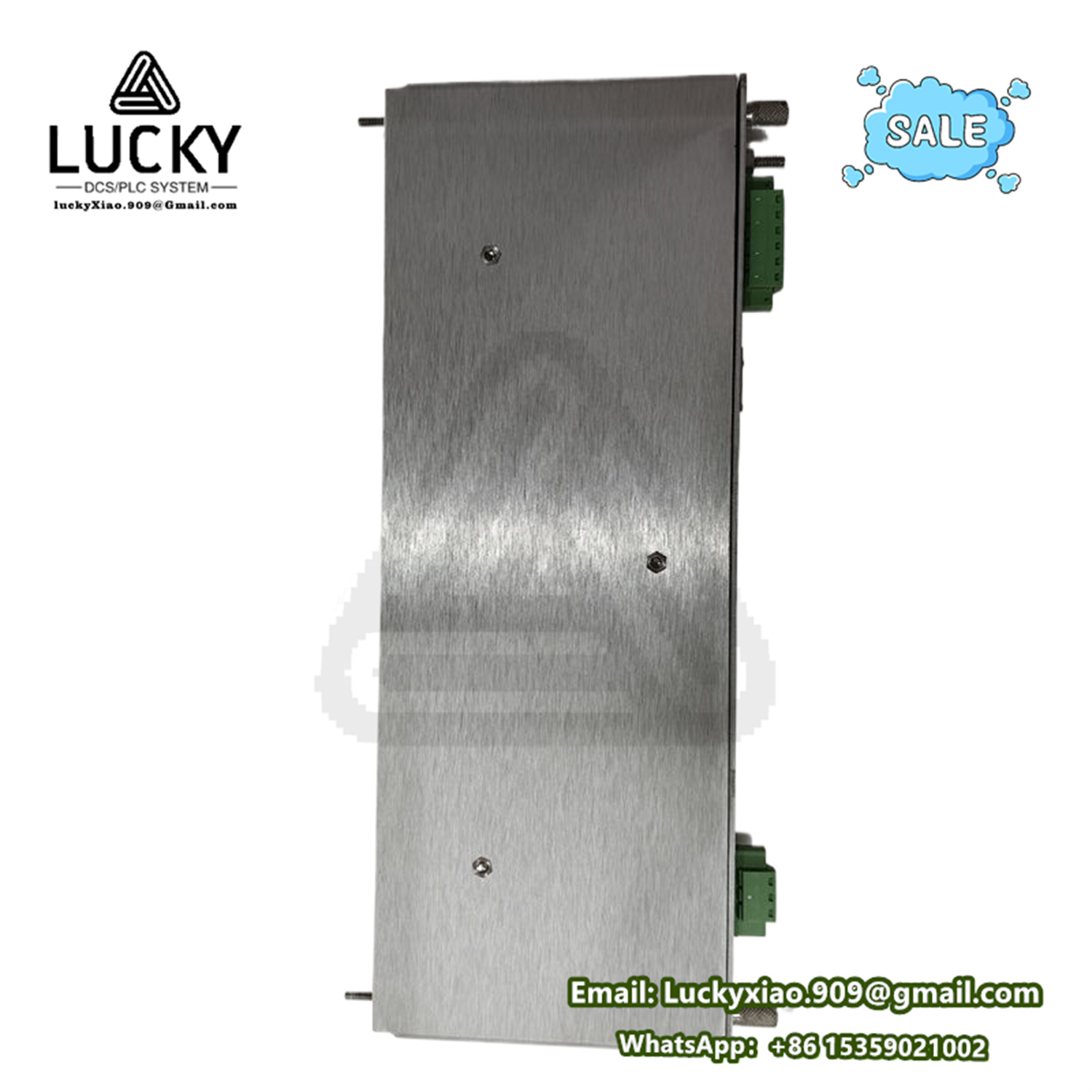

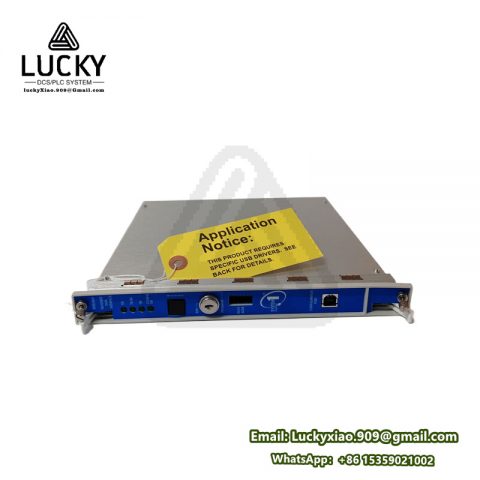

Bently 3500/22M 146031-01 is a Transient Data Interface (TDI) I/O module produced by Bently Nevada (now part of the GE brand). The following is a detailed introduction to the module:
1、 Product Overview
The Bently 3500/22M 146031-01 module is a critical component of the 3500 monitoring system, used to connect the 3500 monitoring system with Bently Nevada’s System 1 mechanical management software. This module combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of communication processors (such as TDXnet) to continuously capture steady-state and transient waveform data, and transmit this data to the host software via an Ethernet link.
2、 Main functions
Data Collection and Transmission: This module is capable of continuously collecting steady-state and transient waveform data from the 3500 monitoring system, and transmitting it to System 1 mechanical management software or other host software through an Ethernet link.
Static and dynamic data capture: Although TDI captures static data by default, it can also record dynamic or transient data after installing an additional channel enable disk.
Communication processor function: In addition to integrating communication processor functions, TDI has also enhanced previous communication processors in multiple aspects, such as providing certain functions shared across the entire rack.
Triple Modular Redundancy (TMR) Support: For TMR applications, the 3500 system requires a TMR version of TDI, which not only has all standard TDI functions, but also performs “monitoring channel comparison” to ensure consistency between redundant monitors.
3、 Technical specifications
Model: 146031-01
Series: 3500/22M
Interface type: 10Base-T/100Base TX I/O module component
Working temperature:- 30 ° C to+65 ° C
Storage temperature:- 40 ° C to+85 ° C
Humidity: 95% (non condensing)
Compatible systems: 3500 monitoring system and System 1 mechanical management software
Compatible displays: M-series displays (such as 3500/40M, 3500/42M, etc.)
4、 Product Features
High integration: This module combines the 3500/20 RIM function with the data collection function of the communication processor, providing a highly integrated solution.
Flexibility: Supports the capture of static and dynamic data, and can be configured according to actual needs.
Reliability: Bently Nevada is renowned for its high quality and reliability, and this module also inherits this tradition, suitable for long-term operation in industrial environments.
Easy to maintain: Modular design makes installation, replacement, and maintenance simple and fast.
5、 Application Fields
The Bently 3500/22M 146031-01 module is widely used in various industrial fields that require high-precision monitoring and protection of critical equipment, such as the power industry, oil and gas industry, chemical industry, and manufacturing industry. In these industries, this module can be used to monitor the operating status of important equipment such as generators, turbines, compressors, pumps, etc., detect potential faults in a timely manner, ensure the stable operation of equipment, and extend its service life.
In summary, the Bently 3500/22M 146031-01 module plays an important role in the monitoring and protection of industrial equipment due to its highly integrated, flexible configuration, reliable operation, and easy maintenance characteristics.
