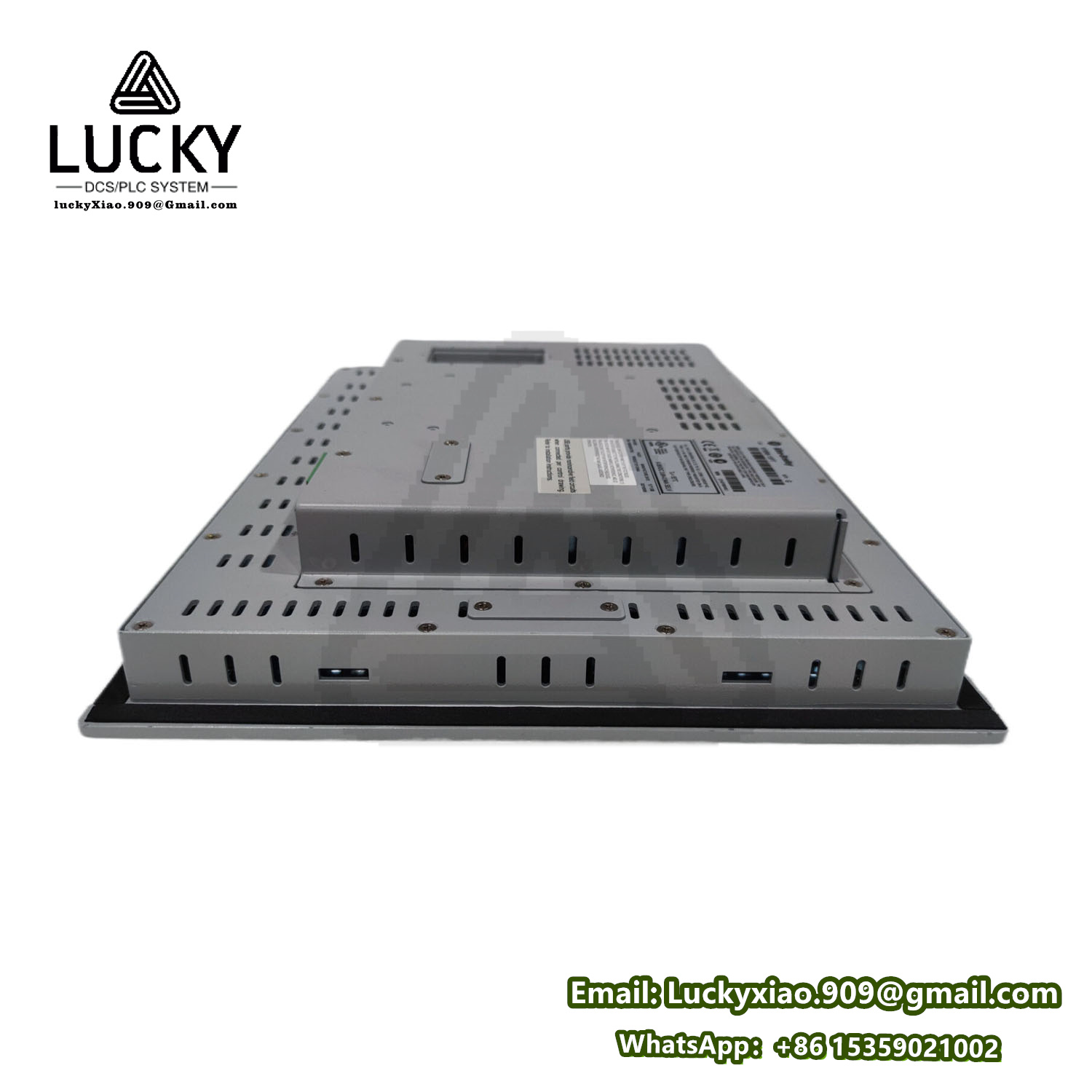

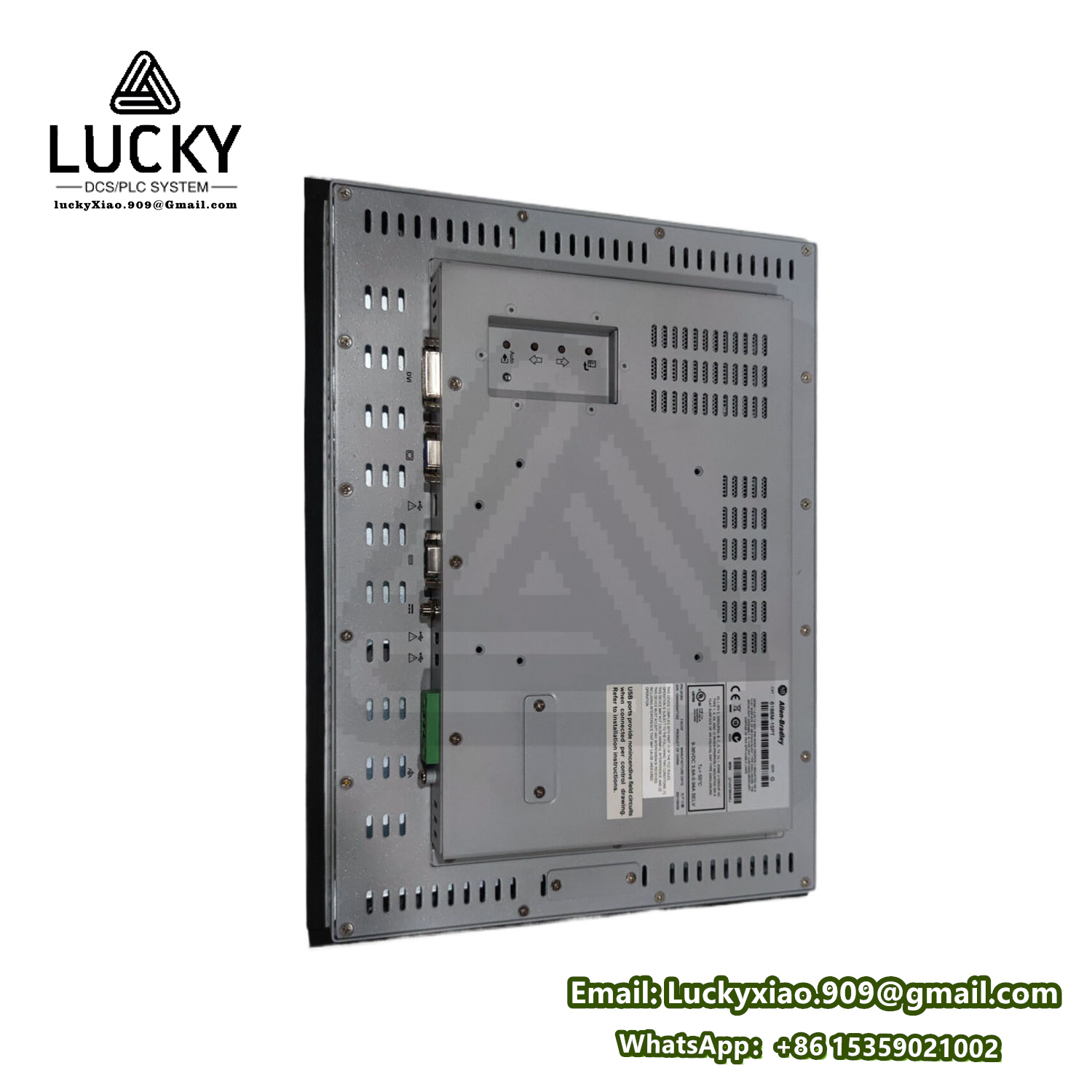

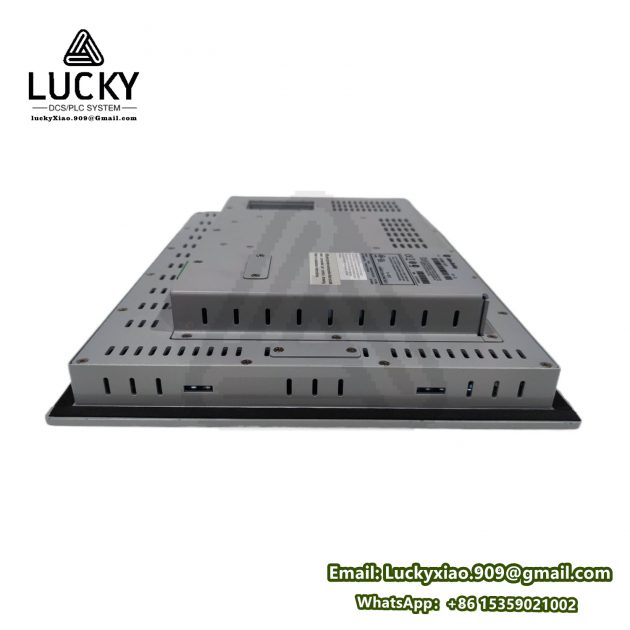

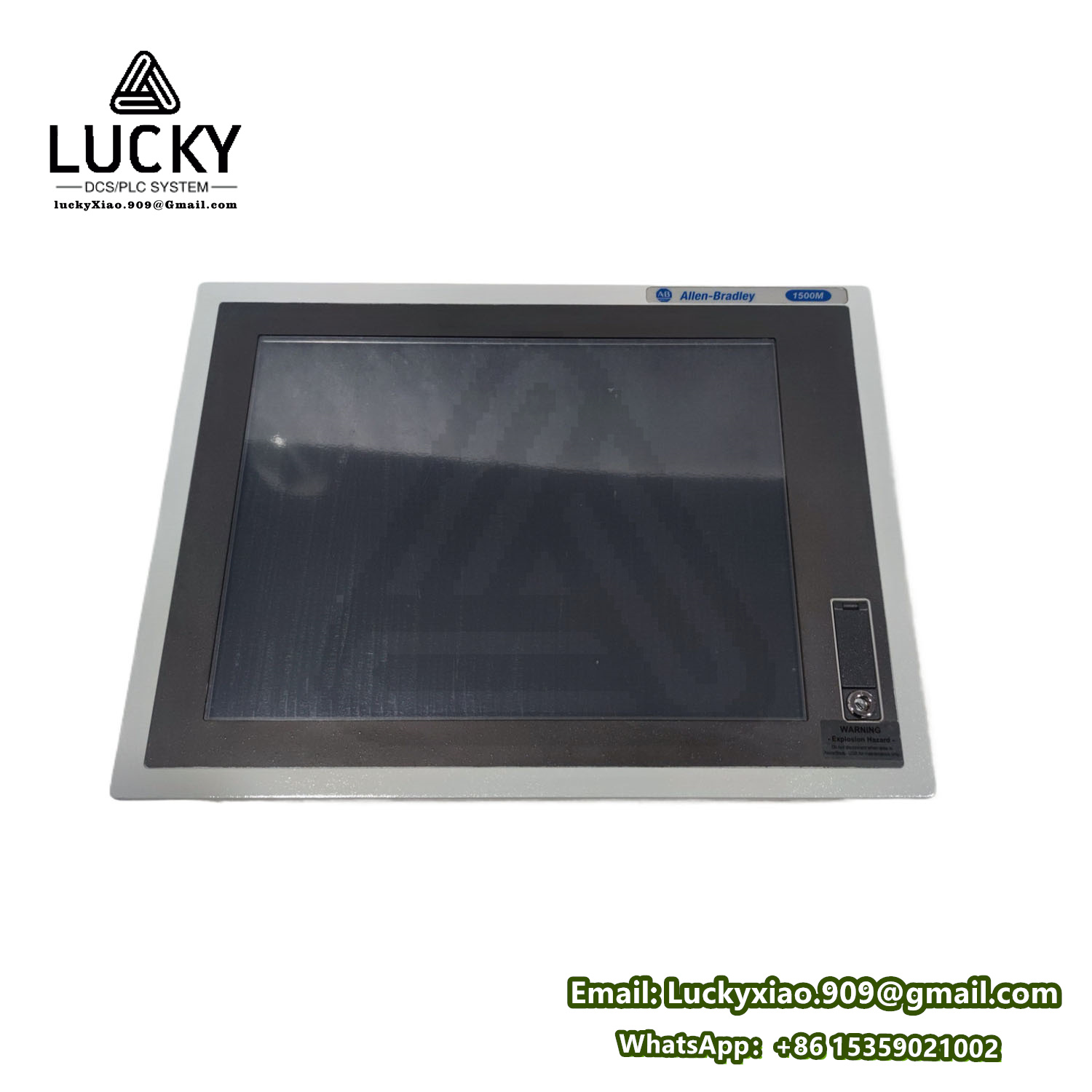

Allen-Bradley 6186M-15PT Industrial Performance Monitor
Overview
The Allen-Bradley 6186M-15PT is a high-performance industrial monitor designed for use in various industrial applications. It features a 15-inch display with a resistive touchscreen interface and an aluminum bezel, providing reliable and intuitive operation in harsh environments.
Key Features
- Display Specifications
- Screen Size: 15 inches
- Resolution: 1024 x 768 pixels
- Color Depth: 16.2 million colors
- Display Type: Color active matrix TFT LCD
- Viewing Angle: Supports wide viewing angles, particularly ≤ 66°
- Touchscreen Interface
- Technology: Resistive touchscreen
- Operation: Allows operators to interact with the host machine through touch operations
- Video and Connectivity
- Video Connectors: Embedded HD-15 VGA and DVI analog and digital video connectors
- USB Ports: One B-type USB port and three A-type USB 2.0 ports for connectivity options
- Physical Characteristics
- Bezel Material: Aluminum
- Mounting Options: Supports panel mounting and other options including rack, DIN rail, desktop, or tabletop mounting with appropriate adapters
- Panel Cutout Dimensions: Requires a panel cutout of 150.285 x 63.86 mm (6.11 x 24.15 inches)
- Installation Clearance: 22 mm (0.87 inches) of clearance on the back and sides, and 0 mm (0 inches) of clearance on the top and bottom
- Enclosure Ratings: Designed to be installed in enclosures with NEMA UL 15, 50, 1, 4X, 4, and IP12 protection ratings
- Environmental Conditions
- Operating Temperature: Suitable for use in temperatures ranging from 0°C to 55°C (32°F to 131°F)
- Frequency: Operates within a frequency range of 47 to 63 Hz
- Power Requirements
- Input Voltage: Supports a wide range of input voltages, including 9 to 36 VDC and 100 to 240 VAC
- Additional Features
- Brightness and Contrast: Provides appropriate brightness and contrast levels for clear visibility in industrial settings
- Response Time: Typically less than 6 milliseconds for responsive touch operations
- Backlight Half-Life: The backlight has a half-life of approximately 50,000 hours at 70.75°C (159.35°F)
Applications
The Allen-Bradley 6186M-15PT is ideal for a wide range of industrial applications, including automation, process control, machinery monitoring, and more. Its robust design, high-resolution display, and intuitive touchscreen interface make it a reliable choice for harsh industrial environments.
Conclusion
The Allen-Bradley 6186M-15PT industrial performance monitor offers a combination of advanced features and robust design, making it suitable for various industrial applications. With its 15-inch display, resistive touchscreen, and multiple connectivity options, it provides operators with a clear and intuitive interface for monitoring and controlling industrial processes. Additionally, its support for a wide range of input voltages and operating temperatures ensures reliable performance in harsh environments.
