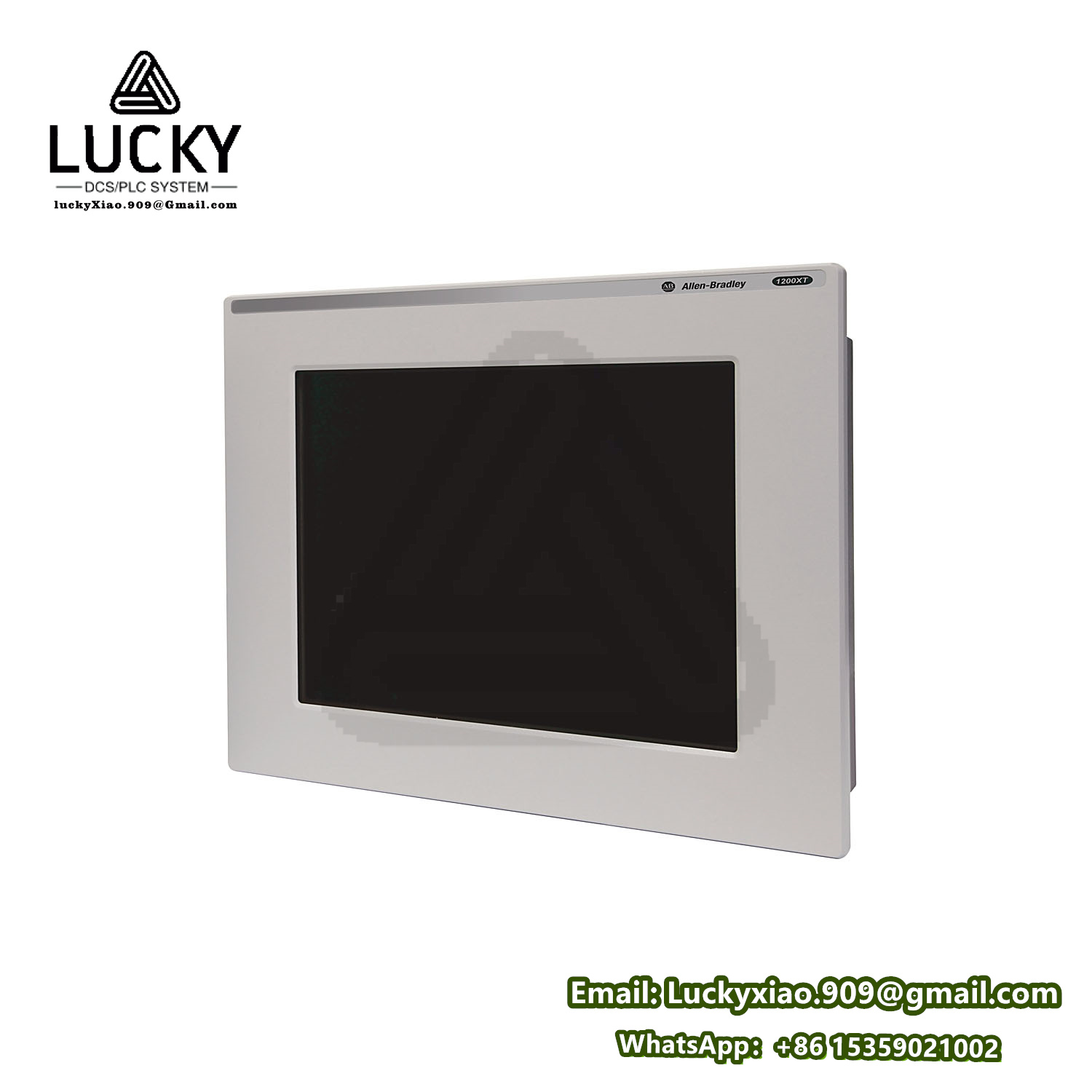

Allen-Bradley 6181X-12TPXPDC Industrial Touchscreen

Allen-Bradley 6181X-12TPXPDC Industrial Touchscreen

Overview

The Allen-Bradley 6181X-12TPXPDC is a robust and durable industrial touchscreen, part of the VersaView 1200XT series, manufactured by Rockwell Automation (Allen-Bradley). Specifically designed for harsh industrial environments, this touchscreen excels in applications such as process control and machine automation.

Key Features

1. High-Brightness Display
   • The 6181X-12TPXPDC boasts a high-brightness display that ensures clear visibility even in bright, sunny conditions. This allows operators to easily read screen information and make informed decisions.
2. Touchscreen Operation
   • Supporting multi-touch capabilities, the touchscreen interface is intuitive and easy to navigate. Operators can quickly access and control various functions with minimal effort.
3. Industrial-Grade Durability
   • Built to withstand the rigors of industrial environments, the 6181X-12TPXPDC features dustproof, waterproof, and shock-resistant design elements. This ensures reliable operation even in demanding conditions.
4. Rich Interface Options
   • The touchscreen offers a variety of interface options, including Ethernet and USB ports, for easy connection to other devices and systems. This facilitates seamless integration within industrial networks.
5. Intuitive Human-Machine Interface (HMI)
   • The 6181X-12TPXPDC provides a user-friendly HMI that enables operators to monitor and control equipment efficiently. The interface is designed to be intuitive, reducing the learning curve for new operators.
6. Data Display and Management
   • The touchscreen can display data from PLCs, DCSs, and other devices, such as process variables and alarm information. Additionally, it provides alarm management functionalities to promptly alert operators to handle abnormal situations.
7. Versatile Applications
   • The 6181X-12TPXPDC is versatile and can be used in various applications. In process control systems, it displays process variables, alarm information, and provides an operational interface. In machine automation systems, it displays equipment status, parameters, and also provides an operational interface. Furthermore, it can be used in power distribution systems to display electrical parameters and provide an operational interface.

Technical Specifications

• Display Size: 12.1 inches
• Resolution: 1024 x 768
• Touchscreen Type: Projected Capacitive
• Operating Temperature: -20°C to 60°C
• Protection Rating: IP65

Conclusion

The Allen-Bradley 6181X-12TPXPDC industrial touchscreen is a high-performance, robust, and versatile solution designed for harsh industrial environments. Its high-brightness display, touchscreen operation, industrial-grade durability, rich interface options, and intuitive HMI make it an ideal choice for process control, machine automation, and other industrial applications. With its technical specifications tailored to meet the demands of industrial settings, the 6181X-12TPXPDC ensures reliable and efficient operation.
