Overview:

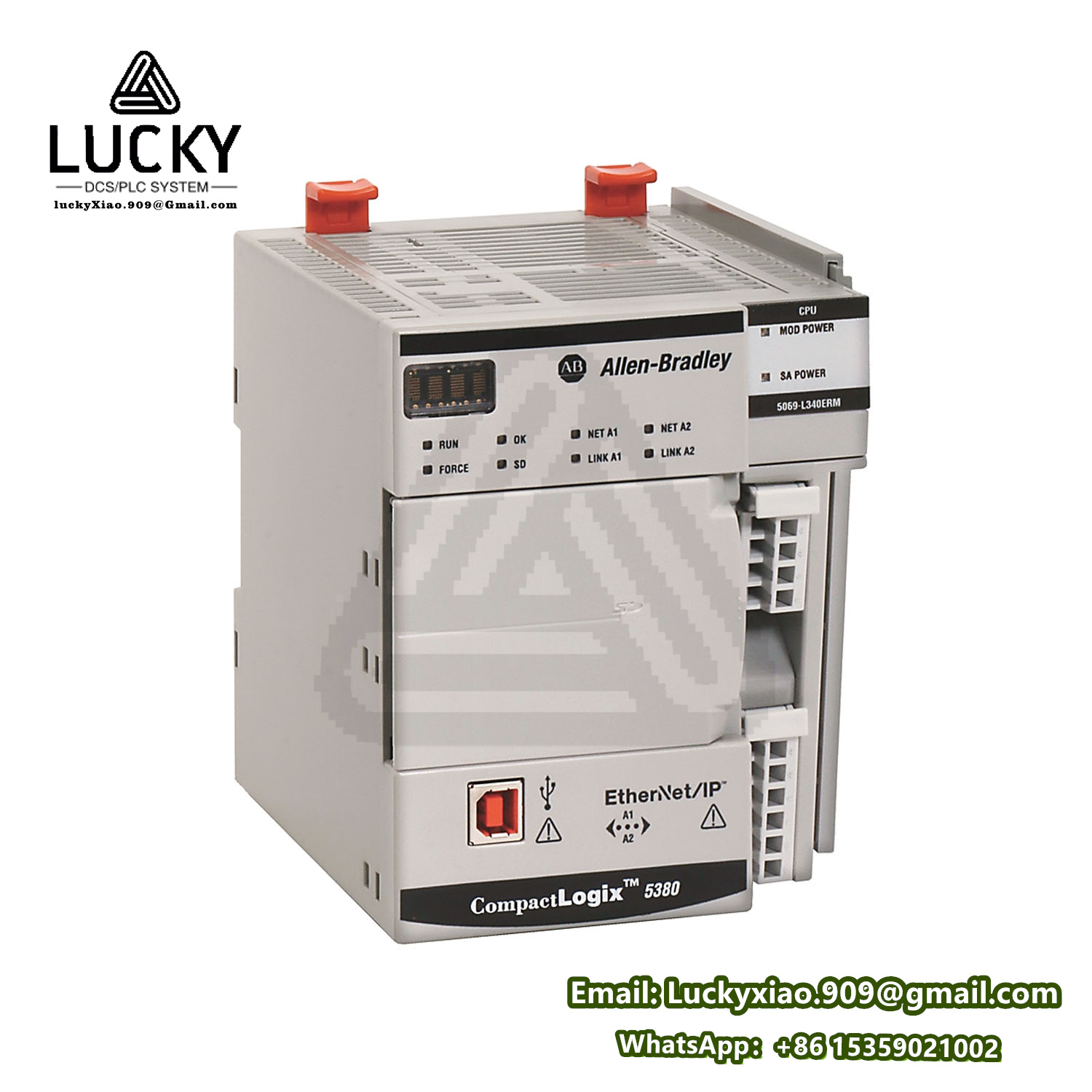

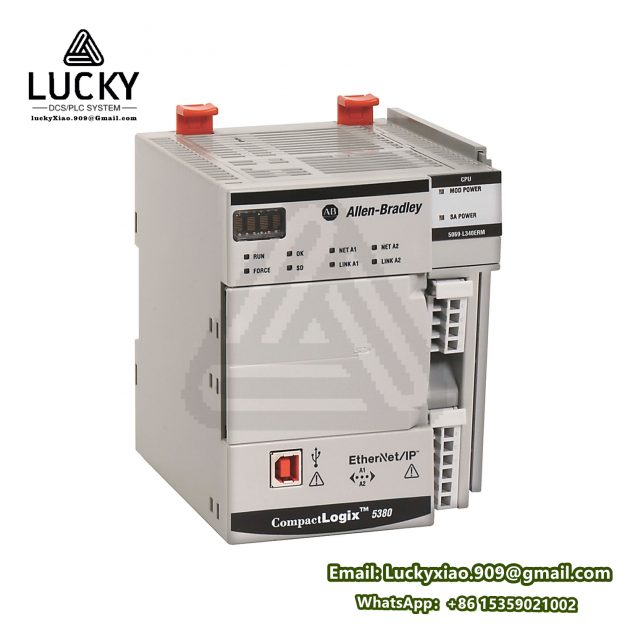

The Allen-Bradley 5069-L320ER is a compact and powerful PLC module that is designed to meet the demanding needs of modern industrial automation systems. As part of the CompactLogix series, it inherits the robust functionality of its predecessors and is optimized for safety, control, connectivity, and integration in today’s industrial environments.

Key Features:

1. Ethernet Communication:
   • The 5069-L320ER is equipped with two built-in Ethernet interfaces that support linear, star, and ring topologies, allowing it to easily connect with existing or newly installed Ethernet networks.
   • Each port has an independent IP address and supports transmission speeds of up to 10/100/1000 Mbps.
   • These ports can also operate in dual IP node mode, enabling integrated switch functionality.
2. USB Communication:
   • In addition to the Ethernet interfaces, the PLC module features a USB port that supports communication speeds up to 12 Mbps.
   • This port is used for all communication and functions beyond industrial connectivity.
3. Memory:
   • The 5069-L320ER offers 2 MB of user memory and 1 MB of secure memory.
   • The user memory is dedicated to standard functions, while the secure memory is reserved for safety-related tasks.
   • It can handle up to 32 tasks, with 31 dedicated to standard functions and one specifically for safety tasks.
   • Each task can process up to 1,000 programs and utilize all available event triggers.
4. Expansion Capabilities:
   • The PLC module supports up to 16 local expansion modules (based on the 5069 bus).
   • It also supports up to 40 Ethernet IO nodes, making it adaptable to various scales and complexities of automation projects.
5. Software Support:
   • Programming, configuration, and firmware updates are performed using Rockwell’s Studio 5000 software.
   • Studio 5000 supports multiple programming languages, such as Ladder Diagram (LD) and Structured Text (ST), allowing users to choose the most suitable programming approach based on their needs.
6. DIN Rail Mounting:
   • The 5069-L320ER is designed for DIN rail mounting and is powered by an external power supply of 18-32 VDC, with a current consumption of 475 mA.
   • It has a power consumption of 9.0 W and a heat dissipation of 30.9 BTU/hr.

Applications:

Due to its scalability and ease of expansion, the Allen-Bradley 5069-L320ER is widely used in various industries, including:

• Manufacturing: For automated control of production lines.
• Energy: In automation systems for the power, oil, and gas industries.
• Transportation: For traffic signal control and railway systems.
• Healthcare: In automated control of medical equipment.
• Environmental Protection: For automation of wastewater treatment, exhaust gas treatment, and other environmental protection facilities.

Conclusion:

The Allen-Bradley 5069-L320ER PLC module is a versatile and powerful solution for modern industrial automation systems. Its robust communication interfaces, ample memory, expansion capabilities, and software support make it an ideal choice for a wide range of applications. With its compact design and DIN rail mounting options, it is easy to integrate into existing industrial setups, providing a reliable and efficient way to automate various processes.
