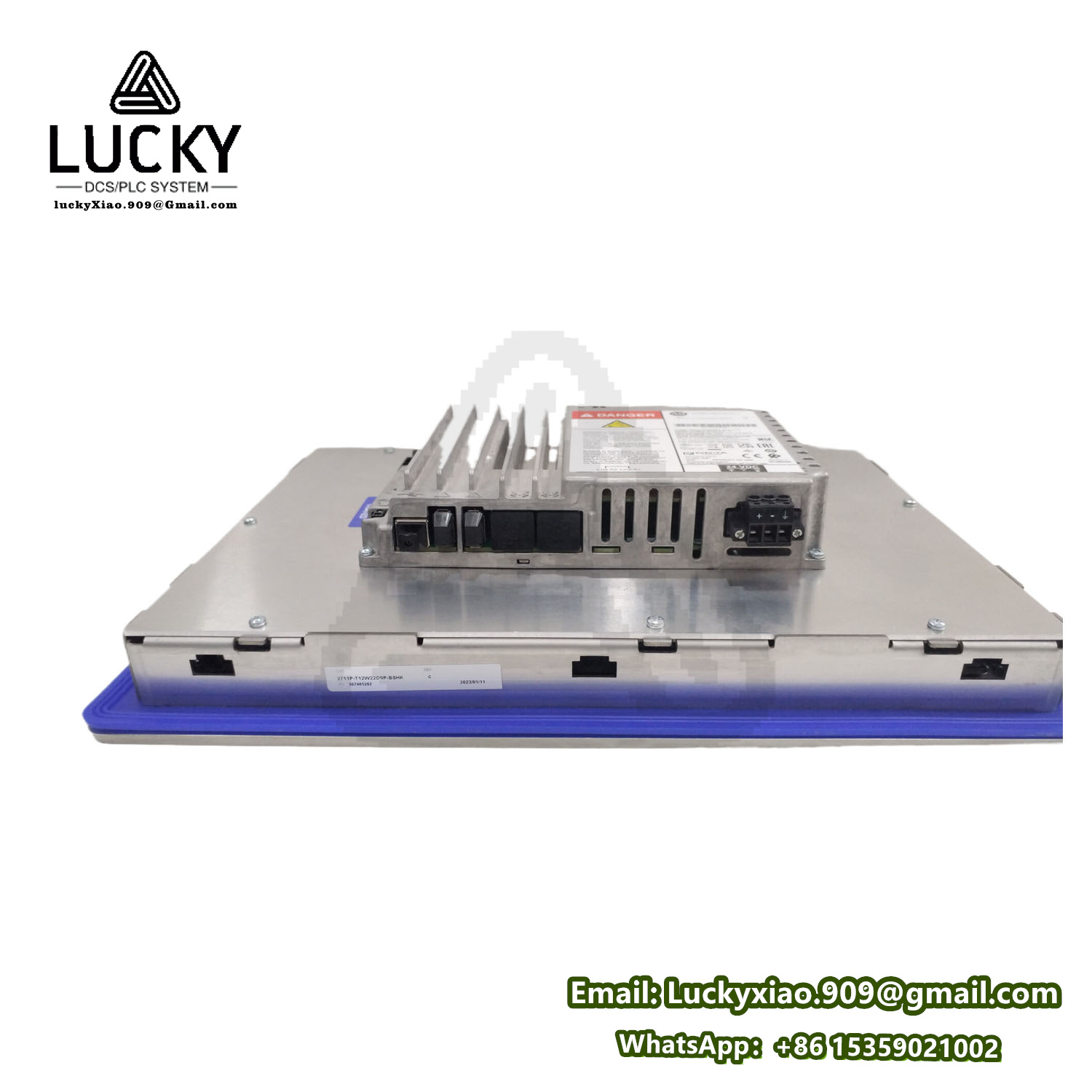

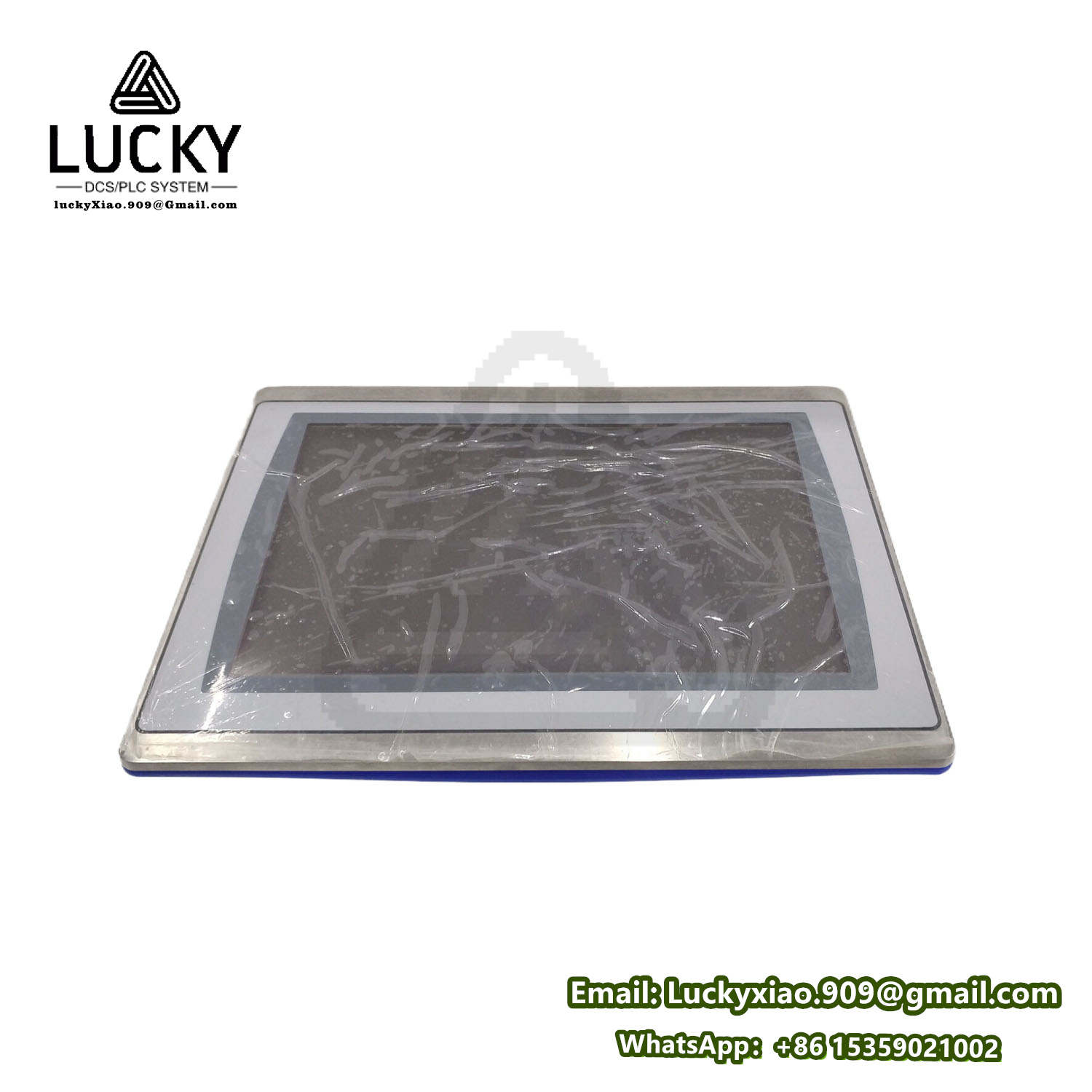

Allen-Bradley 2711P-T12W22D9P-BSHK HMI Terminal

Allen-Bradley 2711P-T12W22D9P-BSHK HMI Terminal

The Allen-Bradley 2711P-T12W22D9P-BSHK is a high-performance Human-Machine Interface (HMI) terminal from Rockwell Automation’s PanelView Plus 7 series, specifically designed for industrial automation applications. This device serves as a critical component in enabling real-time communication and data exchange between programmable automation controllers (PACs), programmable logic controllers (PLCs), and other compatible devices.

Key Features and Specifications:

1. Display:
   • Screen Size: Typically, the “12” in the model number indicates a 12-inch display, providing ample viewing area for operators.
   • Resolution: 1280×800 WXGA, supporting 18-bit color graphics for crisp and clear visuals.
   • Display Type: Color Thin-Film Transistor (TFT) LCD, offering vibrant and accurate color reproduction.
   • Screen Rotation: Supported, but must be defined prior to developing the HMI application.
2. Touchscreen:
   • Technology: Embedded analog resistive touchscreen interface, allowing for reliable and responsive touch input.
   • Durability: Rated for 1 million presses, ensuring long-term reliability and durability.
3. Communication Ports:
   • Ethernet Connectivity: Dual embedded Ethernet communication ports, supporting various network topologies such as linear, star, and Device-Level Ring (DLR).
   • Remote Monitoring: VNC (Virtual Network Computing) support allows for remote monitoring of application projects from any location with an internet connection.
4. Installation and Compatibility:
   • Mounting Options: Supports both horizontal and vertical installation, providing flexibility in terms of mounting and placement.
   • Environmental Standards: Complies with NEMA and UL ratings (Types 12, 13, 4X), as well as IP66 classification, ensuring robustness in industrial environments.
   • Static and Dynamic Installation: Suitable for both static and dynamic installation scenarios, ensuring stable operation in various industrial settings.
5. Memory and Storage:
   • Internal Memory: Includes 512MB of RAM and 512MB of non-volatile memory (approximately 80MB of user-available memory).
   • External Storage: SD card slot for additional storage options, facilitating quick copying and restoration of operator interfaces.
6. Software and Functionality:
   • Operating System: Supports Windows CE 6.0 standard features, providing a familiar and intuitive user interface.
   • Notification Features: Includes email and SMS notification capabilities (requires additional communication modules and software configuration).
   • Application Development: Compatible with FactoryTalk View Machine Edition software for building and configuring HMI applications.
7. Additional Features:
   • VNC Connectivity: Enables remote monitoring and control of industrial processes from anywhere in the world.
   • SD Card Utility: Facilitates easy backup and restoration of HMI configurations and settings.
   • Enhanced Connectivity: Supports a wide range of industrial communication protocols and networks, ensuring seamless integration with existing automation systems.

Applications:

The Allen-Bradley 2711P-T12W22D9P-BSHK HMI terminal is widely used in various industrial automation sectors, including manufacturing, energy, transportation, and water treatment. It helps engineers and operators achieve more efficient monitoring, control, and troubleshooting of industrial processes, thereby enhancing production efficiency and equipment reliability.

In conclusion, the Allen-Bradley 2711P-T12W22D9P-BSHK is a feature-rich, durable, and user-friendly HMI terminal that offers significant advantages for industrial automation applications. Its high-resolution display, flexible communication options, ample memory and storage, and advanced software support make it an ideal choice for automating and monitoring industrial processes.
