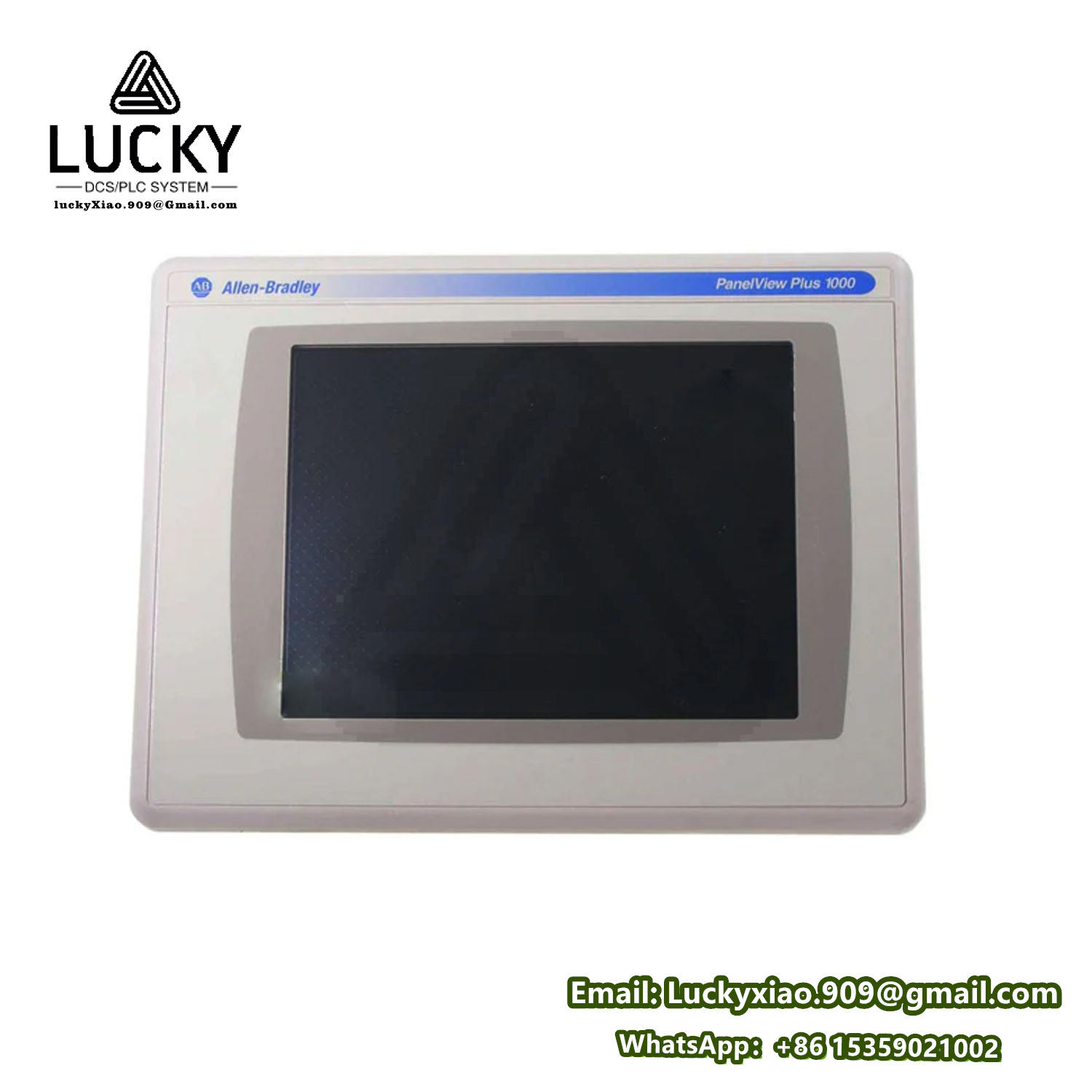

Allen-Bradley   2711P-RDT10C  liquid crystal display

The Allen-Bradley 2711P-RDT10C is a high-performance display module and touchscreen interface from the PanelView Plus series, manufactured by Rockwell Automation. This advanced operator terminal is designed for use in industrial automation systems, providing a user-friendly interface for monitoring and controlling various machine processes.

Key Features

• Display Specifications:
  • Screen Size: 10.4 inches
  • Display Type: Color TFT LCD
  • Resolution: 640 x 480 pixels
  • Display Mode: Semi-transmissive
  • Light Source: CCFL cold cathode fluorescent tube, side-lit distribution
• Touchscreen Technology:
  • The 2711P-RDT10C features a touchscreen interface that allows operators to input commands and data by tapping or swiping on the screen. The touchscreen is designed for durability and provides accurate and responsive touch detection.
• Communication Capabilities:
  • The display module supports communication through RS-232 and Ethernet ports, enabling seamless integration with other devices and systems within the industrial network.
  • It is compatible with FactoryTalk View Machine Edition software, allowing users to create custom operator interfaces and monitor machine status in real-time.
• Operating System:
  • The 2711P-RDT10C runs on the Windows CE 4.1 operating system, providing a stable and secure environment for running applications and controlling the operator interface.
• Mounting and Enclosure:
  • The display module is designed for panel or DIN rail mounting, providing flexibility in terms of installation options.
  • It has an NEMA, UL, or IP-rated enclosure, making it suitable for use in harsh industrial environments.
• Compatibility and Applications:
  • The 2711P-RDT10C is compatible with a range of PanelView Plus logic modules and can be used as a replacement part for older PanelView Plus terminals.
  • It is widely used in industrial automation systems, such as production line monitoring, process control, and robot control.

Additional Benefits

• Remote Monitoring: The 2711P-RDT10C supports remote monitoring and control capabilities, enhancing the availability and flexibility of the system.
• Durability and Reliability: The touchscreen interface and display module are designed for long-term use and can withstand the rigors of industrial environments.
• Customization: Users can customize the operator interface using FactoryTalk View Machine Edition software, allowing for tailored monitoring and control solutions.

In summary, the Allen-Bradley 2711P-RDT10C is a versatile and reliable display module and touchscreen interface that is ideal for use in industrial automation systems. Its advanced features and robust design make it an excellent choice for a wide range of applications.
