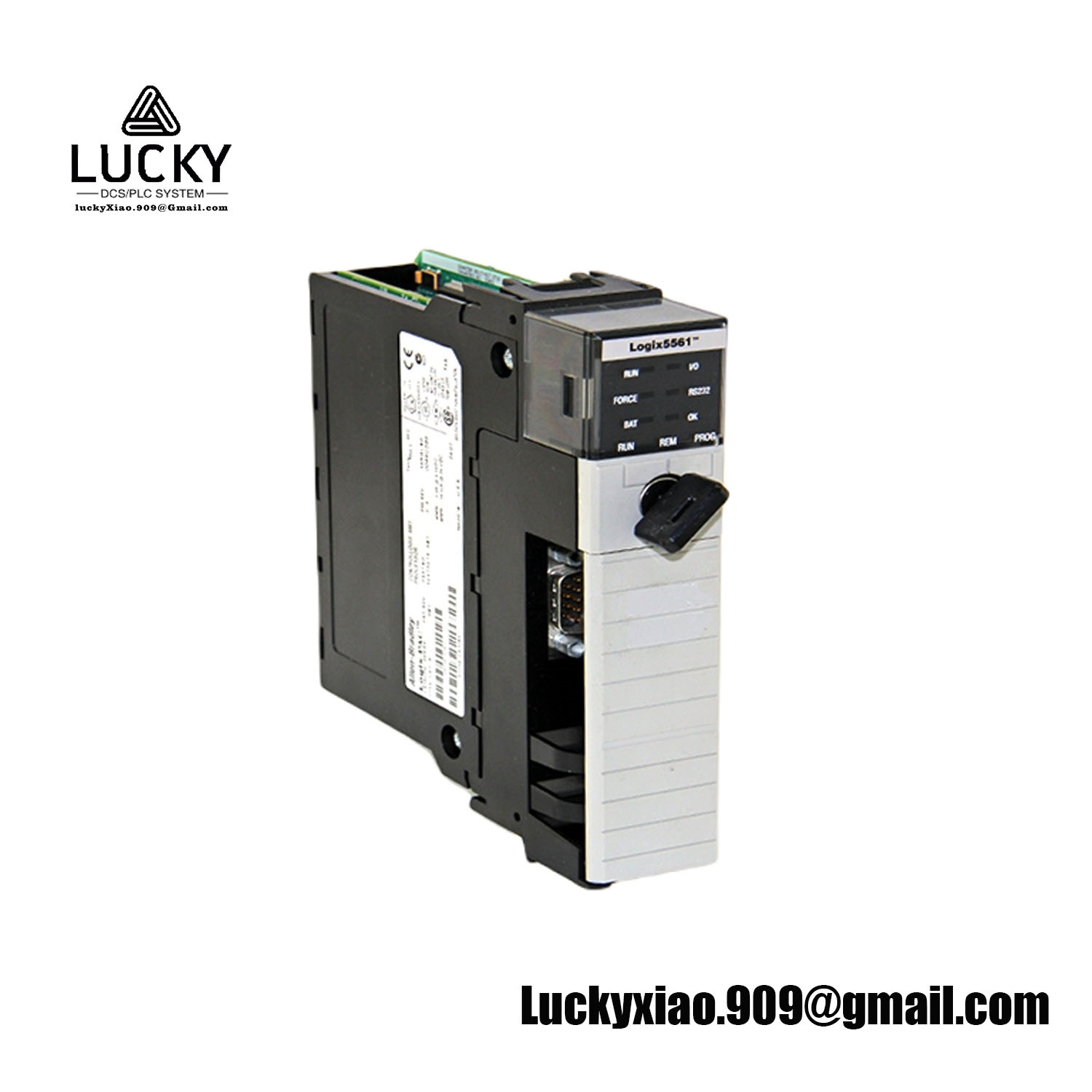

The Allen Bradley 1756-L61 is a high-performance programmable controller produced by the Allen Bradley brand under Rockwell Automation, belonging to the ControlLogix controller series. The following is a detailed introduction to the controller:
1、 Product Overview
The Allen Bradley 1756-L61 controller adopts a unique ControlLogix architecture, which has powerful computing power and stable operating performance. It is commonly used as the main control unit in industrial automation systems, responsible for executing control logic, processing input signals, generating output signals, and communicating with other devices.
2、 Main features
Processor and Memory:
Equipped with high-performance processors, it can meet the needs of complex control applications.
Featuring 2MB of user memory and 478KB of I/O memory, as well as an optional 128MB non-volatile storage memory (using a 1784-CF128 CompactFlash memory card).
Communication ability:
Supports multiple communication protocols such as ControlNet, Data Highway Plus, EtherNet/IP, DeviceNet, SynchLink, etc., enabling data exchange and communication with other devices and systems.
Equipped with a built-in RS-232 serial communication port, supporting protocols such as DF1 full/half duplex, ASCII, DF1 radio modem, Modbus via logic, and DH-485.
Modular design:
As a modular controller, it can be used in conjunction with various input/output modules, communication modules, and other ControlLogix module components to meet the needs of different application scenarios.
Supports up to 250 controller connections.
Safety and reliability:
Support multiple security mechanisms, such as user authentication, data encryption, firewalls, etc., to ensure the security of the system.
Built in watchdog timer and error detection function to improve system reliability and stability.
Scalability:
Supporting redundant configurations to improve system availability is often necessary in critical systems.
It can integrate motion control functions and analog input options such as encoder input, LDT input, and SSI input through the embedded SERCOS interface.
3、 Technical specifications
Processor type: 1756-L61 B AB processor (specific model may vary).
Processor frequency: High performance (specific frequency varies by model).
Memory capacity: 2MB user memory (expandable).
Storage capacity: Optional 128MB non-volatile storage memory.
Input voltage: Supports multiple input voltage ranges (specific voltage values vary depending on model and configuration).
Output current: Depending on the specific configuration.
Working temperature: 0 to 60 degrees Celsius.
Storage temperature: -40 to 85 degrees Celsius.
Relative humidity: 5% to 95% (non condensing).
4、 Application scenarios
The Allen Bradley 1756-L61 controller is widely used in industrial automation and control systems, such as petrochemical, power, metallurgical, pharmaceutical, food and other industries. It can achieve automated control and monitoring of the production line, improving production efficiency; At the same time, real-time monitoring and diagnosis of equipment operation status can be carried out to assist enterprises in equipment maintenance and upkeep.
5、 Summary
Allen Bradley 1756-L61 is a high-performance, reliable, communication rich, easy to program and maintain programmable controller. It adopts modular design, supports multiple communication protocols and extension modules, and can meet the needs of different application scenarios. At the same time, the controller also supports redundant configuration and multiple security mechanisms to ensure the safety and reliability of the system.
