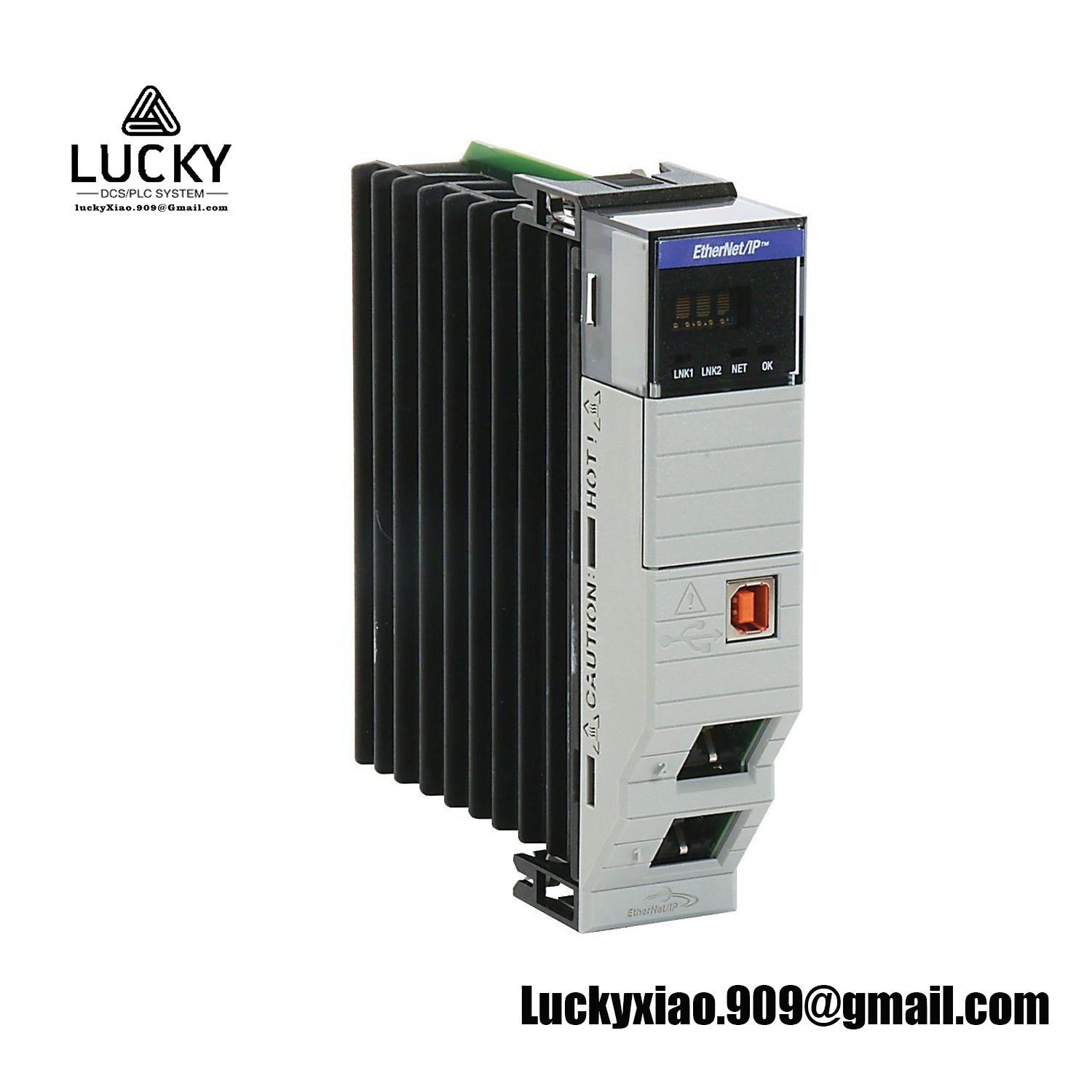

Allen Bradley 1756-EN4TR is a high-performance EtherNet/IP communication module produced by Rockwell Automation. The following is a detailed introduction to the module:
1、 Product Overview
The 1756-EN4TR module is an important component of the ControlLogix series PLC, designed specifically for industrial Ethernet communication. It provides Ethernet speeds of up to 1 Gbps, supports multiple network communication protocols, and can seamlessly connect and exchange data with various industrial equipment.
2、 Main features
High speed communication: The 1756-EN4TR module supports Ethernet speeds of up to 1 Gbps, ensuring fast data transmission and real-time performance.
Multiple network communication protocols: This module supports network communication protocols such as EtherNet/IP and CIP (Common Industrial Protocol), and is capable of interoperability with various industrial Ethernet devices.
Redundancy function: The 1756-EN4TR module supports redundant configuration, and by using redundant adapters, the reliability and stability of network communication can be improved.
Easy to configure and manage: This module provides intuitive configuration tools and management interfaces, allowing users to easily configure network parameters, monitor network status, and perform fault diagnosis and alarm handling.
Protection type and standard: The protection type of the 1756-EN4TR module is “Ex ec IIC T4 Gc”, which complies with IEC 60079-0 and IEC 60079-7 standards, ensuring safety for use in hazardous areas.
3、 Technical specifications
The technical specifications of the 1756-EN4TR module may vary depending on the specific model and configuration, but typically include the following aspects:
Port type: Usually provides RJ45 Ethernet ports, supporting 10/100/1000 Mbps network connections.
Communication protocol: Supports network communication protocols such as EtherNet/IP and CIP.
Power Requirements: Compliant with the power specifications of the ControlLogix series PLC, specific power requirements may vary depending on configuration and installation methods.
Working temperature: operate within the specified temperature range to ensure the stability and reliability of the system.
Installation method: This module is usually installed on the rack of the ControlLogix series PLC and used in conjunction with other modules.
4、 Application Fields
The 1756-EN4TR module is widely used in various industrial automation systems, such as manufacturing, petrochemicals, power, water treatment, and other fields. It can be used in conjunction with other ControlLogix series modules to build powerful and easily scalable industrial automation systems.
5、 Precautions
Preventing electrostatic discharge: When operating the 1756-EN4TR module, it is necessary to prevent electrostatic discharge to avoid damaging the electronic components inside the module.
Installation and Configuration: When installing and configuring the 1756-EN4TR module, it is necessary to follow Rockwell Automation’s installation and configuration guidelines to ensure the correctness and stability of the system.
Fault diagnosis and handling: In the process of use, if there is a fault or problem, you can refer to Rockwell Automation’s fault diagnosis and handling manual to quickly locate and solve the problem.
6、 Summary
Allen Bradley 1756-EN4TR is a high-performance, easy to configure and manage EtherNet/IP communication module suitable for various industrial automation systems. It provides features such as high-speed communication, support for multiple network communication protocols, and redundant functions, which can meet various complex industrial control requirements. When selecting and using the 1756-EN4TR module, it is recommended to refer to official documentation and technical support resources to ensure proper system configuration and performance optimization.
