Allen-Bradley 1715-AENTR Ethernet/IP Adapter Module for Redundant I/O Systems

Allen-Bradley 1715-AENTR: An Ethernet/IP Adapter Module for Redundant I/O Systems

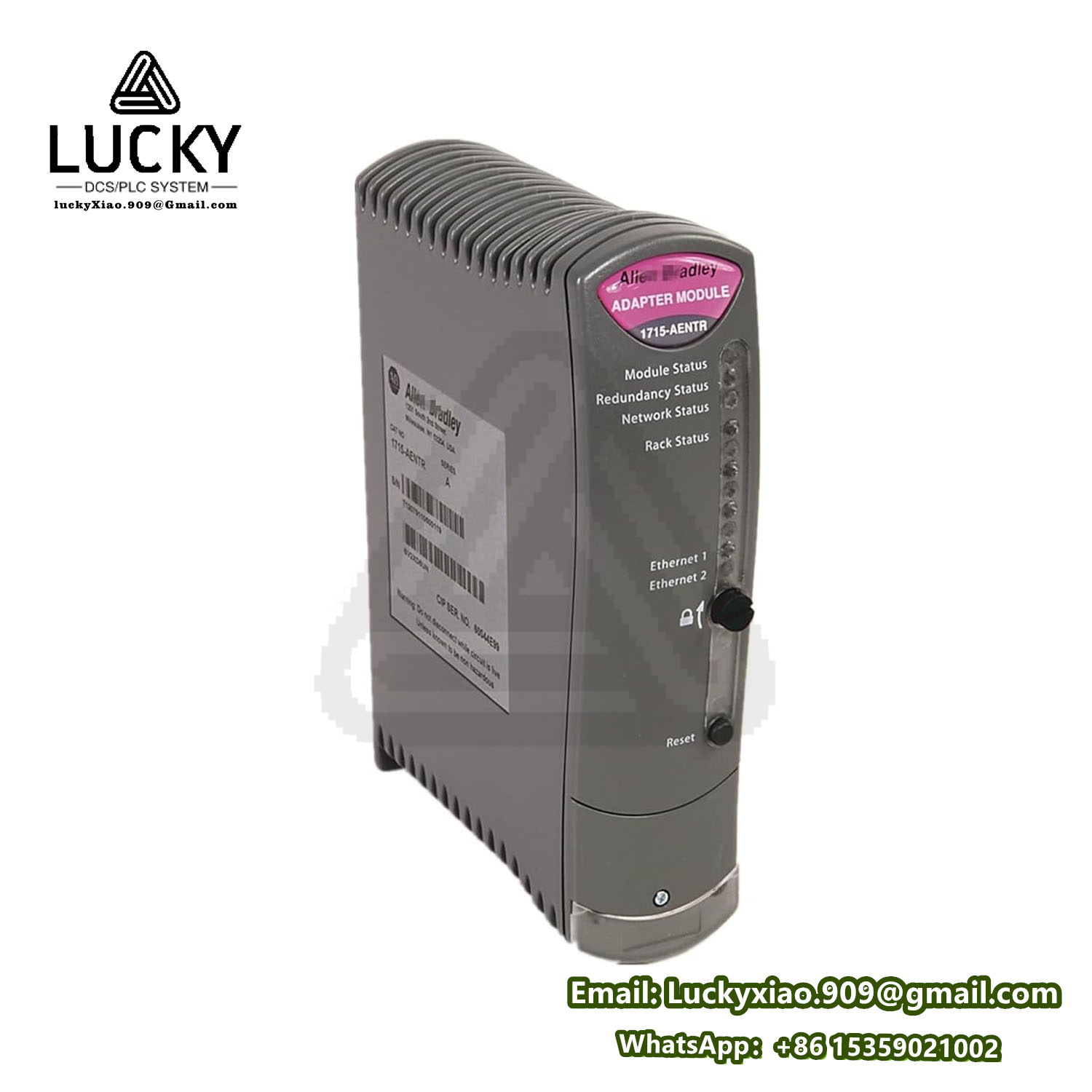

The Allen-Bradley 1715-AENTR is an Ethernet/IP adapter module specifically designed for use in redundant I/O systems. Manufactured by Rockwell Automation, a pioneering company in industrial automation, this module offers a range of features and benefits that make it ideal for modern and critical systems.

Key Features:

1. Redundant I/O Support:
   • The 1715-AENTR is tailored for use with the ControlLogix series of programmable automation controllers (PACs), providing a redundant I/O system that enhances system availability and reliability.
2. Dual Ethernet Ports:
   • The module features dual auto-sensing 10/100BASE-TX Ethernet ports, supporting both device-level ring (DLR) and star topologies. This allows for flexible networking configurations and increased fault tolerance.
3. Proxy Module Functionality:
   • The 1715-AENTR serves as a “proxy” module for all Ethernet/IP messages entering and exiting the redundant I/O modules. This simplifies network traffic management and ensures efficient communication.
4. Single and Dual-Mode Operations:
   • The module can operate in either single or dual-mode configurations. In dual-mode, the failure of one module does not affect the communication network, providing increased system resilience.
5. No Cross-Wiring Required:
   • The 1715-AENTR eliminates the need for cross-wiring of I/O, as the switching of active I/O modules is handled intelligently through the 1715 backplane.
6. Diagnostics and Monitoring:
   • The module offers advanced diagnostic capabilities, including built-in device intelligence for status monitoring and special alerts for potential issues.
7. Ease of Use:
   • The 1715-AENTR does not require additional instructions or complex programming. It simplifies configuration processes and is easy to operate, making it a suitable choice for a wide range of applications.
8. Robust and Versatile:
   • Designed for both standard and extreme environment applications, the module supports various application configurations, such as non-safety, single, and dual-mode applications.

Specifications:

• Supported I/O Modules: 24 per adapter pair
• Maximum Power Consumption: 8 watts
• Connector Type: 45 AWG shielded RJ12
• Weight: 420 grams
• Operating Temperature Range: Typically -20 to 70°C (may vary by product version)

Applications:

• Automation Control: Suitable for various automation control systems, improving process uptime and efficiency.
• Critical Applications: Provides reliable communication support for mission-critical applications.
• Flexible Configurations: Supports multiple application configurations, making it adaptable to different industrial needs.

In summary, the Allen-Bradley 1715-AENTR Ethernet/IP adapter module is a robust and versatile solution for redundant I/O systems. Its advanced features, including dual Ethernet ports, proxy module functionality, and advanced diagnostics, make it an ideal choice for modern and critical systems. With its ease of use and support for various applications, the 1715-AENTR is a valuable addition to any industrial automation environment.
