Allen-Bradley 1440-DYN02-01RJ Dynamic Measurement Module

Allen-Bradley 1440-DYN02-01RJ: A Dynamic Measurement Module

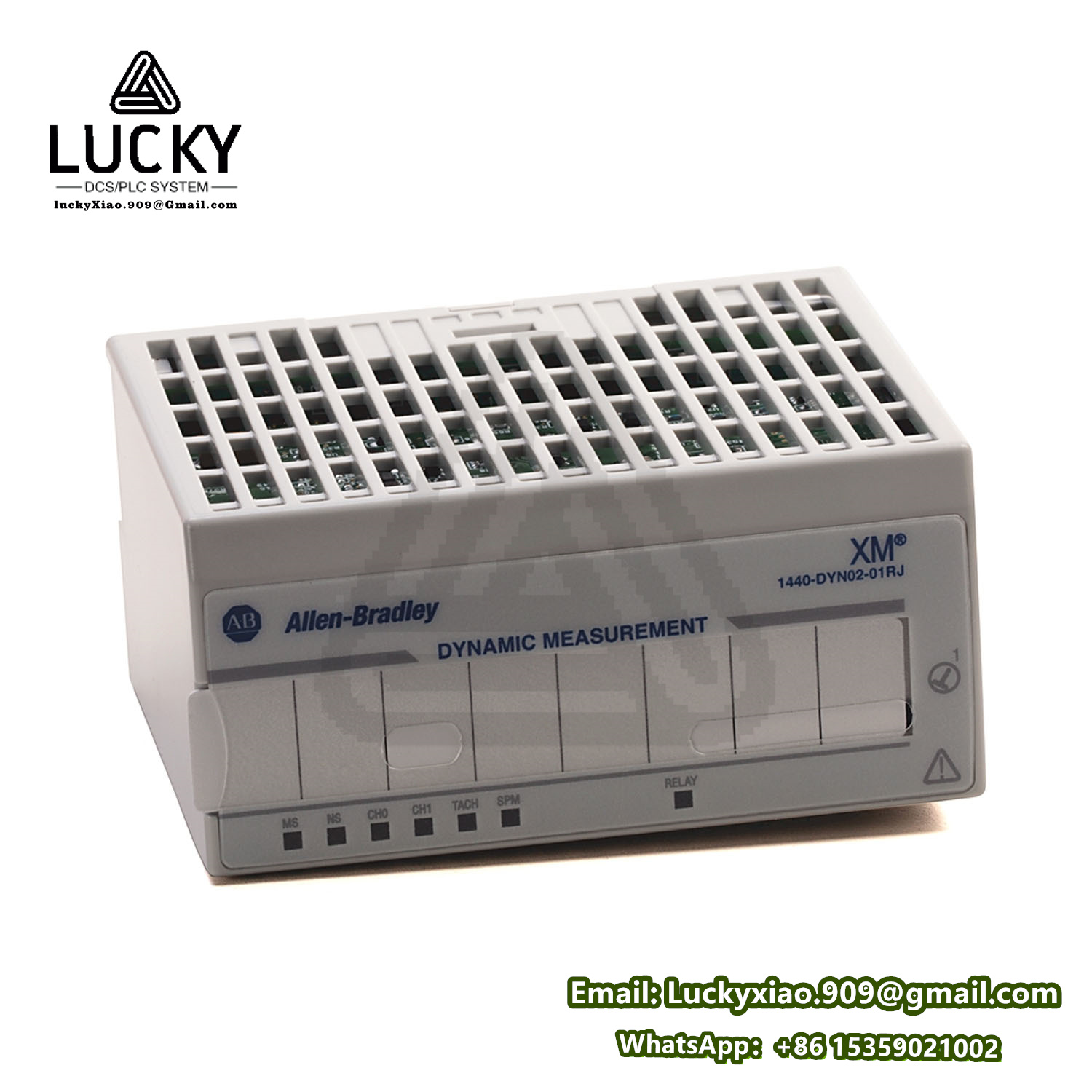

The Allen-Bradley 1440-DYN02-01RJ is a dynamic measurement module specifically designed for monitoring and protecting the state of electronic machines. It is manufactured by Rockwell Automation, a leading provider of industrial automation solutions.

Key Features and Capabilities:

1. Measurement Range:
   • The module is capable of measuring vibration, pressure, and strain on dynamic inputs.
2. Versatile Inputs:
   • It can connect to a variety of inputs, including non-contact eddy current probe inputs, standard integrated electronic piezoelectric (IEPE) accelerometer inputs, speed sensor inputs, and DC voltage measurement inputs.
3. Speed Measurement and Order Analysis:
   • The module features a tachometer input that provides speed measurement and order analysis functionality, aiding in a more comprehensive understanding of machinery operating conditions.
4. Compatibility with Various Sensors:
   • It supports eddy current probes, unpowered magnetic probes, and other powered and unpowered tachometers, making it adaptable to various application environments.
5. Application in Machinery Monitoring:
   • The 1440-DYN02-01RJ is primarily used for providing common monitoring solutions for turbines (steam, gas, and water), motors, compressors, pumps, fans, blowers, and other rotating machinery.
6. Smart Dual-Channel Monitor:
   • As a smart dual-channel general-purpose monitor, it can measure various dynamic inputs and more accurately monitor shaft vibration, casing vibration, and bearing pedestal vibration of rotating equipment through the built-in tachometer.
7. Installation and Protection Requirements:
   • The module must be installed in a protected enclosure to shield it from high temperatures, high humidity, and dusty environments.
   • Wiring to and from the module should be 12-28 or 14-22 AWG copper conductors, without preprocessing, and for electromagnetic interference (EMI) protection, a DIN rail ground connection requires an 8 AWG rated conductor.
8. Network Integration:
   • It must be installed on its network with a dedicated 1440-ACNR ControlNet adapter module and up to ten 1440-DY12-01RJ modules.
   • Note that other XM series modules cannot be connected to the dynamic measurement module on the same network.

Benefits for Industrial Applications:

• Improved Machinery Reliability: By providing real-time monitoring and protection, the 1440-DYN02-01RJ helps prevent catastrophic machinery failures, improving overall system reliability.
• Enhanced Safety: The module aids in identifying potential safety hazards, enabling prompt corrective action to be taken.
• Cost Savings: By detecting machinery issues early, the module helps avoid costly repairs and downtime.

In summary, the Allen-Bradley 1440-DYN02-01RJ is a versatile and reliable dynamic measurement module designed for industrial machinery monitoring applications. Its robust features and capabilities make it an ideal choice for ensuring the safety, reliability, and efficiency of rotating machinery in various industrial settings.
