Allen-Bradley 1407-CGCM Generator control module

Allen-Bradley 1407-CGCM Generator Control Module

Overview

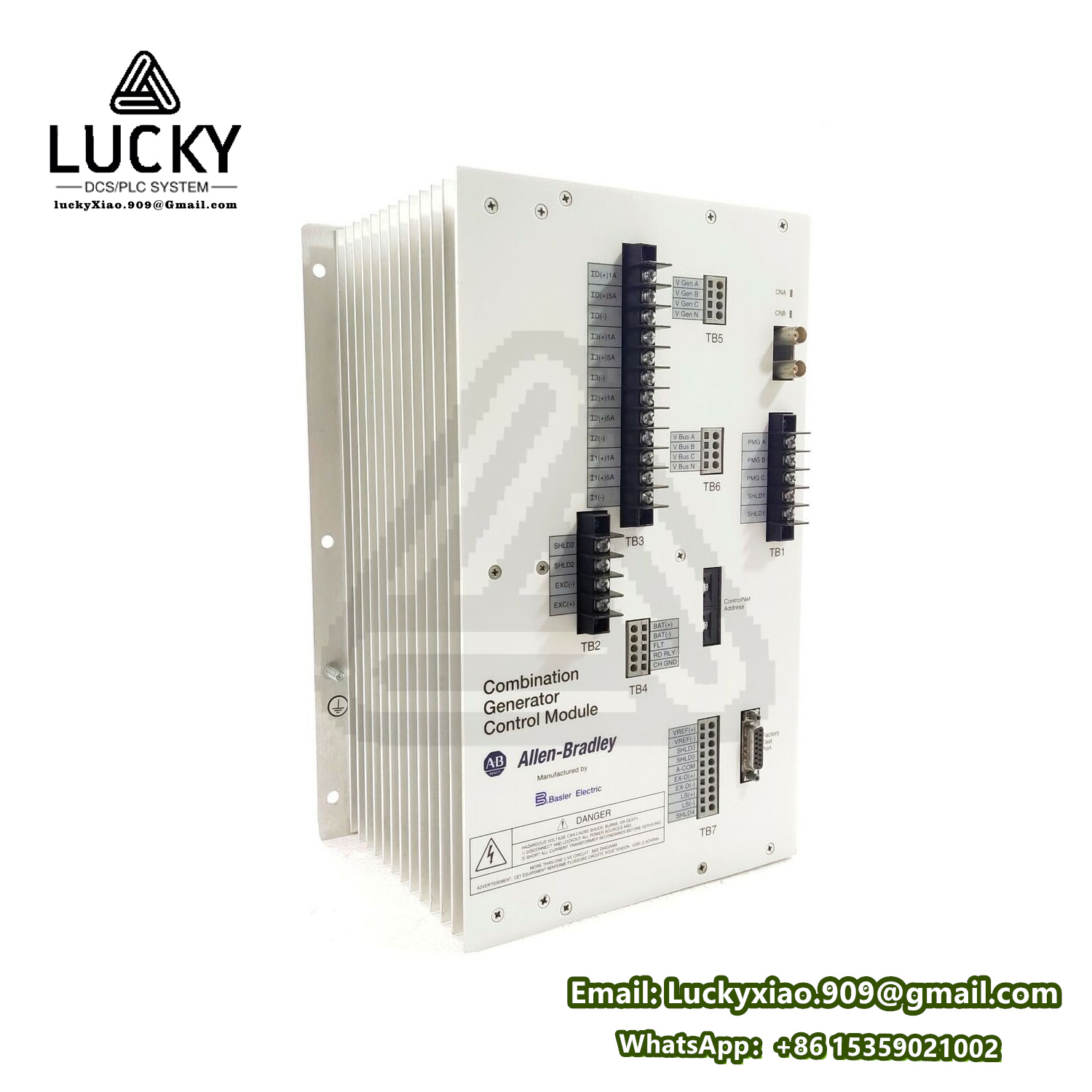

The Allen-Bradley 1407-CGCM is a comprehensive generator control module specifically designed for generator sets. It integrates advanced control, monitoring, and protection functions into a single, compact unit. This module ensures the reliable and efficient operation of generator sets in various industrial applications.

Key Features

1. Powerful Control Functions
   • The 1407-CGCM can control generator startup, shutdown, and load distribution, ensuring stable operation of the generator set.
   • It supports four excitation control modes: Automatic Voltage Regulation (AVR), Field Current Regulation (FCR), Power Factor (PF), and Reactive Power (VAR).
   • Soft-start voltage increase is achieved through adjustable ramps in AVR and FCR control modes.
   • Over-excitation (OEL) and under-excitation (UEL) limits are enforced in AVR, VAR, and PF control modes.
2. Real-Time Monitoring
   • The module continuously monitors generator parameters such as voltage, current, frequency, and temperature.
   • It detects abnormalities in real-time and issues alarms to operators, allowing for prompt response and correction.
3. Programmability
   • The 1407-CGCM supports programmable logic control, allowing users to write and modify control logic according to specific application requirements.
   • This flexibility enables the module to adapt to different automation tasks and optimize generator set performance.
4. High Reliability
   • Built with high-quality components and subject to strict production processes, the 1407-CGCM ensures high reliability and stability.
   • It features redundancy and automatic failover capabilities to maintain system operation in the event of a component failure.
5. Ease of Maintenance
   • The module provides a user-friendly interface and intelligent diagnostic functions, facilitating fault troubleshooting and maintenance.
   • Its modular design allows for easy replacement of faulty components without disrupting system operation.

Technical Specifications

• Input Options
  • Single-phase or three-phase true RMS generator voltage detection.
  • Single-phase dual-bus or three-phase single-bus voltage detection.
  • Three-phase generator current detection (1 or 5A nominal value).
  • Single-phase cross-current loop with 1 or 5A current transformer (CT) input.
  • Auxiliary ±10V DC input for remote setpoint control.
  • DC power input.
• Output Options
  • Pulse-width modulation output power stage with a rated current of 15A.
  • Discrete redundant relay outputs.
  • Discrete fault output drivers.
  • Load-sharing connections for use with Allen-Bradley line synchronization modules or compatible hardware.
• Communication Interfaces
  • Redundant ControlNet connectors for high-speed network communication.
  • RS-232 port for dedicated communication with redundant 1407-CGCM units.
  • Additional RS-232 port for factory configuration and testing (not intended for customer use).

Applications

The Allen-Bradley 1407-CGCM is suitable for a wide range of industrial applications, including power generation plants, data centers, manufacturing facilities, and more. Its versatility and scalability make it an ideal choice for complex industrial environments requiring reliable and efficient generator set control.

In conclusion, the Allen-Bradley 1407-CGCM generator control module is a high-performance, reliable, and flexible solution for generator set control and monitoring. Its advanced features and technical specifications make it well-suited for various industrial applications, ensuring the stable and efficient operation of generator sets.
