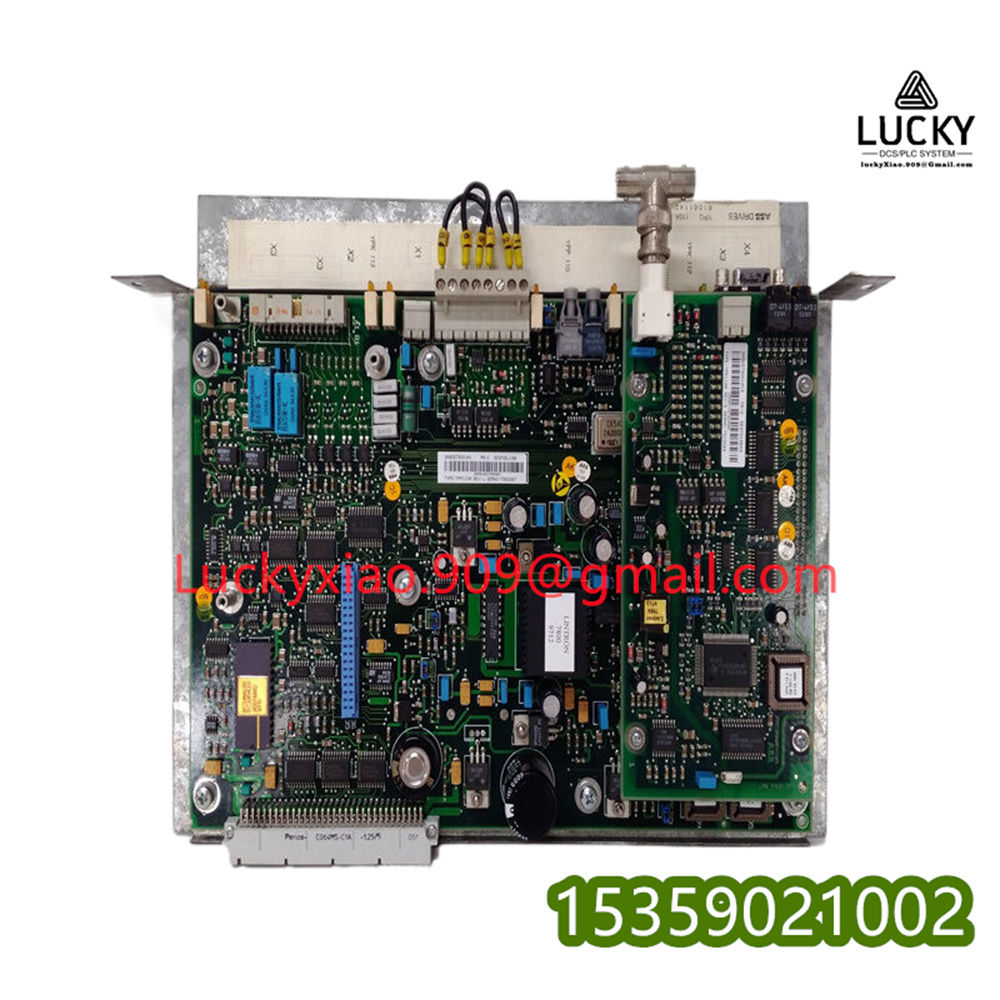

ABB YPP110 (especially model YPP110A 3ASD573001A1) is a magnetic excitation controller module or brushless excitation system component. The following is a detailed introduction to the product:
1、 Product Overview
ABB YPP110A is produced by ABB Group and widely used in generators and generator sets in power systems. The main function of this module is to control and regulate the excitation current to ensure the stability and reliability of the power system.
2、 Main functions
Magnetic excitation control: The YPP110A module is used to control the magnetic excitation current of the generator, in order to stabilize and regulate the output voltage and frequency of the generator. It can automatically adjust the excitation current according to system requirements to achieve stable operation of the power system.
High precision and fast response: This module has high precision and high response performance, and can quickly and accurately control the excitation current to adapt to changes in the power system and load requirements.
Multiple communication interfaces: Supports multiple communication interfaces, such as serial communication interface (RS-485), for data exchange and control with other devices and systems.
Programming and configuration: The YPP110A module can be programmed and configured through software to meet different application requirements. Users can adjust the magnetic excitation control parameters and settings according to specific generator and power system requirements.
Security protection: It has multiple protection functions and mechanisms, such as overload protection, overheating protection, etc., to ensure the safety of operators and equipment.
3、 Brushless excitation system (for YPP110A)
In the brushless excitation system, YPP110A serves as a key component and works together with the main exciter, auxiliary exciter, rectifier, and other components. The main and auxiliary exciters are driven by the main shaft, with the main exciter having a fixed magnetic field and a rotating armature, directly connected to the magnetic field of the main AC generator through a silicon rectifier. The auxiliary exciter is a shaft driven permanent magnet generator with rotating permanent magnets and three-phase fixed armatures connected to the shaft, which supplies power to the main exciter through a three-phase full wave phase controlled thyristor bridge.
4、 Application Fields
The ABB YPP110 magnetic excitation controller module is widely used in the following fields:
Industrial automation: used to drive and control electric motors, such as pumps, fans, compressors, etc.
Energy industry: used to control the excitation process of generators in power plants, substations, and distribution systems.
Transportation field: used for motor excitation control in electric vehicles, railways, and rail transit systems.
