ABB TVOC-2-E1 is an extension unit module for arc light monitoring system, mainly used to increase the number of light sensor inputs of the arc light monitor, improve the flexibility and coverage of the system. The following is a detailed introduction to the product:
1、 Product Overview

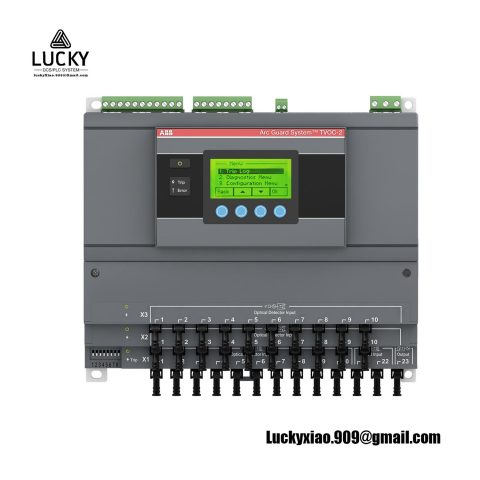

TVOC-2-E1 is part of ABB’s TVOC-2 arc monitoring system, which is dedicated to protecting personnel and equipment safety by quickly detecting and cutting off arc faults. As an extension unit module, TVOC-2-E1 enables the TVOC-2 system to connect more light sensors to monitor larger switchgear areas.
2、 Functional Features

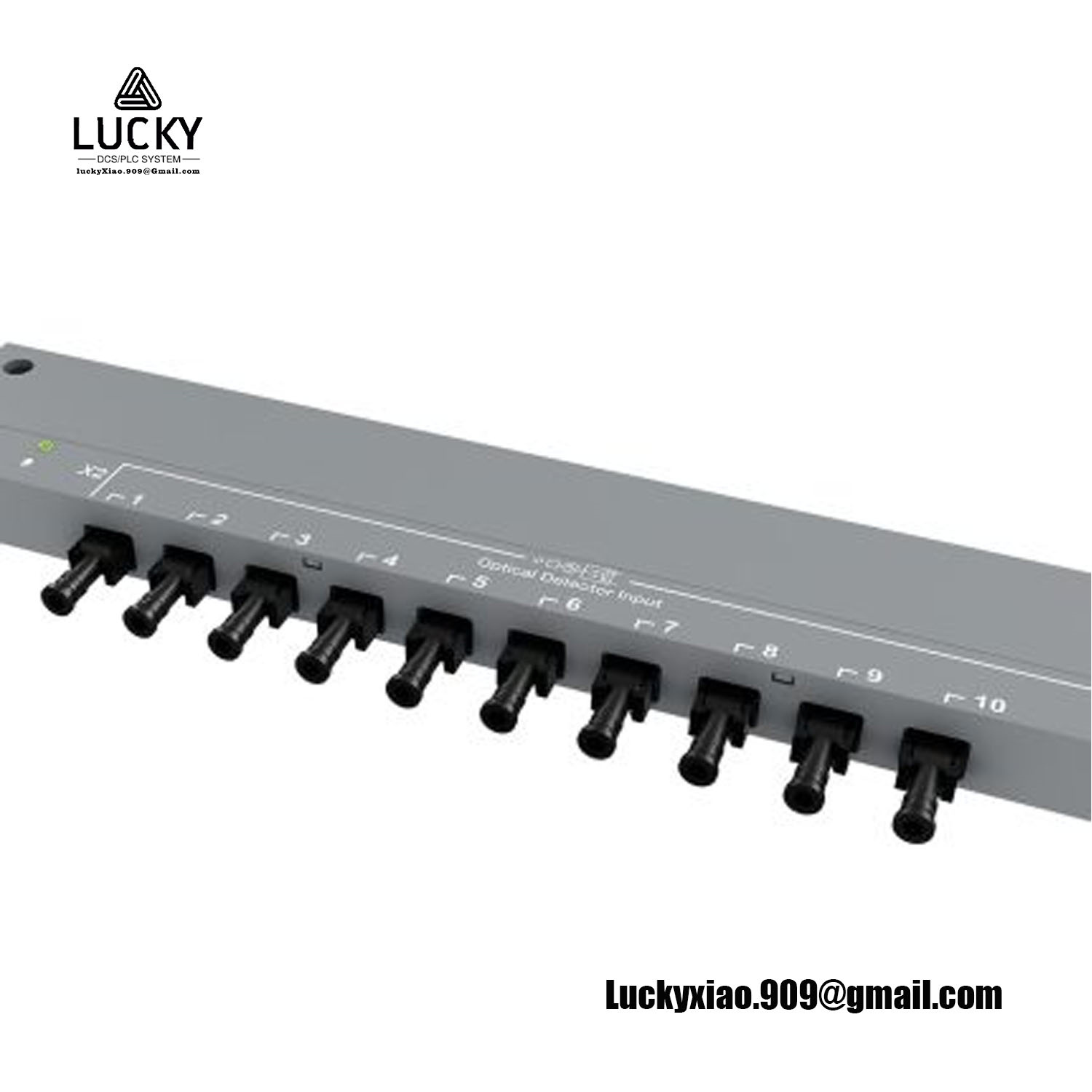

Add light sensor input: The TVOC-2-E1 expansion unit module provides additional light sensor input interfaces, allowing the TVOC-2 system to connect up to 30 light sensors. This greatly increases the monitoring range of the system and enhances its ability to detect arc faults.
Pre calibrated optical sensor: The optical sensor undergoes pre calibration in the factory to ensure the accuracy and reliability of the system. Users can easily install and use without the need for on-site calibration.
Multiple fiber length specifications: TVOC-2-E1 supports multiple fiber length specifications ranging from 1 meter to 60 meters, meeting the needs of different application scenarios.
Easy to expand: By adding additional TVOC-2-E1 expansion unit modules, users can easily scale the TVOC-2 system to meet constantly changing monitoring needs.
3、 Application scenarios
The TVOC-2-E1 expansion unit module is suitable for various occasions that require arc fault prevention, such as low and medium voltage switchgear, ships, petrochemicals, heavy industry, hospitals, shopping centers, etc. It is particularly suitable for large distribution systems or complex electrical environments, where monitoring of multiple switchgear or compartments is required.
4、 System compatibility
The TVOC-2-E1 expansion unit module is fully compatible with other components of the TVOC-2 arc monitoring system, including arc monitors, optical sensors, and connecting optical fibers. This ensures the integrity and reliability of the system, and simplifies the installation and configuration process.
5、 Installation and maintenance
The installation of the TVOC-2-E1 expansion unit module is very simple and can be done through DIN rails or screws. At the same time, the system provides a user-friendly startup menu and HMI (Human Machine Interface), making the configuration and maintenance process simple and fast.
In summary, ABB TVOC-2-E1 is a powerful and easily expandable arc monitoring system expansion unit module that provides additional optical sensor input interfaces, increasing the monitoring range and flexibility of the system. Meanwhile, it is fully compatible with other components of the TVOC-2 system, simplifying the installation and configuration process.
