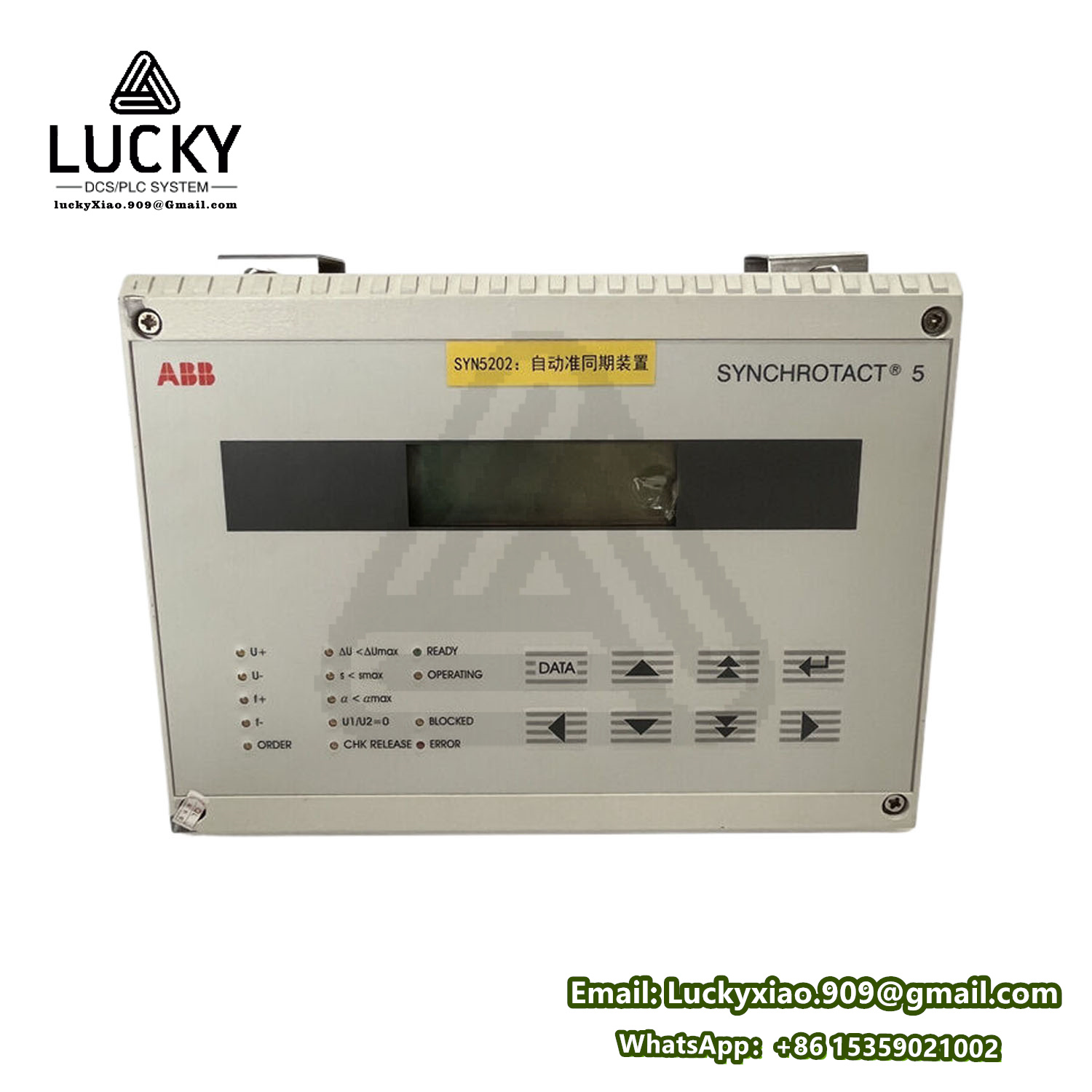

ABB SYN5202a-Z,V221 3BHB006715R0221 Synchronization and Control Module

$266.00

In stock

💥Name: Module/Controller/Touchpad/Driver/Load cell

Model: SYN5202a-Z,V221 3BHB006715R0221

🚚Delivery time: goods in stock

3️⃣6️⃣5️⃣Warranty: 12 months

Shipping fee: Shipping fee: Please contact customer service.

📦Product packaging: The seller provides complete packaging

🌐Customs clearance fee: not included

☎️Phone/WeChat:15359021002

📧Email: LuckyXiao.909@Gmail.com

📲WhatsApp+86 15359021002

 🆔Skype:+86 15359021002

❤️Other websites: www.szcxgk.com

ABB SYN5202a-Z, V221 3BHB006715R0221 – Synchronization and Control Module

The ABB SYN5202a-Z, V221 3BHB006715R0221 is a specialized synchronization and control module designed for industrial automation systems, particularly in power generation, motor control, and grid synchronization applications. It ensures precise synchronization of equipment such as generators, motors, or grid connections, enabling seamless integration and stability in complex industrial processes.


Technical Parameters

Category
Specification
Power Supply
24 V DC (±20%) or 100–240 V AC (±10%)
Input Signals
Voltage: 100–690 V AC (phase-to-phase)
Frequency: 45–65 Hz
Output Signals
Relay contacts: 5 A @ 250 V AC/30 V DC
Analog outputs: 4–20 mA or 0–10 V
Synchronization Accuracy
±0.5° phase angle, ±0.1 Hz frequency deviation
Communication Interfaces
– PROFIBUS DP
– Modbus RTU/TCP
– IEC 61850 (optional)
Operating Temperature
-25°C to +70°C
Protection Class
IP40 (standard), IP54 (optional)
Certifications
CE, UL, IEC 60255, RoHS
Response Time
<20 ms for synchronization detection and correction

Functional Features

  1. Precision Synchronization
    • Automatically matches phase, frequency, and voltage between generators, motors, or grid connections.
    • Supports dead bus synchronization and live bus synchronization modes.
  2. Advanced Control Algorithms
    • Adaptive PID control for smooth synchronization under varying load conditions.
    • Anti-islanding protection to prevent unsynchronized operation during grid faults.
  3. Multi-Source Compatibility
    • Handles synchronization between multiple power sources (e.g., diesel generators, renewable energy systems, and utility grids).
    • Configurable thresholds for voltage, frequency, and phase angle differences.
  4. Diagnostics & Monitoring
    • Real-time measurement of voltage, frequency, phase angle, and power parameters.
    • Event logging with timestamped records for synchronization attempts, alarms, and faults.
  5. Flexible Communication
    • Integration with SCADA/DCS systems via PROFIBUS DP or Modbus.
    • Optional IEC 61850 support for substation automation.
  6. User Interface
    • Local HMI with LCD display for configuration, status visualization, and manual override.
    • Password-protected access to prevent unauthorized changes.
  7. Safety & Redundancy
    • Built-in fail-safe logic to isolate equipment during synchronization failures.
    • Redundant power supply and signal inputs for critical applications.

Typical Applications

  • Power Generation: Synchronizing generators to grids or paralleling multiple generators.
  • Renewable Energy: Integrating solar/wind farms with utility networks.
  • Industrial Motors: Soft-starting large motors with precise grid synchronization.
  • Microgrids: Managing seamless transitions between grid-connected and islanded modes.

Compliance & Standards

  • Safety: IEC 60255 (protection relays), UL 508 (industrial control equipment).
  • EMC: IEC 61000-6-2 (immunity), IEC 61000-6-4 (emissions).
  • Environmental: RoHS, REACH.

Conclusion

The ABB SYN5202a-Z, V221 3BHB006715R0221 is a critical component for ensuring operational stability and efficiency in power systems requiring precise synchronization. Its combination of high accuracy, adaptive control algorithms, and industrial-grade communication protocols makes it ideal for demanding applications in energy, manufacturing, and infrastructure. Designed for resilience in harsh environments, it aligns with ABB’s commitment to reliability and innovation in industrial automation.
