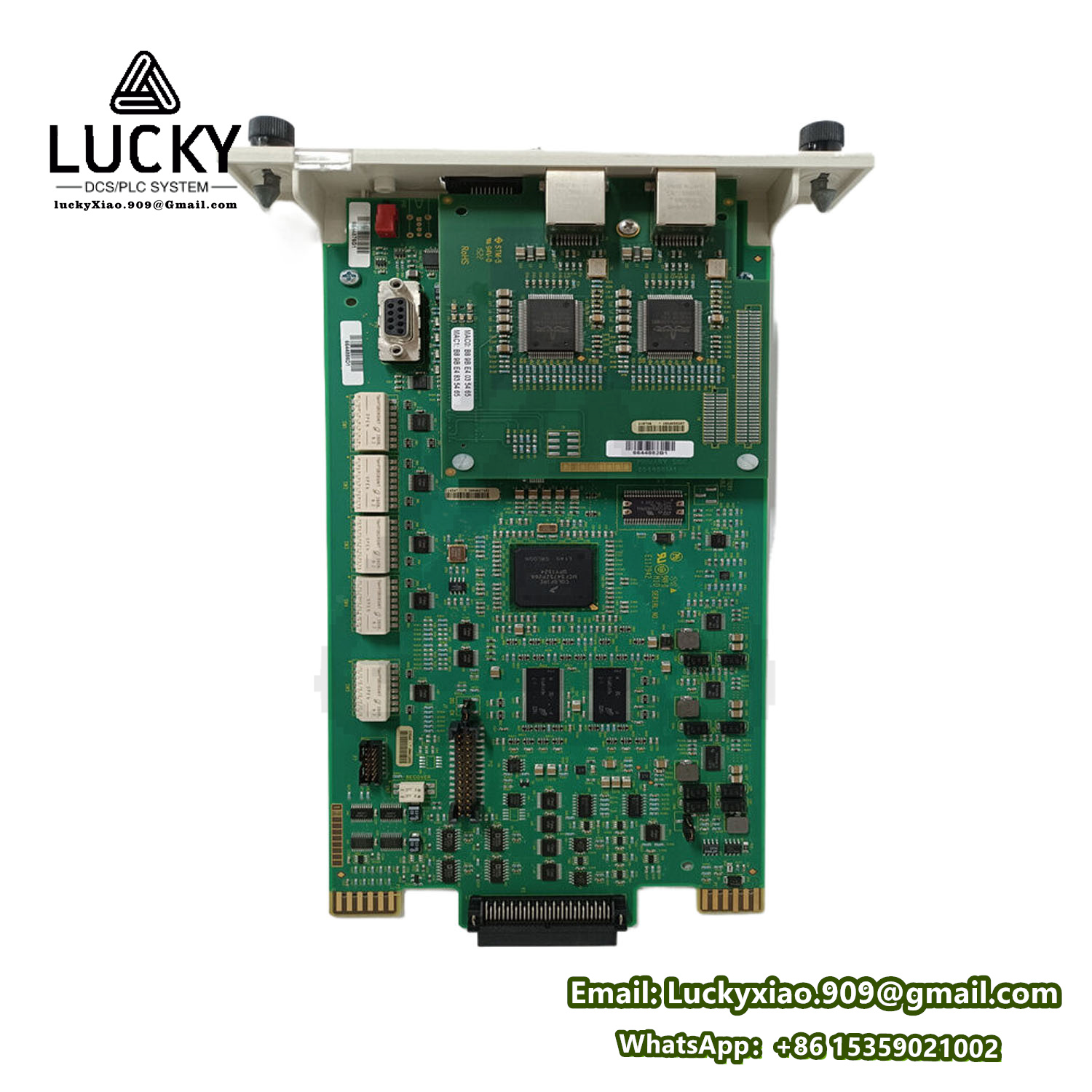

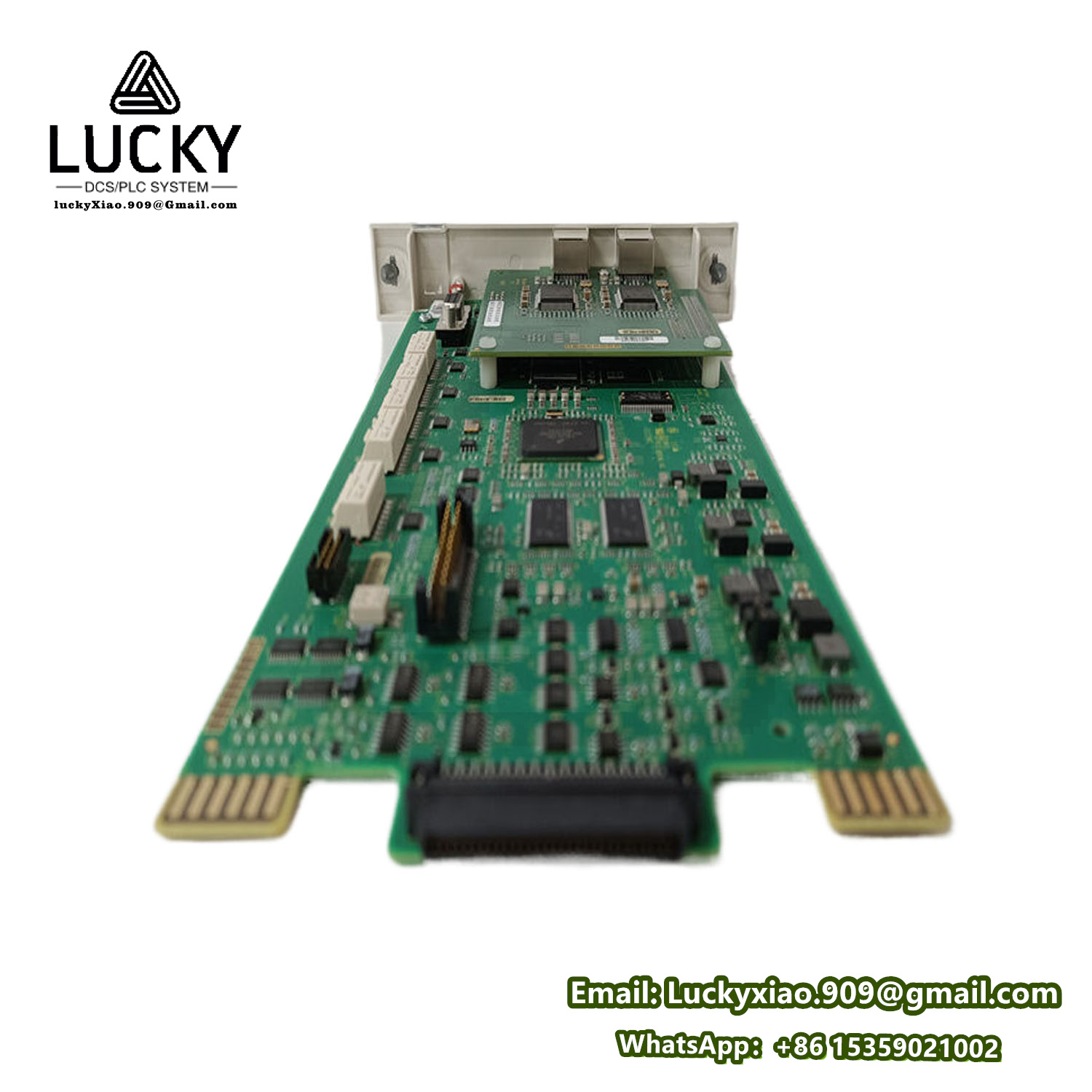

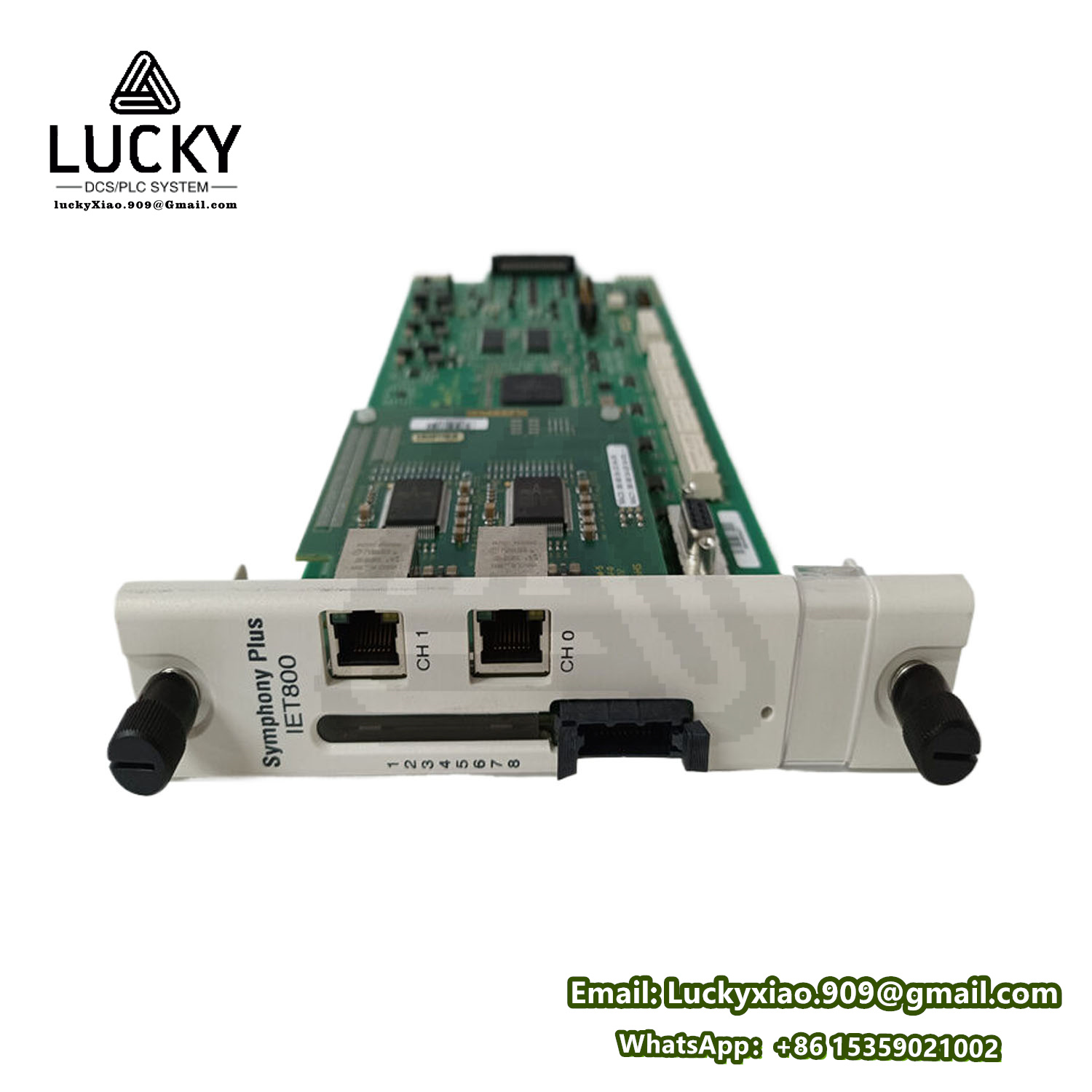

ABB SPIET800 – Communication Interface Module
The ABB SPIET800 is a communication and protocol interface module designed for industrial automation systems, likely part of ABB’s AC 800M or S800 I/O series. It facilitates seamless integration between field devices (sensors, actuators, PLCs) and higher-level control systems, enabling real-time data exchange and process optimization in industries such as power generation, oil and gas, and manufacturing.
Technical Parameters
|
Category
|
Specification
|
|---|---|
|
Module Type
|
Communication interface (protocol converter)
|
|
Power Supply
|
24 V DC (±20%), redundant power inputs supported
|
|
Communication Protocols
|
– PROFIBUS DP/PA
– Modbus RTU/TCP – OPC UA – EtherNet/IP |
|
Data Transfer Rate
|
1.5 Mbps (PROFIBUS DP), 100 Mbps (Ethernet)
|
|
Isolation
|
Galvanic isolation (field-to-system: 1500 V AC)
|
|
Operating Temperature
|
-25°C to +70°C
|
|
Humidity
|
5–95% (non-condensing)
|
|
Certifications
|
CE, UL, RoHS, IEC 61131-2, IEC 61850 (optional)
|
|
Redundancy
|
Optional redundant network configurations
|
|
Compatibility
|
ABB AC 800M controllers, 800xA automation systems, third-party PLCs/SCADA
|
Functional Features
- Multi-Protocol Support
- Converts between PROFIBUS, Modbus, and EtherNet/IP for interoperability in mixed-protocol environments.
- Optional OPC UA support for cloud-based analytics and Industry 4.0 applications.
- Real-Time Data Exchange
- Low-latency communication for time-critical control tasks (cycle times <10 ms).
- Buffered data transmission to handle network interruptions.
- Diagnostics & Monitoring
- Built-in diagnostics for network health (packet loss, latency) and device status.
- LED indicators for power, communication activity, and fault detection.
- Redundancy & Reliability
- Supports redundant power supplies and communication paths (e.g., PROFIBUS ring topology).
- Hot-swappable design for maintenance without system downtime.
- Cybersecurity
- Role-based access control and encrypted communication (TLS/SSL).
- Compliance with IEC 62443 standards for industrial network security.
- Industrial Resilience
- Robust design for harsh environments (high EMI, vibration, temperature extremes).
- DIN rail mounting for secure installation in control cabinets.
- Configuration Tools
- Configurable via ABB’s Control Builder M or Automation Builder engineering tools.
- Pre-configured templates for quick deployment.
Typical Applications
- Power Plants: Integration of turbines, transformers, and grid protection systems.
- Oil & Gas: SCADA systems for pipeline monitoring and remote wellhead control.
- Manufacturing: PLC and robotics integration in automotive production lines.
- Water Treatment: Real-time data aggregation from pumps and sensors.
Compliance & Standards
- Safety: IEC 61131-2, UL 508.
- EMC: IEC 61000-6-2 (immunity), IEC 61000-6-4 (emissions).
- Environmental: RoHS, IP20 enclosure rating.
Conclusion
The ABB SPIET800 is a critical enabler of industrial communication, bridging field devices with control systems in ABB’s automation ecosystem. Its multi-protocol support, redundancy features, and rugged design ensure reliable operation in demanding environments. Designed for scalability and cybersecurity, it empowers industries to achieve seamless connectivity and operational efficiency in complex automation workflows.
