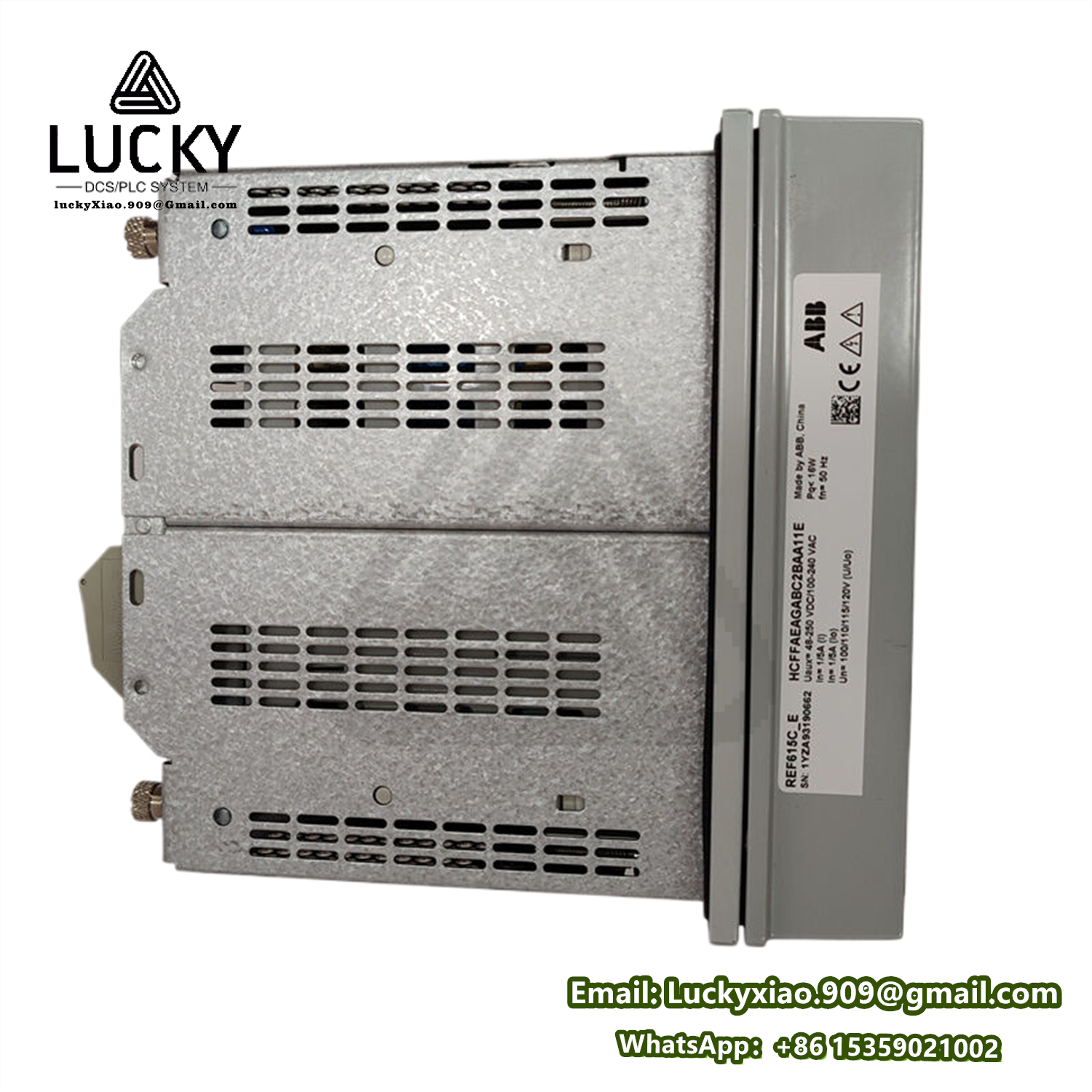

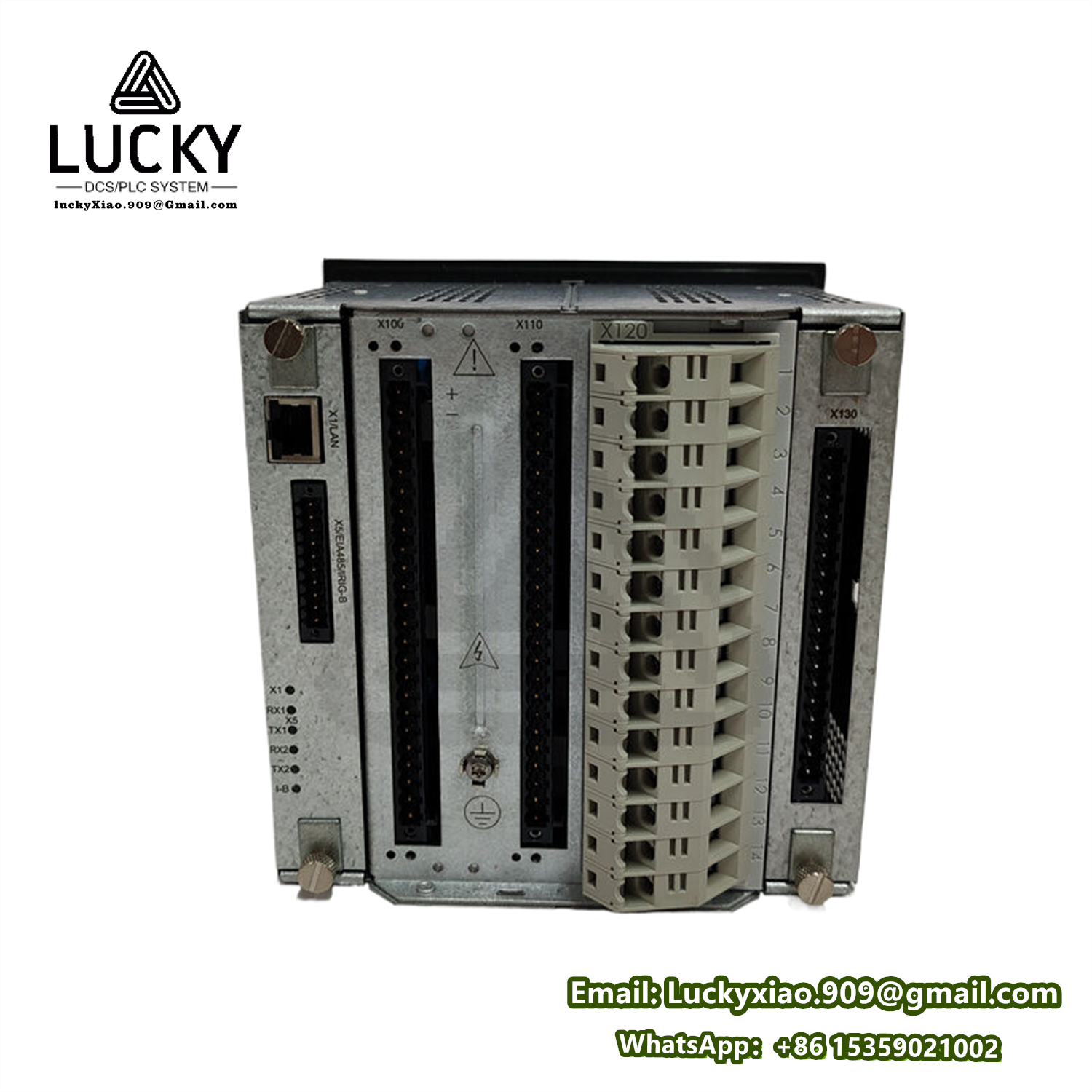

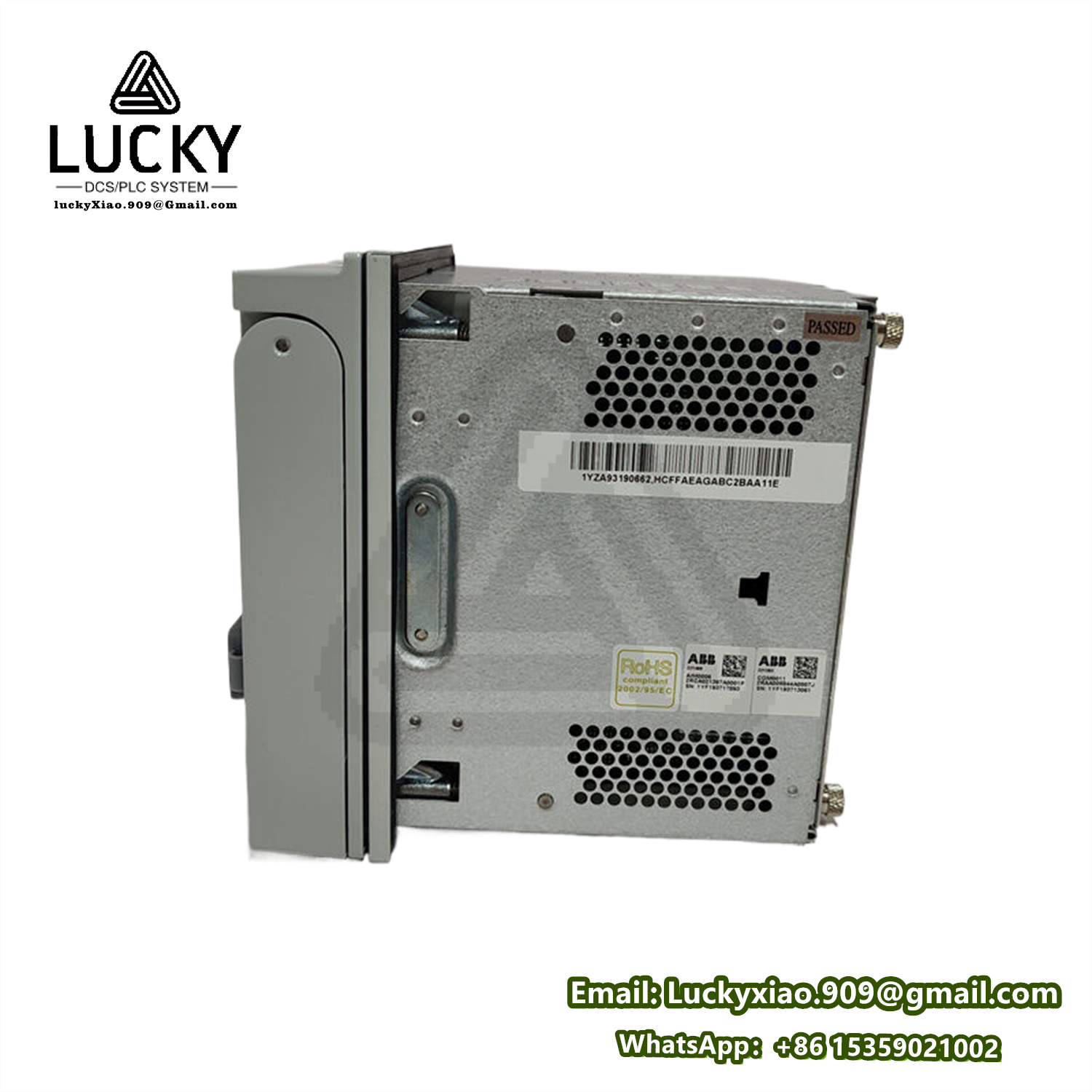

ABB REF615 HBFFAEAGNBA1ANB1XD Digital feeder protection relay
━━━━━━━━━━━━━━━━━━━━━━━━
⚡ Guardian of Medium-Voltage Networks | Relion® Innovation
🔍 Core Identity
Device Type: Digital Feeder Protection Relay (ABB Relion® 615 Series)
Mission: Deliver ultra-reliable protection, control, and monitoring for medium-voltage power distribution systems.
📊 Technical Blueprint
|
Attribute
|
Specifications
|
|---|---|
|
Rated Voltage
|
6–24 kV AC (50/60 Hz), adaptable to global grids.
|
|
Current Input
|
1 A / 5 A (CT secondary), ±0.5% accuracy.
|
|
Protection Functions
|
Overcurrent, Earth Fault, Thermal Overload, Directional Power.
|
|
Communication
|
IEC 61850, Modbus RTU, DNP3, Ethernet.
|
|
Operating Temp
|
-40°C to +70°C (Arctic to desert resilience).
|
|
Certifications
|
IEC 60255, CE, UL, KEMA, and global grid codes.
|
|
Display & Interface
|

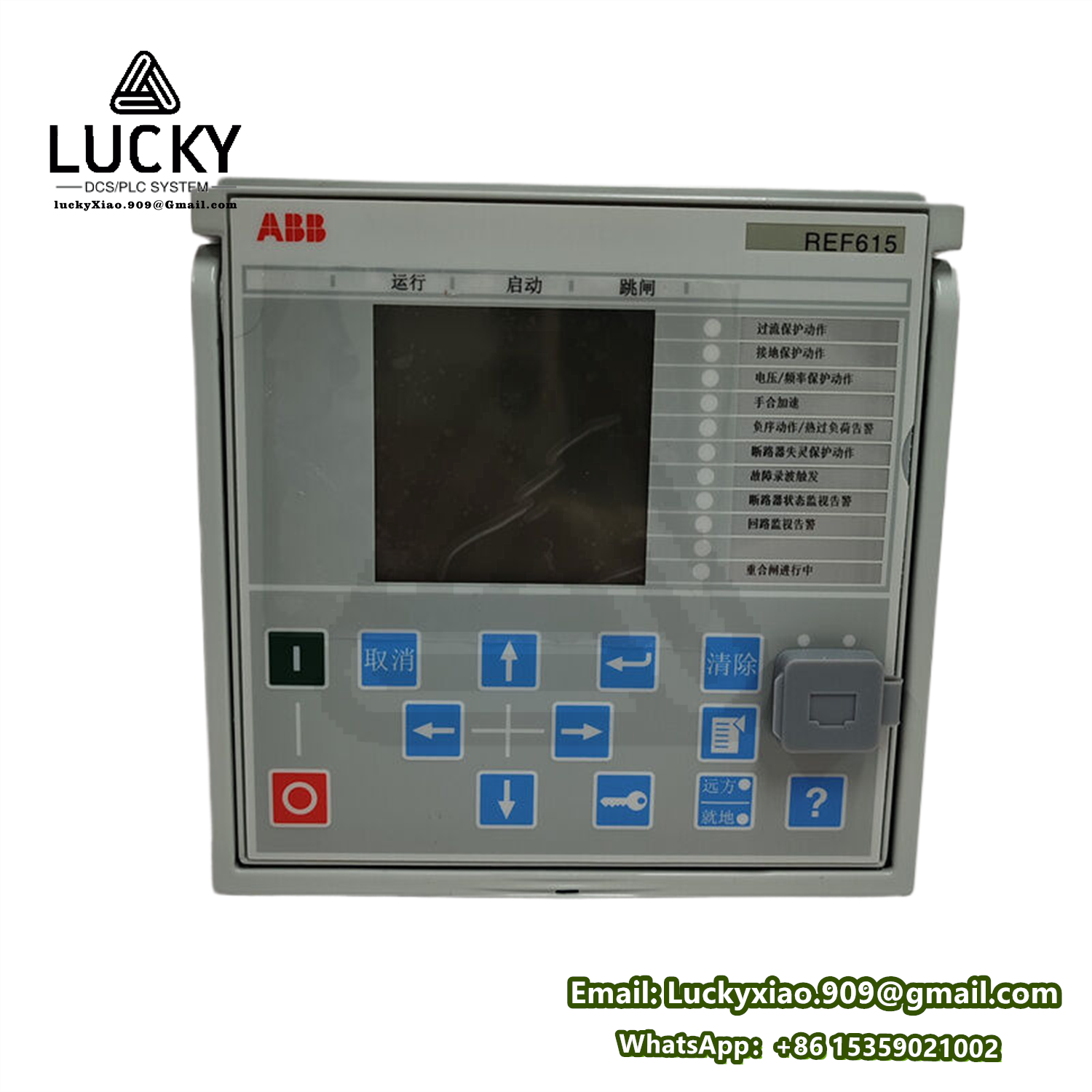

5.7″ color LCD, tactile keypad for on-site control.
|
|
Mechanical Life
|
>20 years MTBF (Mean Time Between Failures).
|
🚀 Functional Superpowers
🔧 Precision Protection
- Detects phase faults, earth leakage, and asymmetrical loads in milliseconds.
- Directional Overcurrent Protection distinguishes fault direction, minimizing false trips.
📡 Smart Connectivity
- IEC 61850 Ready for seamless integration with digital substations and SCADA.
- Cybersecurity Hardened with role-based access and encrypted protocols.
📊 Advanced Monitoring
- Logs fault records, waveforms, and energy metrics for forensic analysis.
- Load Profiling tracks power quality trends to optimize grid efficiency.
🛠️ User-Centric Design
- One-Line Diagram Visualization simplifies settings and fault diagnosis.
- Plug-in Modules for flexible expansion (e.g., arc flash detection).
🌍 Application Universe
|
Industry
|
Use Cases
|
|---|---|
|
Energy & Utilities
|
Substation feeder protection, grid islanding.
|
|
Industrial Plants
|
Motor control centers, mining conveyor systems.
|
|
Renewables
|
Solar/Wind farm collection grid stability.
|
|
Smart Cities
|
Metro rail traction, hospital backup power.
|
|
Oil & Gas
|
Offshore platform distribution networks.
|
🌟 Why Choose REF615?
- Future-Proof Intelligence: Merges legacy compatibility with digital substation readiness.
- Unmatched Durability: Survives extreme temperatures, humidity, and vibrations.
- Sustainability Edge: Reduces energy waste and CO2 footprint via smart load management.
🚚 Stock & Support Assurance
🔹 In Stock Now: Immediate dispatch from global warehouses.
🔹 Rapid Shipping: Delivered in 3–5 business days (express options available).
🔹 1-Year Warranty: Full defect coverage + 24/7 technical support.
━━━━━━━━━━━━━━━━━━━━━━━━
Empower your grid with REF615 – where precision meets resilience.
Contact us for bulk orders or custom configurations! 📞+8615359021002
