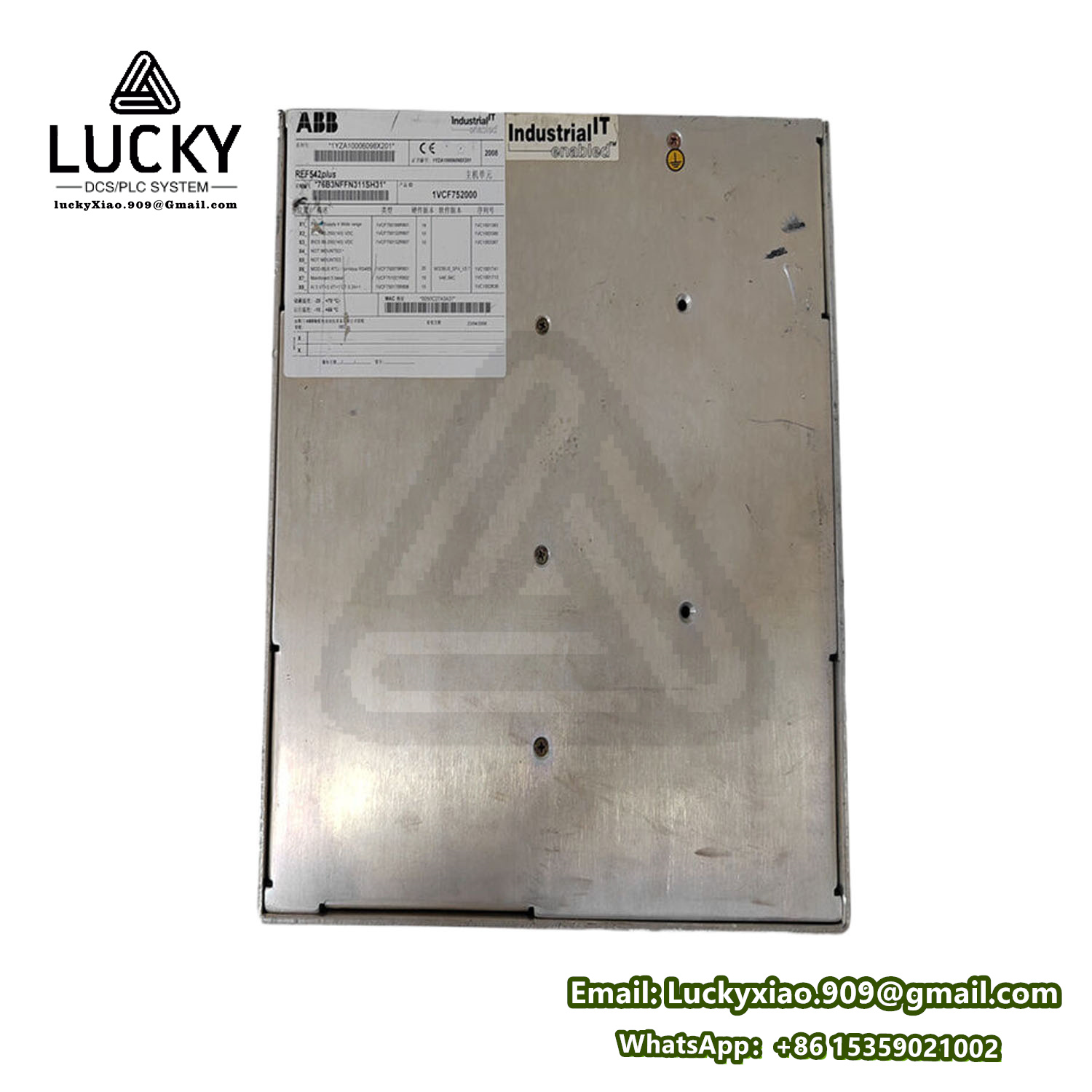

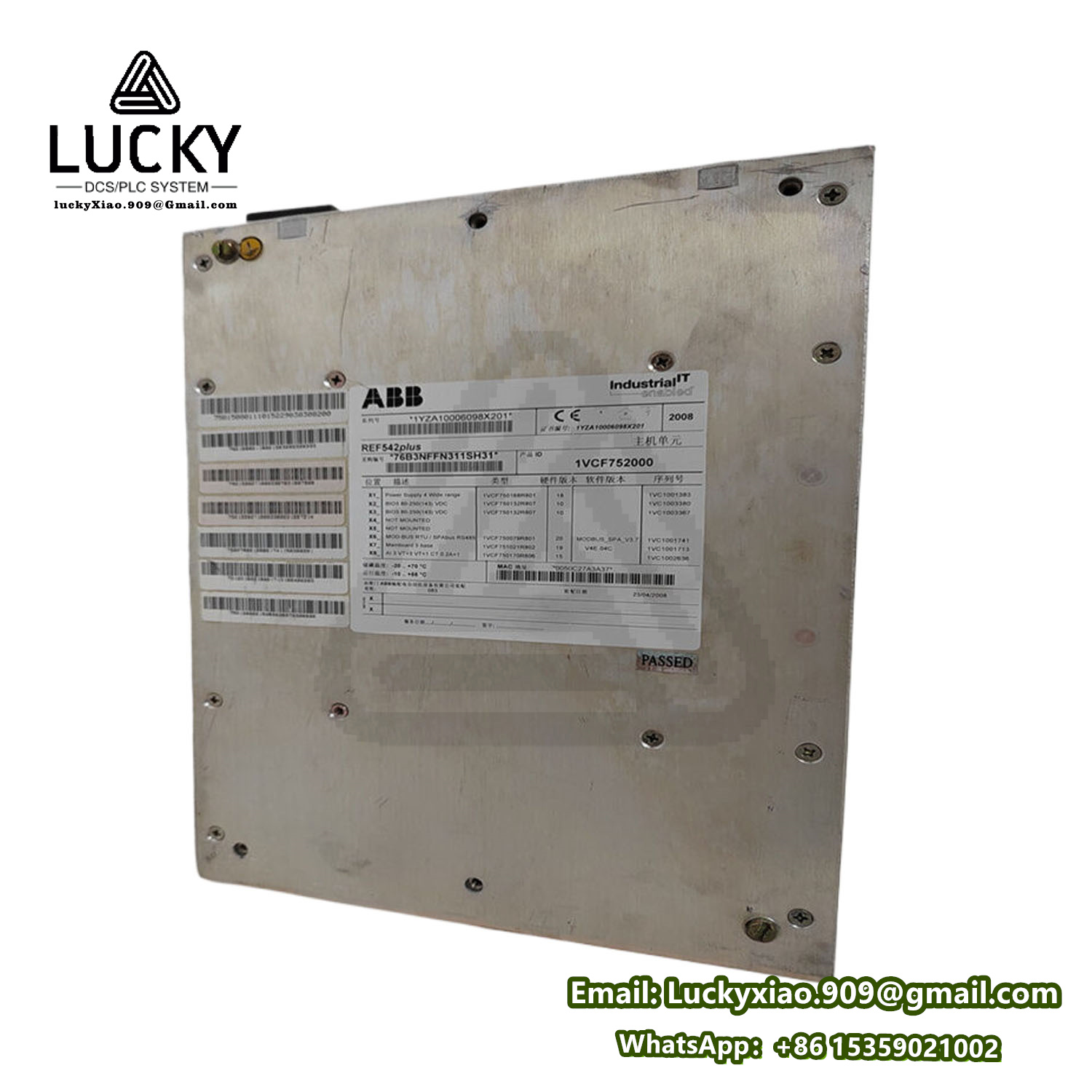

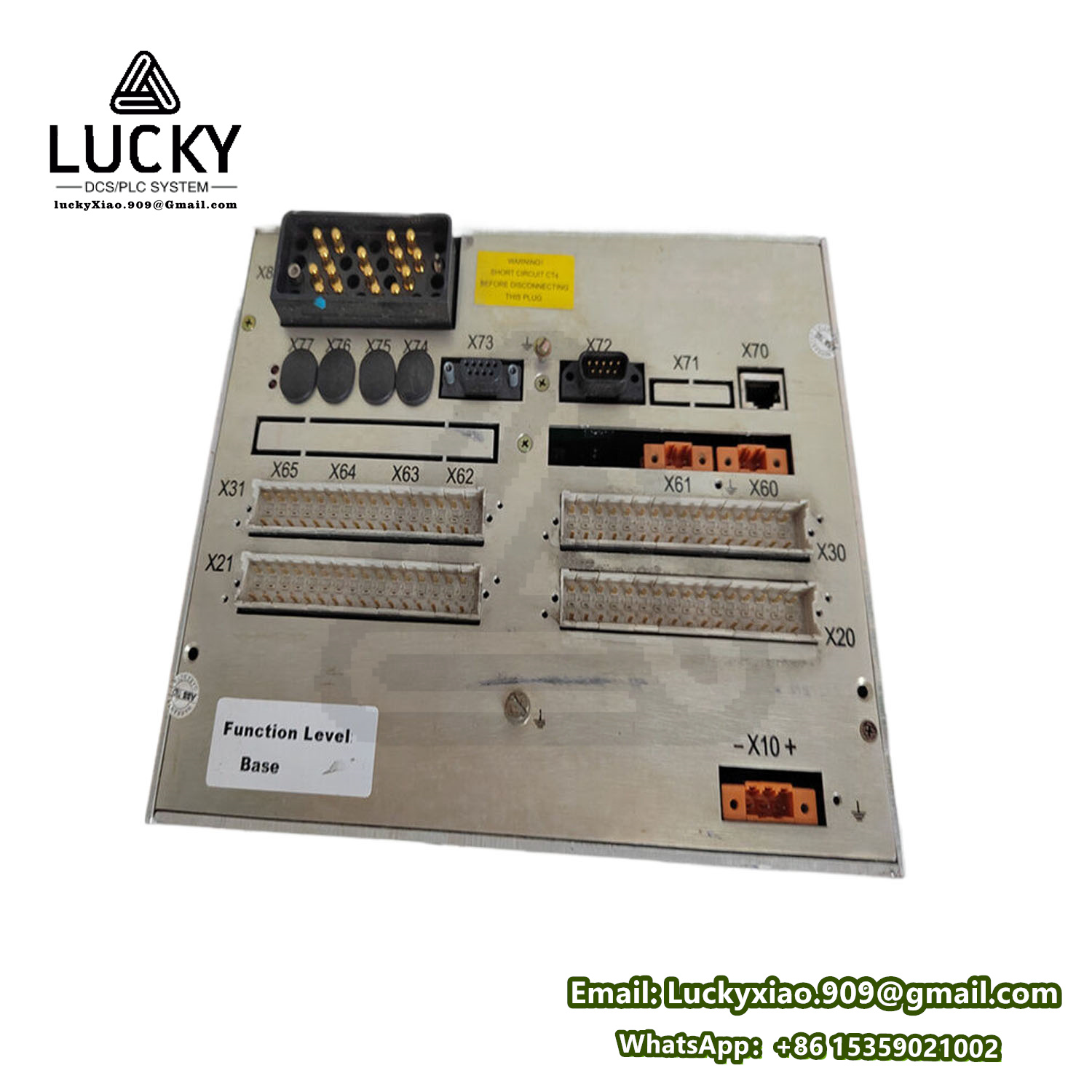

ABB REF542PLUS 1VCF752000
━━━━━━━━━━━━━━━━━━━━━━━━
⚡ Smart Grid Protector | Feeder Automation Redefined
🔍 Core Identity
Device Type: Digital Feeder Protection Relay
Mission: Safeguard medium-voltage networks with adaptive intelligence and seamless grid integration.
📊 Technical Blueprint
|
Category
|
Specifications
|
|---|---|
|
Rated Voltage
|
6–24 kV AC (50/60 Hz)
|
|
Current Input
|
1 A / 5 A CT Secondary, ±0.5% Accuracy
|
|
Protection Functions
|
Overcurrent, Earth Fault, Directional Protection
|
|
Communication
|
IEC 61850, DNP3, Modbus TCP, RS-485
|
|
Operating Temp
|
-40°C to +70°C (Arctic to Desert Resilience)
|
|
Certifications
|
IEC 60255, CE, UL, KEMA, ATEX Zone 2
|
|
Display
|
5.7″ Color LCD with Touchscreen Interface
|
🚀 Key Features
🔧 Adaptive Protection
- Directional Overcurrent Logic: Detects fault direction to prevent false tripping.
- Arc Flash Detection: Optional module for rapid fault isolation in explosive environments.
🌐 Grid Intelligence
- IEC 61850 Ed.2 Ready: Seamless integration with digital substations and SCADA.
- Cybersecurity: Role-based access control and encrypted communication.
📊 User-Centric Design
- One-Click Auto-Setting: Learns grid parameters for plug-and-play deployment.
- Waveform Capture: Stores 128+ fault records for post-event analysis.
🛡️ Rugged Reliability
- IP54 Enclosure: Resists dust, humidity, and chemical exposure.
- Shock & Vibration: Compliant with IEC 60068-2-6/27 standards.
🌍 Application Scenarios
🏭 Industrial Power Distribution
- Protect motors, transformers, and switchgear in manufacturing plants.
⚡ Renewable Energy - Solar/Wind farm grid connection and fault ride-through support.
🏙️ Smart Cities - Monitor and control urban substations and microgrids.
🛢️ Oil & Gas - Ensure safety in offshore platforms and pipeline pumping stations.
🌟 Why REF542PLUS?
- Future-Proof: Supports edge computing for AI-driven grid optimization.
- Sustainability: Reduces downtime and CO2 footprint via smart load management.
- Global Compliance: Certified for explosive zones and marine environments.
🚚 Procurement Assurance
🔹 In Stock Now: Available for 24-hour dispatch from global hubs.
🔹 Rapid Deployment: Pre-configured for ABB Ability™ and third-party systems.
🔹 1-Year Warranty: Full coverage + lifetime technical support.
━━━━━━━━━━━━━━━━━━━━━━━━
Empower your grid with REF542PLUS – where precision meets resilience.
📞+8615359021002 Contact us for bulk orders or custom engineering!
