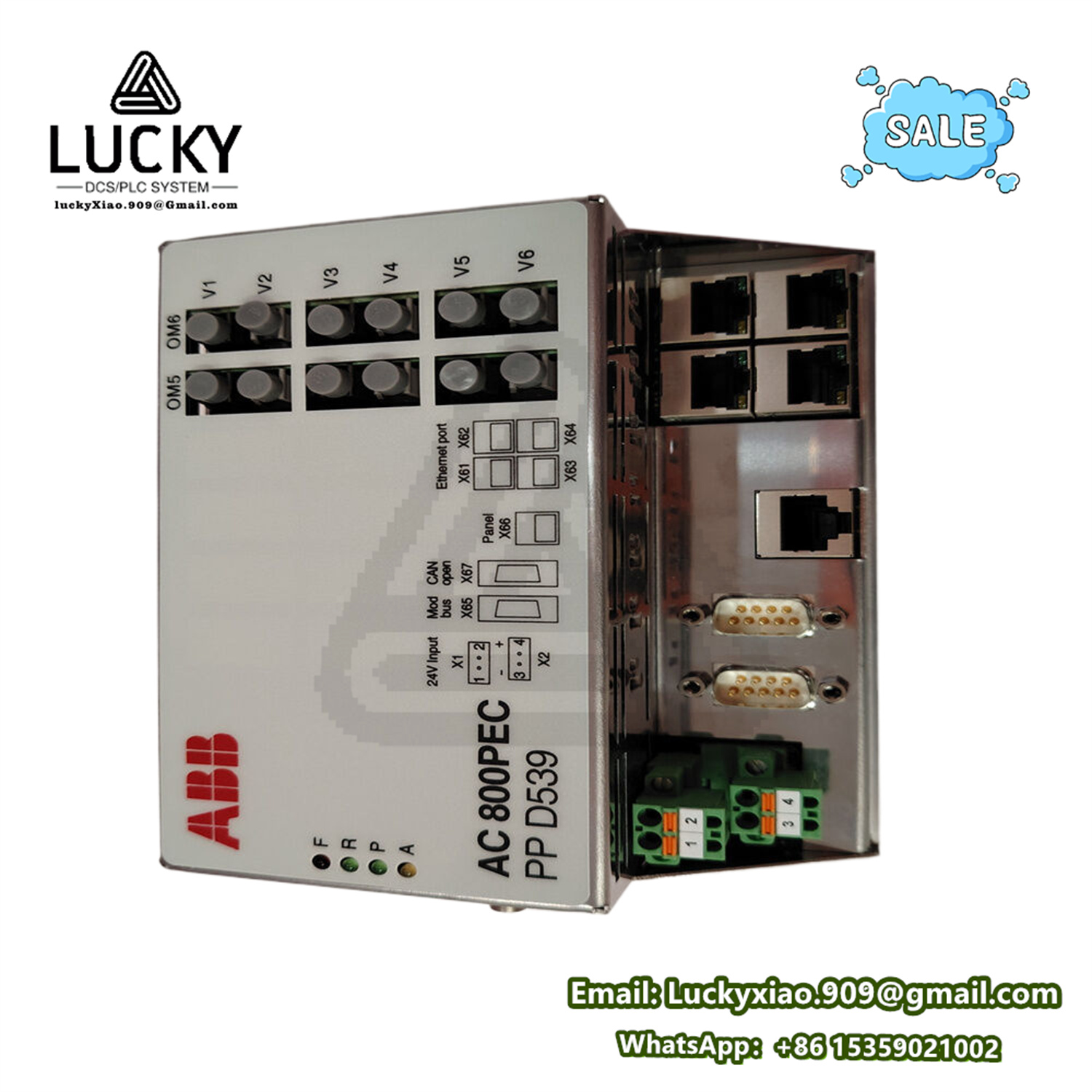

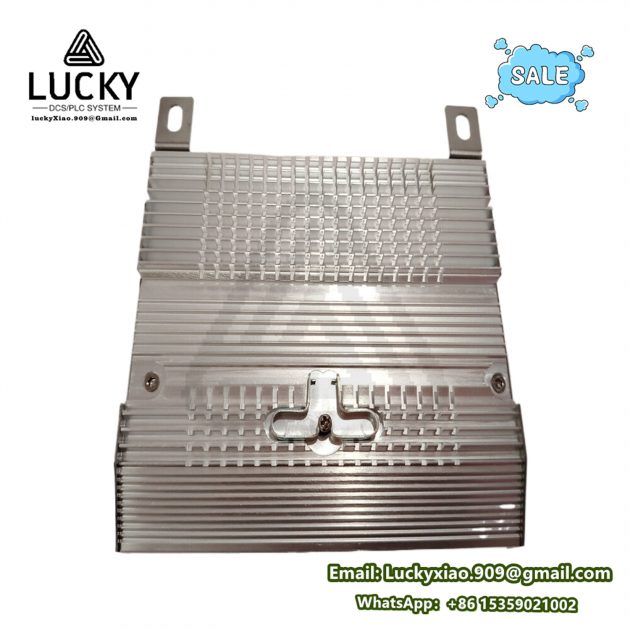

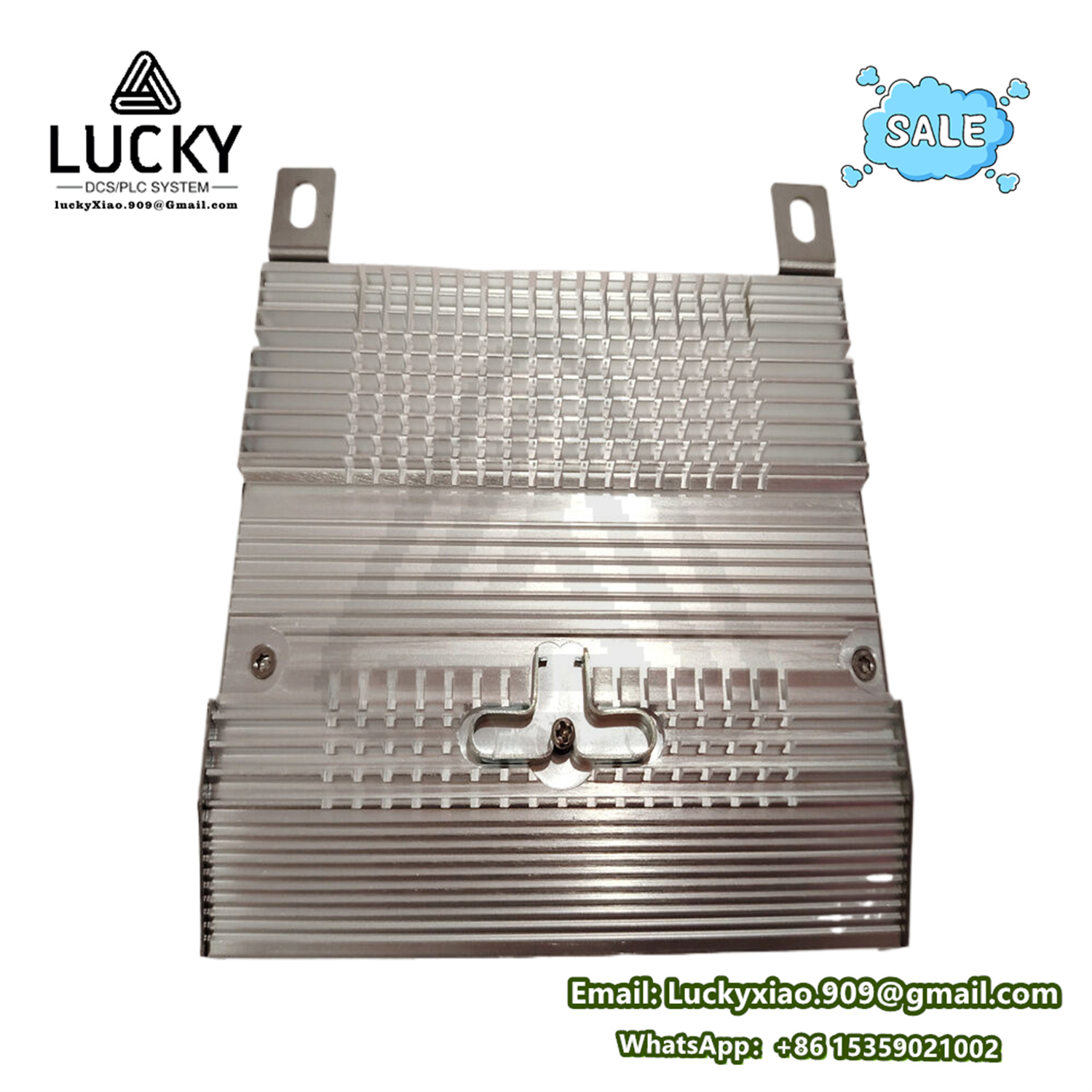

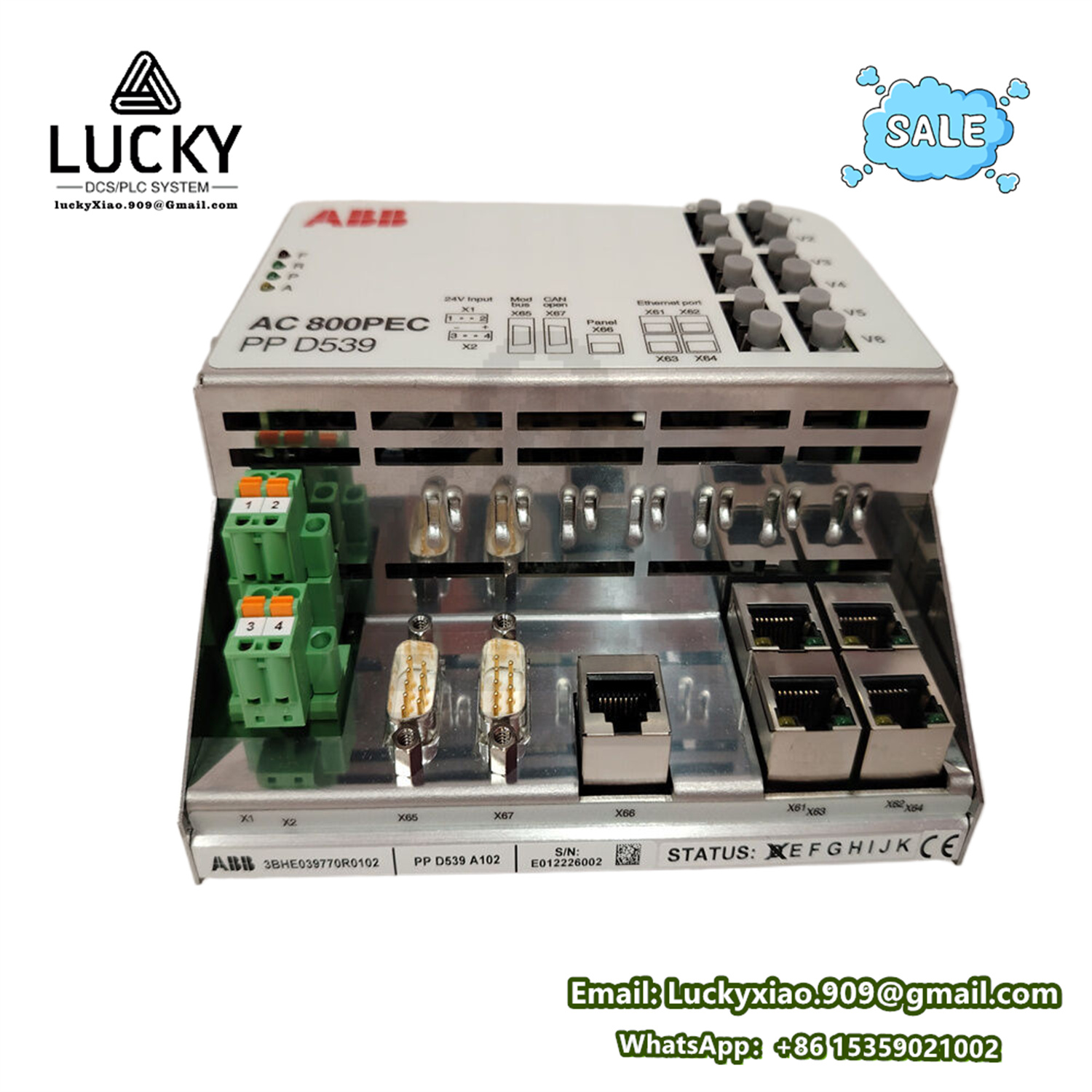

ABB PPD539A102 3BHE039770R0102 Advanced Process Control Module

ABB PPD539A102 3BHE039770R0102
Advanced Process Control Module for Industrial Automation

Technical Parameters:

• Input Voltage: 24 V DC (±15%)
• Power Rating: Max 8 W (operational), 0.5 W (standby)
• Processor: Dual-core ARM Cortex-A9 @ 1.2 GHz
• Memory: 1 GB DDR3 RAM / 4 GB Flash (expandable via microSD)
• Operating Temperature: -40°C to +85°C (IP20 protection)
• Communication Interfaces:
  • 2x Gigabit Ethernet (supporting OPC UA, MQTT)
  • 1x RS-232/RS-485 (Modbus RTU/ASCII compatible)
  • 2x USB 3.0 ports (for configuration and data export)
• Certifications: IEC 61131-2, CE, UL Class I Div 2, RoHS

Core Functions:

1. Real-Time Process Control: Executes PID loops, logic sequences, and batch processing with ≤2 ms response time.
2. Data Acquisition: Monitors up to 64 I/O channels (analog/digital) via ABB S800 I/O compatibility.
3. Redundancy Support: Dual-module hot standby configuration for critical systems (e.g., chemical/power plants).
4. Cybersecurity: Hardware-based TPM 2.0, TLS 1.3 encryption, and secure boot.
5. Diagnostics: Predictive maintenance alerts, event logs (10,000+ entries), and waveform analysis.

Key Selling Points:
⚡ High Performance: Optimized for complex automation tasks in oil & gas, water treatment, and HVAC systems.
⚡ Future-Proof Design: Firmware upgradable via ABB Automation Builder™ for evolving industrial standards.
⚡ Easy Integration: Plug-and-play with ABB AC 800M controllers and third-party PLCs.
⚡ Rugged Reliability: Operates in extreme temperatures and high EMI environments.
⚡ Cost-Effective: Reduces downtime by 30%+ through proactive fault detection.

Typical Applications:

• SCADA systems
• Distributed control systems (DCS)
• Energy management in manufacturing
