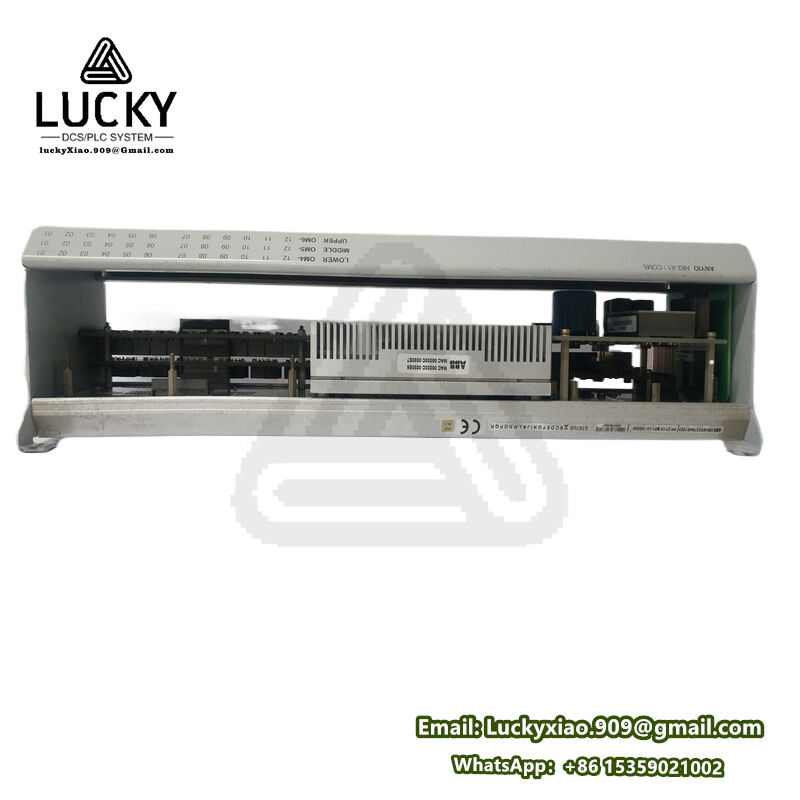

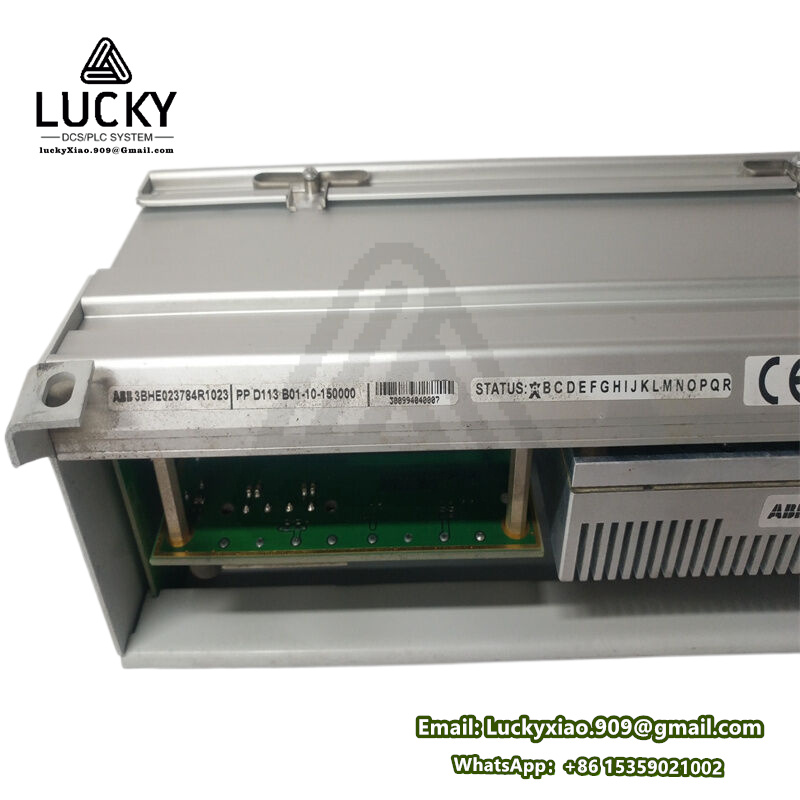

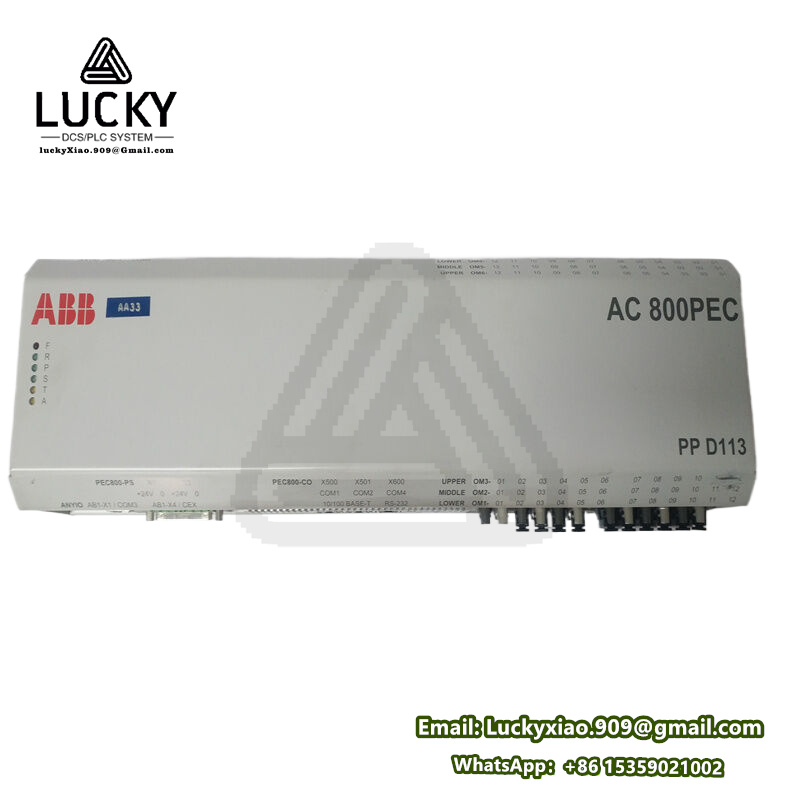

ABB PPD113B01-10-150000 3BHE023784R1023 Power Supply Module
The ABB PPD113B01-10-150000 3BHE023784R1023 is a high-reliability power supply module designed for ABB’s industrial automation systems, particularly within the AC 800M and S800 I/O series. It ensures stable and redundant power distribution to critical control components in demanding industrial environments such as power generation, oil and gas, and chemical processing. Below is a detailed breakdown of its features, specifications, and applications.
1. Key Features
- Dual Redundant Power Inputs:
- Supports 24 VDC primary and backup power sources for uninterrupted operation.
- Automatic switchover during power failure to prevent system downtime.
- High Efficiency:
- Energy-efficient design with low heat dissipation, compliant with EN 61204-3 standards.
- Typical efficiency of ≥85% under full load.
- Modular and Scalable:
- Hot-swappable design allows replacement without shutting down the system.
- Compatible with ABB’s S800 I/O chassis for scalable power distribution.
- Robust Construction:
- Industrial-grade components resistant to vibration, shock, and temperature extremes.
- IP20 protection against dust and minor moisture ingress.
- Diagnostics and Monitoring:
- LED indicators for power status, fault detection, and load conditions.
- Integration with ABB’s Control Builder M for real-time health monitoring.
2. Technical Specifications
|
Parameter
|
Details
|
|---|---|
|
Part Number
|
3BHE023784R1023
|
|
Input Voltage
|
24 VDC (±10%), dual redundant inputs
|
|
Output Voltage
|
24 VDC (±1%), isolated output
|
|
Output Current
|
10 A (continuous), 15 A (peak)
|
|
Power Rating
|
150 W
|
|
Operating Temperature
|
-25°C to +70°C (-13°F to +158°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Certifications
|
CE, UL, RoHS, ATEX (for hazardous areas)
|
|
Dimensions
|
Standard S800 module size (approx. 200 x 40 x 120 mm)
|
3. Functional Capabilities
- Redundancy Management:
- Seamless transition between primary and backup power sources to maintain system integrity.
- Overload Protection:
- Built-in short-circuit and overcurrent protection with automatic reset.
- Noise Immunity:
- Electromagnetic compatibility (EMC) compliant with IEC 61000-6-2/4 for industrial environments.
4. Applications
- Power Plants: Powering control cabinets for turbine governors, boiler systems, and grid synchronization.
- Oil & Gas: Reliable power distribution for offshore platforms, pipeline SCADA systems, and safety shutoff valves.
- Chemical Processing: Supporting DCS/PLC cabinets in reactor control and batch processing units.
- Water Treatment: Ensuring continuous operation of pump controls and filtration systems.
5. Advantages
- High Availability: Redundant inputs and hot-swap capability minimize downtime.
- Compact Design: Space-saving modular form factor ideal for crowded control panels.
- Global Compliance: Meets international safety and environmental standards.
- Easy Integration: Plug-and-play compatibility with ABB’s AC 800M controllers and S800 I/O modules.
6. Ordering and Compatibility
- Replacement Part: Use part number 3BHE023784R1023 for direct replacement in existing ABB systems.
- Compatible Systems:
- ABB AC 800M, S800 I/O, and Industrial IT 800xA platforms.
7. Installation and Maintenance
- Mounting: DIN rail or panel-mounted within S800 chassis.
- Wiring: Follow ABB guidelines for shielded cables to reduce EMI interference.
- Firmware Updates: Deploy via Control Builder M to enhance performance and security.
The ABB PPD113B01-10-150000 3BHE023784R1023 is a critical component for ensuring reliable power in industrial automation systems, combining rugged durability with advanced redundancy features.
