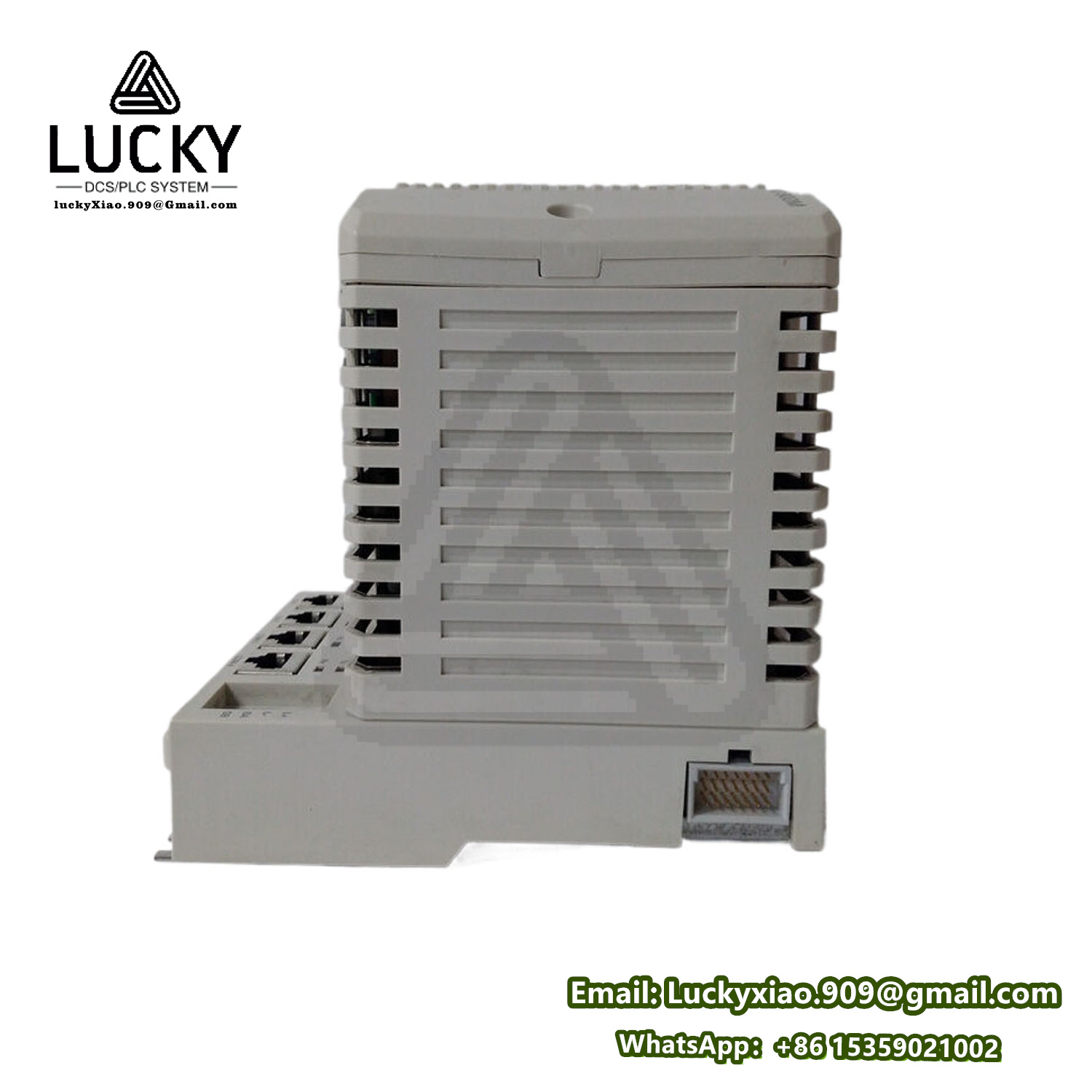

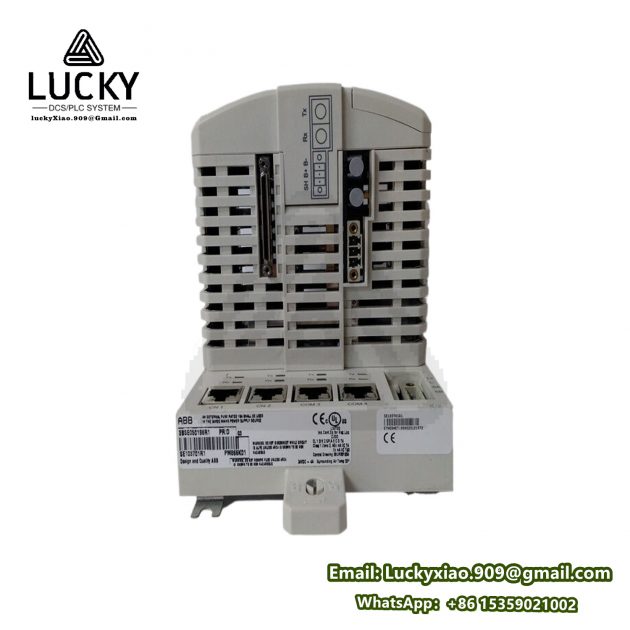

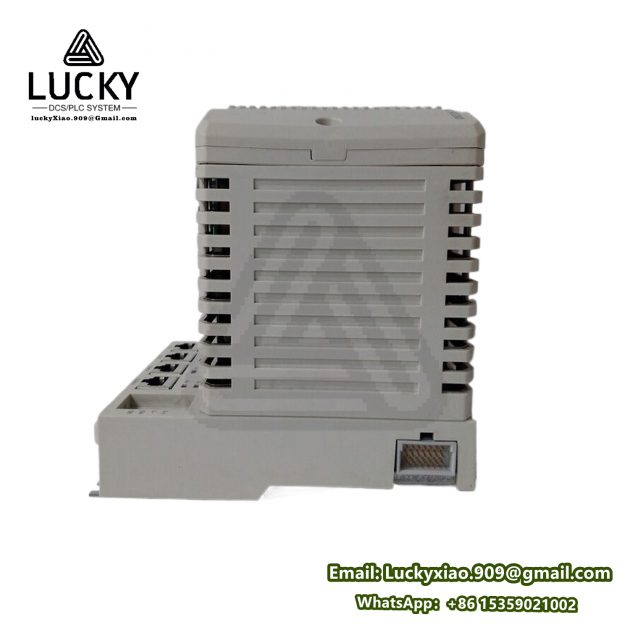

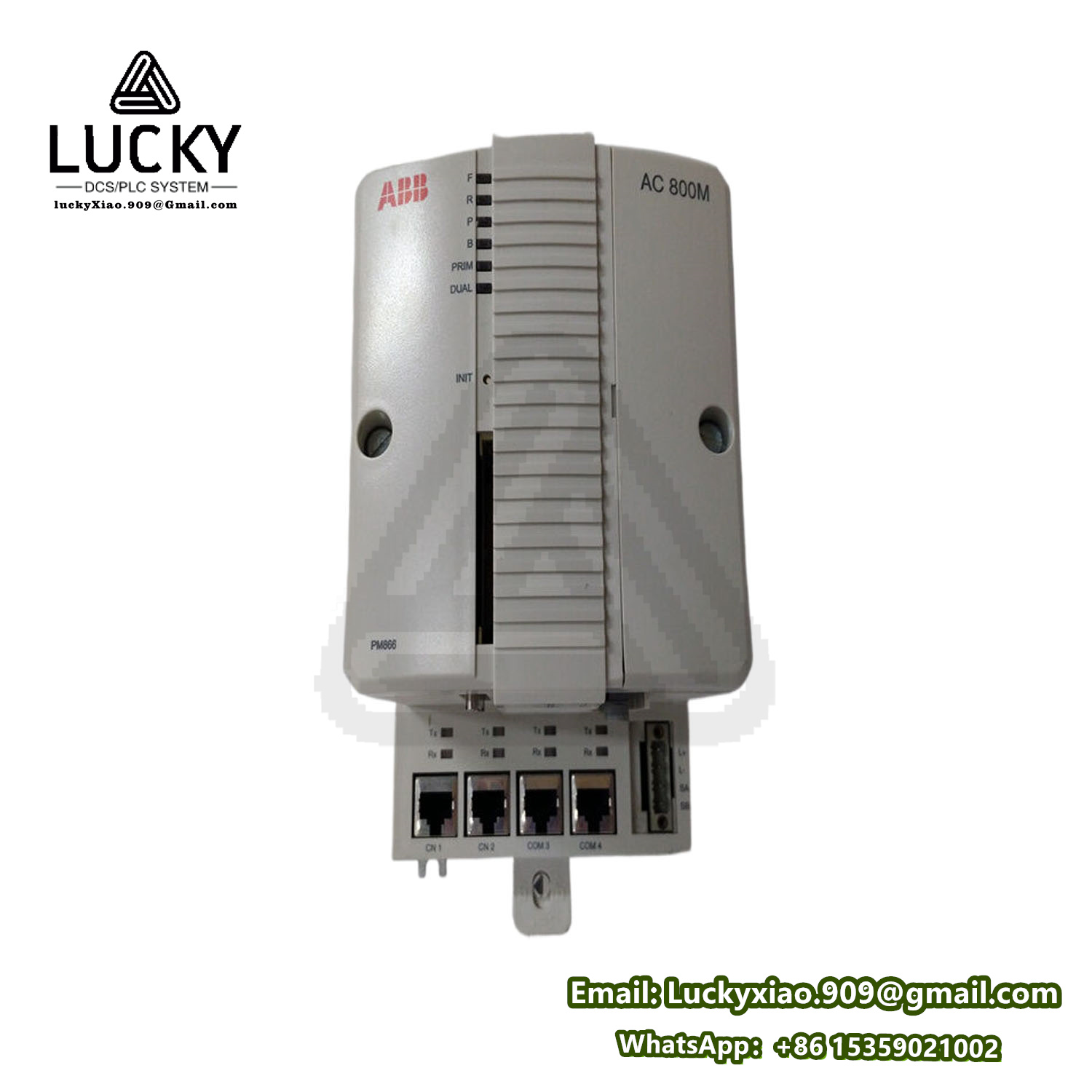

ABB PM866K01 3BSE050198R1 Controller Module
The ABB PM866K01 3BSE050198R1 is a high-performance industrial controller from ABB’s AC 800M family, designed for advanced process automation and distributed control system (DCS) applications. It is widely used in industries such as power generation, oil and gas, chemical processing, and water treatment, delivering robust control capabilities, scalability, and reliability in mission-critical environments. Below is a detailed breakdown of its features, technical specifications, and industrial applications.
1. Key Features
- Advanced Processing Power:
- Equipped with a dual-core processor for executing complex control logic, algorithms, and real-time deterministic tasks.
- Supports IEC 61131-3 programming languages, including Function Block Diagram (FBD), Structured Text (ST), and Sequential Function Chart (SFC).
- Redundancy and High Availability:
- Hot standby redundancy (when paired with a redundant controller, e.g., PM866K01/PM866K02) for uninterrupted operation.
- Automatic failover ensures minimal downtime in critical processes.
- Memory Capacity:
- Flash Memory: 512 MB for firmware and application storage.
- RAM: 256 MB for real-time data processing.
- Communication Interfaces:
- Dual Ethernet Ports: 10/100/1000 Mbps for integration with SCADA, HMI, or enterprise systems.
- Fieldbus Support: Profibus DP, Modbus TCP/RTU, OPC UA, and Foundation Fieldbus.
- Control Network (CNet): Seamless integration with ABB’s Industrial IT 800xA or Symphony Plus DCS platforms.
- Robust Design:
- Operating Temperature: -25°C to +70°C (-13°F to +158°F).
- EMC Compliance: Meets IEC 61000-6-2/4 standards for industrial environments.
- Vibration and Shock Resistance: Suitable for harsh industrial conditions.
2. Technical Specifications
Parameter
|
Details
|
---|---|
Part Number
|
|
Controller Type
|
PM866K01 (AC 800M Series)
|
Processor
|
Dual-core ARM Cortex-A9
|
Memory
|
Flash: 512 MB, RAM: 256 MB
|
Communication Ports
|
2 x Gigabit Ethernet, 1 x RS232/RS485 (service port)
|
Redundancy Support
|
Yes (requires redundant pair, e.g., PM866K01/PM866K02)
|
Power Supply
|
24 VDC (±10%), redundant input support
|
Certifications
|
CE, UL, ATEX (for hazardous areas), IEC 61508 (SIL 2/3)
|
Mounting
|
DIN rail or panel-mounted within AC 800M chassis
|
3. Functional Capabilities
- Advanced Process Control:
- Executes PID control, cascade logic, batch processing, and model predictive control (MPC).
- Supports custom algorithms for specialized automation tasks.
- Safety and Security:
- Functional Safety: SIL 2/3 compliance for safety-critical applications (e.g., emergency shutdown systems).
- Cybersecurity: Role-based access control, data encryption (TLS/SSL), and secure communication protocols (OPC UA).
- Diagnostics and Maintenance:
- Real-Time Diagnostics: Monitors controller health, network status, and I/O module errors.
- Predictive Maintenance: Integration with ABB’s Asset Vision for lifecycle management.
- Scalability:
- Expandable via S800 I/O modules and remote I/O configurations.
- Supports hybrid architectures combining local and distributed I/O.
4. Applications
- Power Generation: Turbine control, boiler management, grid synchronization.
- Oil & Gas: Pipeline monitoring, offshore platform automation, safety shutdown systems.
- Chemical Plants: Reactor control, distillation column optimization, batch processing.
- Water Treatment: Pump station control, filtration systems, pH/flow regulation.
5. Software Tools
- Control Builder M: ABB’s engineering suite for configuring logic, programming, and testing automation strategies.
- 800xA Operator Workplace: Provides HMI visualization, alarm management, and historical data logging.
- Asset Vision: Advanced diagnostics and predictive maintenance tool.
6. Advantages
- High Availability: Redundancy and fault-tolerant design ensure continuous operation.
- Flexibility: Modular architecture supports both small and large-scale automation systems.
- Interoperability: Open communication protocols enable integration with legacy and modern systems.
- Future-Ready: Upgradable firmware and compatibility with ABB’s Ability™ platform for IIoT integration.
7. Ordering and Compatibility
- Replacement Part: Use part number 3BSE050198R1 for direct compatibility with existing AC 800M systems.
- Compatible Modules: Integrates with ABB’s S800 I/O, CI854 communication interfaces, and safety modules.
8. Summary
The ABB PM866K01 3BSE050198R1 is a cornerstone of industrial automation, combining cutting-edge processing power, redundancy, and cybersecurity features to meet the demands of modern process control. Its robust design and scalability make it ideal for critical applications in hazardous and demanding environments.
