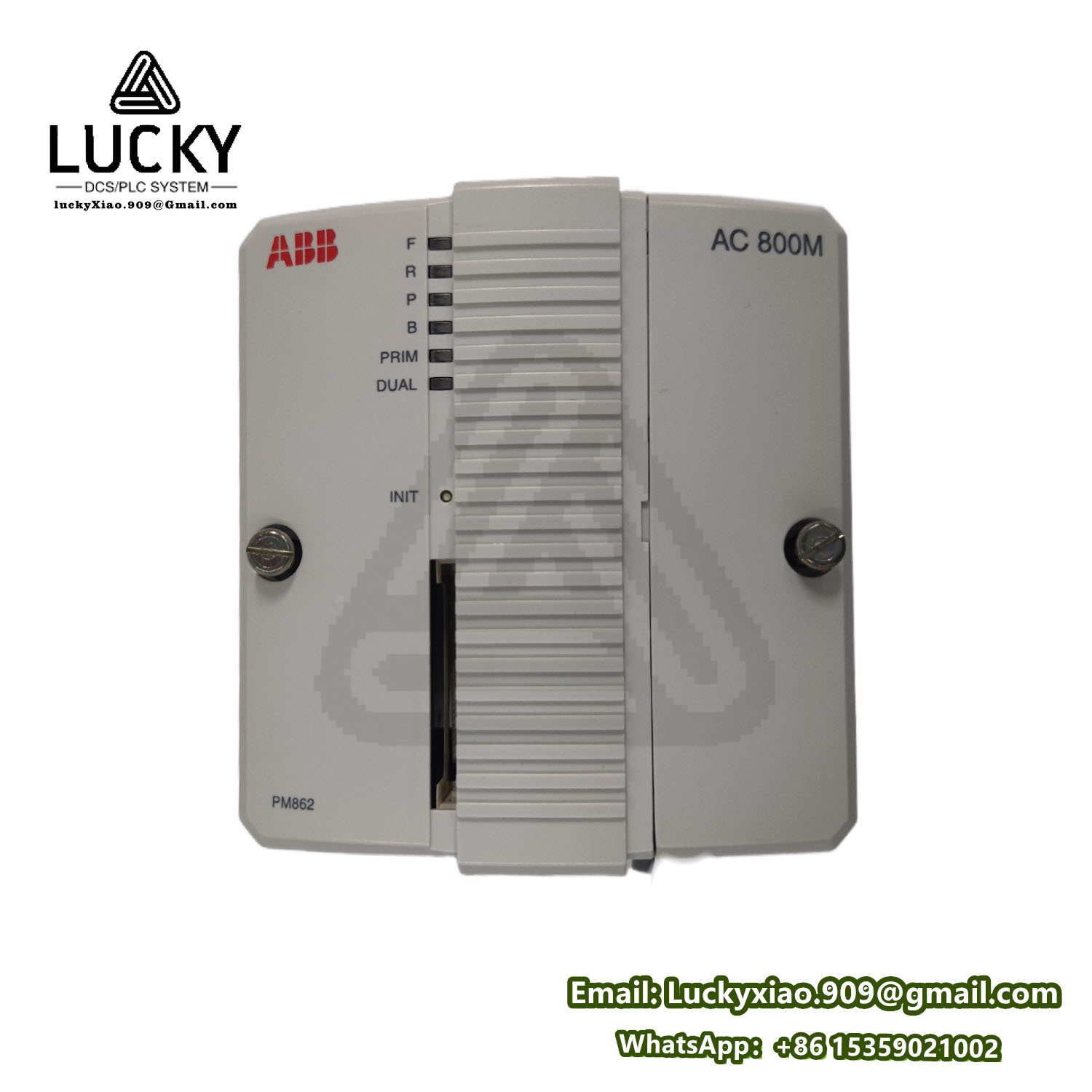

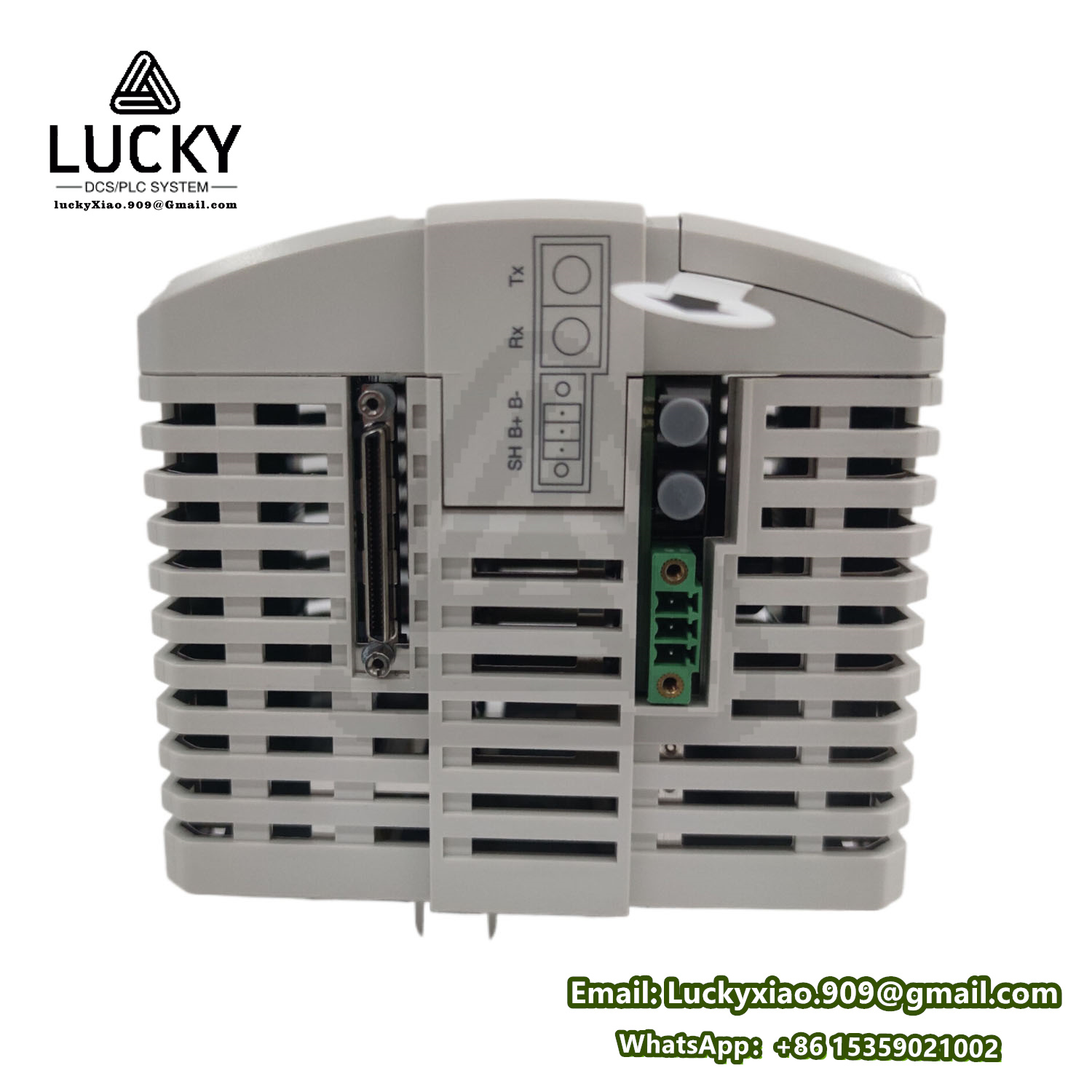

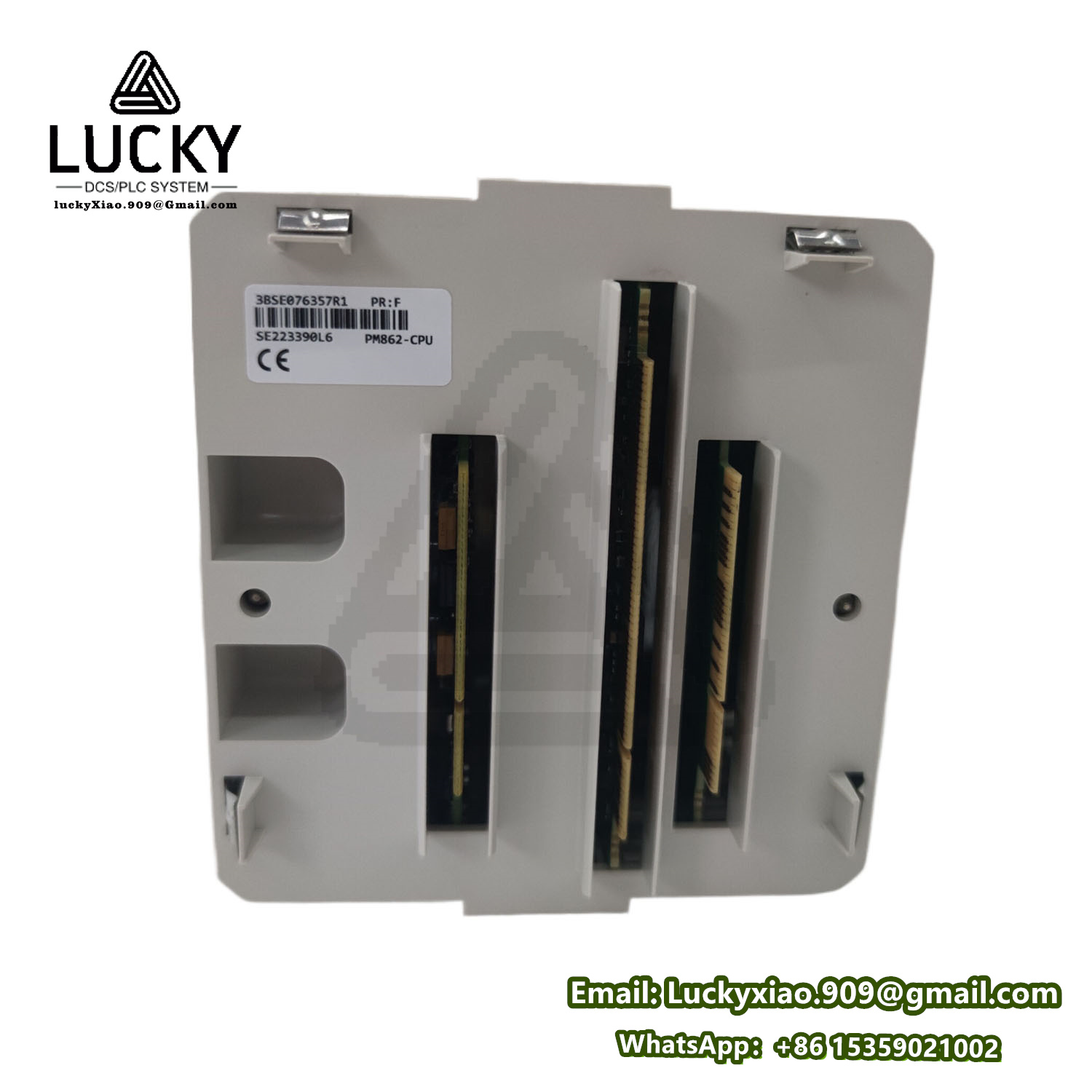

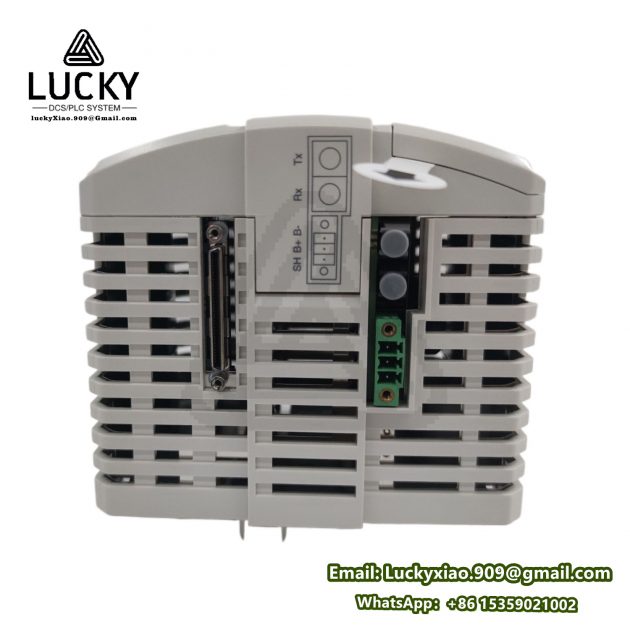

ABB PM862 3BSE076357R1 – High-Performance Automation Controller
The ABB PM862 3BSE076357R1 is a versatile automation controller from ABB’s AC 800M series, engineered for industrial process control and distributed automation systems. Designed for reliability and scalability, it serves as a central processing unit (CPU) in demanding environments such as power plants, oil refineries, and manufacturing facilities, supporting real-time control, data acquisition, and integration with ABB’s automation ecosystem.
Technical Parameters
|
Category
|
Specification
|
|---|---|
|
Processor
|
32-bit RISC CPU with real-time operating system (VxWorks)
|
|
Memory
|
8 MB RAM (program memory), expandable via CompactFlash or SD card
|
|
Power Supply
|
24 V DC (±20%), redundant power inputs supported
|
|
I/O Compatibility
|
ABB S800 I/O modules (analog, digital, HART, fieldbus interfaces)
|
|
Communication Interfaces
|
– 2x Ethernet (10/100 Mbps TCP/IP)
– 2x RS-232/RS-485 serial ports – PROFIBUS DP, Modbus RTU/TCP, OPC UA – Redundant MB300 extension bus |
|
Operating Temperature
|
-25°C to +70°C
|
|
Humidity
|
5–95% (non-condensing)
|
|
Certifications
|
CE, UL, ATEX (optional), IEC 61131-2, RoHS
|
|
Redundancy
|
Supports hot-swappable CPU redundancy (dual PM862 units)
|
|
Protection Class
|
IP20 (standard enclosure)
|
Functional Features
- Real-Time Process Control
- Executes complex control algorithms (PID, logic, sequencing) with deterministic cycle times (down to 20 ms).
- Compatible with IEC 61131-3 programming languages (ST, FBD, LD, SFC) for flexible application development.
- Redundancy & Fault Tolerance
- Dual-CPU redundancy with automatic failover for uninterrupted operation during hardware failures.
- Redundant power supply and communication paths for mission-critical systems.
- Scalability & Flexibility
- Modular architecture supports expansion with ABB S800 I/O modules, enabling up to 100,000 I/O points in large-scale systems.
- Seamless integration with ABB’s 800xA system for enterprise-wide automation and asset management.
- Advanced Communication
- Industrial protocols: PROFIBUS DP, Modbus RTU/TCP, and OPC UA for SCADA/DCS integration.
- Redundant Ethernet ports for high-availability network configurations.
- Diagnostics & Maintenance
- Built-in self-diagnostics for real-time monitoring of hardware health, communication status, and software errors.
- Event logging and sequence-of-events (SOE) recording for root-cause analysis.
- Cybersecurity
- Role-based access control and secure boot mechanisms.
- Compliance with IEC 62443 standards for industrial network security.
- Harsh Environment Resilience
- Operates reliably in extreme temperatures, high vibration, and electromagnetic interference (EMI) conditions.
- Optional conformal coating for protection against dust and corrosive atmospheres.
Typical Applications
- Power Generation: Turbine control, grid synchronization, and substation automation.
- Oil & Gas: Pipeline monitoring, refinery process control, and offshore platforms.
- Manufacturing: Production line automation, robotics, and quality control.
- Water Treatment: Pump control, chemical dosing, and SCADA integration.
Compliance & Standards
- Safety: IEC 61508/61511 (SIL 2/3 capable), ATEX/IECEx (hazardous areas).
- Communication: IEEE 802.3 (Ethernet), PROFIBUS DP V0/V1.
- Environmental: RoHS, WEEE.
Conclusion
The ABB PM862 3BSE076357R1 is a robust and scalable automation controller tailored for industries requiring high reliability and precision in process control. Its integration with ABB’s AC 800M and 800xA systems ensures seamless interoperability, while redundancy and cybersecurity features guarantee operational continuity in critical environments. Designed for harsh industrial conditions, it empowers industries to achieve efficiency, safety, and adaptability in complex automation workflows.
