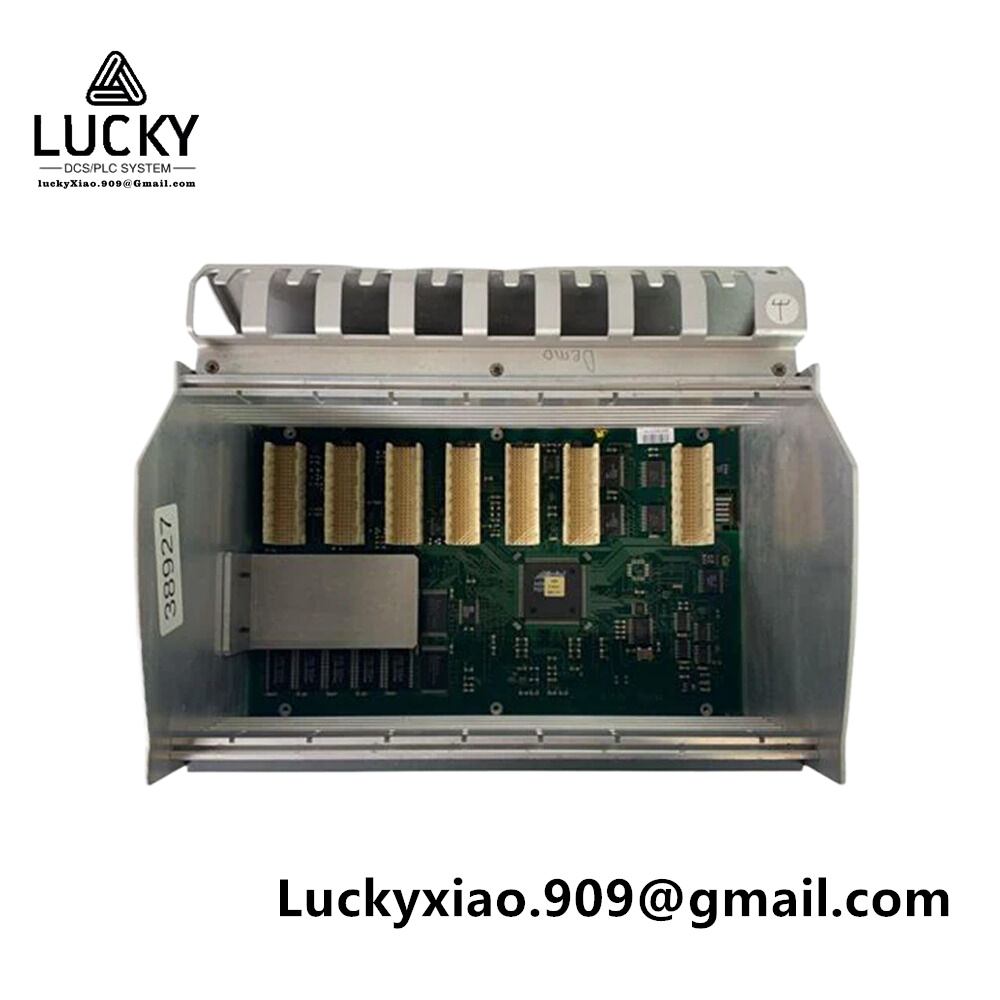

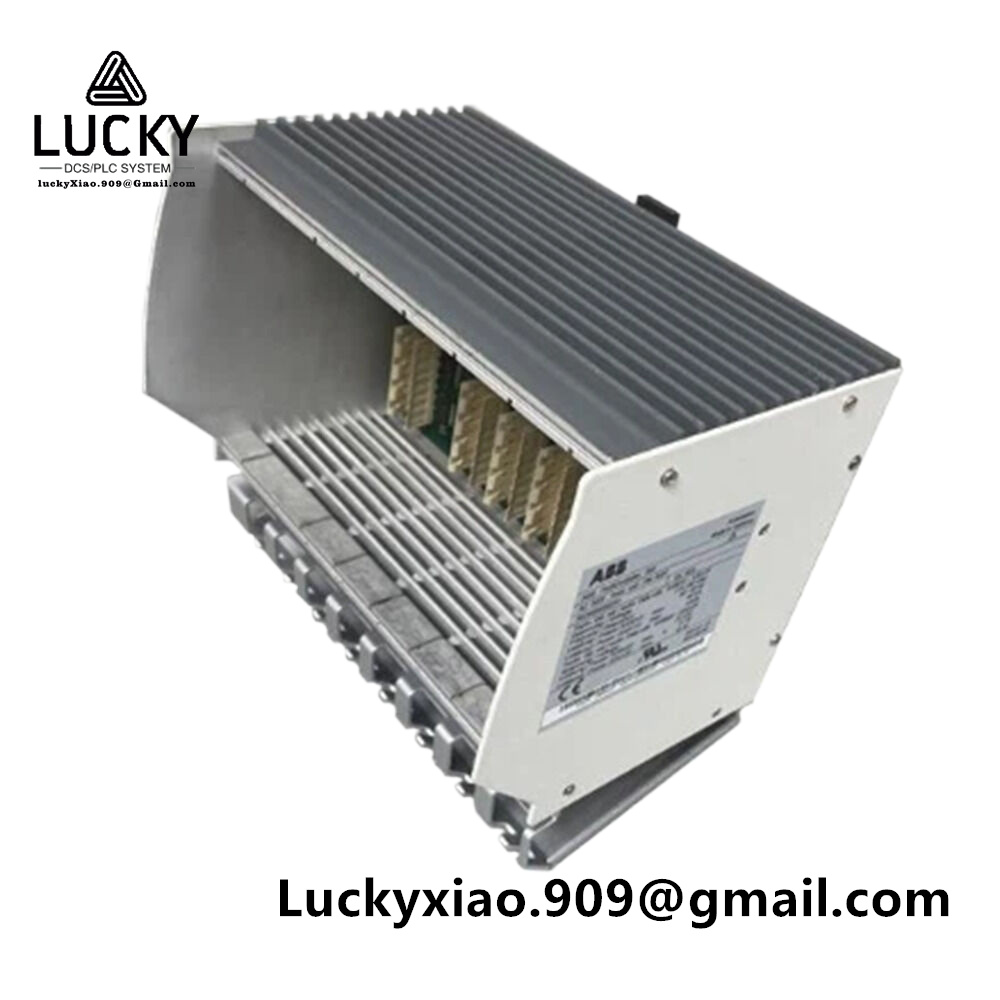

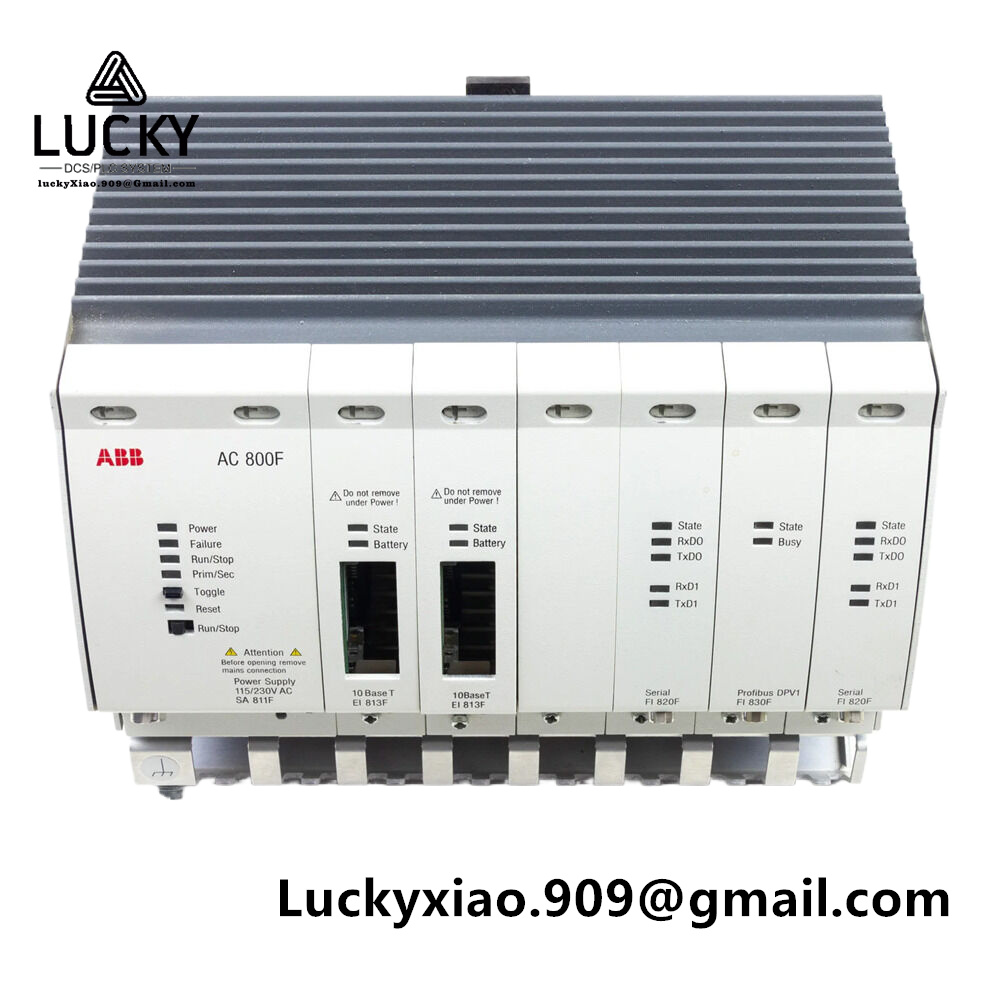

ABB PM802F 3BDH0000002R1 is a high-performance programmable logic controller (PLC) belonging to ABB’s AC800F series. The following is a detailed introduction to the controller:
1、 Basic Information
Brand: ABB
Series: AC800F
Model: PM802F-3BDH0000002R1
2、 Technical features
Processor and Memory:
The PM802F adopts advanced processor and high-speed memory technology, ensuring fast and reliable processing speed and large memory capacity.
Capable of storing a large amount of program code and data to meet various complex industrial control requirements.
Redundant design:
Power redundancy: The power module supports hot standby redundancy and has dual grid input function, as well as overvoltage and overcurrent protection.
Network redundancy: Both the control network and the system network adopt a dual redundancy design to ensure the stability and reliability of the system.
Control redundancy: The control module also adopts a dual redundancy design, achieving zero switching time and ensuring the continuity of control. No user programming is required, redundancy design can be automatically implemented through configuration configuration.
Self diagnosis and maintainability:
PM802F supports module and network self diagnostic functions, and the module can be plugged in and out with power, making it easy to achieve online repair and maintenance.
Data Security:
Real time data has power down maintenance function and ensures system information security through redundancy check and fast recovery mechanism.
Global database:
Provide a real-time database of global engineering objects, with a maximum scale of up to 200000 points.
Support offline and online editing, deletion, addition, import/export, and download functions.
Control Strategy and Programming Language:
Support offline/online configuration, offline/online debugging of control strategies, and single cycle and single step debugging of algorithms.
Provide multiple programming languages for users to easily program and debug.
Communication options:
Supports multiple communication protocols such as Ethernet, Profibus, CAN, etc., making it easy to communicate and exchange data with other devices.
Scalability:
It has multiple expansion slots, making it easy for users to add various input/output modules and functional modules as needed to adapt to different application scenarios.
Working temperature and power supply:
Suitable for various industrial environments, with a wide working temperature range.
Supports multiple power supply voltage inputs, such as AC220V ± 10%, AC/DC85-265V, or DC24V.
3、 Application Fields
PM802F 3BDH0000002R1 is particularly suitable for various complex industrial control scenarios due to its excellent performance and multiple functions.
4、 Architecture and Standards
Architecture: Adopting an open architecture, supporting standards such as DDE, OPC, ODBC/SQL, OLE DB XML, ActiveX, etc.
Compliance with standards: Following the IEC 61131-3 international configuration language standard, supporting online compilation simulation and point by point offline/online debugging.
