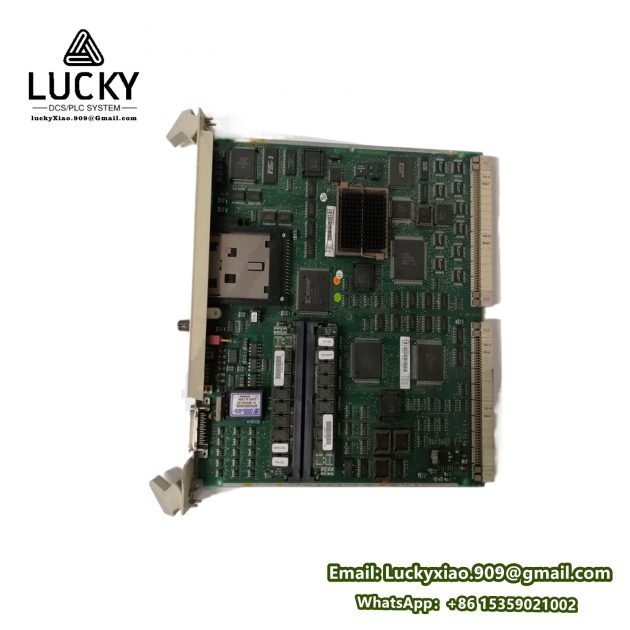

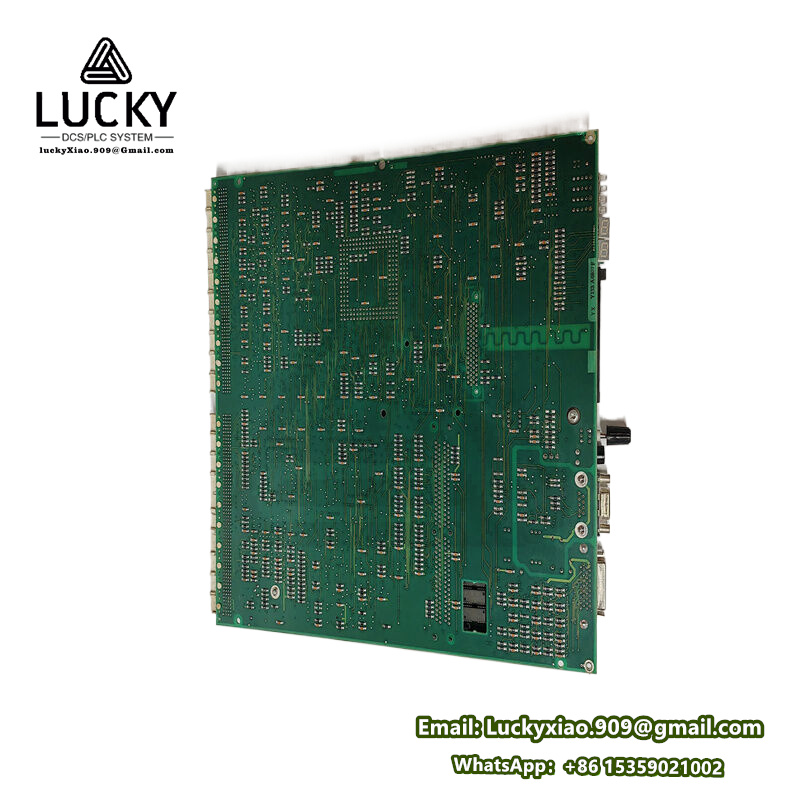

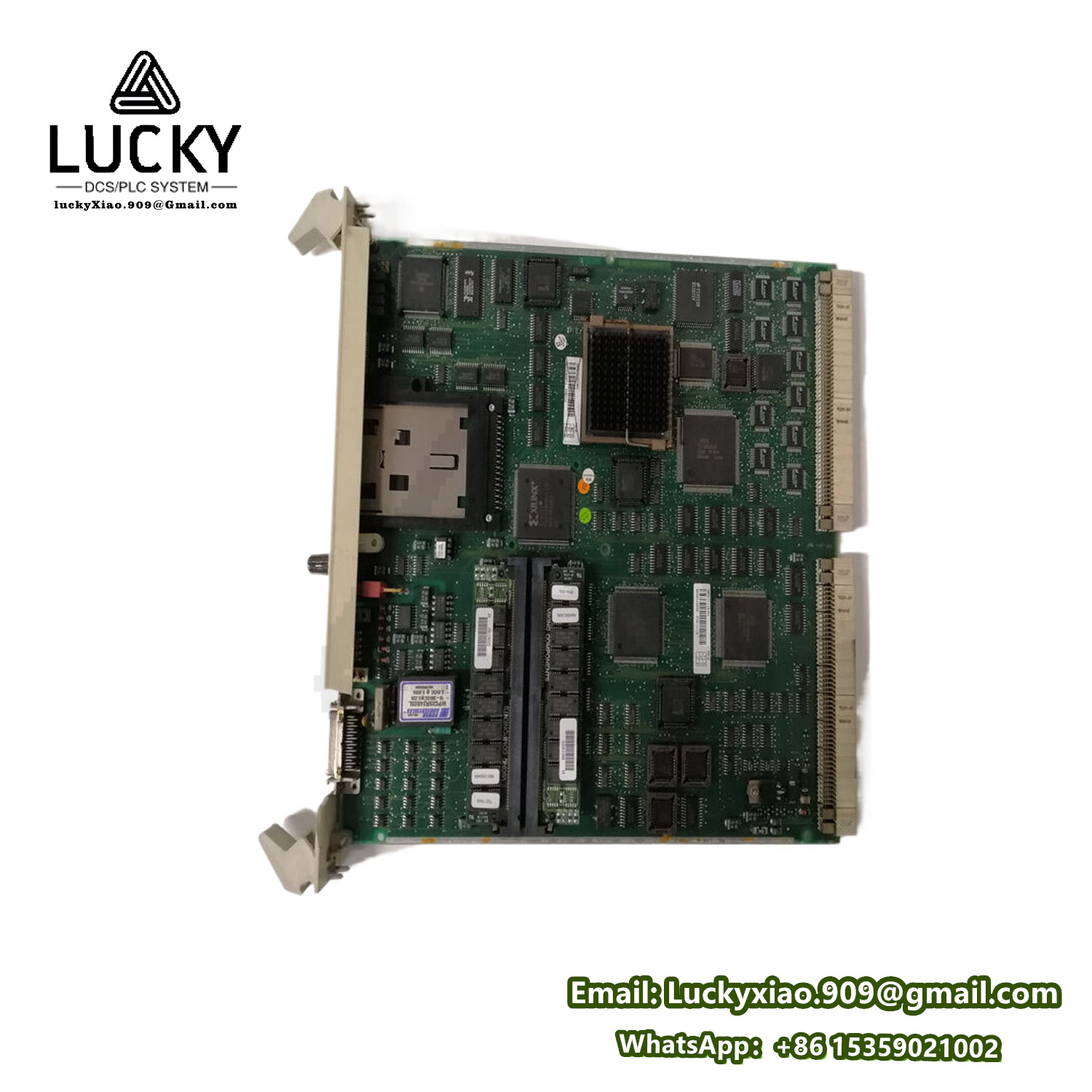

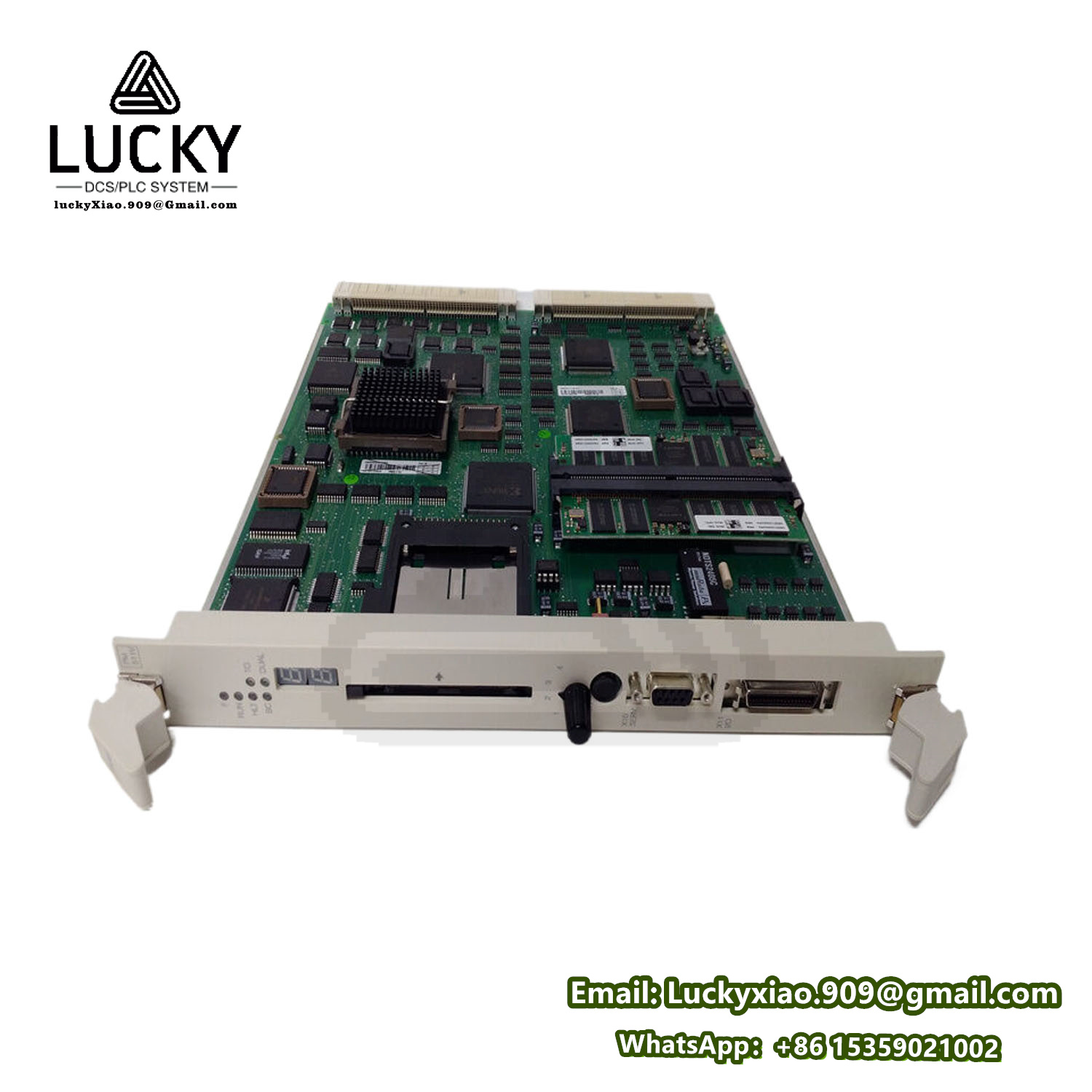

ABB PM511V16 3BSE011181R1 Controller Module

ABB PM511V16 3BSE011181R1 Controller Module

The ABB PM511V16 3BSE011181R1 is a high-performance controller module within ABB’s AC 800M series, designed for advanced industrial automation and process control applications. It is widely deployed in industries such as power generation, oil and gas, chemical processing, and water treatment, offering robust performance, flexibility, and reliability in mission-critical environments. Below is a detailed breakdown of its features, technical specifications, and industrial applications.

1. Key Features

• High-Speed Processing:
  • Equipped with a PowerPC-based processor for executing complex control logic and algorithms in real time.
  • Supports deterministic control for time-critical processes.
• Redundancy and Reliability:
  • Hot standby redundancy capability (when paired with a redundant controller) to ensure uninterrupted operation.
  • Automatic failover minimizes downtime in critical applications.
• Memory Capacity:
  • Flash Memory: Stores firmware and application code.
  • RAM: Enables fast data processing and temporary storage.
• Communication Interfaces:
  • Dual Ethernet Ports: 10/100 Mbps for integration with SCADA, HMI, or enterprise systems.
  • Fieldbus Support: Compatible with Profibus DP, Modbus TCP/RTU, Foundation Fieldbus, and OPC UA protocols.
• Environmental Robustness:
  • Operating Temperature: -25°C to +70°C (-13°F to +158°F).
  • EMC Compliance: Meets IEC 61000-6-2/4 standards for industrial electromagnetic compatibility.
  • Vibration and Shock Resistance: Designed for harsh industrial environments.

2. Technical Specifications

3. Functional Capabilities

• Advanced Process Control:
  • Executes PID control, sequential logic, batch processing, and model predictive control (MPC).
  • Supports IEC 61131-3 programming languages, including Function Block Diagram (FBD), Structured Text (ST), and Sequential Function Chart (SFC).
• Diagnostics and Maintenance:
  • Real-Time Diagnostics: Monitors controller health, communication status, and I/O module errors.
  • Predictive Maintenance: Integrates with ABB’s Asset Vision for lifecycle management.
• Integration:
  • Seamless compatibility with ABB’s S800 I/O modules and Industrial IT 800xA DCS platform.
  • Connects to third-party PLCs, SCADA systems, and enterprise software via OPC UA, Modbus, or Profibus DP.

4. Applications

• Power Generation: Turbine control, boiler management, grid synchronization.
• Oil & Gas: Pipeline monitoring, offshore platform automation, safety shutdown systems.
• Chemical Plants: Reactor control, distillation column optimization, batch processing.
• Water Treatment: Pump station control, filtration systems, pH/flow regulation.

5. Advantages

• High Availability: Redundancy and fault-tolerant design ensure continuous operation.
• Scalability: Modular architecture supports system expansion with additional I/O or controllers.
• Interoperability: Open communication protocols enable integration with legacy and modern systems.
• Durability: Built to withstand extreme temperatures, vibration, and electromagnetic interference.

6. Software Tools

• Control Builder M: ABB’s engineering suite for configuring logic, programming, and testing automation strategies.
• 800xA Operator Workplace: Provides HMI visualization, alarm management, and historical data logging.

7. Ordering and Compatibility

• Replacement Part: Use part number 3BSE011181R1 for direct replacement in existing AC 800M systems.
• Compatible Systems:
  • Integrates with AC 800M controllers, S800 I/O, and ABB’s Symphony Plus platform.

8. Safety and Compliance

• Functional Safety: Supports SIL 2/3 applications when integrated with ABB’s SAFEmaster safety systems.
• Cybersecurity: Role-based access control and encrypted communication protocols (e.g., OPC UA with TLS).

The ABB PM511V16 3BSE011181R1 is a cornerstone of industrial automation, combining cutting-edge control capabilities with rugged reliability.
